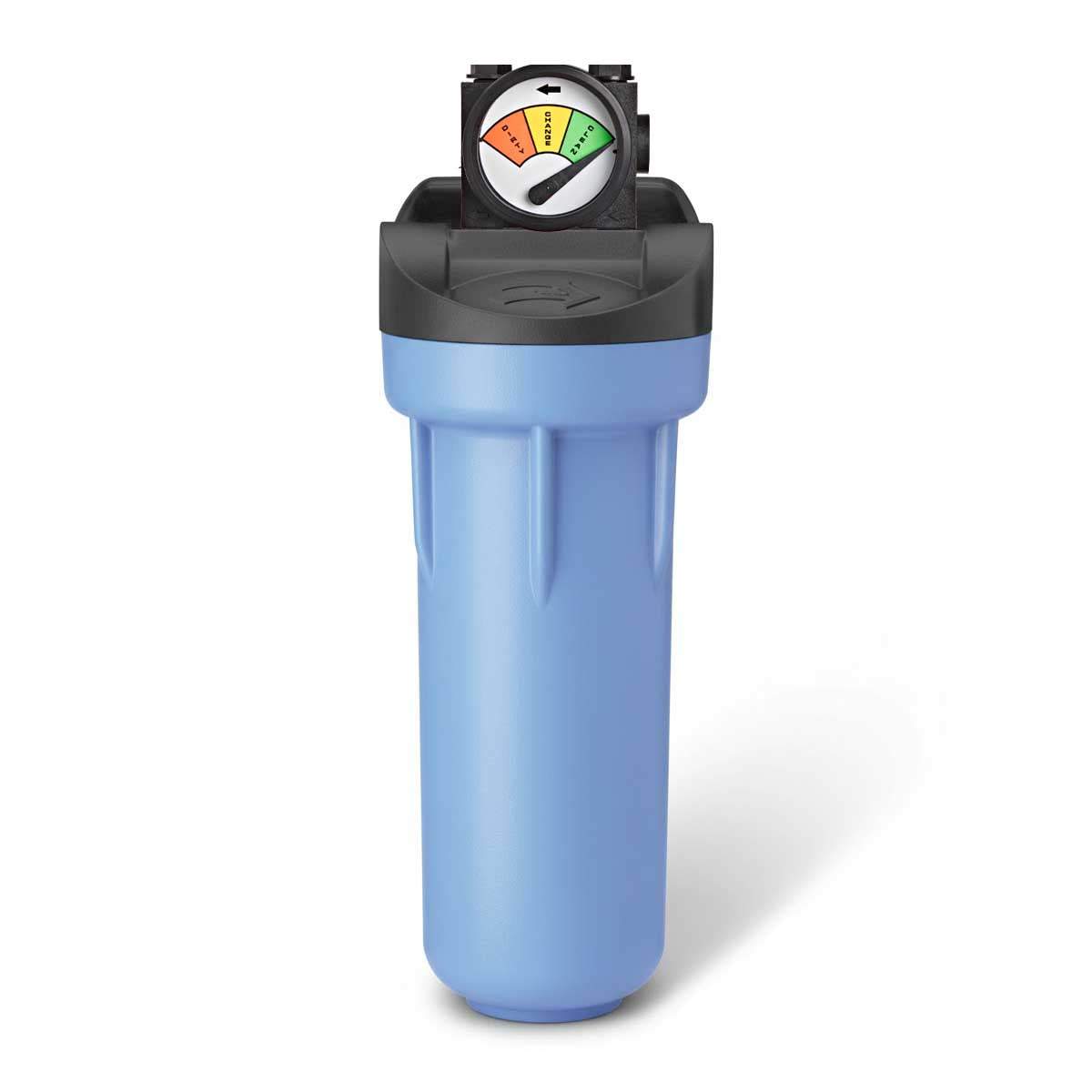

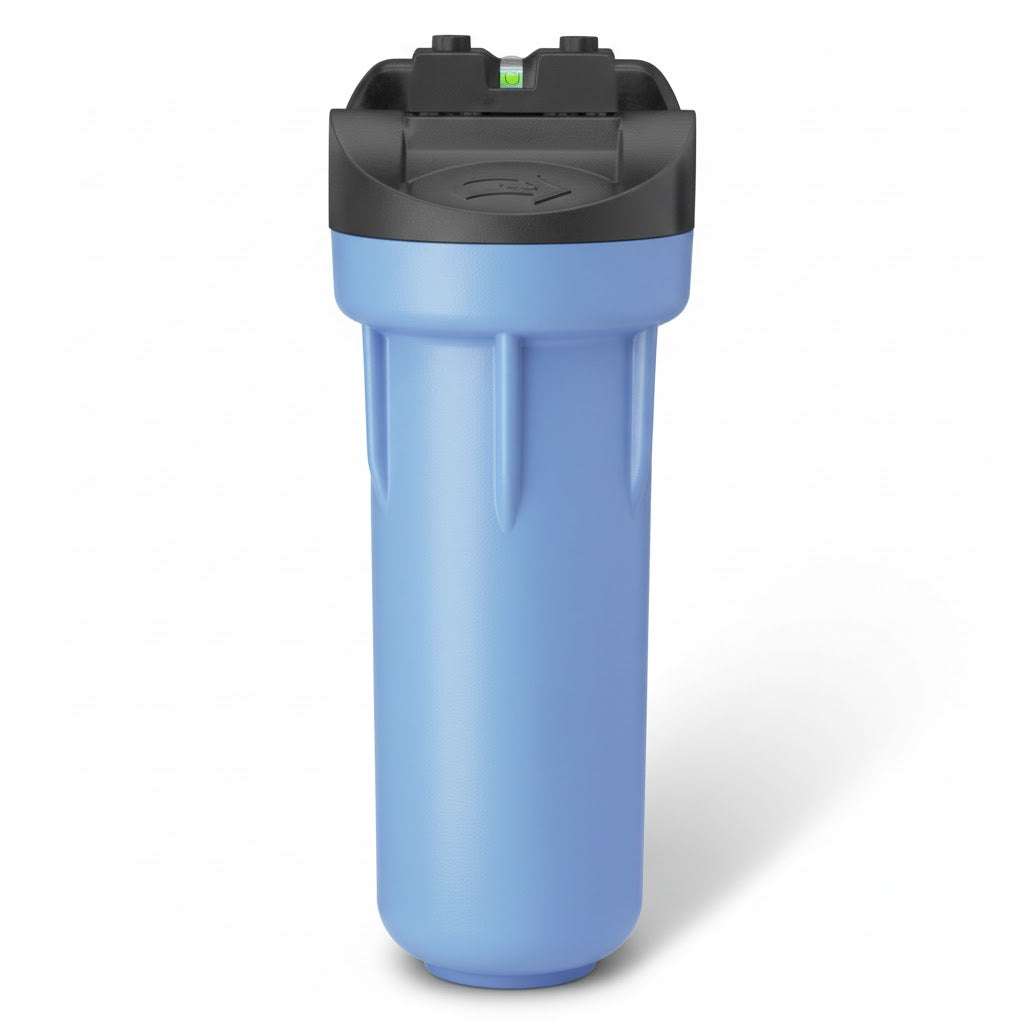

Pentair Pentek 3G Standard Series Housings feature integral brackets, 20" clear housings, and caps for differential pressure gauges. They accept standard double open end (DOE) and our O-ring sealing cartridges. The O-ring design offers enhanced cartridge sealing for critical cartridge applications.
3G Standard Filter Housings are manufactured from durable polypropylene or clear Styrene-Acrylonitrile (SAN). Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Clear sumps are manufactured from Styrene-Acrylonitrile (SAN). They offer on-site examination of the cartridge and have excellent chemical compatibility.
All are equipped with 3/4" BSP inlet and outlet ports. 3G Standard Filter Housings are available in 10" and 20" lengths and will accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges.
Features, Options, & Benefits

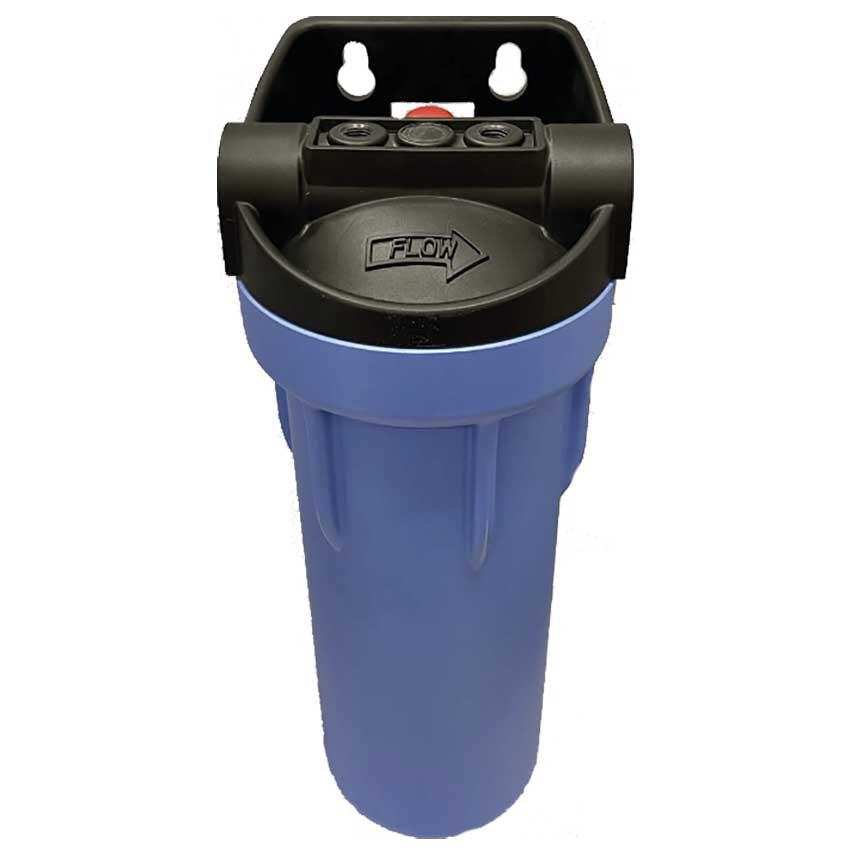

Integral bracket and mounting boss cap version available
Available in 10" and 20" sumps in clear and opaque
Buttress threads and uniform walls for easier cartridge change and improved strength
Accepts CG o-ring sealing cartridges as well as standard DOE cartridges
Optional pressure-relief/bleed button and differential pressure gauge
Leak-proof sealing with top-seated floating Buna-N o-ring
Housing - Polypropylene (opaque) or Styrene Acrylonitrile (clear)
Cap - Reinforced polypropylene
Button Assembly - 300-Series stainlesssteel, EPDM, and polypropylene
Temperature Rating - 4.4-51.7°C
Maximum Pressure - 125 psi (8.6 bar)
