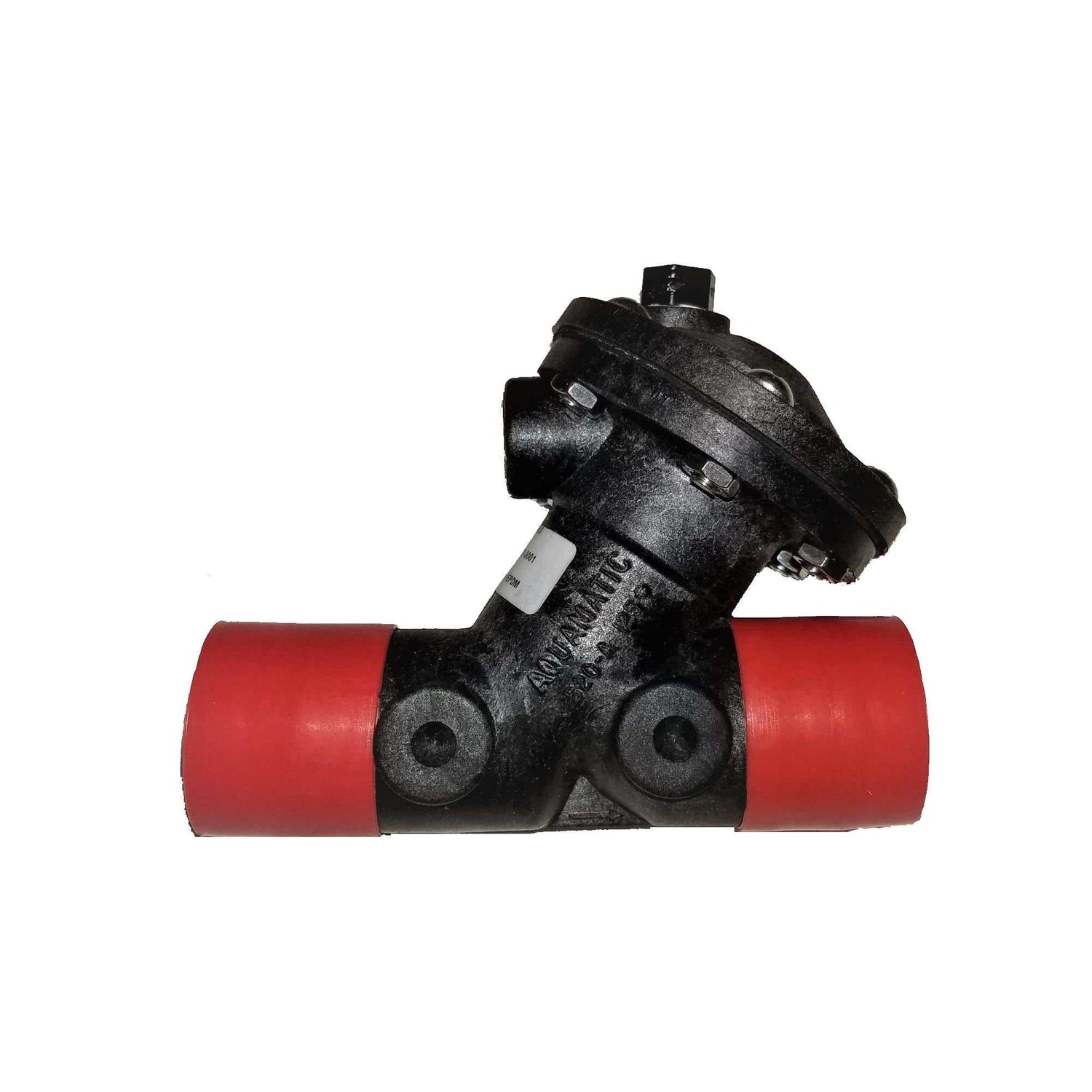

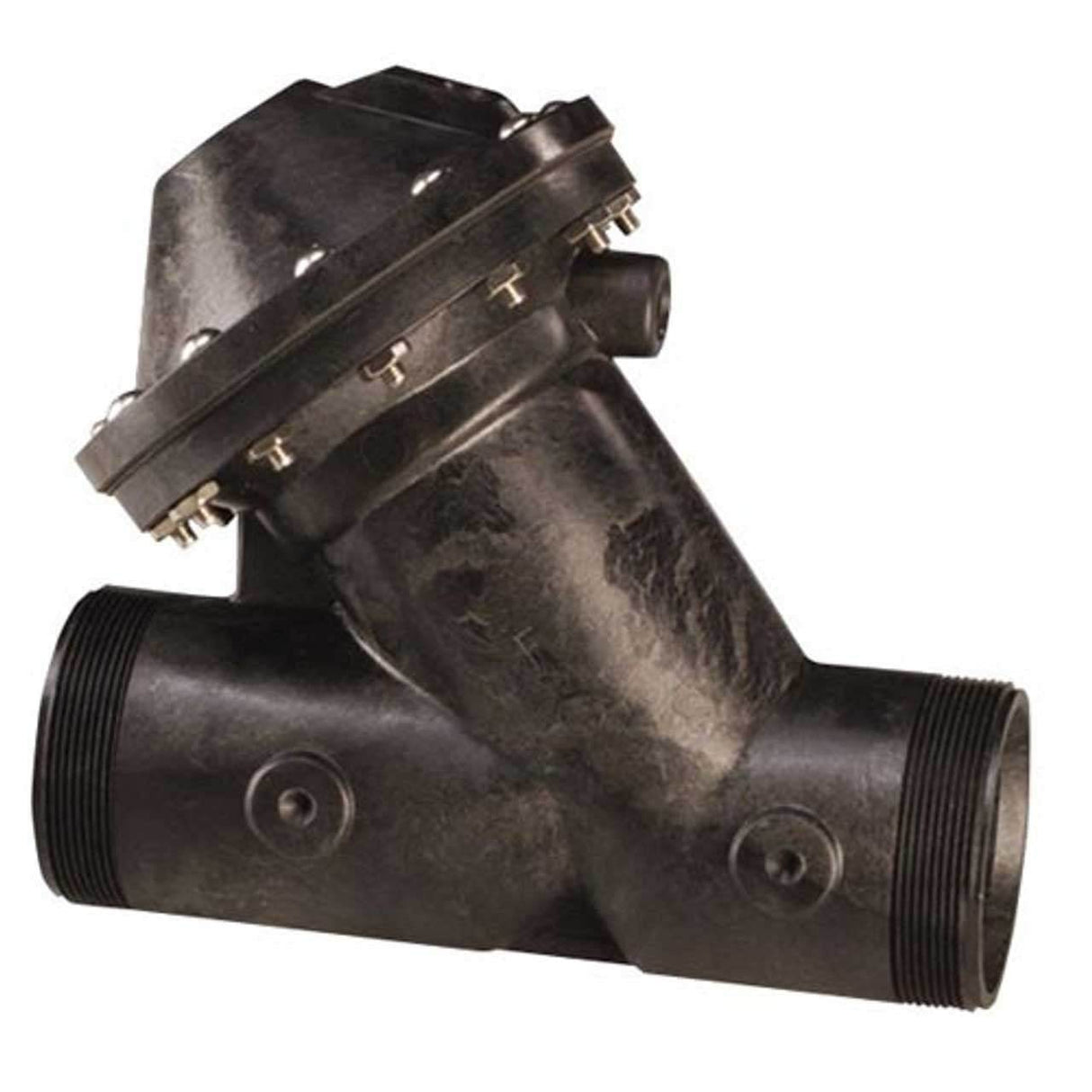

Aquamatic K520-X230-14000 1/2" 520 Valve Normally Closed
The Aquamatic K520-X230-14000 1/2" 520 Valve is a robust, normally closed solution designed specifically for demanding water treatment applications. Constructed with a durable glass-filled thermoplastic body, it resists corrosion, making it an excellent choice for handling deionized water and aggressive chemicals like acids and caustics. This valve is engineered to combine efficiency, reliability, and a long service life, even in the toughest environments.
Why Choose the Aquamatic K520-X230-14000 Valve?
Designed for precision and endurance, this valve is an ideal choice for projects that require corrosion resistance and high performance. Its normally closed configuration provides effective control over flow, ensuring optimal performance while reducing maintenance needs.
Key Features & Benefits
-
Enhanced Flow Efficiency
A large seat opening and high lift-disc design reduce pressure loss while allowing higher flow rates, boosting operational efficiency. -
Corrosion-Resistant Build
Molded with glass-filled thermoplastic, it ensures durability in harsh chemical environments, often outlasting traditional metal valves. -
Low Maintenance Design
Features separate flow and control chambers to simplify in-line servicing while protecting the diaphragm from damage caused by flow streams. -
Longevity & Responsiveness
Pre-formed, stress-relieved diaphragms reduce fatigue, enhancing valve responsiveness and extending its operational lifetime. -
Versatile Applications
Suited for handling acids, caustics, deionized water, and other harsh chemicals in water treatment systems.
Specifications
| Feature | Details |
|---|---|
| Part Number | K520-X230-14000 |
| Model | 520 |
| Pipe Size | 1/2" |
| Valve Option | Normally Closed |
| Seal/Diaphragm/Disk Material | EP / Buna / EP (RAN) |
| Drill & Tap Bosses | None |
| Solenoid Option | None |
| Approximate Ship Weight | 1.5 lbs |
| Construction Material | Glass-filled thermoplastic |
| Dimensions | 8 x 6 x 4 in. |
| Weight | 2 lbs |
Accessories & Options
- Spring assist for additional flow configurations.
- Position indicators for easy flow monitoring.
- Compatibility with the K55 isolated bonnet valve for enhanced functionality.
- Multiple seal and diaphragm material options to adapt to various applications.
Ideal Applications
- Water treatment plants handling corrosive substances.
- Systems requiring reliable flow control with reduced pressure loss.
- Operations frequently working with acids, caustics, or deionized water.
Order the Aquamatic K520-X230-14000 Today
Elevate your water treatment operations with the Aquamatic K520-X230-14000 Valve. Its durable design, reliable performance, and cost-effective maintenance make it an indispensable solution in any water treatment setup.
Order now and optimize your systems for efficiency and durability!
