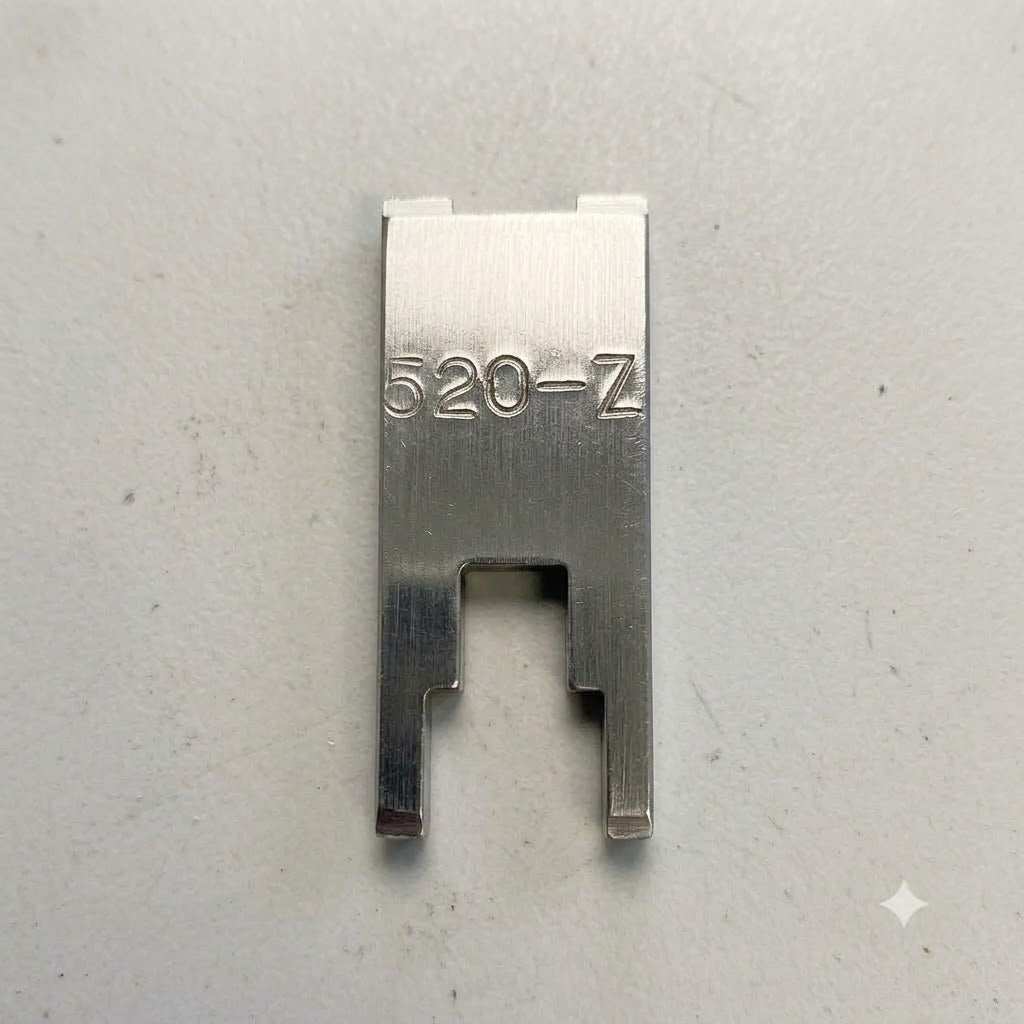

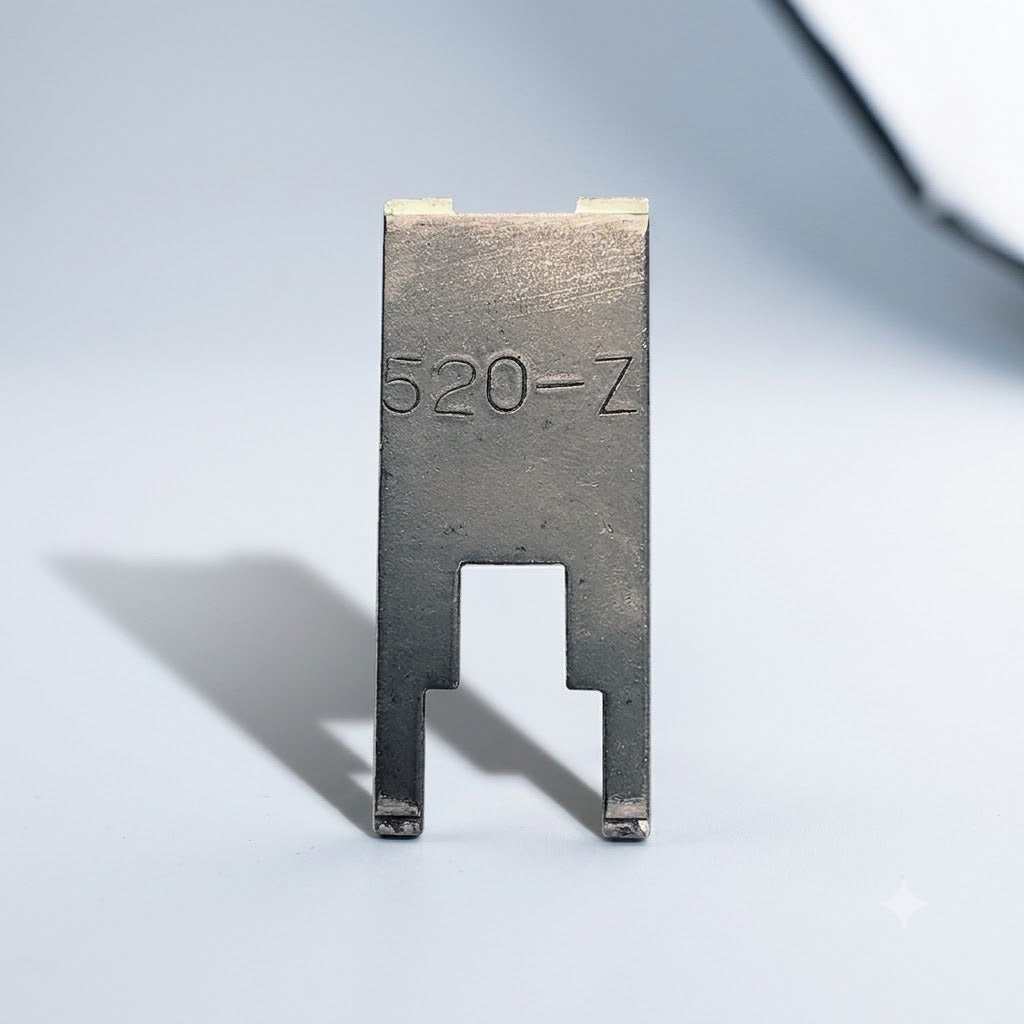

AquaMatic K520-Z Assembly Tool for K520 Series Valves

Maximize your facility's operational uptime and streamline routine valve maintenance with the Genuine AquaMatic K520-Z Assembly Tool (SKU: 1074989). Specifically engineered for the AquaMatic K520 Series (1/2-Inch) Composite Body Diaphragm Valves, this specialized tool ensures precise disassembly and reassembly of internal components without causing damage to fragile thermoplastic components.

Whether you are performing a routine seal replacement or installing an internal parts rebuild kit, the K520-Z tool is a critical asset for any industrial water treatment maintenance kit.

Key Features & Benefits

• Tailored for K520 Series Valves: Explicitly shaped to lock into the internal slots and shaft configurations of 1/2" AquaMatic K52 Series plastic diaphragm valves.

• Protects Valve Integrity: Prevents stripping, scratching, or warping of composite internals (like the disc holder, shaft guide, and plastic internal parts) that standard tools can cause.

• In-Line Service Efficiency: Supports AquaMatic’s signature in-line servicing feature, allowing you to rebuild internal components easily without completely cutting or disconnecting the valve from the piping system.

• Heavy-Duty Construction: Built from robust, industrial-grade metal to withstand repetitive field use in demanding commercial and industrial water environments.

Technical Specifications

Why Use the Genuine 520-Z Assembly Tool?

AquaMatic K520 valves are widely relied upon in deionized water systems, chemical processing, and caustic environments due to their corrosion-resistant composite builds. However, servicing these glass-filled thermoplastic valves requires precision. The K520-Z assembly tool provides the perfect mechanical leverage and structural alignment needed to tighten or loosen internal retention nuts and shaft guides safely, guaranteeing a leak-free, drip-tight seal every time.

Maintenance Tip: Always pair the K520-Z tool with genuine K520-RA Seal Kits (EP, Butyl, or Viton) and K520-RFN Internal Parts Kits to maintain your commercial system's NSF/ANSI lead-free compliance and warranty.
