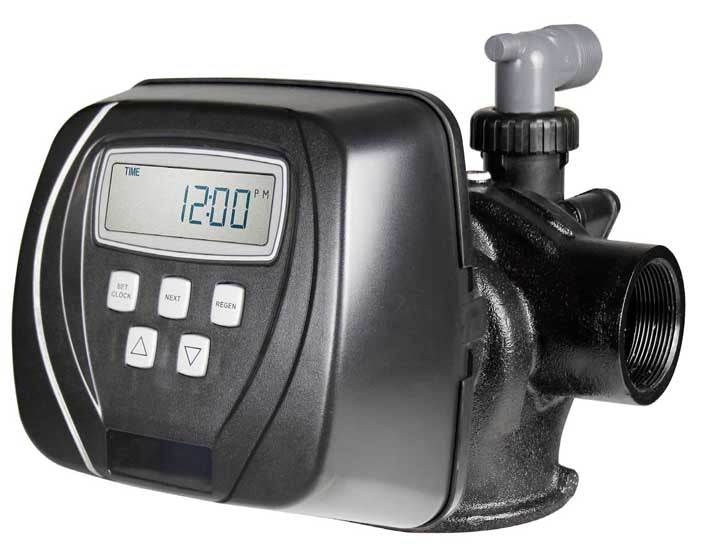

Clack WS2CI Softener Meter Controlled Valve 2" (Meter Assembly Included) V2CIDMD-05

Clack WS2CI Softener Meter Controlled Valve 2" (Meter Assembly Included) V2CIDMD-05

Overview
The Clack WS2CI Softener Meter Controlled Valve 2" is expertly engineered for commercial and industrial water treatment systems, ensuring precise control and efficiency in water softening applications.

Key Features:

• Sturdy Construction:

  • Built with lead-free brass for enhanced durability and safety.
  • Includes an economical stainless steel meter assembly for superior performance.

• High Flow Rates:

  • Provides a service flow rate of 435 lpm (26.1 m³/h) (115 gpm).
  • Backwash flow rate of 303 lpm (18.2 m³/h) (80 gpm).

• Sophisticated Microprocessor Control:

  • Features a solid-state microprocessor for reliable, seamless operation.
  • Front panel display offers easy access to critical data, such as time of day, days until the next regeneration, volume remaining, and current flow rate.

• Flexible Regeneration Methods:

  • Choose from four initiation methods: meter immediate, meter delayed, time clock delayed, or pressure differential.
  • Programmable regeneration cycle sequence with up to 9 stages for customized operations.
  • Days override feature available for 1-28 days to cater to specific scheduling needs.

• User-Friendly Configuration:

  • Programming options available in ppm, French degrees, German degrees, or cubic meters for versatile applications.
  • Equipped with a reliable 24-hour clock and a proven DC drive system.
  • Coin cell lithium battery backup ensures a 24-hour carryover for uninterrupted functionality.

Additional Information:

• Easy Installation:

  • Safe installation facilitated by a 12-volt AC adapter.
  • Offers pre or post-treated water regenerant refill options for enhanced adaptability.

• Important Note:

  • DLFC is not included and must be ordered separately.

Optimize your water softening system with the Clack WS2CI Softener Meter Controlled Valve, a dependable choice for delivering superior control and consistent water quality management in demanding environments.
