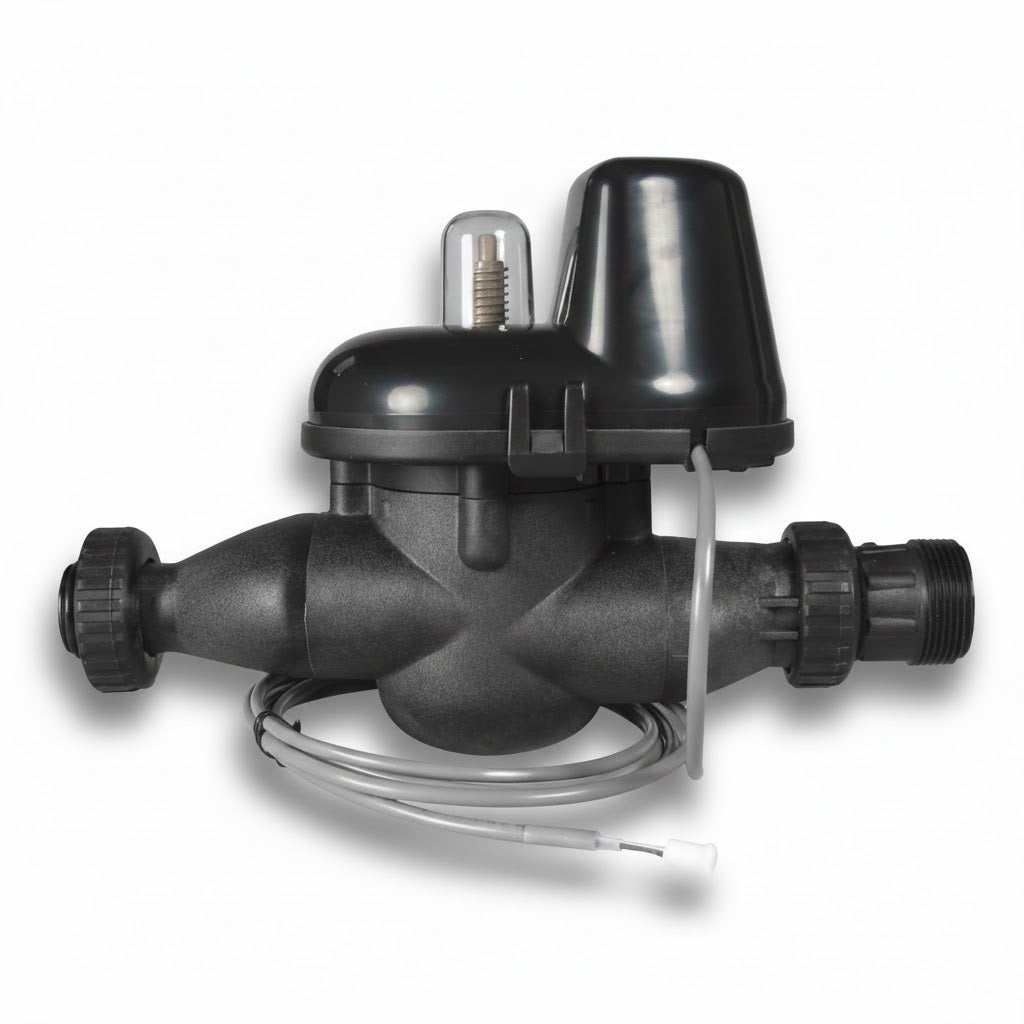

Clack V3070FF NHWBP No Hard Water Bypass Valve WS1 & WS1.25 (female x female)

Clack V3070FF NHWBP No Hard Water Bypass Valve WS1 & WS1.25

Product Overview:
Enhance your water treatment system with the Clack V3070FF NHWBP No Hard Water Bypass Valve WS1 & WS1.25, supplied by GAPS Water Treatment. This advanced bypass valve is meticulously designed to prevent raw water from bypassing during regeneration, ensuring consistent water quality and optimal system performance.

Features:

• Eliminates Raw Water Bypass: Ensures no untreated water bypasses the system during regeneration, maintaining water purity.
• Full 1.25” Ports: Minimizes pressure loss, promoting efficient flow and system performance.
• Low Voltage Drive Assembly: Operated via the valve’s circuit board for efficient and reliable functionality.
• Proven Clack DC Drive Assembly: Renowned for durability and reliable system support.
• Compatibility: Seamlessly integrates with WS1 and WS1.25 Control Valve Fittings.
• Optimized Flow Rates:
  • Port A to B: CV factor of 15.5, 3.7 psi drop at 30 gpm.
  • Port B to A: CV factor of 15.9, 3.6 psi drop at 30 gpm.
• Operating Specifications:
  • Pressure Range: 1.4 bar to 8.6 bar
  • Temperature Range: 4 °C to 43 °C

Benefits:

• Consistent Water Quality: By eliminating hard water bypass, the valve maintains high water quality throughout the regeneration process.
• Energy Efficiency: The low voltage drive helps reduce energy consumption, offering cost savings.
• Durability and Reliability: With proven components, this valve ensures long-lasting performance and minimal maintenance.

Specifications:

• Model: Clack V3070FF NHWBP
• Port Size: 1.25 inches (female x female)
• Pressure Range: 1.4 bar (min) to 8.6 bar (max)
• Temperature Range: 4 °C (min) to 43 °C (max)
• Flow Rates: CV factor of 15.5 (Port A to B), CV factor of 15.9 (Port B to A)

Optimize your water treatment system with the Clack V3070FF NHWBP No Hard Water Bypass Valve WS1 & WS1.25, supplied by GAPS Water Treatment, and enjoy enhanced system reliability and water quality.
