Clack V3260-BSP WS2H Side Mount Adaptor

SKU: 10440000079 | 5303022264
£312.67
Shipping calculated at checkout.

Technical Resources
Questions & Answers loading...

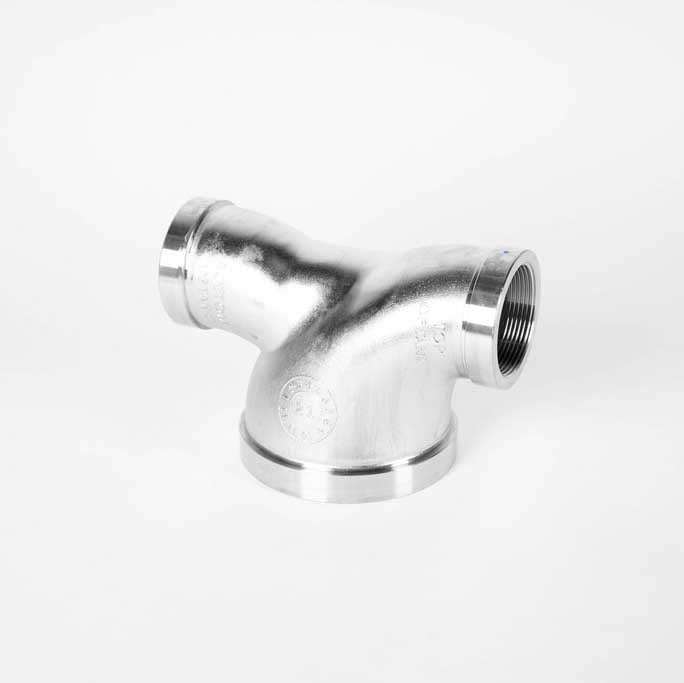

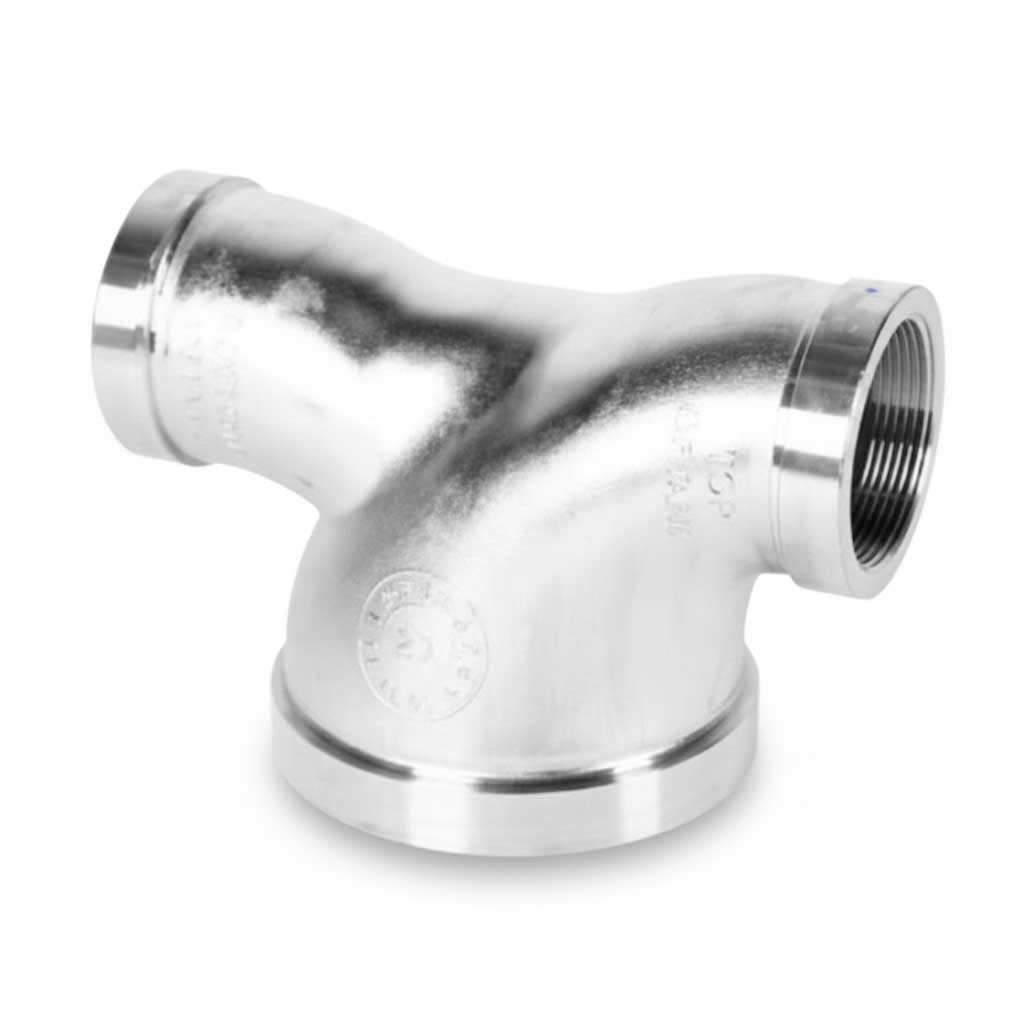

Clack V3260-BSP WS2H Side Mount Adaptor – 2" BSP

The Clack V3260-BSP WS2H Side Mount Adaptor is a genuine Clack component designed for installing compatible WS2H water treatment control valves onto the side of pressure vessels with top and bottom openings.

Designed for commercial and industrial water treatment systems, this robust side mount adaptor provides an alternative to conventional top-mounted valve installations, allowing the control valve to be positioned externally to the vessel.

Featuring 2" female BSPT connections, the adaptor is suitable for larger water softeners, activated carbon filters, multimedia filtration systems and other industrial water treatment applications.

Key Features

  • Genuine Clack Component – Designed for use with compatible Clack control valves.

  • Side Mount Configuration – Allows the control valve to be mounted externally to the pressure vessel.

  • 2" BSPT Connections – Female threaded inlet and outlet connections.

  • 2.5" Groove Lock Option – Alternative connection arrangement for compatible installations.

  • Commercial & Industrial Use – Suitable for larger water softening and filtration systems.

  • Durable Construction – Designed for reliable operation in demanding water treatment applications.

Technical Specifications

Specification Details
Manufacturer Clack Corporation
Product Reference V3260-BSP
Clack Assembly Reference V3260BSPT-02
Product Type Side Mount Adaptor
Valve Compatibility WS2H, WS2HF & WS2QC
Inlet / Outlet 2" Female BSPT
Alternative Connection 2.5" Groove Lock
Mounting Configuration Side Mount
Application Commercial & Industrial Water Treatment

Please Note: When fitting this side mount assembly to compatible BSPT valves, Clack specifies replacing the distributor pilot O-ring V3452 with V3280. Please ensure the adaptor and vessel connections are compatible before ordering.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the primary purpose of the Clack V3260-BSP WS2H Side Mount Adaptor?
The Clack V3260-BSP WS2H Side Mount Adaptor is designed to improve the versatility and efficiency of commercial water treatment systems, especially for vessels with 2" BSP connections.
How does the durable construction of the Clack V3260-BSP WS2H Side Mount Adaptor benefit my water treatment system?
Made from high-quality materials, this adaptor provides exceptional durability and can withstand demanding environments, reducing maintenance needs and ensuring long-lasting performance.
Is the Clack V3260-BSP WS2H Side Mount Adaptor suitable for large-scale commercial water systems?
Yes, it is exclusively designed for commercial use, meeting the challenging requirements of large-scale water treatment operations and allowing easy system integration and expansion.
What advantages does the Clack V3260-BSP WS2H Side Mount Adaptor offer in terms of system flexibility?
It supports adaptable system design by allowing adjustments in configuration, which helps cater to varied operational needs and enhances overall water treatment efficiency.
Can the Clack V3260-BSP WS2H Side Mount Adaptor help reduce system costs?
Yes, it provides a cost-effective option for maintaining and upgrading commercial systems without extensive modifications, minimizing downtime and supporting continuous operation.
