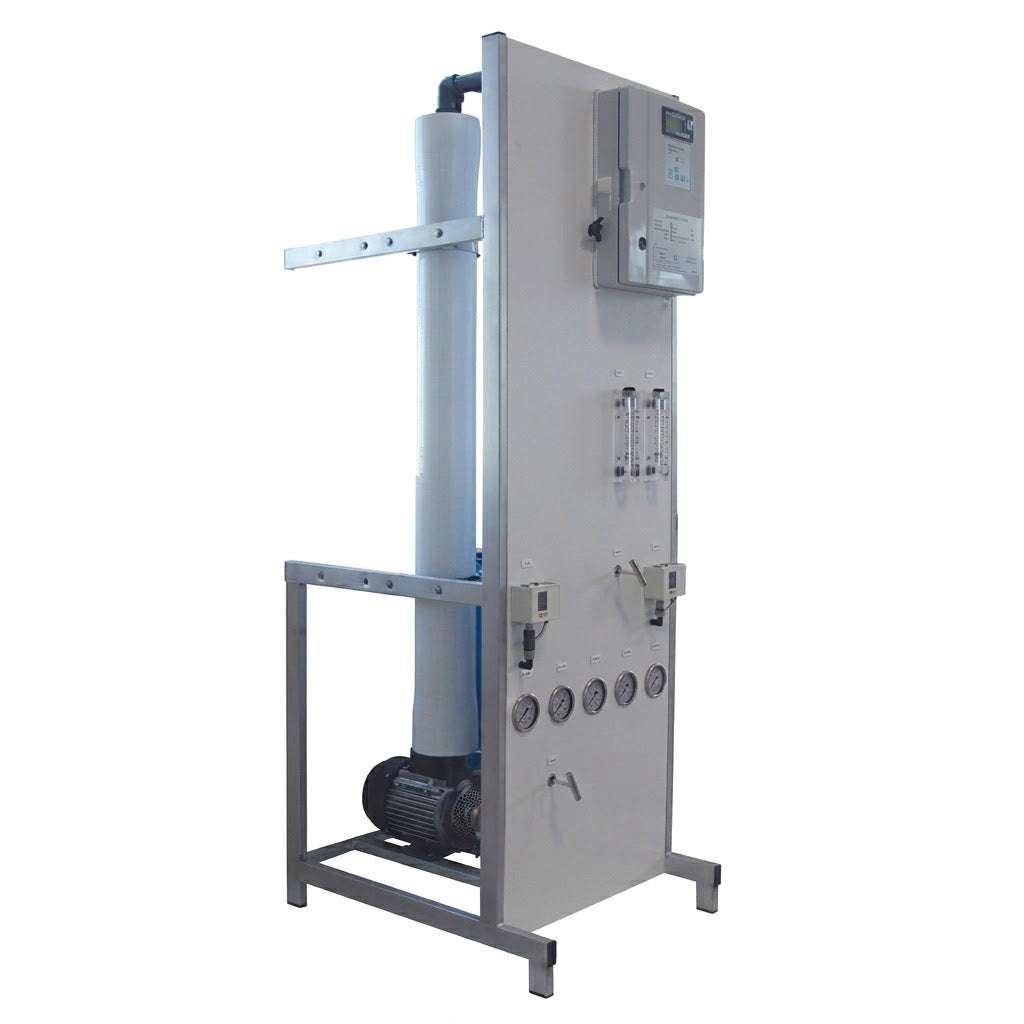

Aqualine Alfa-140 Reverse Osmosis System – 250L/hr

The Aqualine Alfa-140 Reverse Osmosis System is a high-performance water treatment solution with a capacity of 250 liters per hour. Designed to meet industrial and commercial demands, this system efficiently removes impurities from water sources within specific total dissolved solids (TDS) limits. It is ideal for purifying well water or other moderately high-conductivity water sources where classical purification systems fall short. However, this system is suitable for  water with TDS levels below 2000 ppm.

Key Features

Built with state-of-the-art components, the Aqualine Alfa-440 ensures reliable operation and exceptional performance.

• Grundfos CM 1-10 Pump: Single-phase centrifugal pump delivers consistent and dependable pressure.
• 1 x LG BW 4040 UES Membranes: High-quality reverse osmosis membrane elements ensure superior water filtration and durability.
• Membrane Vessels: Constructed with FRP or Stainless Steel for enhanced structural strength and longevity.
• Stainless Steel Frame (SS304): Provides corrosion resistance and a sturdy base for long-term use.
• 5-Micron Cartridge Filter: Captures fine particles to protect internal components and improve filtration efficiency.
• Low and High-Pressure Piping: Made with durable U-PVC/Zonder PN20 materials to withstand pressure variations.
• Pressure Adjustment Valves: Enables precise control at the pump outlet and wastewater line.
• Flow Meters: Includes product water, wastewater, and reverse cycle flow meters (reverse cycle only available in higher models).
• Glycerin-Filled Manometers: Offers accurate pressure readings to aid in efficient system operation.
• Product Water Conductivity Meter (0-2000 µS/cm): Ensures consistent monitoring of water quality.
• Autoflush System: Extends membrane life by automatically cleaning the system during operation.
• RO Electronic Control Card: Features alarms and position indicators for easy troubleshooting.
• Power Supply: 220V/50Hz/1ph
• IP56 Control Panel: Ensures the control panel is protected against dust and water ingress, offering reliable performance in demanding conditions.

Enhanced Recovery Rate

The Aqualine Alfa-140 boasts an RO recovery rate of 75%, allowing for reduced water wastage. This makes it a highly efficient choice for water treatment in operations where resource conservation is critical.

Recommended Water Parameters

To ensure optimal system performance, the inlet water must meet the following requirements:

• Total Dissolved Solids (TDS): 0 - 2000 ppm (not suitable for seawater or water above 2000 ppm).
• Pressure Range: 2 to 5 bar
• pH Range: 6 to 8
• Silica Tolerance: Maximum of 25 ppm
• Iron Levels: Up to 0.05 ppm (up to 0.2 ppm with ASC dosing)
• Temperature Range: 10ºC - 30ºC
• SDI (Silt Density Index): Less than 5
• Free from oil, grease, turbidity (NTU < 1), and microbiological contamination

Benefits of the Aqualine Alfa-140

• Exceptional Water Quality: Effectively removes up to 99% of harmful impurities and dissolved solids, ensuring safe and purified water.
• High Efficiency: The 75% recovery rate minimizes water waste while maximizing system output.
• Robust and Durable Design: Premium-grade stainless steel frame and high-performance components ensure long-term reliability.
• Simplified Operation: User-friendly control interface with alarms and indicators for easy monitoring and adjustments.
• Cost-Effective Maintenance: With the autoflush system and durable materials, the system reduces the need for frequent servicing.

The Aqualine Alfa-140 Reverse Osmosis System is a powerful yet selective solution for water treatment. Its advanced engineering and high recovery rate make it a reliable choice for industries and businesses requiring pure water. However, it is unsuitable for seawater purification or applications requiring treatment of water with TDS levels exceeding 2000 ppm. For optimal performance and durability, choose the Alfa-440 within its recommended application range.
