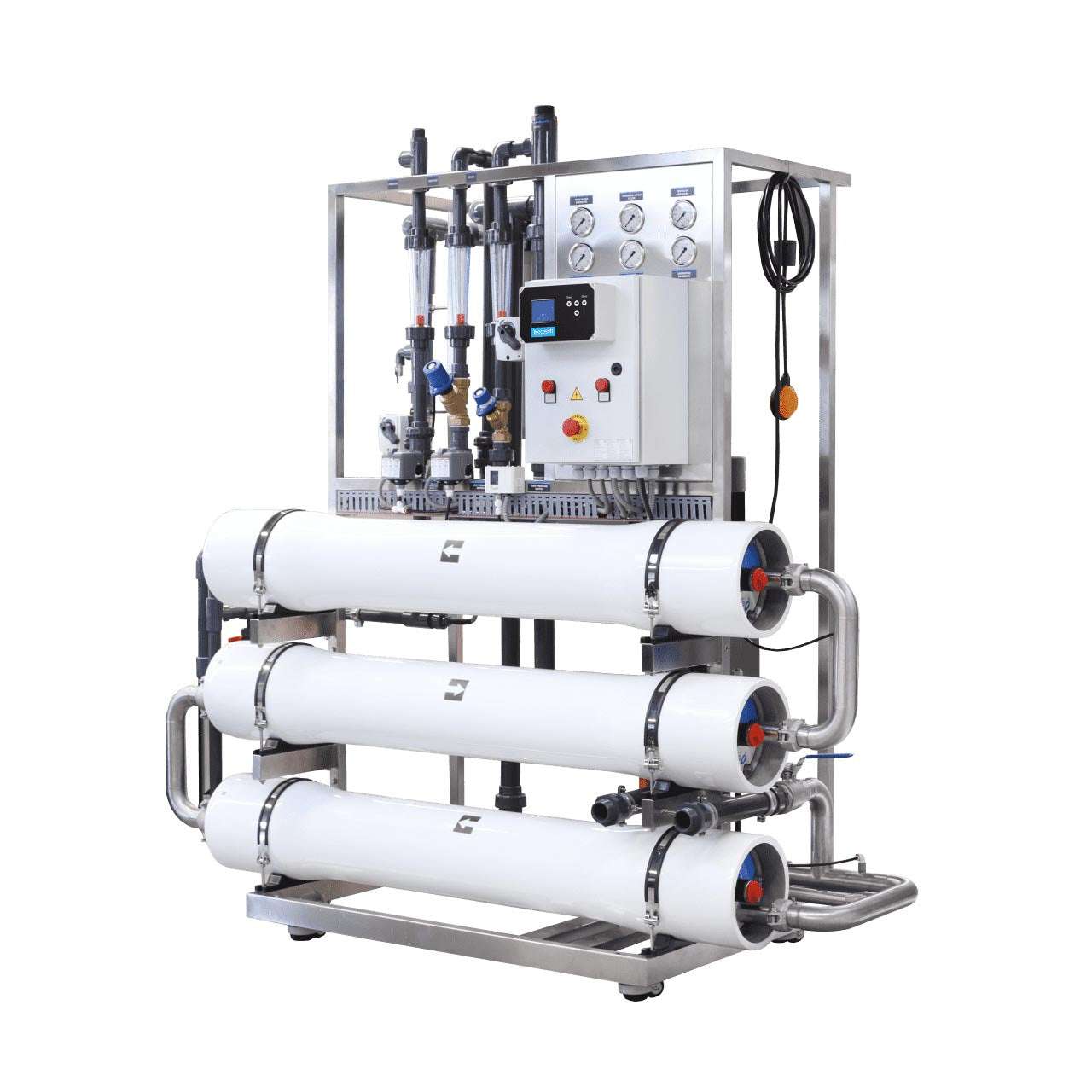

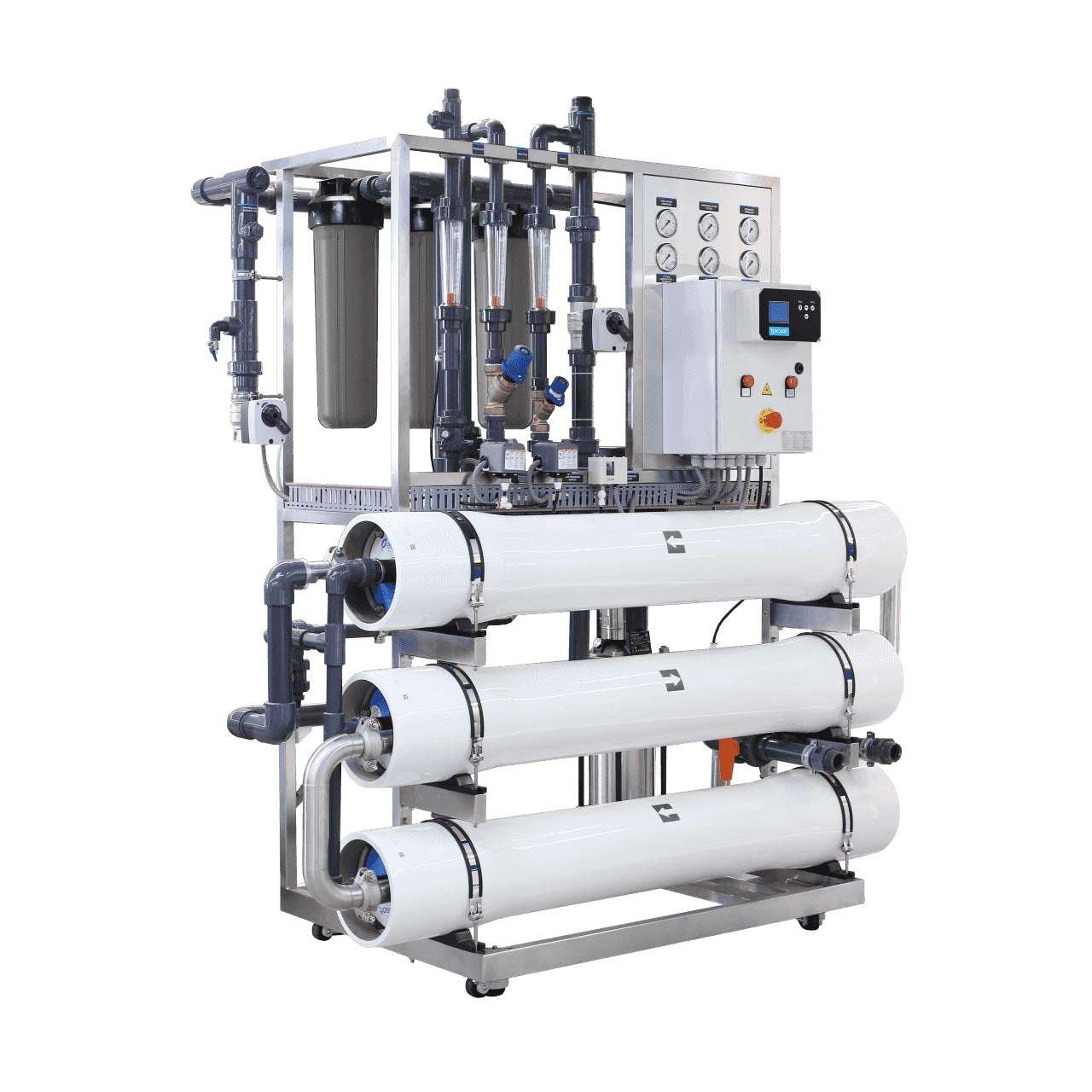

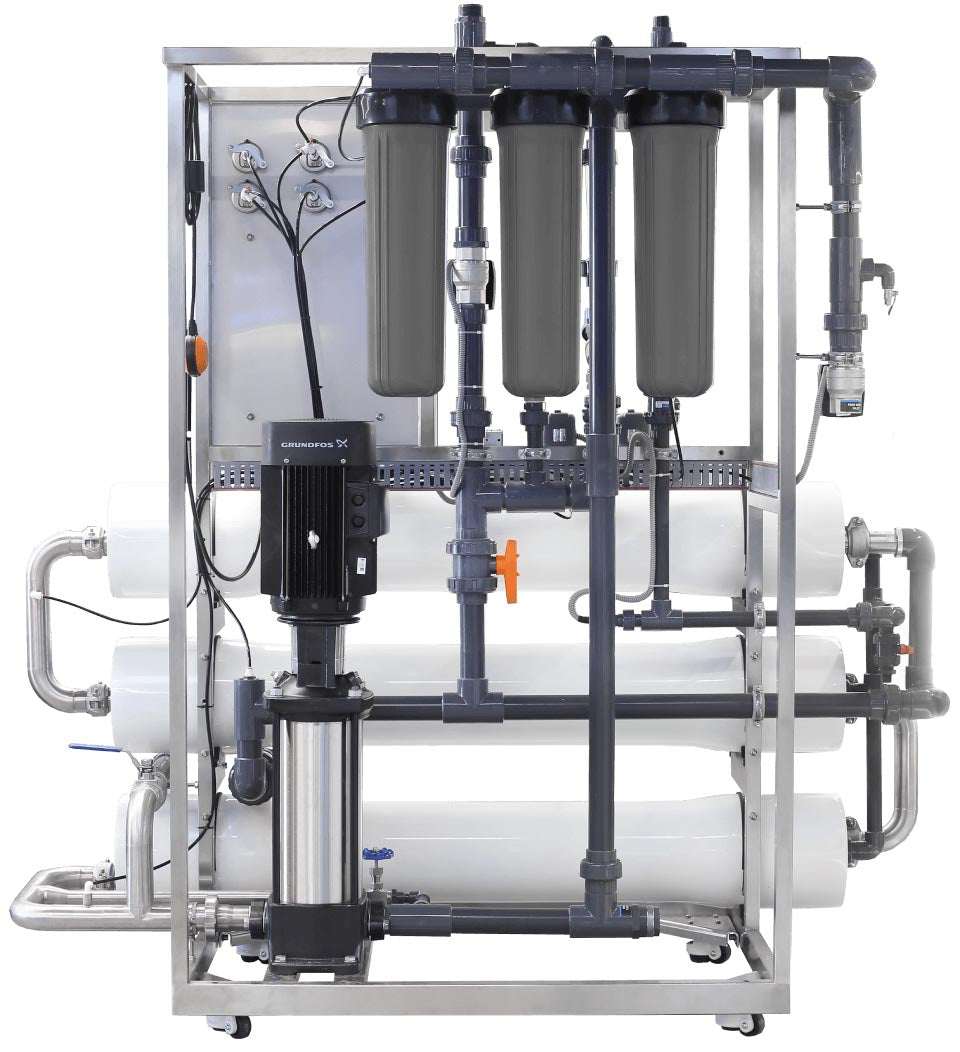

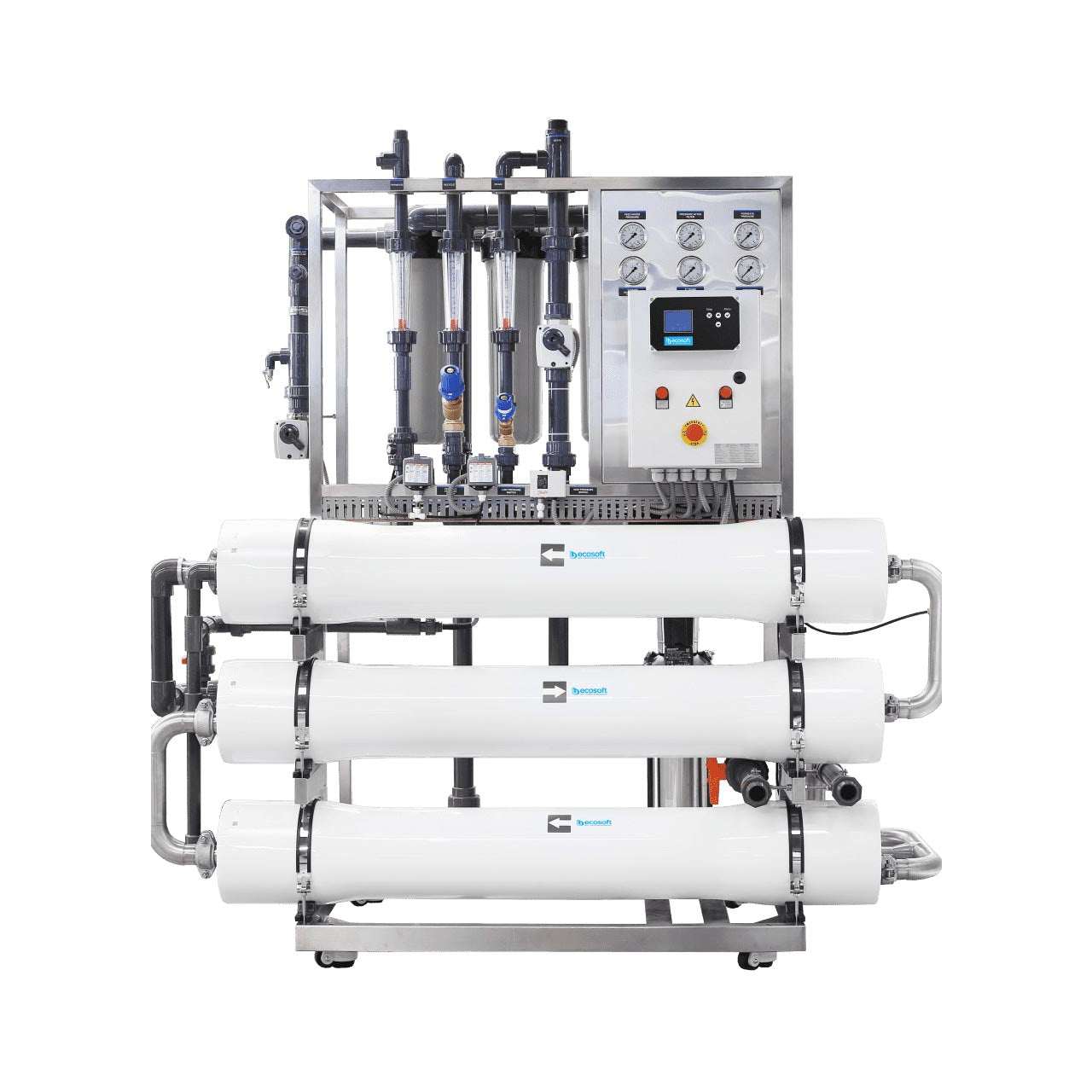

Ecosoft INOX IoT MO3 8" Reverse Osmosis System
The Ecosoft INOX IoT MO3 reverse osmosis (RO) system is a high-performance water purification solution designed to deliver up to 30,000 liters of high-purity water per day. Engineered for industrial applications, this system combines cutting-edge automation, IoT monitoring, and robust stainless steel construction for maximum efficiency and reliability.
Why Choose Ecosoft INOX MO3?
-
Streamlined Monitoring with IoT Connectivity
Powered by the Econnect module, this system lets you monitor performance remotely, ensuring seamless operation and minimizing downtime. -
Advanced Automation
Featuring the OC5000 controller with an intuitive LCD interface, the Ecosoft MO3 system automates operations, diagnostics, and system adjustments for hassle-free management. -
Durable Stainless Steel Construction
The high-pressure pipeline (AISI 316) and frame (AISI 304) ensure reliable, long-term operation in demanding industrial settings. -
Energy-Efficient Performance
Equipped with a Grundfos® high-pressure pump, the system achieves stable flow, reduced energy consumption, and optimized performance.
Technical Highlights
Performance
- Permeate Capacity: 3-4 m³/h (30,000 liters/day)
- Recovery Rate: 75%
- Maximum TDS Handling: Up to 4500 mg/L
- Operating Pressure: 8–12 bar
- Power Consumption: 4 kW
Specifications Table
| Component | Details |
|---|---|
| Pump | Grundfos® CR 10-12 |
| Membrane Housings | 3 pcs of 8040 housing |
| Sediment Prefilter | 3 pcs (BB20) |
| Valves | 2 motorized, 2 balancing |
| Controller | OC5000 with LCD |
| High-Pressure Line | AISI 316 stainless steel |
| Frame | AISI 304 stainless steel |
| Frame Casters | Included for portability |
Feed Water Requirements
| Parameter | Value |
|---|---|
| TDS | Up to 4500 mg/L |
| Hardness | 150 mg/L as CaCO₃ |
| Iron | 0.1 mg/L |
| Manganese | 0.05 mg/L |
| Silicates | 20 mg/L |
| Residual Chlorine | 0.1 mg/L |
| Hydrogen Sulfide | None |
| Minimum Feed Pressure | 2 bar |
| SDI | 5 |
| COD | 4 mg/L O₂ |
Connection Dimensions
- Influent Water: G 1½″
- Permeate Outlet: G 1″
- Concentrate Outlet: G 1½″
- CIP Ports: G 1½″
Key Features
-
Remote IoT Monitoring
Stay connected and in control with real-time data through the Econnect platform. -
Durable and Reliable Build
Stainless steel components withstand high pressures and harsh environments, ensuring long-term durability. -
Customizable Options
Predesigned membrane options, dosing pumps, and additional features allow for tailored solutions. -
Energy Efficiency and Warranty
The Grundfos® pump ensures energy savings and comes with a global warranty for peace of mind.
Applications
Ideal for applications requiring consistent, high-purity water, such as food and beverage production, pharmaceutical manufacturing, and chemical processing.
Boost your industrial water purification process with the Ecosoft INOX IoT MO3 system. Engineered to perform, built to last, and designed to adapt to your needs.
Contact us today to learn more about the Ecosoft MO3 and unlock the potential of advanced water treatment for your facilities!
