Ecosoft INOX IoT MO9 8" reverse osmosis system 9-12 m3/hr
Ecosoft INOX IoT MO9 8" reverse osmosis system 9-12 m3/hr

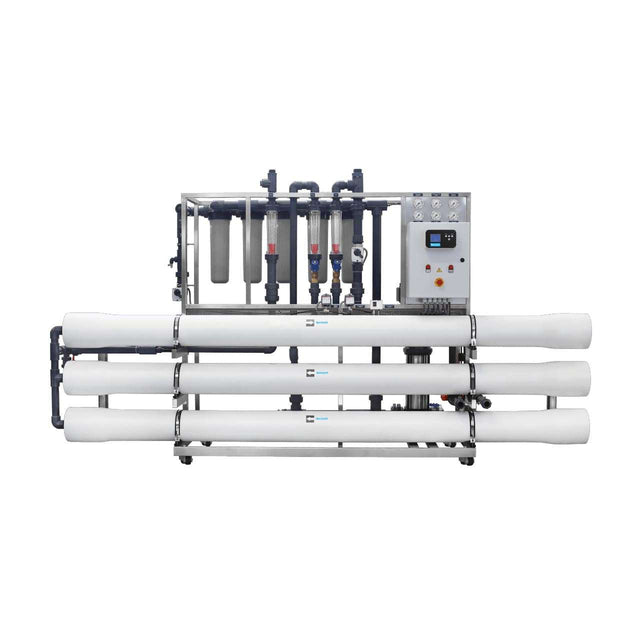

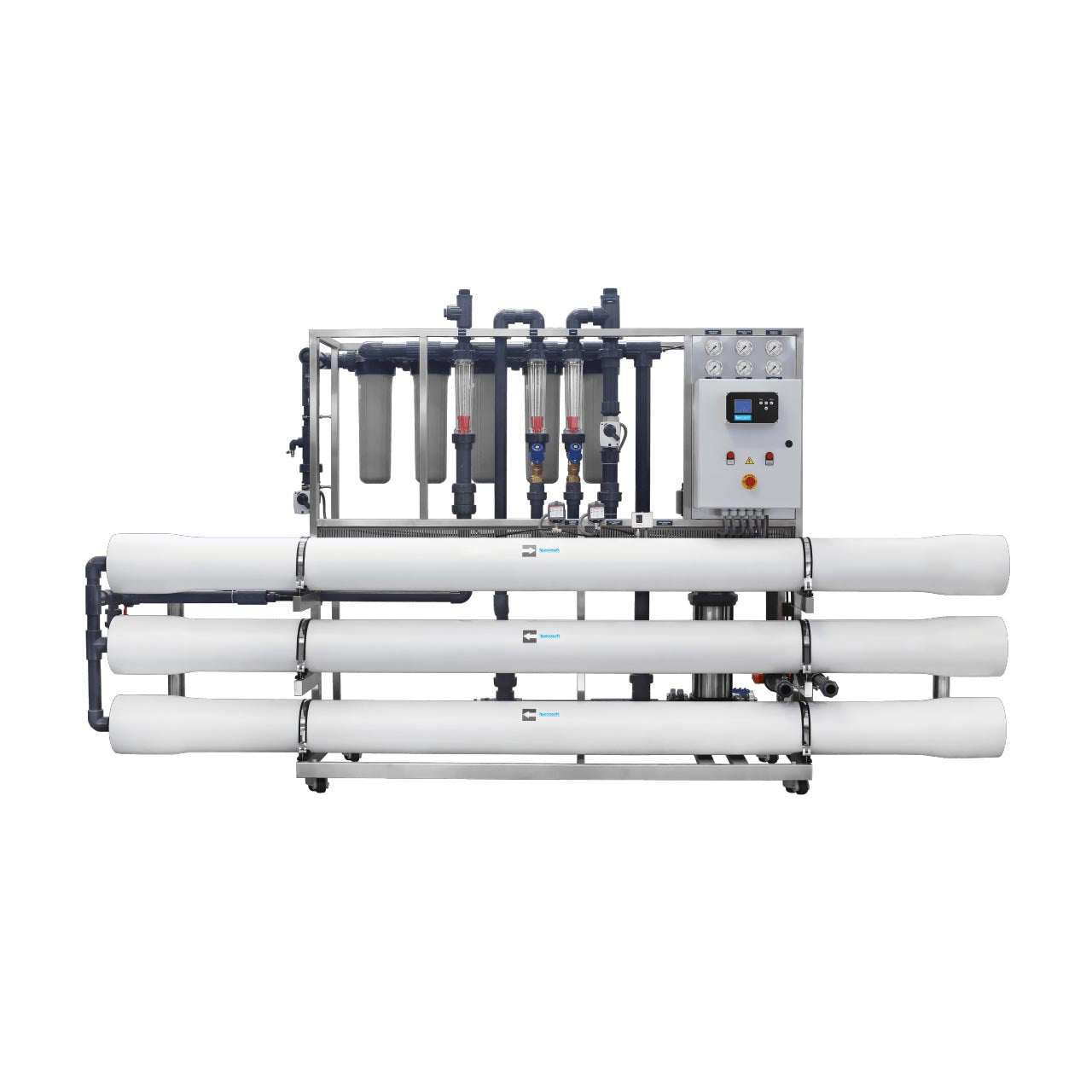

Ecosoft INOX IoT MO9 8" Reverse Osmosis System
The Ecosoft INOX IoT MO9 is the ultimate solution for industrial water purification, delivering a remarkable capacity of 90,000 liters per day. Designed for heavy-duty performance, it combines IoT-powered control, advanced automation, and high-quality stainless steel components, making it ideal for even the most demanding applications.
Why Choose the Ecosoft INOX MO9?
-
Smart IoT Technology
Featuring the advanced Econnect IoT module, the MO9 allows remote monitoring and control, ensuring smooth, uninterrupted operations. -
Automated System Control
The OC5000 controller with an intuitive LCD interface simplifies operations with real-time diagnostics and automated adjustments for optimal functionality. -
Stainless Steel for Heavy Loads
Built with AISI 316 stainless steel high-pressure pipelines and an AISI 304 stainless steel frame, this system ensures durability and reliability in industrial environments. -
Stable and Energy-Efficient Performance
Equipped with a Grundfos® pump, the MO9 provides consistent water flow, reduced operational costs, and a global warranty for added peace of mind.
Technical Highlights
Performance
- Permeate Capacity: 9–12 m³/h
- Recovery Rate: 75%
- Maximum TDS Handling: 4500 mg/L
- Operating Pressure: 8–12 bar
- Power Consumption: 7.5 kW
Specifications Table
| Component | Details |
|---|---|
| Pump | Grundfos® |
| Controller | OC5000 with LCD |
| High-Pressure Line | AISI 316 stainless steel |
| Frame | AISI 304 stainless steel |
| IoT Module | Econnect for remote monitoring |
Feed Water Requirements
| Parameter | Value |
|---|---|
| TDS | Up to 4500 mg/L |
| Hardness | 150 mg/L as CaCO₃ |
| Iron | 0.1 mg/L |
| Manganese | 0.05 mg/L |
| Silicates | 20 mg/L |
| Residual Chlorine | 0.1 mg/L |
| Hydrogen Sulfide | None |
| Minimum Feed Pressure | 2 bar |
| SDI | 5 |
| COD | 4 mg/L O₂ |
Connection Dimensions
- Influent Water: G 2″
- Permeate Outlet: G 1½″
- Concentrate Outlet: G 2″
Key Features
-
IoT Control for Efficiency
The Econnect module offers real-time monitoring and diagnostics to boost efficiency and minimize downtime. -
Durable Stainless Steel Build
Designed to endure high pressure and industrial wear, the pipelines and frame ensure longevity even in harsh environments. -
Flexible and Reliable Operation
Adjust flow rates to suit varying feed water conditions. Ideal for custom configurations with predesigned membrane and dosing pump options. -
Energy Savings with Consistent Flow
The Grundfos pump ensures stable water output while conserving energy, making it a cost-effective solution.
Applications
The Ecosoft INOX MO9 is perfect for industries requiring large amounts of purified water, such as manufacturing, chemical processing, and pharmaceuticals. Its robust design and powerful capacity make it the ultimate choice for continuous, high-demand operations.
Revolutionize your industrial water treatment with the Ecosoft INOX IoT MO9 system.
Contact us today to learn more about how the MO9 can elevate your water purification process!
