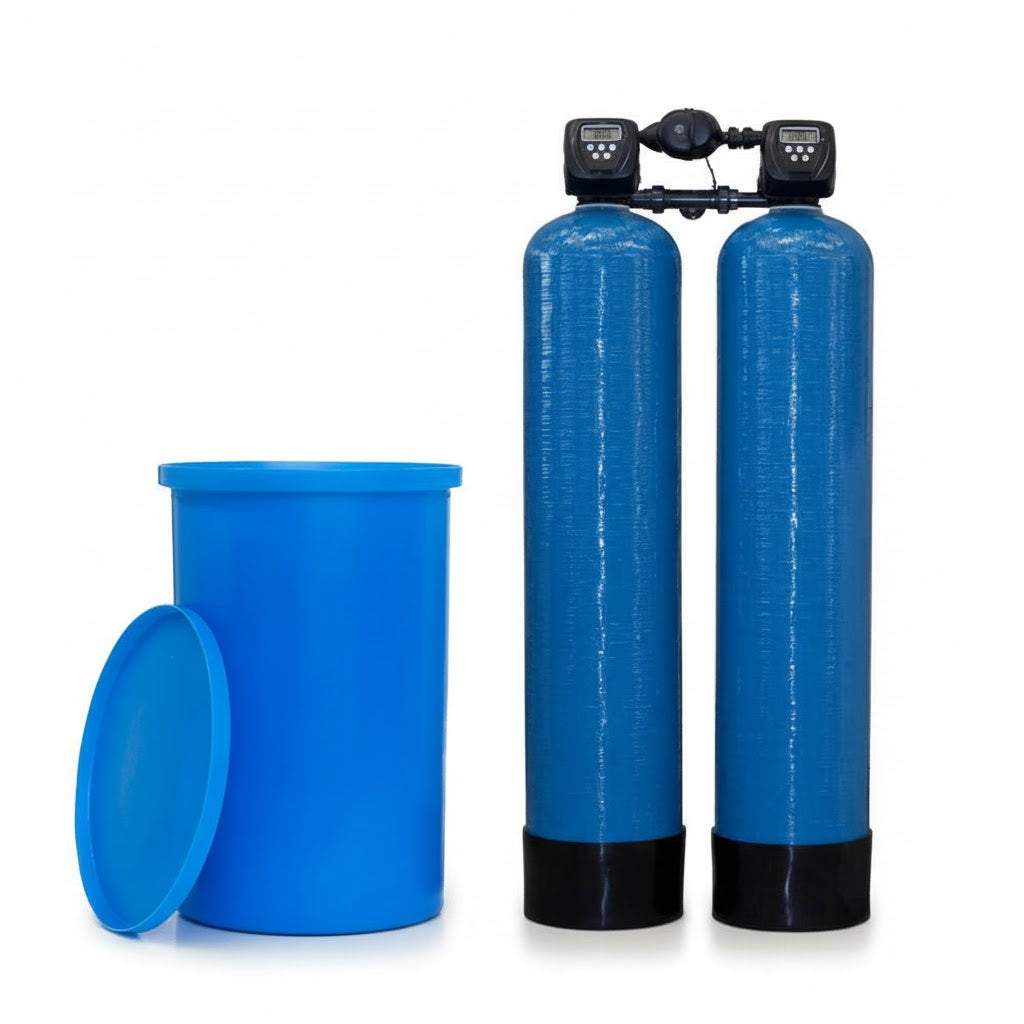

Duplex Water Softener with Clack WS2 CI Metered Digital Controller

Efficient Water Softening for Commercial Use

The Duplex Water Softener with Clack WS2 CI Metered Digital Controller is engineered to provide reliable and efficient water softening for commercial applications. Designed with advanced features, this system ensures optimal water quality and operational consistency.

Key Features

• Dual Vessel Design: Comprising two vessels filled with softening resin, the system alternates between duty and standby modes for continuous operation.
• Metered Digital Control: The Clack WS2 CI controller offers precise monitoring and adjustment, maximizing system efficiency.
• Flow Rate Capacity: Various sizes available to handle flow rates from 8.0 to 26.0 m³/hr, suitable for various commercial requirements.

Benefits

• Improved Water Quality: Effectively reduces water hardness, delivering softened water that is ideal for diverse applications.
• Durability: Constructed with high-quality materials including robust vessels and a reliable brine tank setup, ensuring long-lasting performance.
• Ease of Installation: Supplied partially assembled with clear instructions, facilitating quick and straightforward installation.

Technical Details

• Connection Sizes: Equipped with 2" in/out connections for seamless integration.
• Regeneration Efficiency: Designed to regenerate when the duty vessel is saturated, transitioning automatically to ensure uninterrupted service.
• Recommended Conditions: Systems are typically sized to maintain a 12-hour interval between regenerations, optimizing performance.

Application

Perfect for commercial water treatment systems, the Duplex Water Softener with Clack WS2 CI offers a dependable solution to maintain high water quality standards and prolong the lifespan of water-using equipment. Choose this system to meet your commercial water softening needs efficiently and effectively.

*total weight of the unit without water or filled brine tank
**sizes may vary dependent on components used and should only be used as a guide.

THIS KIT MUST BE PARTIALLY ASSEMBLED AND PROGRAMMED IN OUR WORK SHOP - CONTACT US FOR LEAD TIME

General conditions for installation

Connection IN & OUT: 1.5"
Drain connection(*): 3/4", 1" or 1.25" dependent on flow
Electrical rating: 230V 50Hz 12V Transformer
Max power rating: 6W
IP protection class: Double isolated transformer
Minimum inlet pressure: 200 kPa (2 bar)
Maximum inlet pressure: 600 kPa (6 bar)
Vacuum: no allowance
Average pressure loss (**): 100 kPa (1 bar)
Min-max water temperature: 5-35°C

Remarks
(*) Dependent on Drain line flow control.
(**) Under normal circumstances.
It is always recommended to install a 25 micron cartridge filter before a softener.

Resin

Type: Strong acid cation resin - softening ,food grade quality
Life span: 15 years under normal circumstances

Ion exchange ( for average salt consumption of 150 g/L )

Regeneration

Start: Default Time 2:00 am, set on the timer as ( delayed regeneration )
Options: TIME - VOLUME - IMMEDIATE - DELAYED - DAYS OVERRIDE and manual regeneration.

Remarks
The interval between regenerations should not be more than 14 days, to prevent bacteria growth.

Flow Rate

Consumption of Rinse Water

Note: We recommend purchasing the Clack Duplex Interconnect Pipe kit to facilitate an easier installation.
