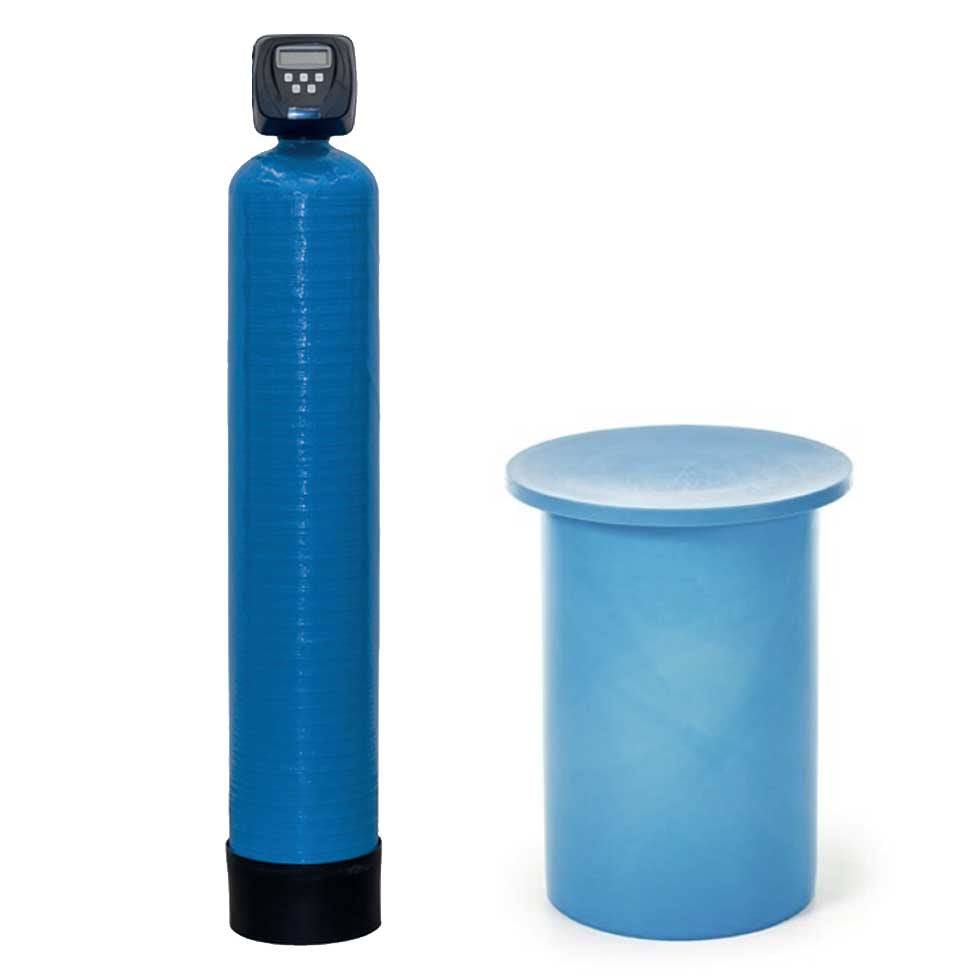

Simplex Clack Metered Counter Current Softener (Up Flow Brining)
Simplex Clack Metered Counter Current Softener (Up Flow Brining)
Upgrade your water softening system with the Simplex Clack Metered Counter Current Softener (Up Flow Brining). Designed to utilize innovative up-flow brining technology, this softener ensures optimum performance while reducing both salt usage and environmental impact.
The Edge of Counter Current Softening
Unlike traditional downflow systems, counter current softening regenerates the resin bed from the bottom up. This process ensures that the resin at the base is fully regenerated, reducing the risk of hard water slipping through and improving overall efficiency.
Benefits of Counter Current Softening:
- Salt Savings: Use 5-10% less salt without sacrificing capacity.
- Water Conservation: Regenerates using less water, making it eco-friendly.
- Enhanced Performance: Prevents hardness breakthroughs, ensuring consistent results.
- Lower Environmental Impact: Produces less brine discharge for sustainable water treatment.
Why Choose the Simplex Clack Metered Softener?
The Simplex Clack series delivers unparalleled performance with models tailored for residential and commercial needs. These softeners combine durability, efficiency, and eco-conscious features for outstanding long-term value.
Key Features:
- Cost-Efficient Operation: Save money with reduced salt and water consumption.
- Advanced Metering: Intelligent controls optimize the regeneration cycle.
- Durability: Built for robust, long-term use in demanding applications.
- Sustainability: Meets green standards with lower resource requirements.
Product Specifications
Choose from three model options to suit your specific water softening requirements. The following table outlines the specifications for two variants of the WS1 valve and the WS1.25 valve.
| Feature | WS1 (Small Model) | WS1 (Large Model) | WS1.25 |
|---|---|---|---|
| Valve Size | WS1 | WS1 | WS1.25 |
| Flow Rate | 2 m³/hr | 4 m³/hr | 7.7 m³/hr |
| Maximum Valve Flow | 6.8 m³/hr | 6.8 m³/hr | 7.7 m³/hr |
| Salt Consumption | 6.5 Kg/regeneration | 13 Kg/regeneration | 26 Kg/regeneration |
| Tank Size | 10" x 54" | 14" x 65" | 18" x 65" |
| Tank Volume | 50 L | 100 L | 200 L |
| Capacity* | 8.3 m³ | 16.7 m³ | 33.3 m³ |
| Pressure Range | 1.5 to 8 bar | 1.5 to 8 bar | 1.5 to 8 bar |
| Connections | 1” inlet/outlet, ¾” drain | 1” inlet/outlet, ¾” drain | 1.25” inlet/outlet, ¾” drain |
| Applications | Small-to-medium commercial setups | Medium-to-large commercial setups | Large commercial or high-demand setups |
*Capacity at 300 ppm CaCO₃
Applications
The Simplex Clack Metered Counter Current Softener is ideal for a range of commercial and residential applications. Whether managing water needs in small businesses or larger facilities, these softeners deliver reliable, efficient, and eco-conscious performance.
A Smarter, Greener Solution
By choosing the Simplex Clack Metered Counter Current Softener, you reduce your salt and water usage while benefiting from high-efficiency performance. Its advanced design supports environmental sustainability and long-term cost savings.
Upgrade your softener today and experience the difference that up-flow brining technology can make!
