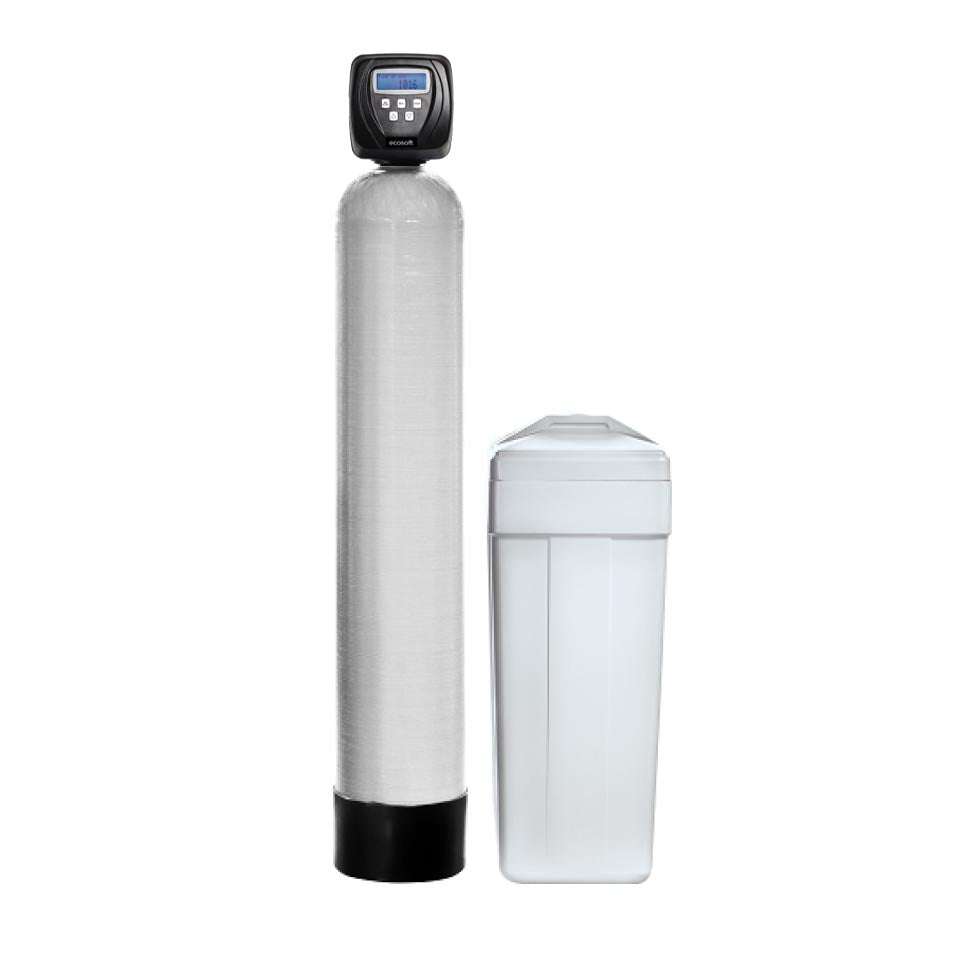

Ecomix A Kit with Clack WS1 CI Controller, 1"
Ecomix A Kit with Clack WS1 CI Controller, 1" - Comprehensive Water Treatment Solution
The Ecomix A Kit with Clack WS1 CI Controller, 1" is a highly efficient water treatment system designed to tackle hard water issues and improve overall water quality. Perfect for both residential and commercial use, this system effectively removes impurities like iron, manganese, and organics, delivering clean, soft water for daily needs. By protecting plumbing and appliances from scaling and damage, the Ecomix A Kit simplifies water treatment while ensuring long-lasting performance and reliability.
Key Features of the Clack WS1 CI Control Valve
-
Smart Regeneration Control
- Choose between metered delayed, metered immediate, or time clock delayed based on water usage.
- Regeneration stages and timing are fully programmable for efficient, tailored operation.
-
Advanced Programming
- Supports global measurement units, including ppm, French degrees, German degrees, and cubic meters.
- Nonvolatile memory retains system settings during power outages for uninterrupted function.
-
Versatile Configurations
- Capable of managing twin or duplex systems, supporting up to six interconnected units.
- Constructed using corrosion-resistant materials, guaranteeing extended durability.
Technical Specifications by Vessel Size
Each Ecomix A Kit is optimized for specific water treatment needs. Review the table below for a detailed breakdown of each vessel size, its Ecomix A media volume, and additional technical details.
Table 1: Media and Flow Specifications
Vessel Size | Ecomix A Media Volume (L) | DLFC | Injector | Service Flow Rate (m³/h) | Backwash Flow Rate (m³/h) |
---|---|---|---|---|---|
10" x 54" | 37 | Clack® 0.32 | Clack® E (white) | 1.3–1.5 | 0.55–0.75 |
12" x 52" | 50 | Clack® 0.42 | Clack® F (blue) | 1.8–2.2 | 0.75–1.05 |
13" x 54" | 62 | Clack® 0.53 | Clack® G (yellow) | 2.2–2.5 | 0.90–1.25 |
14" x 65" | 75 | Clack® 0.65 | Clack® H (green) | 2.5–3.0 | 1.00–1.45 |
16" x 65" | 100 | Clack® 0.75 | Clack® I (orange) | 3.3–3.9 | 1.35–1.90 |
Table 2: Regeneration and Capacity Specifications
Vessel Size | Salt Consumption (kg) | Water Use per Regeneration (m³) | Filter Capacity (mg CaCO₃) | Hardness (ppm CaCO₃) | Volume Capacity (m³) |
---|---|---|---|---|---|
10" x 54" | 3.7 | 0.37 | 1295 | 100 | 12.9 |
12" x 52" | 5.0 | 0.50 | 1750 | 100 | 17.5 |
13" x 54" | 6.2 | 0.62 | 2170 | 100 | 21.7 |
14" x 65" | 7.5 | 0.75 | 2625 | 100 | 26.3 |
16" x 65" | 10.0 | 1.00 | 3500 | 100 | 35.0 |
System Components
Every Ecomix A Kit includes premium components for reliable and efficient operation:
-
Pressure Tank Assembly
- Robust pressure tanks featuring a 2.5" top hole and base.
- Includes risers and bottom-stack distributors to maximize efficiency during filtration and backwash.
-
Brine Tank
- Available in sizes compatible with vessel configurations:
- 18" x 26" (100 L capacity).
- 18" x 36" (146 L capacity).
- Fitted with an advanced brine well assembly, valve, and overflow prevention system.
- Available in sizes compatible with vessel configurations:
-
CI 1" Control Valve Assembly
- Features an 11-segment top stack distributor.
- Comes with injector, DLFC, connection kit, and a valve instruction manual for easy setup.
Enhanced Performance Metrics
The Ecosoft A Kit is well-equipped to handle fluctuating water quality and high mineral content. It delivers consistent filtration with the following operational benchmarks:
-
Regeneration Parameters
- Salt consumption ranges from 3.7 kg to 10 kg depending on vessel size.
- Water consumption for regeneration is between 0.37 m³ and 1.00 m³.
-
Regeneration Stages and Efficiency
- Designed for delayed regeneration to ensure comprehensive treatment.
- Day override feature ensures efficient operation even during periods of low water usage (default 10 days).
-
Optimal Operating Conditions
- Service flow rates match vessel scaling, ranging from 1.3–1.5 m³/h to 3.3–3.9 m³/h.
- Capacity figures assume hardness of 100 ppm CaCO₃.
-
Backwash Flow Rates
- Efficient cleaning rates range from 0.55–0.75 m³/h for smaller tanks to 1.90 m³/h for larger capacities.

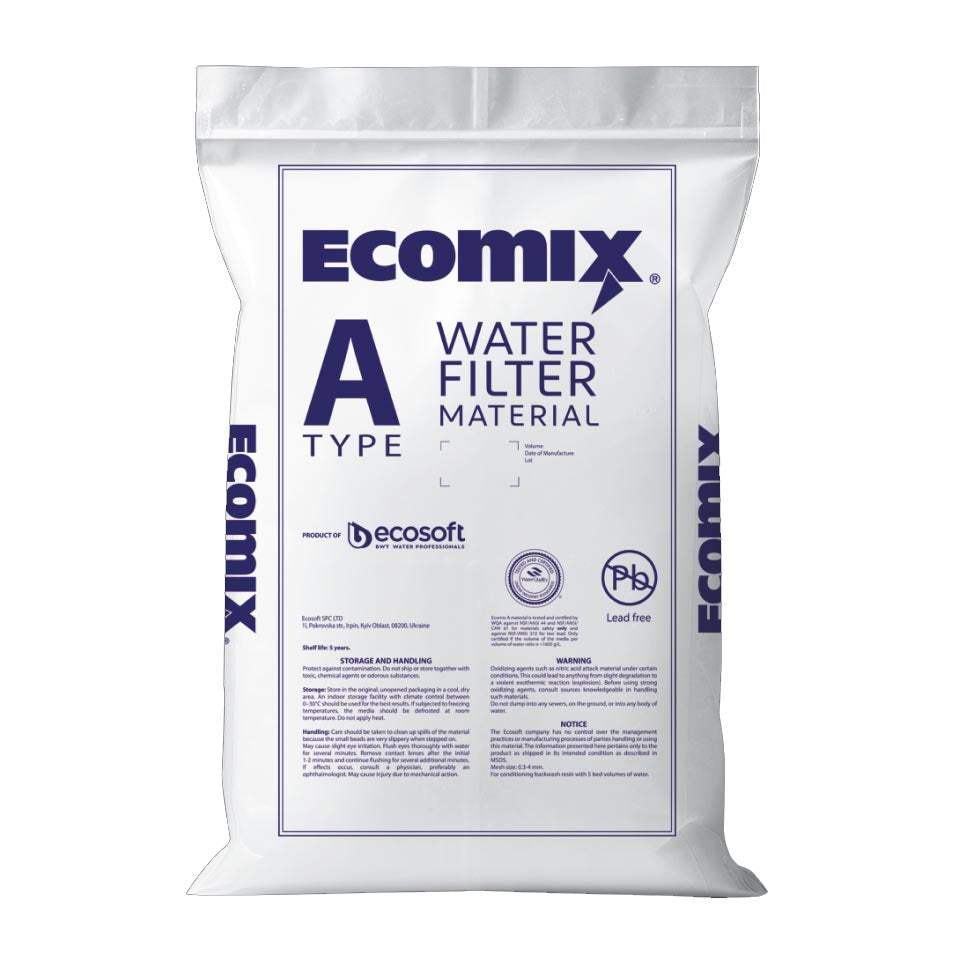

Ecomix A Media
The Ecosoft A Kit is specially designed to work seamlessly with Ecomix A, a multi-purpose filtration media that addresses hardness, iron, manganese, and organic contaminants. Key benefits include:
- Long service life of up to 5 years, even under fluctuating water conditions.
- Enhanced capacity for managing high iron and manganese content, providing comprehensive water treatment.
Recommended Media:
- 10" x 54" vessel uses 37 L (1.5 bags).
- 12" x 52" vessel uses 50 L (2 bags).
- 13" x 54" vessel uses 62 L (2.5 bags)
- 14" x 65" vessel uses 75 L (3 bags).
- 16" x 65" vessel uses 100 L (4 bags).
Limitations of Ecomix Media
While Ecomix media is an advanced solution for addressing multiple water-quality issues, it does have some performance constraints to keep in mind:
-
Maximum Contaminant Levels
- Iron Removal: Best suited for source water with a maximum iron concentration of 15 mg/L. Higher levels may reduce efficiency.
- Manganese Removal: Effective for up to 3 mg/L of manganese; exceeding this limit can compromise media performance.
- Organic Content (COD): Designed to handle a maximum organic concentration of 20 mg/L (measured as chemical oxygen demand). Excessive organics can impact regeneration efficiency.
- Ammonium Removal: Recommended for ammonium levels not exceeding 4 mg/L.
-
Total Dissolved Solids (TDS)
- Ecomix media works optimally with TDS levels below 4,000 mg/L. Higher salinity in water may impair filtration and softening abilities.
-
Operating Temperature Range
- The media functions within a temperature range of up to 40 °C. Exposure to higher temperatures may lead to performance degradation or reduced media lifespan.
-
Water Chemistry Compatibility
- pH Levels: Ecomix performs efficiently within a pH range of 5–9. Outside this range, the media's ability to treat contaminants like iron and manganese may decrease.
- Chlorinated Water: High levels of chlorine or oxidizing agents in feed water can accelerate media wear and reduce its longevity.
-
Media Lifespan and Maintenance
- Although Ecomix can last up to 5 years, its effectiveness depends heavily on regular regeneration and adherence to recommended operating parameters. Poor maintenance may result in reduced efficiency and shorter service life.
-
Specific Conditions
- High Sediment Levels: If raw water contains excessive sediment or particulates, pre-filtration is required to avoid clogging or uneven media usage.
- Hydrogen Sulfide: Not suitable for water with high hydrogen sulfide levels, which can interfere with its ability to treat other impurities.
Understanding these limitations ensures proper application and maintenance, helping to maximize the performance and lifespan of your Ecomix filtration system.
Accessories for Personalization
Enhance your water treatment setup with these optional components (sold separately):
- WS1 Bypass Assembly for seamless system isolation during service.
- Auxiliary Microswitch Assembly to support advanced system monitoring.
- No-Bypass Shut-Off Valve for precise control during regeneration processes.
- Motorized Alternating Valves for complex multi-system configurations.
Why Choose the Ecosoft A Kit?
The Ecosoft A Kit simplifies water treatment by combining innovative filtration media, efficient design, and adaptable components into a powerful system. Perfect for homes and businesses, this kit delivers soft, clean water enriched with usability and reliability.
Transform Your Water Today
Experience the benefits of premium water treatment with the Ecosoft A Kit with Clack WS1 CI Controller, 1". Order now to enjoy improved water quality, protect your plumbing, and enhance your daily life with ease!
