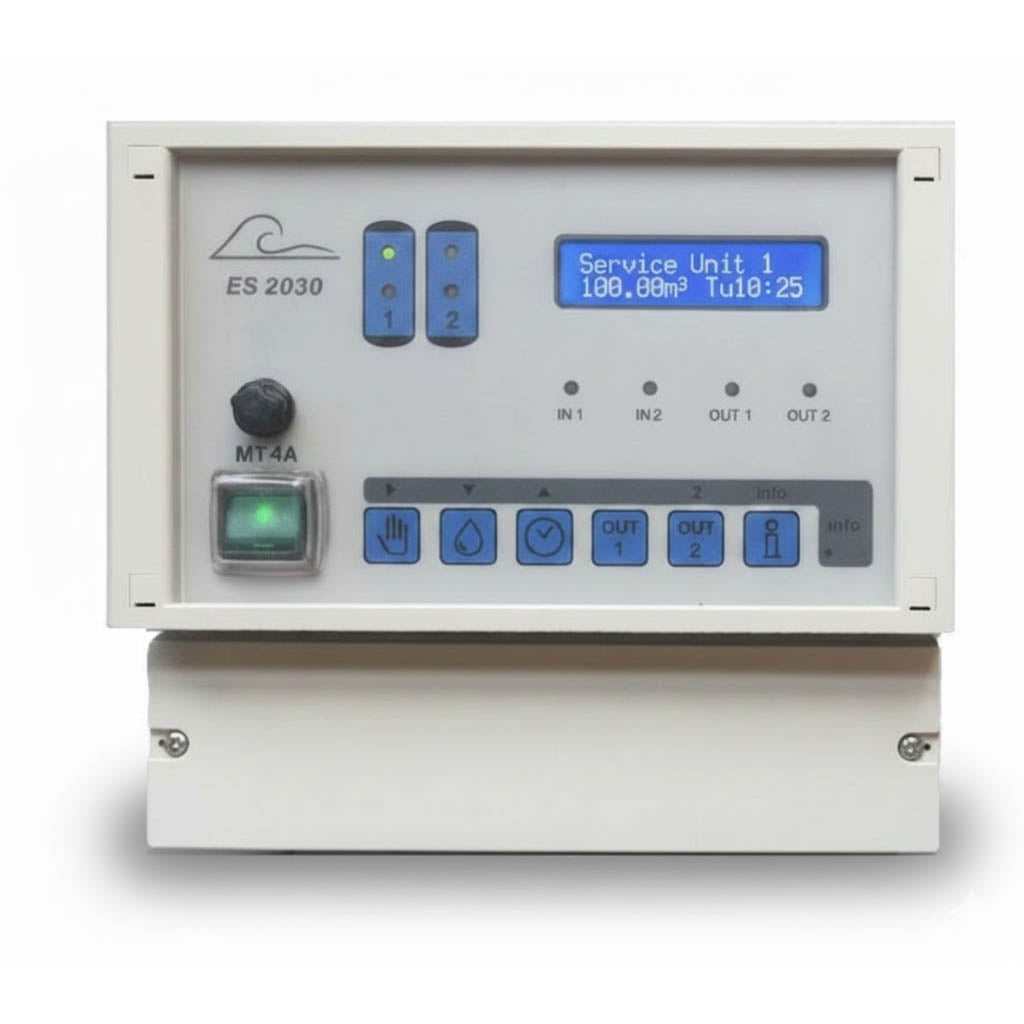

EWS ES 2030SV Duplex Controller Wall Mount 24/24V for Solenoid Valves
EWS ES 2030SV Duplex Controller Wall Mount 24/24V for Solenoid Valves
EWS ES 2030SV Duplex Controller Wall Mount 24/24V for Solenoid Valves
The EWS ES 2030SV Duplex Controller is a compact yet powerful solution designed to streamline and automate the control of solenoid valves in duplex water softener systems. Built for versatility and precision, this wall-mounted controller ensures optimal performance while simplifying operational processes for both industrial and commercial water treatment applications.
Key Features
Intuitive and Reliable Interface
-
User-Friendly LCD Display:
- Equipped with a 16x2 monochrome LCD display for clear information on system status.
-
Easy Navigation:
- Features seven keys for seamless programming and adjustments.
-
Enhanced Feedback:
- Eight LEDs paired with built-in audio signals to assist with status monitoring and alarms.
Inputs and Outputs Built for Functionality
-
Inputs:
- One potential-free switch input for external triggers, monitoring water meters or stop signals.
- Expandable with an optional circuit board (IF2030) to incorporate an extra input.
-
Outputs:
- Five powered relay outputs for controlling valves and pumps.
- Two additional programmable relay outputs (via IF2030 board).
Advanced Programming and Memory
-
Customizable Settings:
- Program capacity values, flush cycles, and time intervals for regeneration delay or activation.
-
Real-Time Clock:
- Features battery-backup time functions for accuracy and reliability.
-
Future-Proofed with SD Card Slot:
- Easily update software as needed to keep the system modernized.
Robust Design for Industrial Use
-
Wall-Mounted with IP65 Rating:
- Protected against dust and water ingress, making it ideal for rugged environments.
-
Energy-Efficient:
- Runs efficiently with a 24/24V power input/output.
Benefits
-
Optimized Water Softening:
- Streamlines operation of solenoid valve-based systems, ensuring efficient and uninterrupted water treatment.
-
Customizable Operations:
- Tailor inputs, outputs, and schedules to fit specific operational needs, whether for residential, industrial, or commercial applications.
-
Resilient and Secure:
- With its non-volatile memory and battery-backed clock, critical settings and schedules remain intact even during power interruptions.
-
Effortless Maintenance:
- Comprehensive status reports, alarm signals, and easy programming reduce maintenance time and improve system uptime.
Technical Specifications
| Specification | Details |
|---|---|
| Model | EWS ES 2030SV |
| Mounting Type | Wall Mount |
| Power Supply | 24/24VAC input/output |
| Supported Systems | Simplex and Duplex |
| Relay Outputs | 5 powered, 2 optional dry-contact relays |
| Inputs | 1 input (expandable with circuit board) |
| Enclosure Rating | IP65 |
| Display | Monochrome LCD (16x2 characters) and 8 LEDs |
| Languages | English, French, German, Spanish, Dutch, Italian |
| Memory Retention | Non-volatile with real-time clock |
| Dimensions | 211 x 185 x 95 mm |
| Weight | Approx. 1.3 kg |
Applications
The EWS ES 2030SV is specially crafted for managing solenoid valve-driven water softener systems, guaranteeing consistent and precise control over simplex and duplex operations. Its robust build, advanced features, and flexibility make it an ideal choice for industrial and commercial water treatment facilities.
Take Control of Your Water Softener System Today!
Upgrade to the EWS ES 2030SV Duplex Controller Wall Mount 24/24V for Solenoid Valves to experience intuitive management, enhanced efficiency, and long-term reliability in your water treatment system.
Order now and elevate your operational capabilities!
