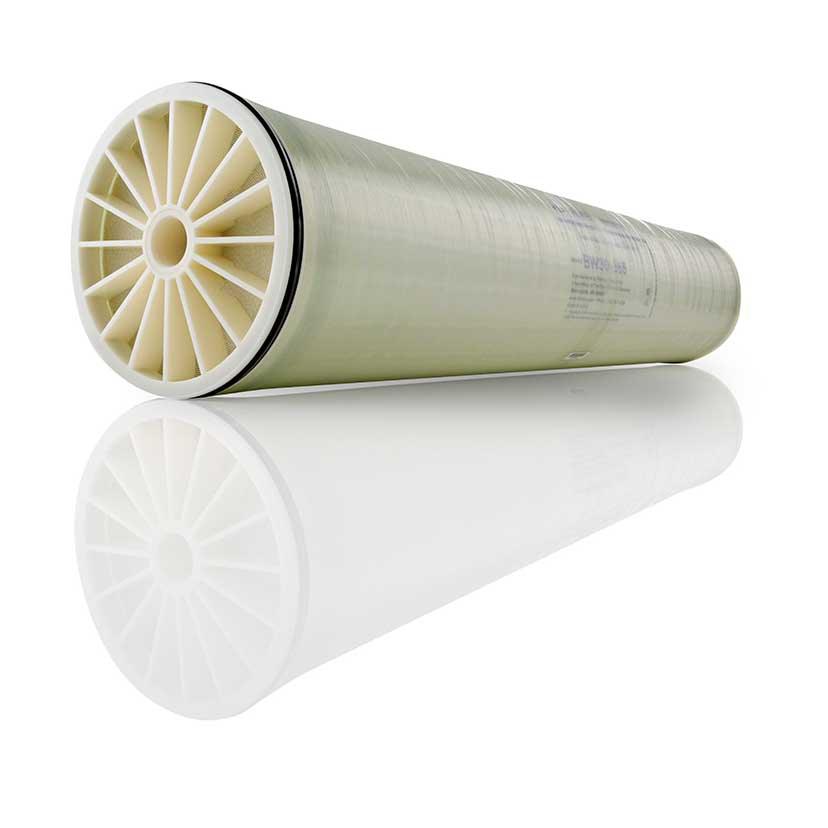

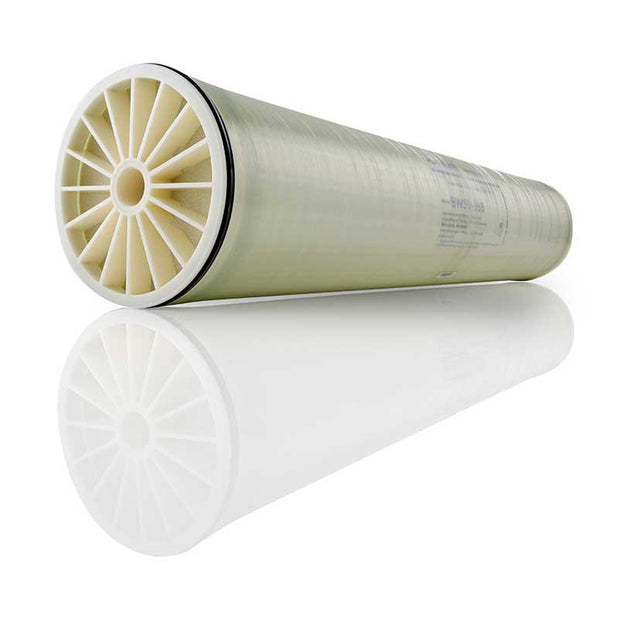

The FilmTec™ SG30LE-440i Reverse Osmosis Membrane Element from DuPont Water Solutions is a premium 8" x 40" semiconductor-grade RO membrane engineered for the production of ultra-high purity (UPW) water. Designed specifically for the demanding requirements of the microelectronics, semiconductor, pharmaceutical and high-purity process industries, the SG30LE-440i combines exceptional contaminant rejection with low operating pressure to deliver outstanding water quality while reducing operating costs.
Featuring an impressive 440 ft² (41 m²) active membrane area, the SG30LE-440i provides high permeate production while allowing systems to be designed with fewer membrane elements. Its low-energy design operates at significantly lower feed pressures than conventional semiconductor-grade membranes, helping to reduce both capital expenditure and long-term energy consumption.
The advanced thin-film composite polyamide membrane delivers excellent rejection of silica, boron, dissolved salts and low molecular weight organic compounds, making it ideal as a polishing membrane within ultrapure water systems. An accelerated Total Organic Carbon (TOC) rinse-down profile enables rapid start-up after installation or maintenance, allowing high-quality water production in less time.
Each membrane incorporates DuPont's patented iLEC™ Interlocking End Cap Technology, eliminating the need for lubricants, reducing the possibility of O-ring leaks and preventing the generation of fine particles that could compromise ultrapure water quality. This results in greater reliability, reduced maintenance and improved overall system performance.
Manufactured for installation in standard 8-inch pressure vessels, the SG30LE-440i is suitable for new low-energy ultrapure water installations where maximum rejection, high productivity and reduced operating costs are essential.
Key Features
- Premium 8" x 40" semiconductor-grade reverse osmosis membrane
- High active membrane area of 440 ft² (41 m²)
- Low-energy operation requiring lower feed pressure
- Rapid TOC rinse-down for faster commissioning
- Excellent rejection of:
- Silica
- Boron
- Dissolved salts
- Low molecular weight organic compounds
- Produces ultrapure water suitable for critical manufacturing processes
- Patented iLEC™ Interlocking End Caps
- Reduced risk of O-ring leaks and particle contamination
- No lubricant required during installation
- Fits standard 8" pressure vessels
- Manufactured by DuPont Water Solutions
Technical Specifications
| Specification | Value |
|---|---|
| Model | FilmTec™ SG30LE-440i |
| Membrane Type | Polyamide Thin-Film Composite |
| Nominal Size | 8" x 40" |
| Active Membrane Area | 440 ft² (41 m²) |
| Typical Permeate Flow | 10,000 GPD (38 m³/day) |
| Operating Pressure (Test) | 107 psi (0.74 MPa) |
| Maximum Feed Flow | 85 GPM (19 m³/h) |
| Typical Recovery | 15% |
| Maximum Operating Pressure | 600 psi (41 bar) |
| Maximum Operating Temperature | 45°C |
| Continuous pH Range | 2–11 |
| Maximum Feed SDI | SDI 5 |
| Free Chlorine Tolerance | <0.1 ppm |
Performance figures are based on DuPont standard test conditions.
Typical Applications
- Semiconductor manufacturing
- Microelectronics production
- Ultrapure water (UPW) systems
- Pharmaceutical water systems
- Electronics component manufacturing
- Laboratory high-purity water
- Industrial polishing RO systems
Why Choose the FilmTec™ SG30LE-440i?
The FilmTec™ SG30LE-440i is designed for facilities where water purity directly impacts product quality. Its combination of high rejection performance, rapid TOC rinse-down, low operating pressure and iLEC™ end cap technology makes it one of the most efficient semiconductor-grade reverse osmosis elements available. Whether upgrading an existing ultrapure water plant or designing a new low-energy RO system, the SG30LE-440i delivers outstanding reliability, lower operating costs and consistently exceptional water quality.
