Ecosoft dual gradient PP sediment filter, 20-5 micron
Ecosoft dual gradient PP sediment filter, 20-5 micron

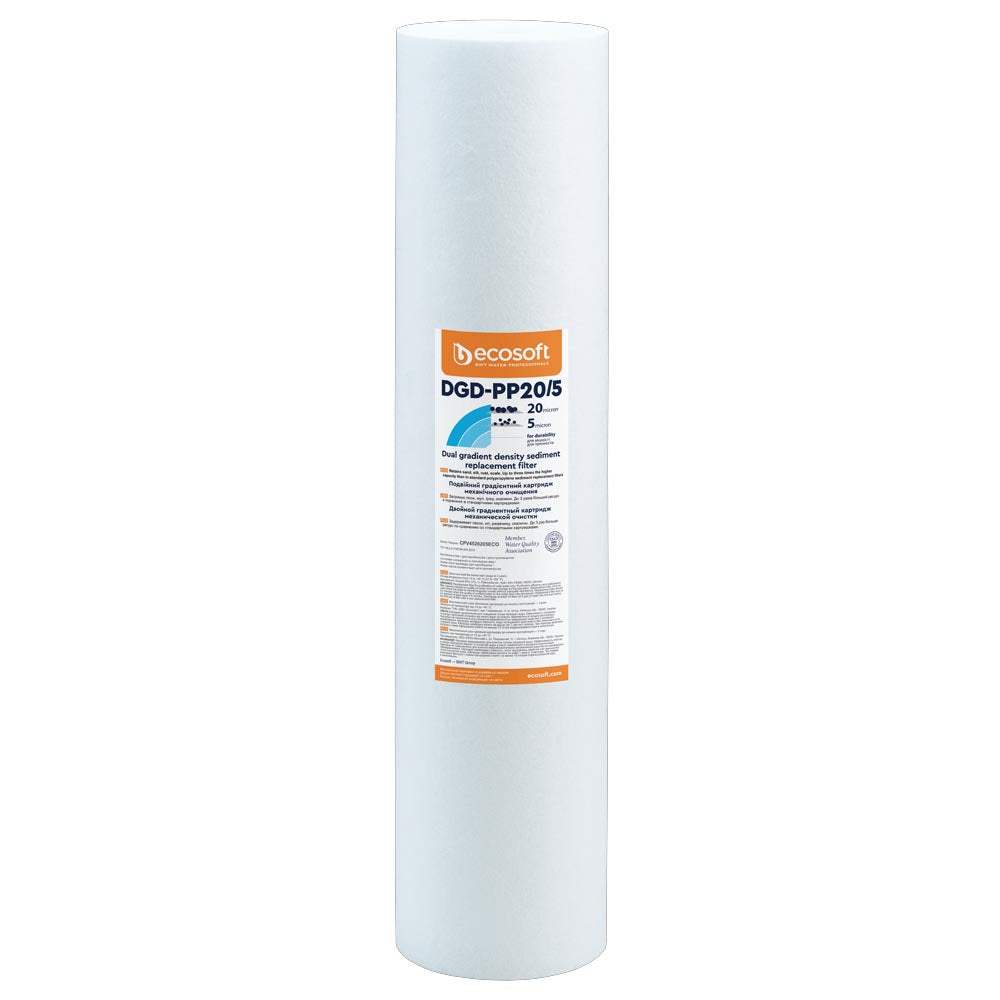

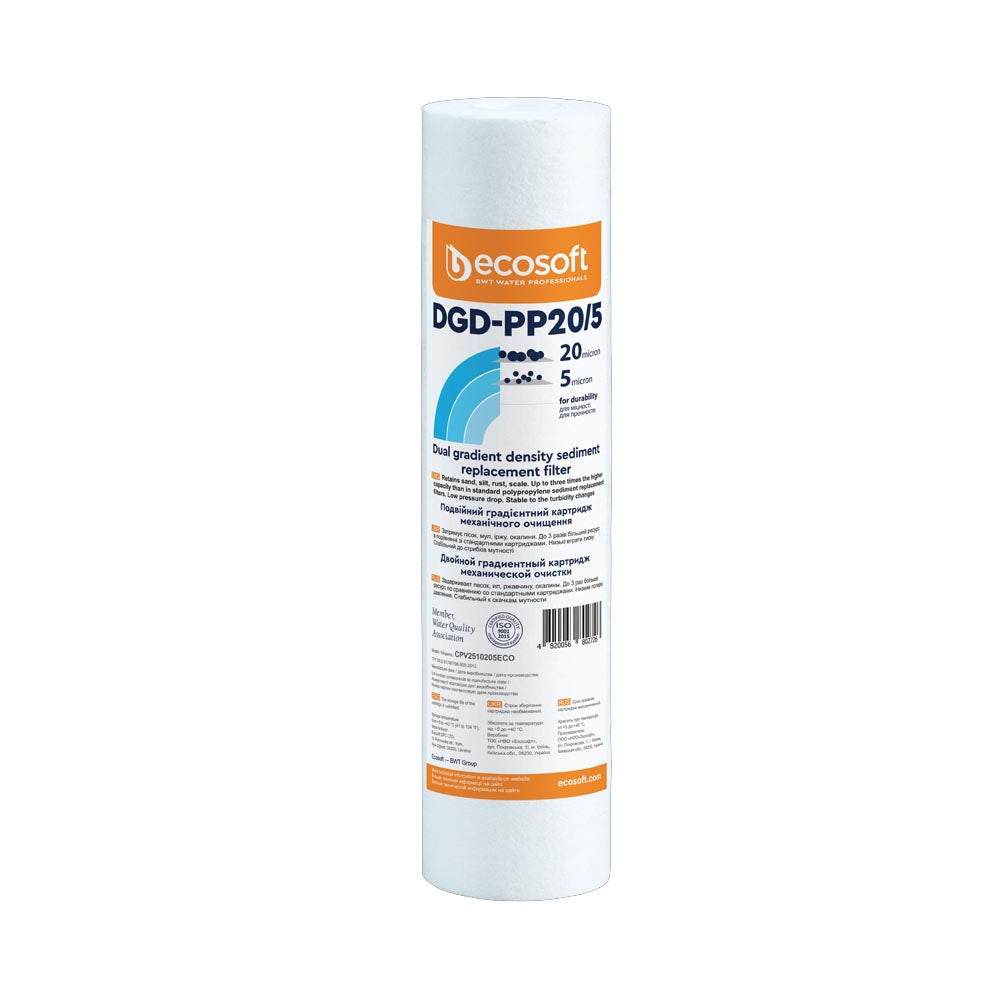

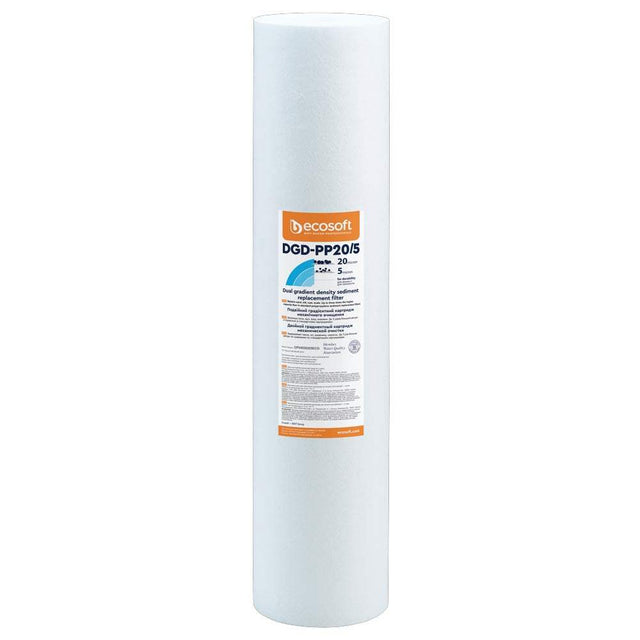

Ecosoft Dual Gradient PP Sediment Filters
Protect your filtration system and enhance water quality with Ecosoft Dual Gradient PP Sediment Filters, available in two sizes (2.5″×10″ and 4.5″×20″). These filters use advanced dual-layer polypropylene technology to reduce coarse and fine particles. Their unique design ensures extended filter lifespan, stable operation, and efficient sediment removal for residential and industrial applications.
Key Features
- Dual Gradient Structure – Traps larger particles (20 microns) in the outer layer and smaller particles (5 microns) in the inner layer.
- Improved Capacity – Up to 3 times higher capacity compared to standard sediment filters.
- Low Pressure Loss – Offers smooth water flow with minimal pressure drops.
- Stable Performance – Operates efficiently, even with changes in water turbidity.
- Cost-Effective Solution – Superior quality reduces maintenance frequency, saving money and time.
Benefits of Dual Gradient Sediment Filters
- Enhanced Filtration Efficiency – Captures particles of varying sizes in designated zones for optimal performance.
- Longer Filter Lifespan – Reduces wear on downstream filters, extending the system's durability.
- Versatile Compatibility – Designed to fit 2.5"×10" and 4.5"×20" standard housings, covering multiple setups.
- Improves Water Quality – Removes rust, silt, and other sediments for cleaner, clearer water.
Available Sizes and Applications
| Filter Size | Max Capacity | Recommended Flow Rate | Applications |
|---|---|---|---|
| 2.5″×10″ | For small-scale setups | 8 liters/min | Under-sink sediment filtration and small household systems |
| 4.5″×20″ | For high-demand systems | 30 liters/min | Point-of-entry or industrial filtration for coarse and fine sediment |
Advanced Filtration Technology
Ecosoft’s dual-gradient filters feature two distinct zones for particle separation. Larger sediment (20 microns and above) is captured in the external layer, while the internal layer retains finer particles (5–20 microns). This efficient design enhances filtration accuracy, performs well under high velocity, and prevents blockages while maintaining low pressure loss.
Technical Specifications
| Specification | 2.5″×10″ | 4.5″×20″ |
|---|---|---|
| Max External Diameter | 60 ± 1.0 mm | 114 ± 1.0 mm |
| Height | 250 ± 2.0 mm | 510 ± 2.0 mm |
| Filtering Rate (Outer/Inner) | 20 / 5 microns | 20 / 5 microns |
| Recommended Flow Rate | 8 liters/min | 30 liters/min |
| Water Temperature Range | +3 to +43°C | +3 to +43°C |
| Service Life | 3–6 months | 3–6 months |
Maintenance Tips
- Replace cartridges every 3–6 months or as needed based on water quality.
- Use only in compatible sediment filter housings to ensure proper performance.
- Flush new filters with water to remove any loose particles before regular use.
Why Choose Ecosoft Dual Gradient Sediment Filters?
Durable, efficient, and cost-effective, the Ecosoft Dual Gradient PP Sediment Filters are perfect for reducing sediment in both residential and industrial water systems. Their dual-layer design ensures higher filtration capacity, prolongs system life, and keeps your water clean and reliable.
Upgrade your filtration system today and experience superior sediment removal with Ecosoft filters!
