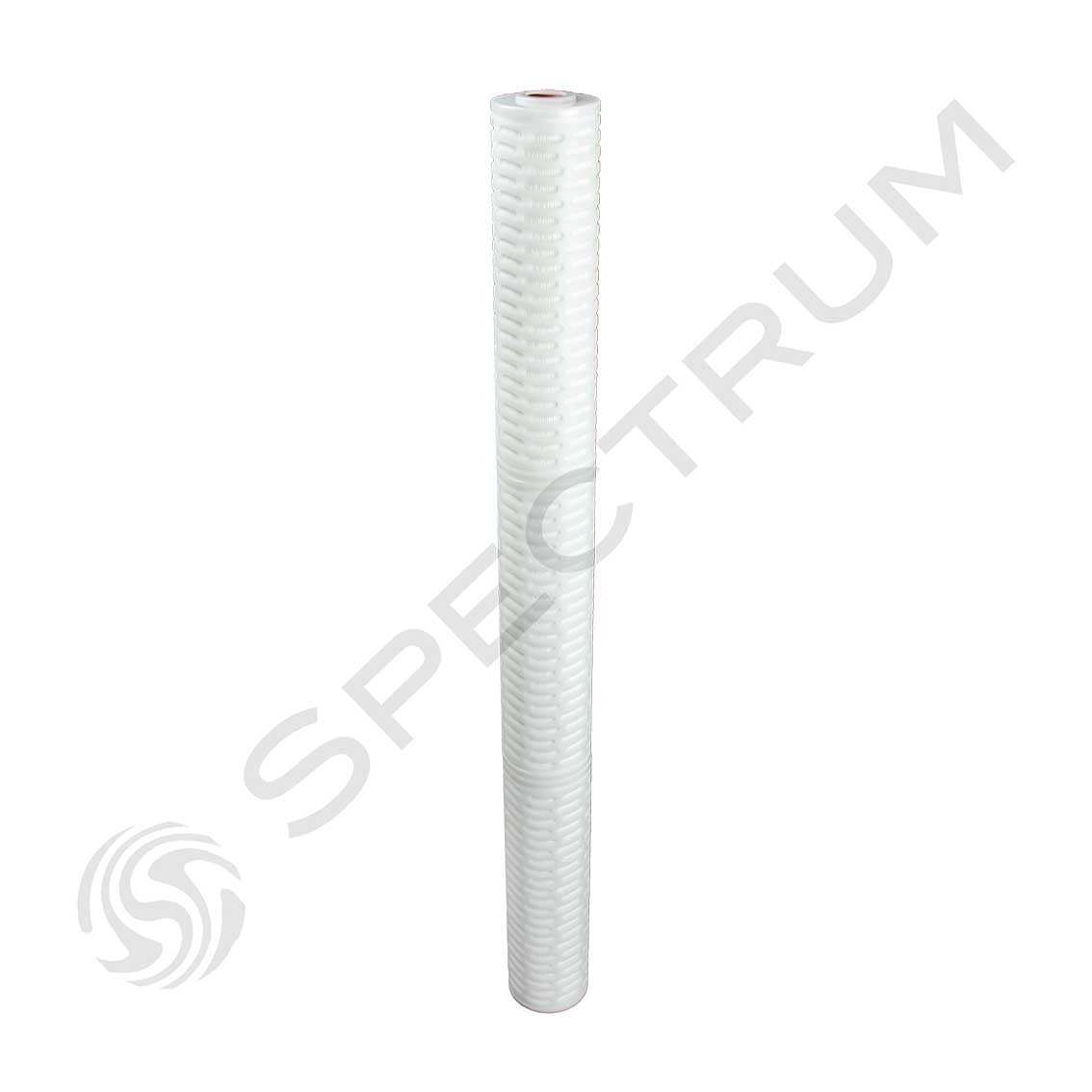

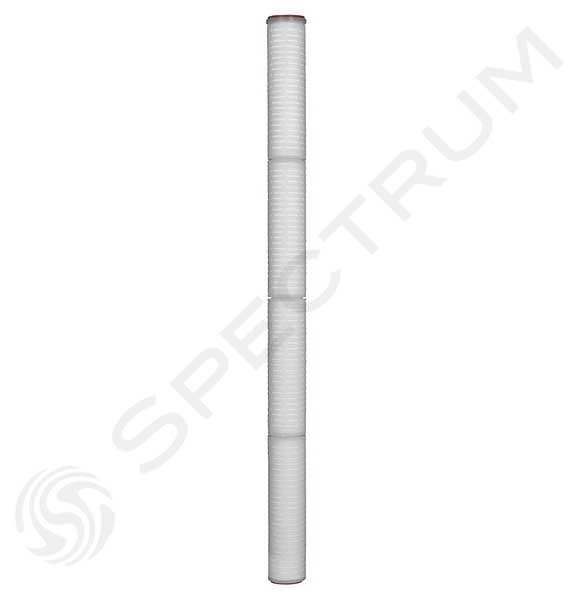

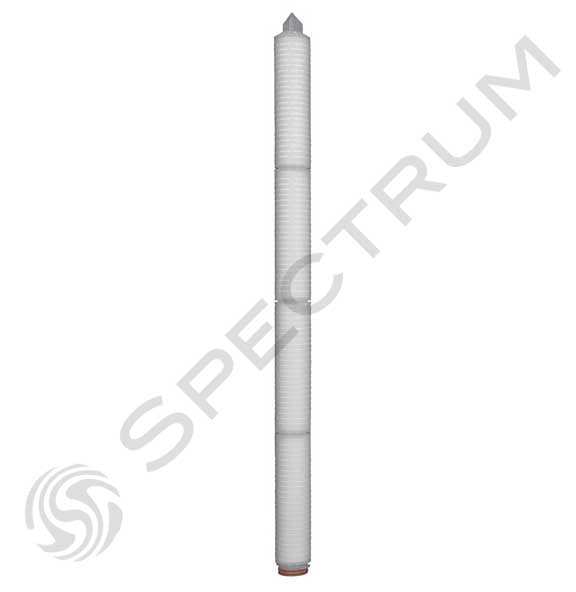

SPECTRUM Premier Pleat Polyethersulfone (PES) Filter

Ensure superior filtration with the SPECTRUM Premier Pleat Polyethersulfone (PES) Filter, designed for absolute bacterial removal and unmatched reliability. Engineered with precision, this high-performance filter excels in industries like food preparation, medical applications, and industrial processes.

Why Choose the SPECTRUM Premier Pleat PES Filter?

The SPECTRUM PPPES Filter offers certified, dependable bacterial retention for consistent product quality. Its advanced polyethersulfone media and robust construction make it ideal for applications requiring precision filtration.

Key Features

• Absolute Bacterial Removal
  Achieves up to 99.99999% efficiency (Log 7) against Brevundimonas diminuta, ensuring reliable microbiological safety.

• High-Quality Media
  German-engineered polyethersulfone media offers high flow rates with low pressure drops and no adhesive contamination.

• Durable Construction
  Polypropylene support layers provide strength and longevity, withstanding up to 30 sterilization cycles at 135°C.

• Compliance & Certifications
  WRAS-approved, FDA Title 21 compliant, and USP Class VI-121°C Plastics certified for dependable safety and performance.

Benefits at a Glance

• Enhanced Flow Efficiency
  The pleated construction maximizes surface area, ensuring optimal dirt holding capacity and consistent filtration.

• Clean & Traceable
  Lot-coded, individually tested, and vacuum-sealed cartridges ensure traceability, hygienic handling, and ease of identification.

• Versatile Applications
  Perfect for industries like food & beverage, medical production, and challenging industrial environments.

Specifications

• Efficiency: 99.99999% (absolute rated)
• Micron Range: 0.05 µm – 0.65 µm
• Maximum Temperature: 82°C
• Maximum Operating Pressure: 6 bar at 21°C
• Surface Area: 0.55 m² per 10-inch cartridge
• Sterilization Tolerance: 30 cycles at 135°C

Dimensions

Ordering Options

• Micron Ratings: 0.05 µm, 0.1 µm, 0.2 µm, 0.45 µm, 0.65 µm
• Lengths: Available in 9¾", 10", 20", 30", and 40"
• Seal Materials: Silicone, EPDM, Viton®
• End-Cap Types: AA, CG, EG, FG, QG, ZH

Applications

1. Food & Beverage: Filters bacteria during the production of flavorings, essences, and colorants.
2. Medical: Provides precise microorganism removal for contamination-sensitive products.
3. Industrial: Performs efficient filtration in high-demand environments, ensuring product consistency.

Performance Validation

Each cartridge undergoes rigorous testing to exceed industry expectations. From raw material checks to final integrity validation, the SPECTRUM PPPES Filter guarantees excellence.

Optimize your filtration processes today with the SPECTRUM Premier Pleat PES Filter. Deliver superior results with industry-leading technology and proven reliability.
