Fleck 9000/1600 SXT Twin | Duplex Eco SXT 3/4" V900SI-602

Fleck 9000/1600 SXT Twin | Duplex Eco SXT 3/4" – V900SI-602

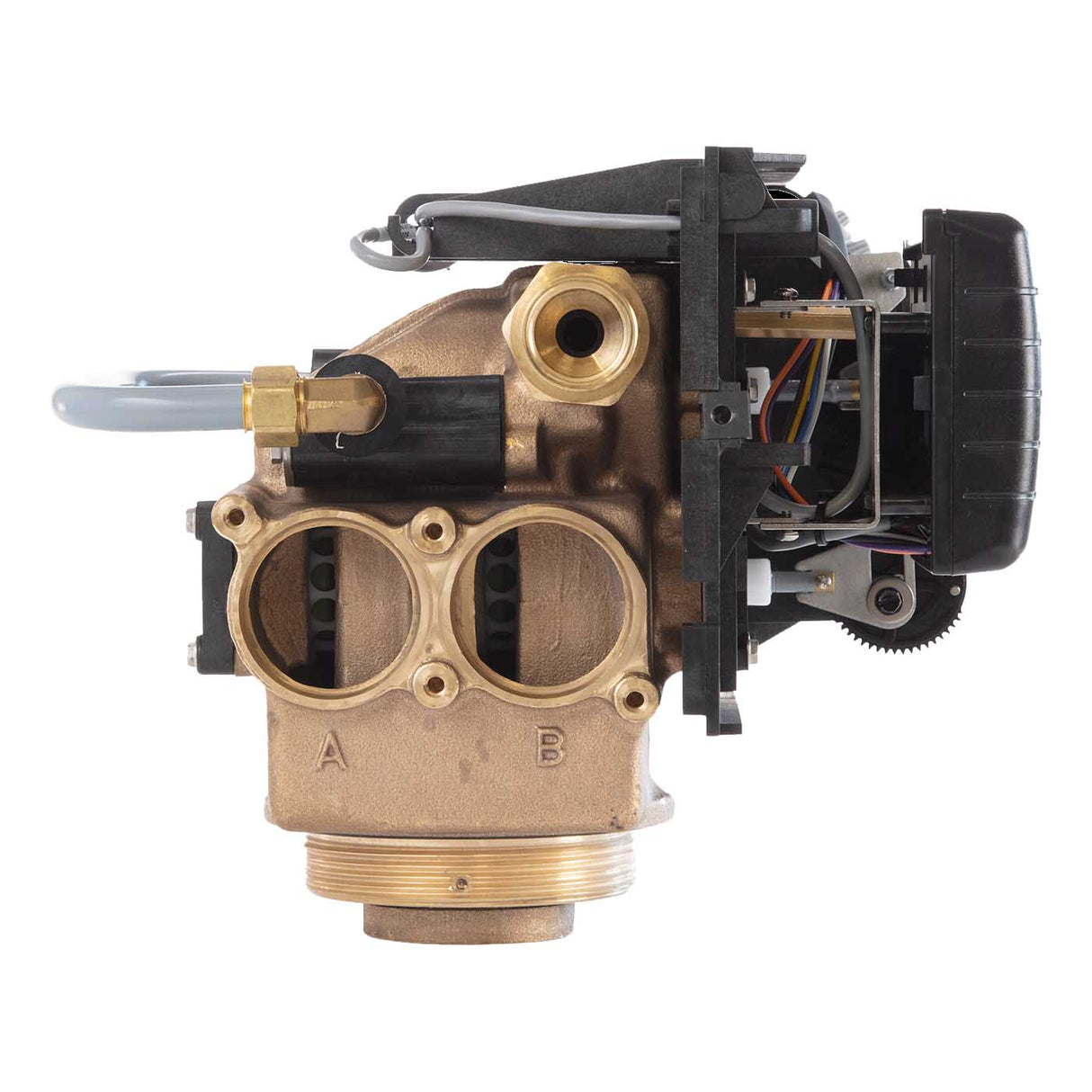

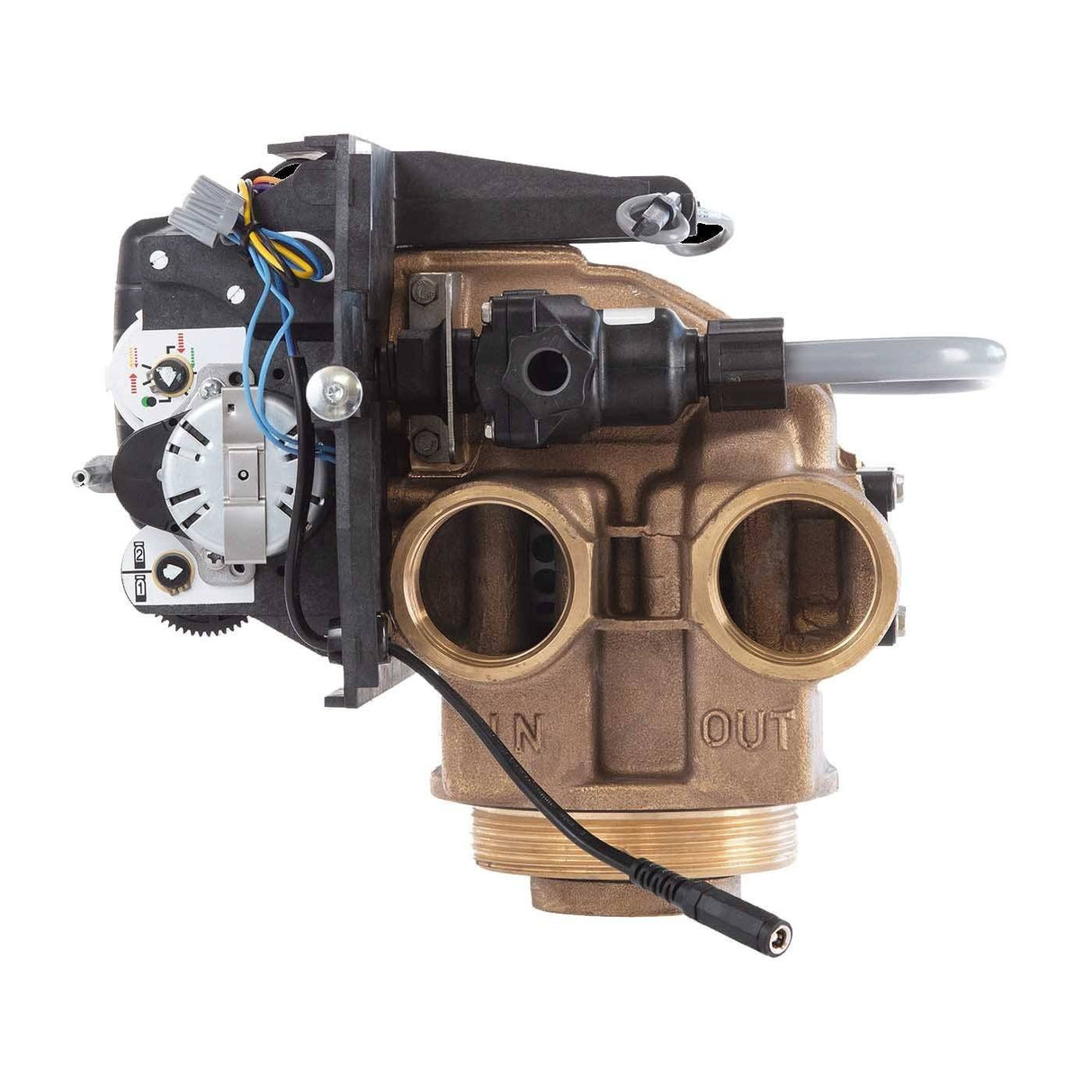

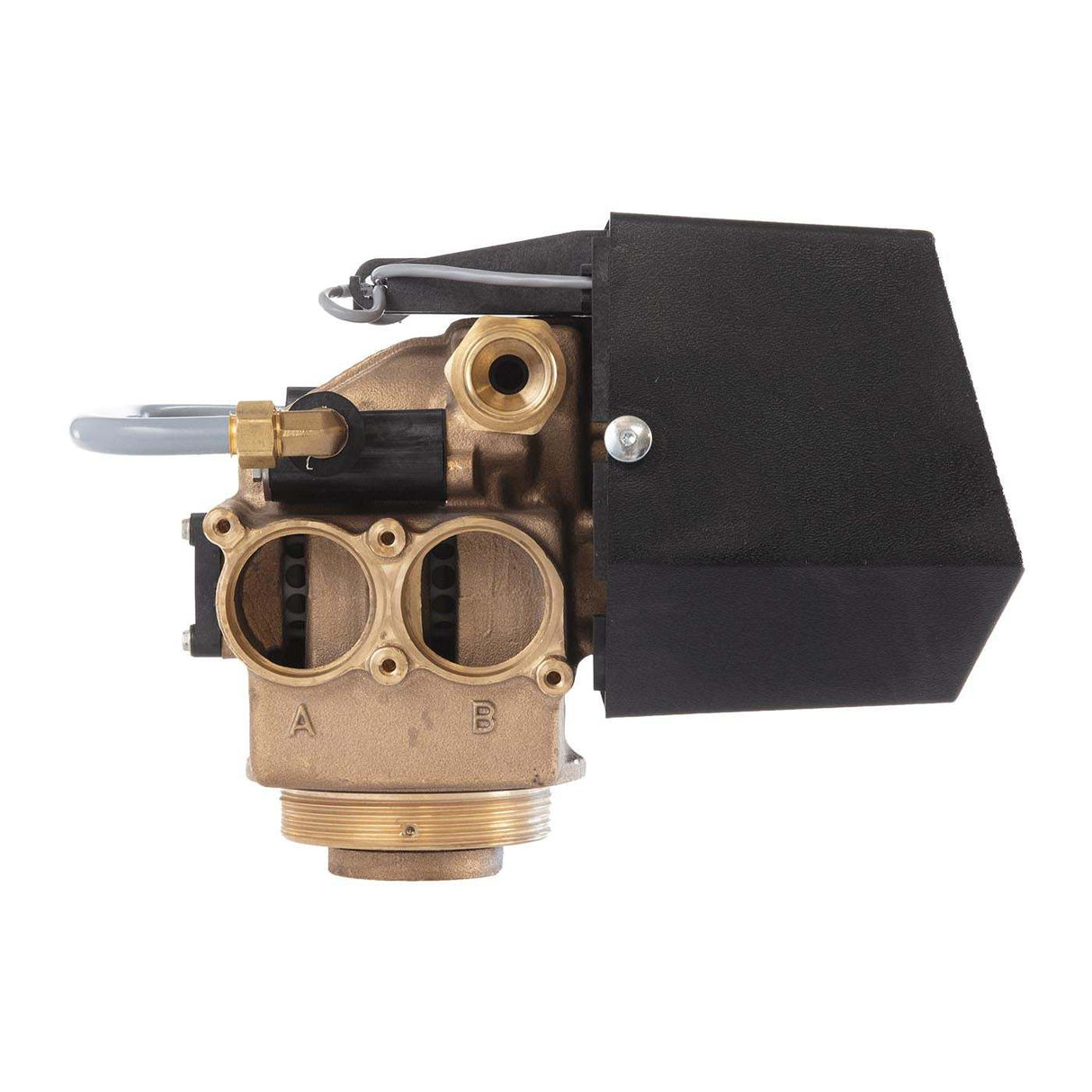

The Fleck 9000/1600 SXT Twin Duplex Eco SXT 3/4" valve – V900SI-602 is a reliable twin-tank control valve designed for duplex water softening systems where a continuous supply of softened water is required.

The Fleck 9000 operates with one vessel in service while the second vessel is either regenerating or held in standby. When the operating vessel reaches its programmed capacity, the valve automatically transfers service to the second vessel, allowing regeneration to take place without interrupting the softened water supply.

Equipped with the Fleck SXT electronic controller, the valve offers straightforward programming, adjustable regeneration cycles and metered operation, making it suitable for commercial and larger domestic water softening applications.

Key Features

• Twin / duplex operation for a continuous supply of softened water

• One vessel remains in service while the second regenerates or stands by

• Regeneration using softened water

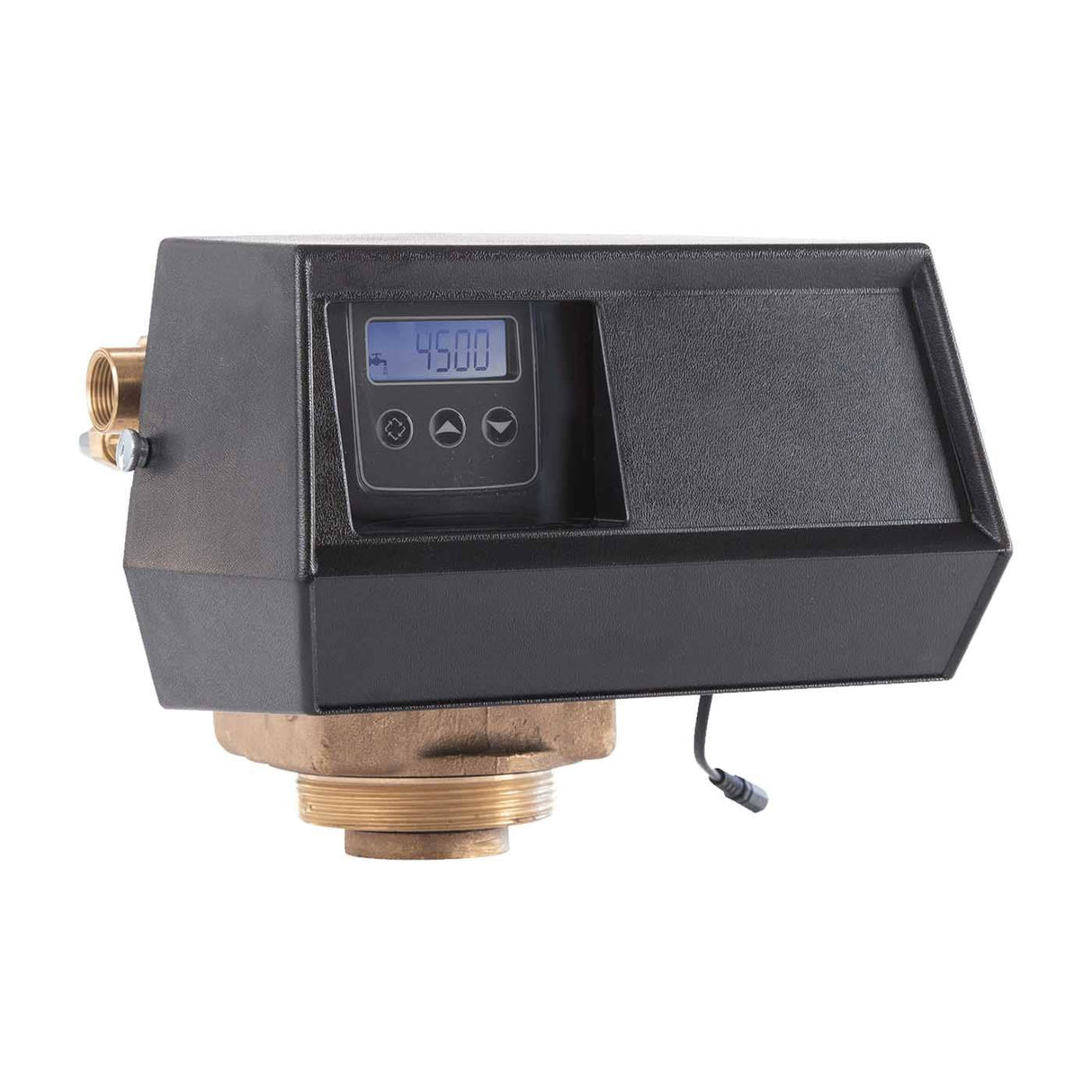

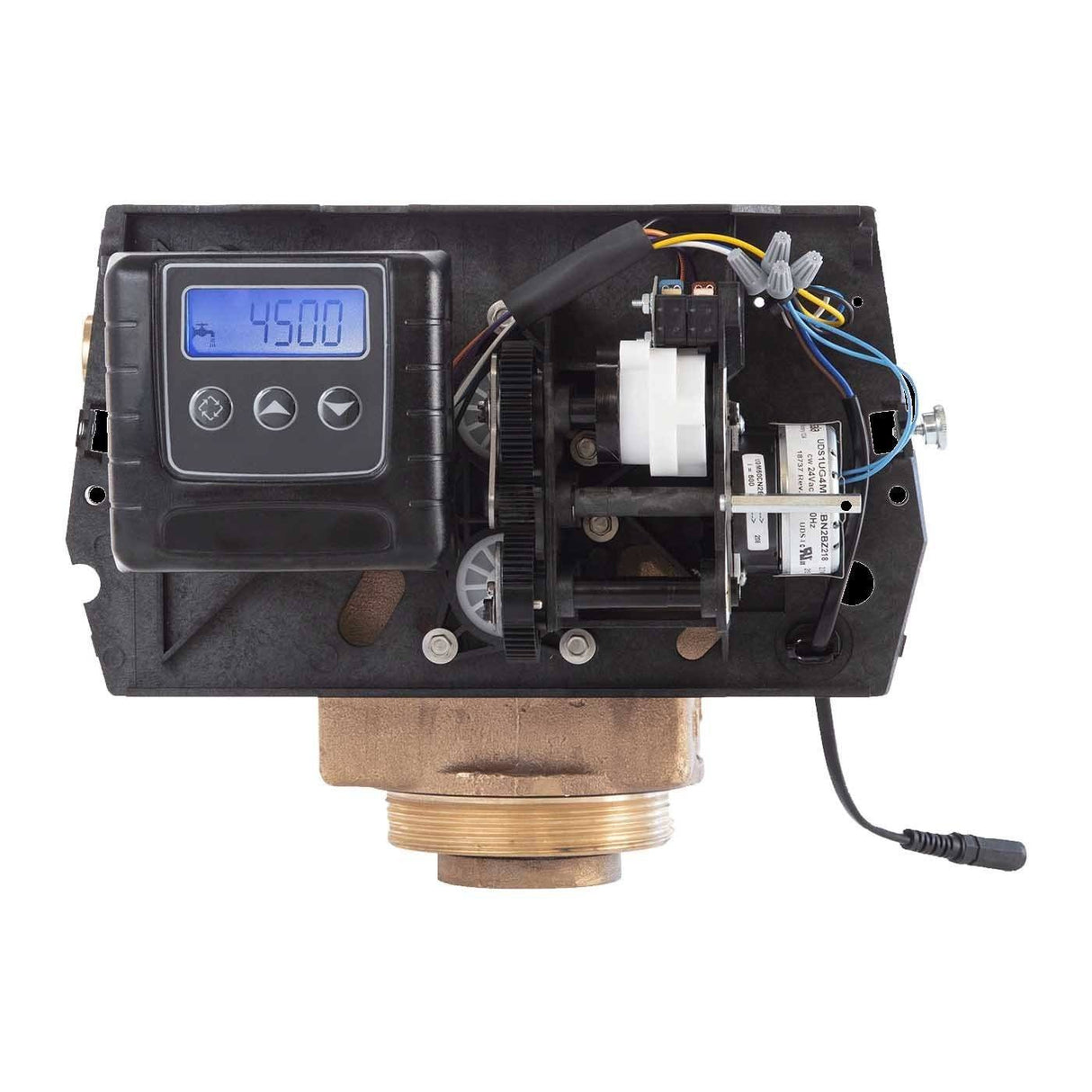

• Fleck SXT electronic controller

• 3/4" BSP inlet and outlet connections

• Brass valve body

• Adjustable regeneration cycles

• Suitable for 6" to 16" diameter softener vessels

• Compatible with downflow and upflow regeneration configurations

• 1600 brine system connection

• Meter-controlled operation based on actual water usage

Pentair specifies a working pressure range of 1.8–8.5 bar and a working temperature range of 1–43°C.

Flow Performance – 3/4" Version

At a 3.5 bar inlet pressure, the Fleck 9000 3/4" valve offers:

This makes the V900SI-602 suitable for installations where water demand varies and uninterrupted softened water availability is important.

Connections

• Inlet / Outlet: 3/4" BSP

• Distributor tube: 26.7 mm / 1"

• Drain connection: 1/2"

• 1600 brine line: 3/8"

• Mounting base: 2 1/2" – 8 NPSM

• Recommended vessel diameter: 6"–16" / 150–400 mm

What’s Included

All valves are equipped with:

• Transformer

• Top distributors

• Drain elbow

• Second tank adapter

Items Not Included

The following components are not included in the valve price and must be ordered separately where required:

• Yokes

• Bypass valve

• Aircheck

• Distributor tube

• Bottom distributor

Connecting flexible hose must also be ordered separately to suit the vessel diameter.

Metered SXT Control

The 3/4" meter has an accuracy range of approximately 1–57 litres per minute, allowing the SXT controller to monitor actual treated-water consumption and initiate regeneration according to demand.

This demand-based operation can help reduce unnecessary regeneration, salt consumption and water use compared with a purely time-controlled system.

Typical Applications

The Fleck 9000/1600 SXT Twin is suitable for:

• Commercial water softeners

• Large domestic properties

• Restaurants and catering facilities

• Laundries

• Hotels and guest accommodation

• Light industrial water treatment

• Applications requiring continuous softened water availability

Why Choose a Fleck 9000 Duplex Valve?

Unlike a conventional single-vessel softener, a duplex system can continue supplying softened water while one vessel regenerates. As one vessel becomes exhausted, the Fleck 9000 automatically transfers service to the second vessel.

This makes it an excellent choice for applications where softened water must remain available during regeneration, while the metered SXT controller helps ensure regeneration takes place according to actual water usage.

Product Code: V900SI-602
Valve: Fleck 9000
Brine System: 1600
Controller: SXT Electronic
Configuration: Twin / Duplex
Connection Size: 3/4" BSP
