HI-2003 Edge Conductivity Meter
HI-2003 Edge Conductivity Meter
HI-2003 Edge Conductivity Meter

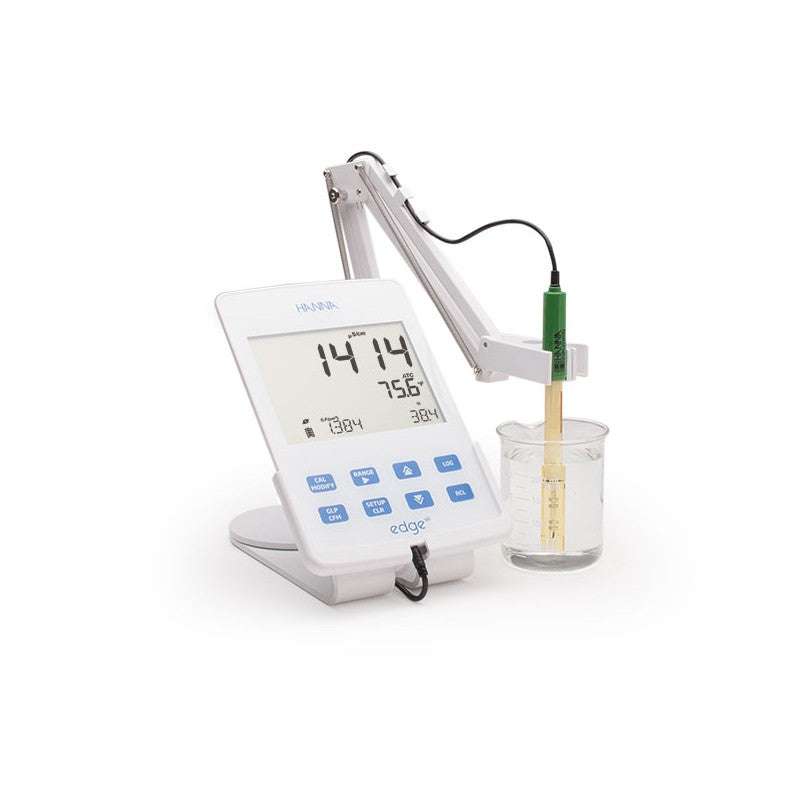

The HI-2003 Edge Conductivity Meter, supplied by GAPS Water Treatment, is dedicated to the precise measurement of conductivity. Powered by Hanna's latest technology and design, edge® EC offers full adaptability, enabling you to use it as a handheld, wall-mounted, or benchtop meter—whichever style suits your workflow. Simply plug in the electrode and start testing with clarity and confidence.
With its tablet-thin, lightweight build, intuitive controls, and large high-contrast LCD, edge® EC combines laboratory-grade accuracy with portable convenience. Measurements are fast, reliable, and easier than ever, making this a must-have meter for laboratories seeking top-tier performance in a streamlined form.
Precision, Innovation, and Versatility
Edge® EC leverages advanced digital technology, providing results you can trust whether you're performing quick checks or detailed analysis. Switch effortlessly between operational modes and enjoy features like customizable calibration, automatic temperature compensation, and robust data logging. Handling EC, TDS, and salinity measurements, this meter delivers comprehensive conductivity analysis, all in a compact package.
The HI-2003 is supplied with the HI-763100 digital four-ring conductivity probe featuring platinum electrodes and a 3.5 mm jack connector. Its unique probe ID and digital transmission support accuracy, traceability, and easy integration into your workflow.
Advanced Data Management and Connectivity
Storing up to 1,000 records (400 for basic mode) with flexible logging—manual, stability, and interval—edge® EC makes it easy to maintain organized, compliant data logs. Transfers are a breeze using the USB or micro USB ports for PC connectivity, data backup, or remote charging.
Specifications
|
Parameter |
Details |
|---|---|
|
EC Range |
0.00 to 29.99 µS/cm; 30.0 to 299.9 µS/cm; 300 to 2999 µS/cm; 3.00 to 29.99 mS/cm; 30.0 to 200.0 mS/cm; up to 500.0 mS/cm absolute EC |
|
EC Resolution |
0.01 µS/cm; 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm; 0.1 mS/cm |
|
EC Accuracy (@25°C) |
±1% of reading (±0.5 µS/cm or 1 digit, whichever is greater) |
|
Calibration |
Single cell factor calibration; six standards (84µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 118.8 mS/cm), one-point offset: 0.00 µS/cm |
|
Temperature Coefficient |
0.00 to 6.00%/°C (default: 1.90%/°C) (for EC and TDS) |
|
TDS Range |
0.00 to 14.99 mg/L (ppm); 15.0 to 149.9 mg/L (ppm); 150 to 1499 mg/L (ppm); 1.50 to 14.99 g/L; 15.0 to 100.0 g/L; up to 400.0 g/L absolute TDS |
|
TDS Resolution |
0.01 mg/L (ppm); 0.1 mg/L (ppm); 1 ppm; 0.01 g/L; 0.1 g/L |
|
TDS Accuracy (@25°C) |
±1% of reading (±0.03 ppm or 1 digit, whichever is greater) |
|
TDS Factor |
0.40 to 0.80 (default 0.50) |
|
Salinity Range |
0.0 to 400.0 % NaCl; 2.00 to 42.00 PSU; 0.0 to 80.0 g/L |
|
Salinity Resolution |
0.1 % NaCl; 0.01 PSU; 0.01 g/L |
|
Salinity Accuracy (@25°C) |
±1% of reading |
|
Calibration |
PSU & g/L through EC calibration; %NaCl: one point with HI-7037 sea water standard |
|
Temperature Range |
-20.0 to 120.0°C |
|
Temperature Resolution |
0.1°C |
|
Temperature Accuracy |
±0.5°C |
|
Logging |
Up to 1000 records (400 for basic mode), organized in manual, stability, and interval logs |
|
Power Supply |
5 VDC adapter (included) |
|
Connectivity |
1 USB port for storage; 1 micro USB port for charging/PC connectivity |
|
Environment |
0 to 50°C; RH max 95% non-condensing |
|
Dimensions |
202 x 140 x 12 mm |
|
Weight |
250 g |
Electrode HI-763100 Specifications
|
Parameter |
Details |
|---|---|
|
Body Material |
PEI |
|
Type |
Four-ring |
|
Insulator |
Glass |
|
Electrodes |
Platinum |
|
Range |
0 to 200 mS/cm |
|
Body Length |
120 mm |
|
Temperature Sensor |
Yes |
|
Amplifier |
No |
|
Digital |
Yes |
|
Cable |
1 m |
|
Connection |
3.5 mm jack |
|
Unique Serial ID |
Yes |
|
Environmental Range |
-5 to 100°C |
Why Choose HI-2003 Edge EC?
The HI-2003 Edge Conductivity Meter is a game-changer for anyone serious about conductivity and TDS analysis. Its clever, adaptable design and high-tech features, backed by a 2-year manufacturer warranty, make it the ultimate companion for fast, reliable, and accurate measurements—wherever and however you work.
Upgrade your laboratory or field testing with the HI-2003 Edge Conductivity Meter, supplied by GAPS Water Treatment, and experience the next level of convenience, innovation, and performance in electrochemistry.
