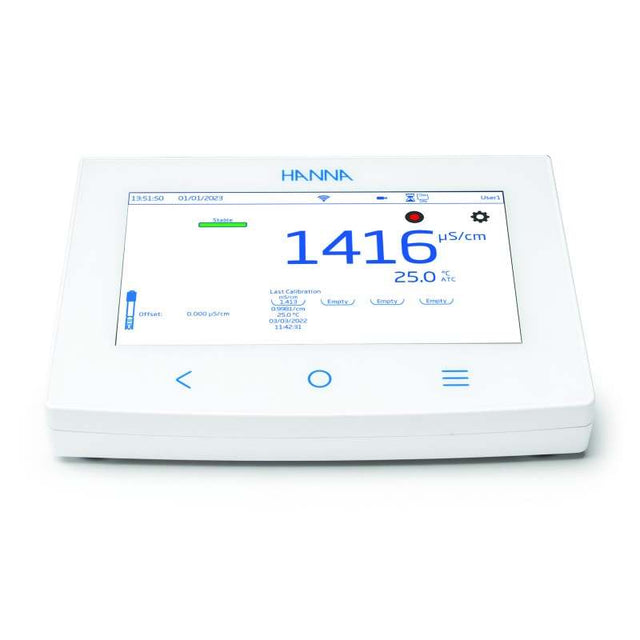

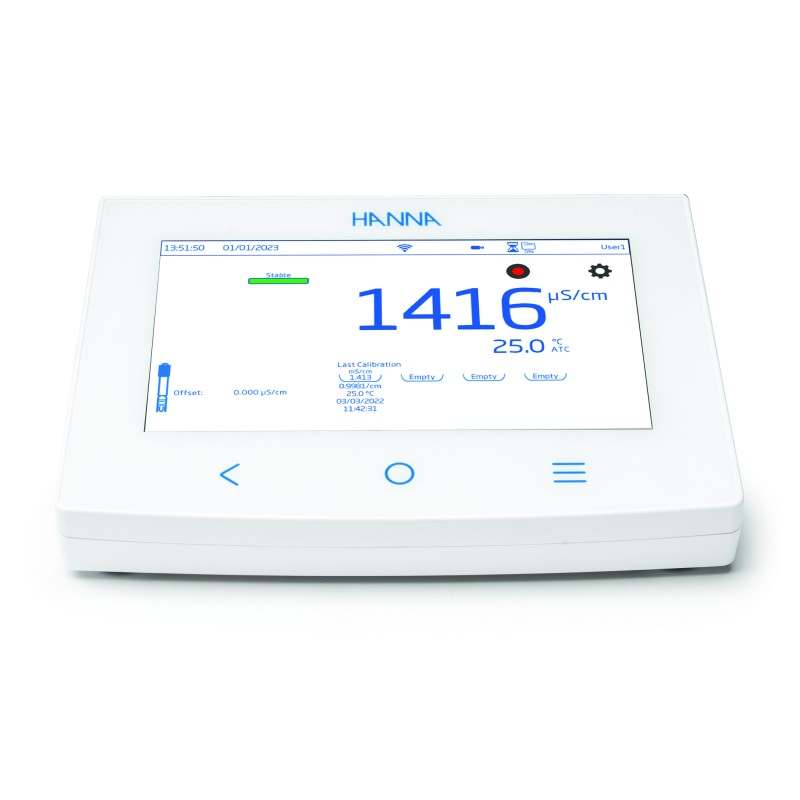

The HI-6321 Advanced Conductivity Benchtop Meter from GAPS Water Treatment is the laboratory solution for high-precision water quality analysis, blending modern design with advanced technology for repeatable, reliable results. Built for demanding lab environments, it boasts a practical footprint, an intuitive, glove-compatible capacitive touchscreen, and a flexible electrode arm configurable on either side to maximize space and convenience.
Practical, Streamlined Laboratory Design

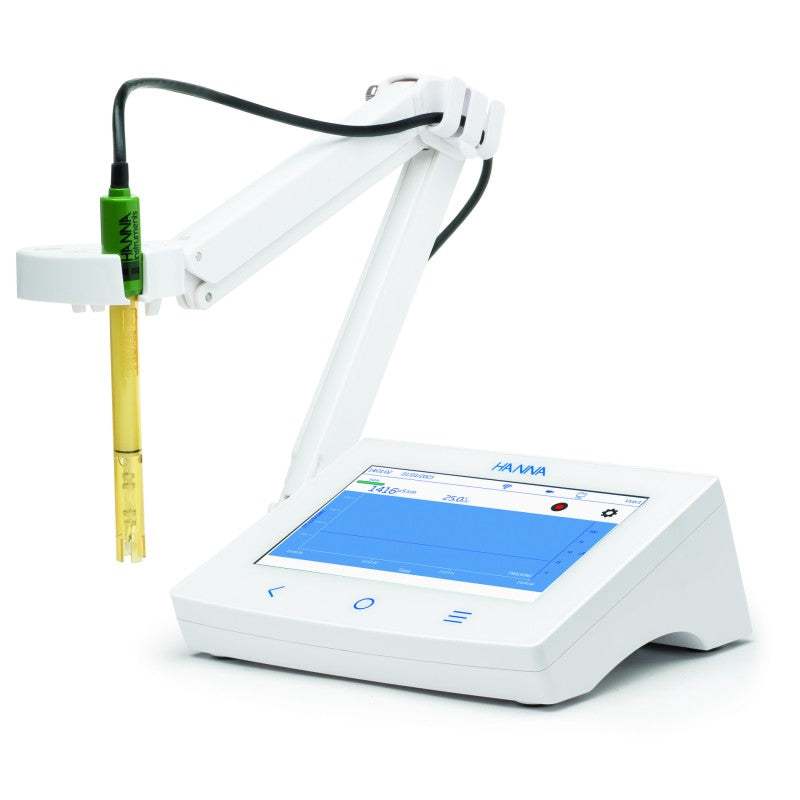

The HI-6321 is part of Hanna's HI-6000 series, engineered to meet the needs of today’s laboratories. Its large, easy-to-use interface accelerates workflow, while the compact design ensures it fits seamlessly into any lab. A dedicated electrode holder is included, mountable to either side, so you enjoy maximum flexibility for setup without sacrificing stability or convenience.
Supplied with Advanced Four-Ring Probe
This benchtop meter is supplied with the HI-7631233 four-ring probe, enabling measurements of conductivity (μS/cm, mS/cm), resistivity (Ω·cm, kΩ·cm, MΩ·cm), TDS (ppm, ppt), and salinity (ppt, PSU, %). The integrated temperature sensor supports automatic temperature compensation, ensuring accurate results across a full range of lab applications. This robust, purpose-built probe requires infrequent calibration and covers an extensive measurement range for critical water quality parameters.
The HI-7631233 probe uses three specialized compensation algorithms:
- Linear: For measurements where the temperature coefficient of variation is consistent.
- Standard: Ideal for high-purity water and resistivity readings above 1 MΩ·cm.
- Natural: For measurements of natural waters (well, ground, or surface) following ISO 7888.
Complete Range of Measurement Units
- TDS: Both calculated (factor x EC25) and EC-to-ppm conversion for broad reporting needs.
- Salinity PSU: Measures practical salinity of seawater for standard reference conditions.
- Salinity PPT: Uses the Natural Seawater Scale for applications between 0.00 to 80.00 g/L.
- Salinity %: 100% salinity ~ 10% solids, for versatile reporting.

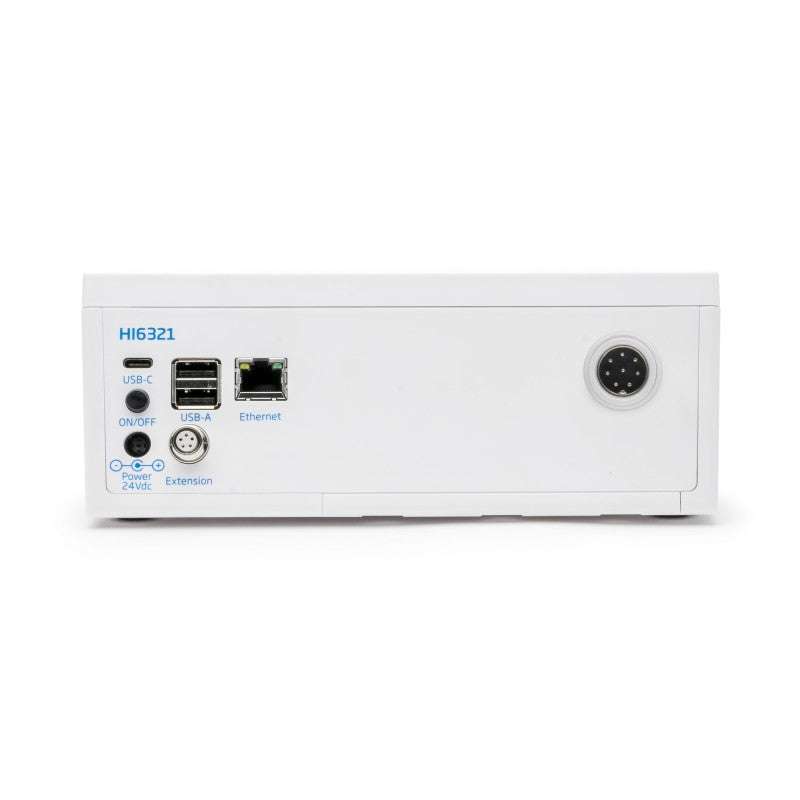

Flexible Connectivity for Modern Labs
Stay connected whether you're exporting or sharing data:
- WiFi & Ethernet: Send .csv data files easily by FTP or email—no need for a direct PC connection.
- USB-A/USB-C: Attach peripherals or transfer data to a memory stick quickly and safely.
- RS232: For additional peripheral connectivity.
Data Management, Logging, and Views
- Data Capacity: Store up to 1 million data points with full date/time stamps for easy filtering and post-experiment analysis.
- Export: Universal .csv format ensures your data is always accessible across devices.
- Logging Modes: Automatic, manual, and autohold; customizable intervals.
- Sample ID: Incremental for clear traceability.
- Five Measurement Views:
-
- Basic: Measured value/unit
- Simple GLP: Last calibration, offset, electrode status
- Full GLP: Full electrode info, used buffers
- Graph: Live trend plotting
- Tabulated: Table with value, date/time, user notes
Alerts & On-Board Tutorial System
- Visual & Audible Alarms: Assign custom limits for key parameters—get instant alerts when a measurement exceeds your set range.
- On-Board Help: Both video and text tutorials cover all instrument functions, reducing training time and boosting user confidence.
Complete User Customization
- Custom Users & Access: Up to 9 users plus an administrator; account management from the device for customized accessibility.
Specifications
|
Parameter |
Details |
|---|---|
|
Conductivity Range |
0.000–9.999 μS/cm; 10.00–99.99 μS/cm; 100.0–999.9 μS/cm; 1.000–9.999 mS/cm; 10.00–99.99 mS/cm; 100.0–1000.0 mS/cm |
|
Conductivity Resolution |
0.001 μS/cm; 0.01 μS/cm; 0.1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm |
|
Conductivity Accuracy |
±1% of reading (±0.01 μS/cm) |
|
Resistivity Range |
1.0–99.9 Ω·cm; 100–999 Ω·cm; 1.00–9.99 kΩ·cm; 10.0–99.9 kΩ·cm; 100–999 kΩ·cm; 1.00–9.99 MΩ·cm; 10.0–100.0 MΩ·cm |
|
Resistivity Resolution |
0.1 Ω·cm; 1 Ω·cm; 0.01 kΩ·cm; 0.1 kΩ·cm; 1 kΩ·cm; 0.01 MΩ·cm; 0.1 MΩ·cm |
|
Resistivity Accuracy |
±1% of reading (±1 Ω·cm) |
|
TDS Range |
0.000–9.999 ppm; 10.00–99.99 ppm; 100.0–999.9 ppm; 1.000–9.999 ppt; 10.00–99.99 ppt; 100.0–400.0 ppt (actual TDS with 1.00 factor) |
|
TDS Resolution |
0.001 ppm; 0.01 ppm; 0.1 ppm; 0.001 ppt; 0.01 ppt; 0.1 ppt |
|
TDS Accuracy |
±1% of reading (±0.01 ppm) |
|
Salinity (PSU Scale) |
0.00–42.00 PSU (practical scale; 0°C–35°C) |
|
Salinity (PPT Scale) |
0.00–80.00 g/L (natural seawater, 10–31°C) |
|
Salinity (% Scale) |
0.0–400.0% (100% ≈ 10% solids) |
|
Salinity Resolution |
0.01 (PSU/ppt); 0.1% (% scale) |
|
Salinity Accuracy |
±1% of reading |
|
Temperature Range |
−20.0–120.0 °C; 253.0–393.0 K |
|
Temperature Resolution |
0.1 °C; 0.1 °F; 0.1 K |
|
Temperature Accuracy |
±0.2 °C; ±0.4 °F; ±0.2 K |
|
Calibration |
Auto standard/user, single/multi-point (up to 5), with standard solutions: 84.00 μS/cm, 1.413 mS/cm, 5.000 mS/cm, 12.88 mS/cm, 80.00 mS/cm, 111.8 mS/cm |
|
Logging |
Auto/manual/autohold, 50,000 max/file, 1,000,000+ data points/user, export in .csv format |
|
Connectivity |
WiFi, Ethernet, 2x USB-A, 1x USB-C, RS232 |
|
Power Supply |
DC adapter 100–240 V AC to 24 V DC, 2.5 A |
|
Environment |
0–50°C, up to 95% RH (non-condensing) |
|
Dimensions |
205 x 160 x 77 mm (8.0 x 6.2 x 3.0 ") |
|
Weight |
Approx. 1.2 kg (2.65 lbs) |
Ordering Information: Supplied with HI-7631233 probe, HI-764060 electrode holder, capillary pipette, 24 VDC power adapter, USB-C to USB-A cable, probe quality certificate, quick reference guide, and instrument quality certificate.
Why Choose the HI-6321?
With its advanced multi-parameter capabilities, flexible connectivity, high storage capacity, intuitive interface, video tutorials, and user-focused customization, the HI-6321 Advanced Conductivity Benchtop Meter is the essential laboratory companion for TDS, conductivity, salinity, and resistivity measurements. Achieve reliable, repeatable results and streamline your workflow—all with a single innovative device from GAPS Water Treatment.
