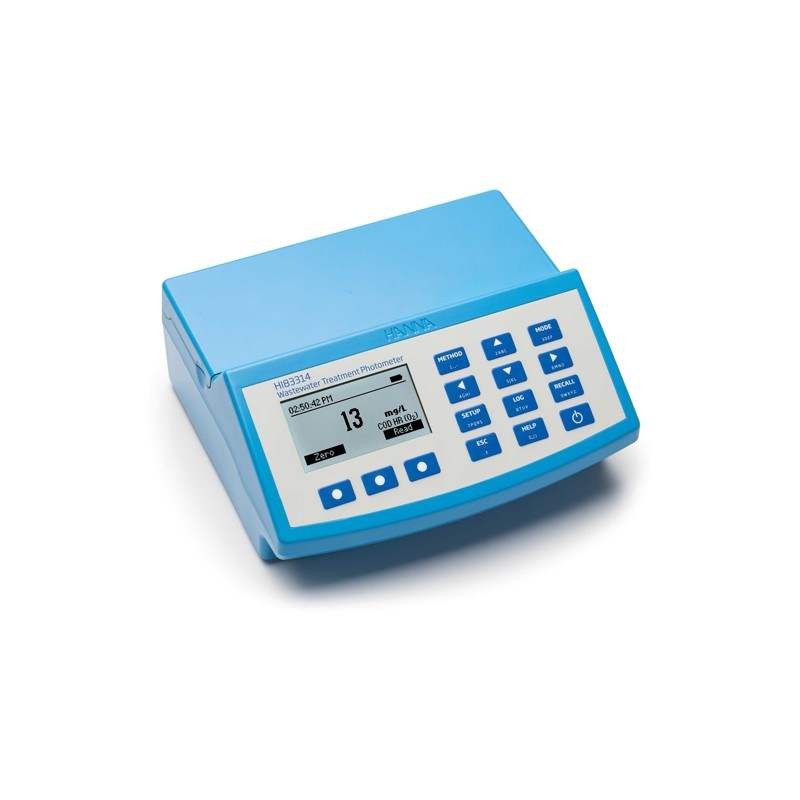

HI-83314-02 Wastewater & Water Photometer with COD and pH Meter

The HI-83314-02 Multi-parameter Wastewater & Water Photometer with COD and pH Meter from GAPS Water Treatment delivers a comprehensive solution for professionals dedicated to water and wastewater quality management. Combining the latest advancements in optical design with robust dual-mode functionality, this versatile benchtop instrument guarantees precision, reliability, and efficiency across a wide range of applications.

Advanced Optical System for Reliable Performance

At the heart of the HI-83314-02 is an advanced optical system utilizing high-efficiency LEDs, narrow band interference filters, a focusing lens, and both a silicon photodetector and reference detector. This extraordinary design eliminates errors caused by variations in the light source and imperfections in the glass cuvette, ensuring accurate, repeatable photometric readings for every test.

Extensive Multi-parameter Capability

Perfect for industrial and municipal settings, the HI-83314-02 is pre-programmed with 20 different methods for measuring 10 critical water and wastewater quality parameters. Specialized ranges and chemistries are included to serve specific testing needs, allowing users to monitor essential indices like:

• Chemical Oxygen Demand (COD) – crucial for wastewater treatment and organic load monitoring.
• Total Nitrogen and Total Phosphorus – essential for tracking nutrient removal in biological and chemical treatment processes.
• Other key parameters relevant to regulatory compliance and process optimization.

Dual Functionality: Photometer and pH Meter

This compact instrument doubles as a professional pH meter, featuring a digital pH electrode input. The digital electrode stores its calibration data, allowing for easy probe replacement (hot swapping) without the need for recalibration. All pH readings are automatically compensated for temperature, thanks to a built-in thermistor for precise, real-time adjustment.

Intuitive Features for Enhanced Usability

• Absorbance Measurement Mode: Ideal for performance verification, developing custom concentration curves, or educational applications. Users can choose from 4 wavelengths (420, 466, 525, or 610 nm) to match their specific needs.
• Built-in Reaction Timer: Ensures photometric measurements are taken at the ideal moment for accuracy and repeatability.
• Good Laboratory Practice (GLP) Capabilities: Track calibration details (date, time, buffers, offsets, and slopes) for comprehensive traceability and quality assurance.
• Data Logging: Conveniently stores up to 1,000 photometric and pH readings, which can be quickly transferred to a flash drive or a PC via dual USB ports. Data is exported in .CSV format for easy use in spreadsheet programs.

Designed for Portable, Long-term Operation

Engineered for the demands of the laboratory and fieldwork alike, the HI-83314-02 features a robust rechargeable lithium-polymer battery, supporting over 500 photometric tests or 50 continuous hours of pH measurement per charge. The backlit LCD display and compact build promote ease of use wherever reliable measurements are required.

Key Features Overview

The Smart Choice for Water & Wastewater Professionals

Whether optimizing municipal treatment, monitoring industrial discharge, or upholding environmental standards, the HI-83314-02 empowers users to achieve reliable, accurate results with every measurement. Experience best-in-class optical technology, streamlined operation, and unmatched versatility—all from a single, high-performance instrument.

Enhance your water quality management program today with the HI-83314-02 Wastewater & Water Photometer with COD and pH Meter from GAPS Water Treatment—your trusted partner in advanced analytical instrumentation.
