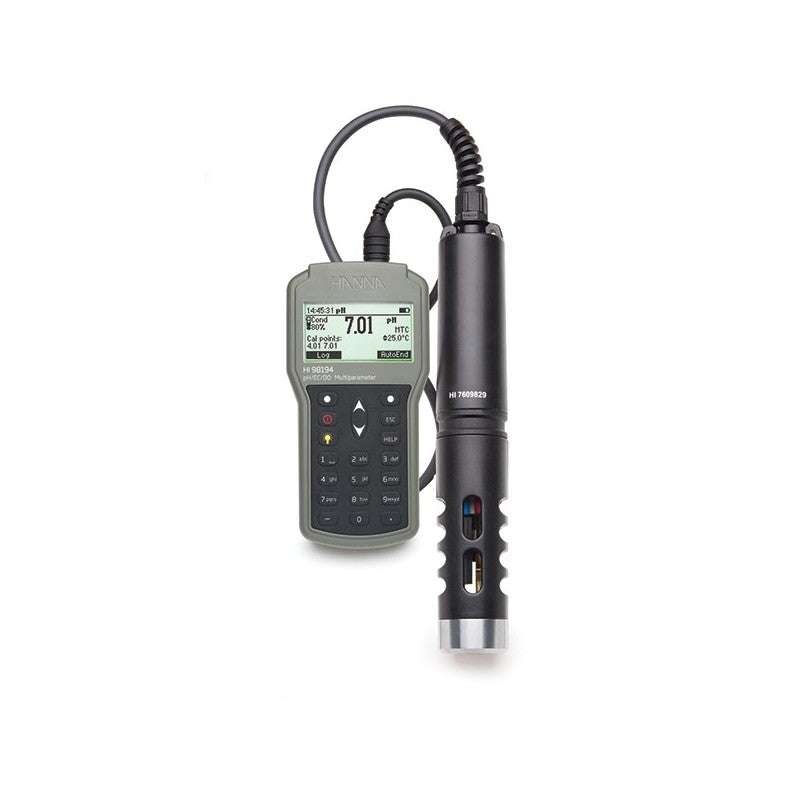

HI-98194 Multiparameter Waterproof Meter

The HI-98194 Multiparameter Waterproof Meter, supplied by GAPS Water Treatment, is engineered for professionals who need rapid, reliable water quality measurements in the harshest environments. With its rugged IP67-rated enclosure and IP68-rated quick-connect multi-function probe, this meter delivers precision and flexibility for a wide range of demanding applications, from environmental monitoring and aquaculture to wastewater management and educational research.

Advanced Measurement and Probe Design

The HI-98194 measures a comprehensive suite of parameters—pH/mV, ORP, conductivity, TDS, resistivity, salinity, seawater, dissolved oxygen, atmospheric pressure, and temperature—using its robust multi-sensor probe. Available with 4m, 10m, 20m, or 40m shielded cables (prices vary by cable length), the probe features quick, secure DIN connections and field-replaceable, color-coded sensors, minimizing downtime during maintenance and ensuring every measurement session runs smoothly, no matter the conditions.

Intuitive Operation in Any Environment

• Backlit, Graphic LCD: Effortlessly read results, even in dimly lit areas.
• Simple Navigation: Dedicated and soft keys provide easy, multilingual menu navigation.
• Comprehensive On-Screen Help: Access context-sensitive assistance for any feature at the touch of a button.

Powerful Data Management

• Automatic Logging: Store up to 45,000 continuous or log-on-demand samples, with intervals adjustable from one second to three hours.
• GLP Compliance: GLP data includes information from the last five calibrations for comprehensive record-keeping.
• Seamless PC Connectivity: Transfer logged data to your PC using the HI-920015 micro USB cable and Hanna’s Windows-compatible software.

Calibration and Compensation Features

• pH: Up to three-point calibration, supporting five standard buffers and one custom buffer.
• EC/TDS/Resistivity: Single-point calibration with six standards (84μS/cm, 1413μS/cm, 5.00mS/cm, 12.88mS/cm, 80mS/cm, 111.8mS/cm), auto-ranging, choice of reference temperature (20°C or 25°C), and display of absolute conductivity.
• Dissolved Oxygen: Units in % saturation or mg/L (ppm), with salinity and pressure compensation, built-in barometer (user-selectable units), automatic temperature compensation, and fast, ready-to-use membrane caps.

Probe & Accessory Details

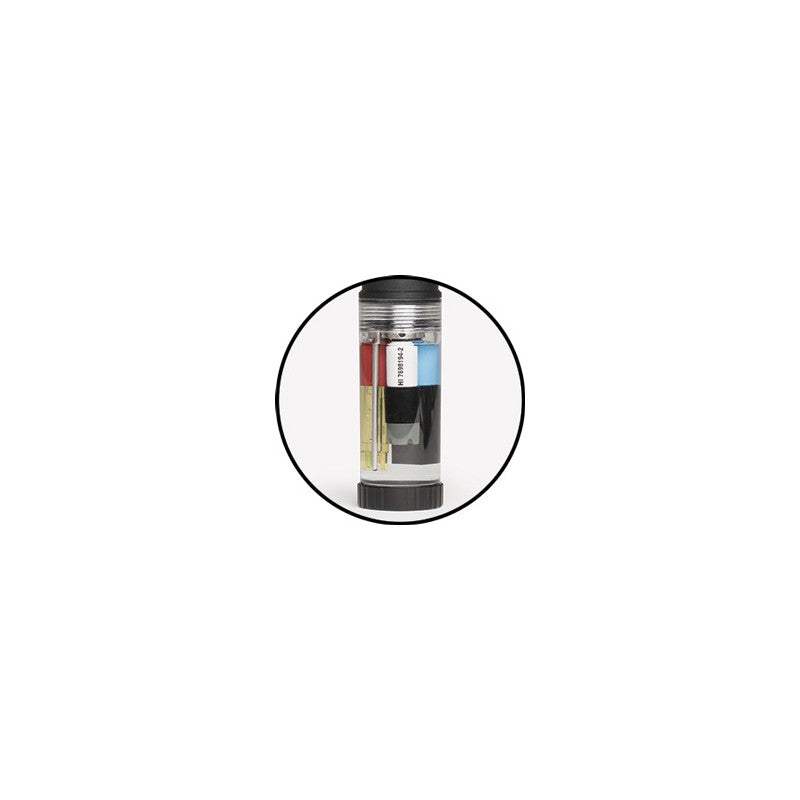

The HI-7698194 probe is designed for durability, with multistrand-multiconductor shielded cable for corrosion resistance and field longevity. Sensors are easily identified and swapped thanks to color-coding and robust screw connectors. The probe and meter are supplied in a tough, custom thermo-formed carrying case, keeping every component secure and organized in the field. Cables are available in 4m, 10m, 20m, and 40m lengths so you can tailor your setup (prices vary).

Key Features & Specifications Table

Applications

• Surface water and groundwater monitoring
• Environmental remediation and construction
• Aquaculture and seawater testing
• Wastewater analysis (municipal, industrial)
• Research and education

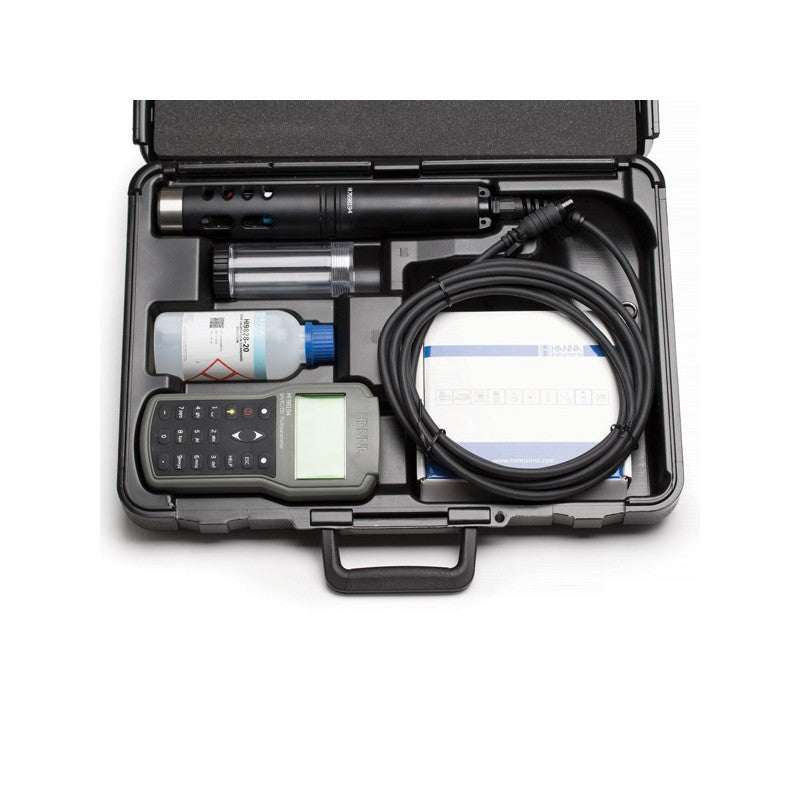

Complete Standard Package

Supplied with each HI-98194 system:

• HI-7698194 probe (4m cable standard; or 10m/20m/40m as selected)
• HI-7698194-1 pH/ORP sensor, HI-7698194-3 EC sensor, HI-7698194-2 DO sensor
• HI-76981942 probe maintenance kit (DO electrolyte, membrane caps, O-rings, grease)
• HI-9298194 Hanna PC software, HI-920015 micro USB cable
• Quick calibration solution, calibration beakers
• 4 x 1.5V AA batteries
• Instruction manual, quick start guide, quality certificate
• Rugged carrying case with custom inserts

Experience Versatile, Professional Water Testing

With the HI-98194 Multiparameter Waterproof Meter, you can rely on advanced, all-in-one measurement, outstanding durability, real-time digital flexibility, and the convenience of a truly field-ready instrument—backed by the expertise and service of GAPS Water Treatment. Choose the cable length and configuration to meet your site’s requirements and monitor water quality with confidence, accuracy, and efficiency.
