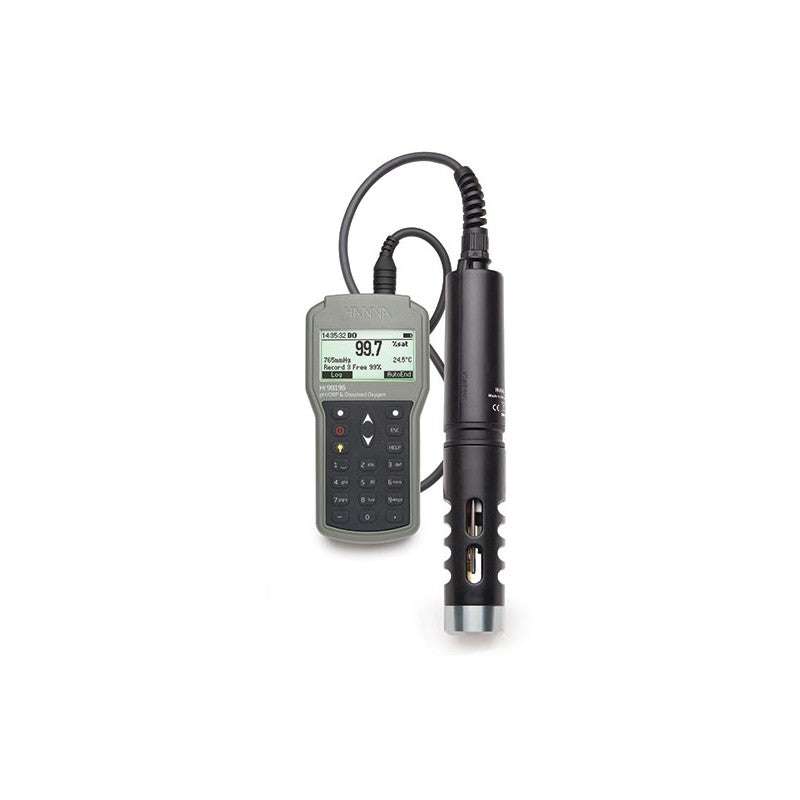

HI-98196 Multiparameter Waterproof Meter
HI-98196 Multiparameter Waterproof Meter
HI-98196 Multiparameter Waterproof Meter
The HI-98196 Multiparameter Waterproof Meter is a top-tier portable instrument designed for professionals in demanding environments. Supplied by GAPS Water Treatment, With its rugged IP67-rated waterproof enclosure and advanced features, it ensures precision and reliability no matter the conditions. This multi-parameter meter measures pH/mV, ORP, Dissolved Oxygen, Atmospheric Pressure, and Temperature, making it an all-in-one solution for comprehensive water quality analysis.
Key Features for Precision and Usability
- Multi-Parameter Measurement
Conduct a wide variety of tests with a single device, including pH, ORP, dissolved oxygen, atmospheric pressure, and temperature.
- Rugged and Reliable
The IP67-rated waterproof enclosure ensures durability, making it suitable for harsh environments, while the IP68-rated quick-connect probe tolerates immersion up to 20 meters.
- Easy-to-Use Design
A backlit, graphic LCD provides superior visibility in low-light conditions, while dedicated and soft keys allow intuitive navigation. On-screen help and comprehensive GLP data ensure accuracy and efficiency.
- Advanced Logging and Connectivity
Store up to 45,000 records with flexible logging intervals from one second to three hours. Easily transfer data to a PC using the included USB cable and software.
- Flexible pH and DO Features
-
- Up to three-point pH calibration with five standard and one custom buffer.
- DO measurements with salinity and pressure compensation, automatic temperature adjustment, and pre-tensioned membrane caps for convenience.
- Exceptional Battery Life
Operates for approximately 360 hours on four 1.5V AA batteries, ensuring uninterrupted usage during fieldwork.
Specifications
|
Specification |
Details |
|---|---|
|
pH/mV Range |
0.00 to 14.00 pH/± 600.0 mV |
|
Resolution |
0.01 pH/ 0.1 mV |
|
Accuracy |
±0.02 pH/ ±0.5 mV |
|
Calibration (pH) |
Automatic up to three points; five standard buffers or one custom buffer |
|
ORP Range |
±2000.0 mV |
|
ORP Resolution |
0.1 mV |
|
ORP Accuracy |
±1.0 mV |
|
ORP Calibration |
Automatic at one custom point (relative mV) |
|
DO Range |
0.0 to 500.0%, 0.00 to 50.00 ppm |
|
DO Resolution |
0.%; 0.01 ppm |
|
DO Accuracy |
±1.5% of reading or ±1.0% (whichever greater); ±3% for readings above 300% |
|
DO Calibration |
Automatic one or two points at 0.100% or custom |
|
Atmospheric Pressure Range |
450 to 850 mmHg; multiple user-selectable units |
|
Atmospheric Pressure Resolution |
0.1 mmHg; other units available |
|
Atmospheric Pressure Accuracy |
±3 mmHg (within ±15°C from calibration temperature) |
|
Atmospheric Pressure Calibration |
Automatic at one custom point |
|
Temperature Range |
-5.00 to 55.00°C |
|
Temperature Resolution |
0.01°C |
|
Temperature Accuracy |
±0.15°C |
|
Temperature Calibration |
Automatic at one custom point |
|
Max Probe Immersion Depth |
Up to 20 meters |
|
Logging Memory |
45,000 records (continuous or on-demand) |
|
Logging Interval |
1 second to 3 hours |
|
PC Connectivity |
via USB (Hanna PC software included) |
|
Power Supply & Battery Life |
4 x AA batteries; approx. 360 hours without backlight |
|
Environment |
0 to 50°C; RH 100% (IP67 rated) |
|
Dimensions / Weight |
185 x 93 x 35.2 mm / 400g |
Why Choose the HI-98196?
Designed for ultimate flexibility and precision, the HI-98196 is ideal for professionals requiring reliable multi-parameter measurement. From environmental studies to industrial analysis, this robust and versatile meter is equipped to handle it all. Whether you're in the field or the lab, the HI-98196 ensures seamless user experience and accurate results every time.
The HI-98196 measures pH/mV, ORP, Dissolved Oxygen, Atmospheric Pressure and Temperature. Supplied with a 4m cable.
