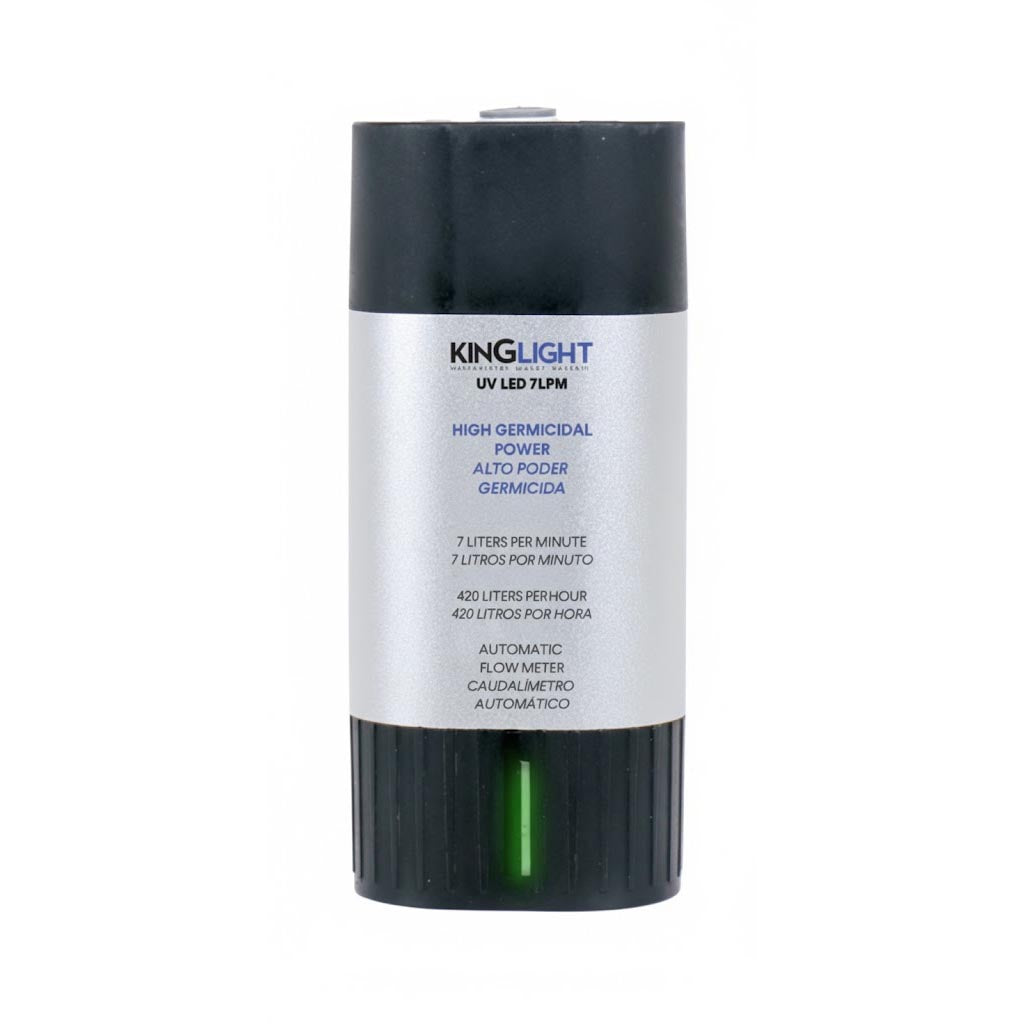

KINGLIGHT UV LED 7L, 5 LPM Water Purification System
The KINGLIGHT UV LED 7L, 5 LPM is a state-of-the-art water purification system designed to provide safe, clean water in a compact and reliable solution. Using advanced UV-C LED technology, this unit effectively eliminates harmful bacteria, viruses, and other microorganisms, making it an ideal choice for homes, offices, and even industrial or commercial settings.
Key Features
- UV-C LED Technology: Harnesses ultraviolet light to sterilize water, ensuring a germ-free supply with a sterilization rate of ≥99.9% for E. Coli at ≤7 LPM.
- Chemical-Free Operation: Offers a safer alternative to traditional water treatments by avoiding the use of harmful chemicals.
- Energy Efficiency: Operates at just 10.5 W, providing a high-performance solution while minimizing energy consumption.
- Compact Design: Easy to install and suitable for a wide range of environments.
-
LED Status Indicator: Built-in LED display shows the system's operating status:
- Blue: Waiting
- Green: In operation
- Red: End of useful life
Advantages
-
Easy Installation
The 3/8” connections ensure straightforward setup for various applications. If a 1/4” pipe installation is needed, a reducer (Ref. 951014) can be used. -
Durable and Reliable
With a service life of up to 3,000 hours and IPX7 waterproofing, the KINGLIGHT UV LED 7L is built to last in tough conditions. -
Versatility
It supports both filtered and reverse osmosis (RO) water systems. Note that a 10-micron pre-filter is required unless the system is being used as an RO post-filter. -
No Heating
Ensures the water stays at a consistent temperature, perfect for maintaining water quality and comfort.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions | 66 mm x 155 mm |
| Main Material | PP, Aluminum alloy |
| Electrical Supply | 100V-240V, 50/60Hz |
| Power | 10.5 W |
| Output Voltage | 24Vdc 1A |
| Working Temperature | 2ºC – 65ºC |
| Pressure | 0.8 MPa |
| Connections | 3/8″ |
| Flow of Filtered Water (10µm) | 3-5 L/min |
| Flow of Osmosed Water | 7 L/min |
| Minimum Flow for Activation | 0.5 L/min |
| Sterilization Rate | ≥99.9% |
| Service Life | 3,000 hours |
| Waterproof Grade | IPX7 |
Eco-Friendly Solution
The KINGLIGHT UV LED 7L is designed with sustainability in mind. Chemical-free sterilization ensures there are no harmful by-products, and its energy-efficient design reduces environmental impact. This makes it a responsible choice for eco-conscious consumers.
Built for Modern Needs
Whether you need a robust system for your home or a durable solution for commercial applications, the KINGLIGHT UV LED 7L offers unmatched performance. Its high sterilization efficiency, low energy use, and minimal maintenance requirements deliver long-term value.
Experience clean and safe drinking water with the KINGLIGHT UV LED 7L, 5 LPM. Upgrade your water purification system today!
