SPECTRUM PTL Twist-Lock Cartridge System

The SPECTRUM PTL Twist-Lock Cartridge System is designed to bring unmatched versatility and performance to your water filtration needs. Whether for vending machines, potable water, or reverse osmosis systems, this range of cartridges ensures reliable and efficient filtration. Explore the various options tailored to meet specific applications, all utilizing the user-friendly twist-lock mechanism for convenient installation and maintenance.

Key Features of the Twist-Lock System

• Patented Twist-Lock Design
  Simplify cartridge installation and replacement with a quick 1/4 turn that securely connects the system. The built-in shut-off function ensures leak-free maintenance without turning off water lines.

• Versatile Application
  Ideal for use in vending, potable water, and reverse osmosis systems. Configurable in single or parallel setups for diverse filtration needs.

• Equipment Protection
  Prevents particulate and scale build-up, safeguarding expensive and sensitive downstream appliances to maximize their lifespan and performance.

Available Options

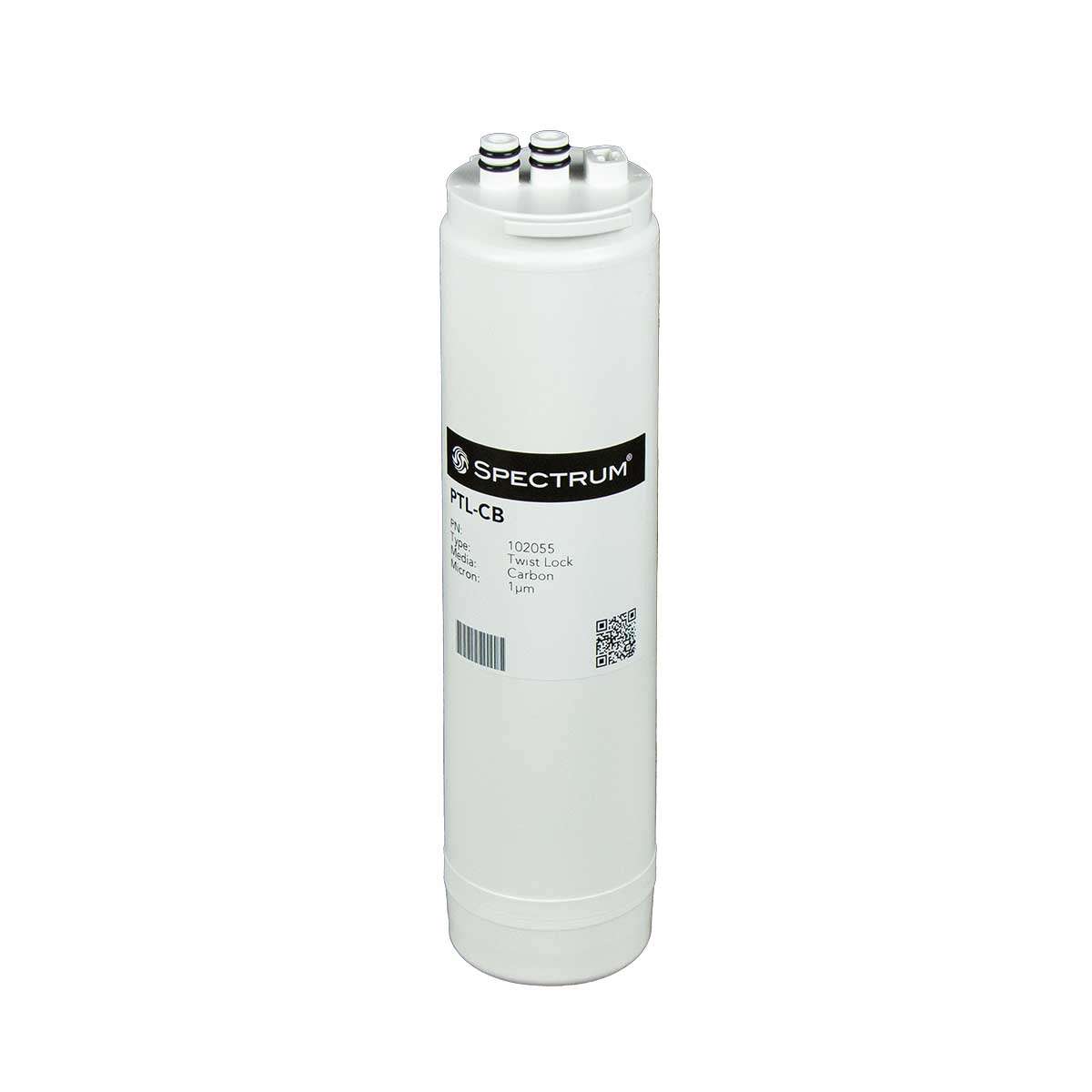

1 Micron Carbon Block Filter

• Reduces chlorine, taste, and odour for improved water quality and clarity.
• Filters fine particulates to protect downstream equipment.
• Micron Rating: 1 µm
• Capacity: 9,500 litres
• Flow Rate: 3.8 LPM
• Dimensions: 10" length x 2.5" width
• Maximum Operating Temperature: 38°C
• Maximum Pressure: 6.9 bar

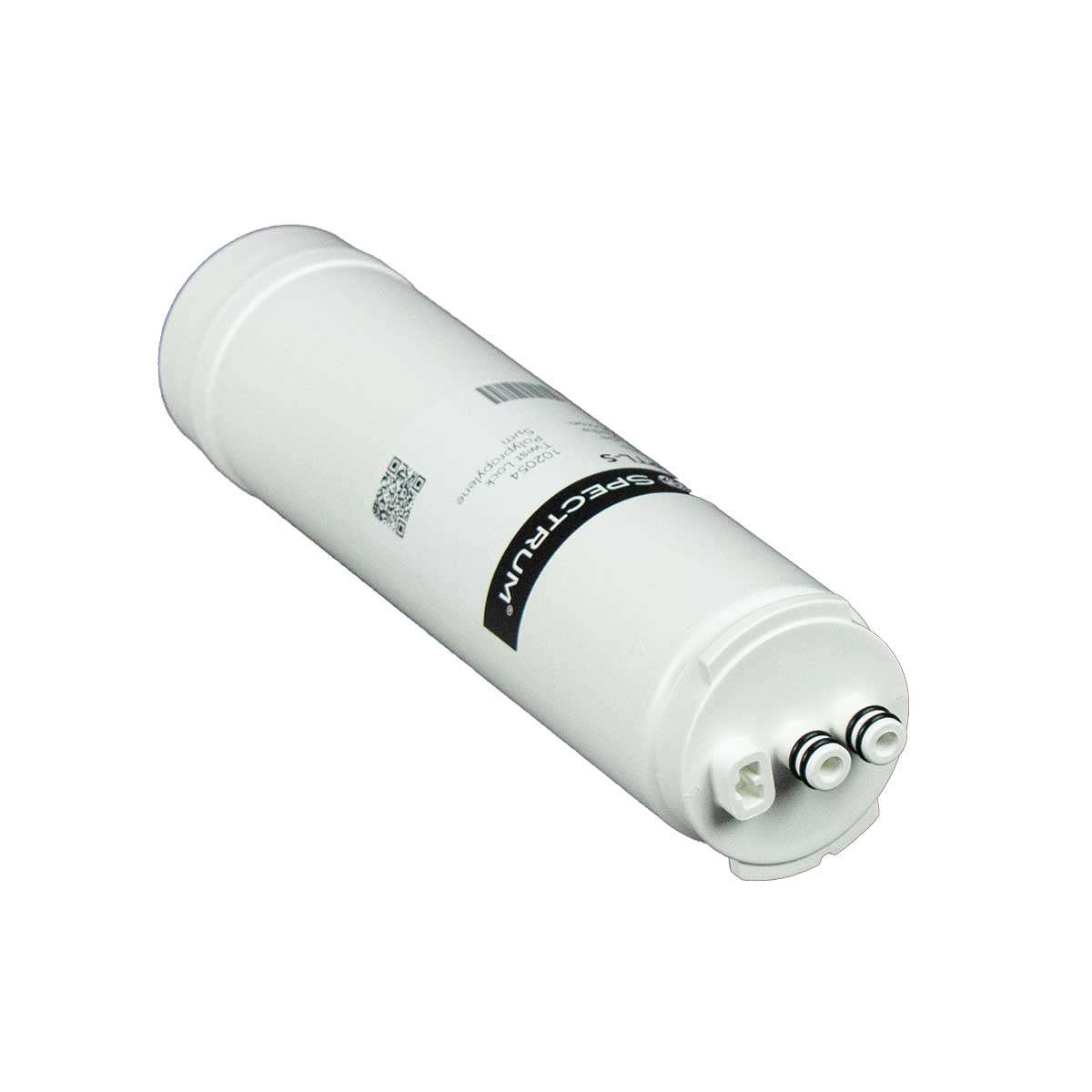

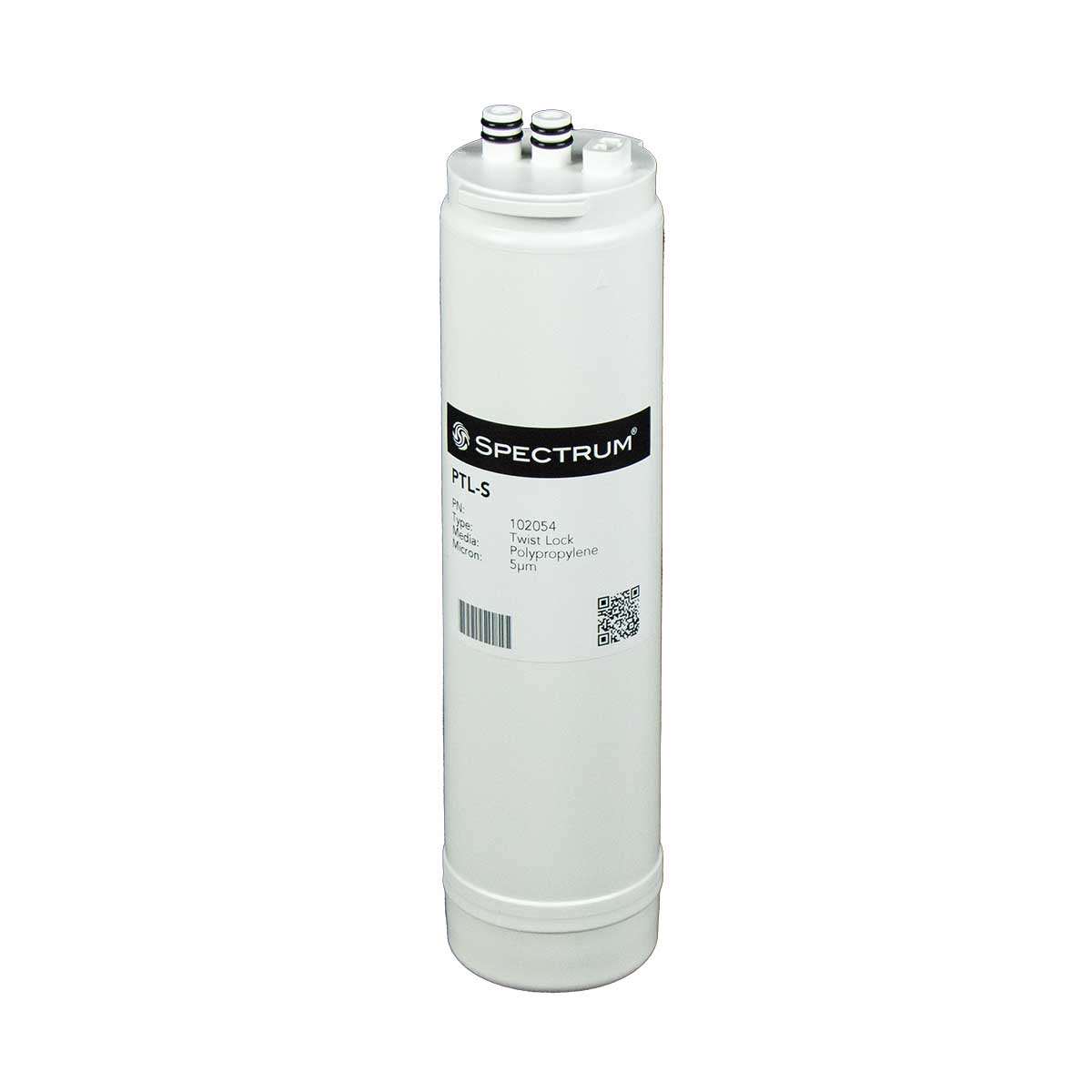

5 Micron Sediment Filter

• Removes dirt, rust, silt, and sand, making it an effective pre-filtration stage.
• Essential for protecting more sensitive post-filtration systems.
• Micron Rating: 5 µm
• Flow Rate: 3.8 LPM
• Dimensions: 10" length x 2.5" width
• Maximum Operating Temperature: 38°C
• Maximum Pressure: 6.9 bar

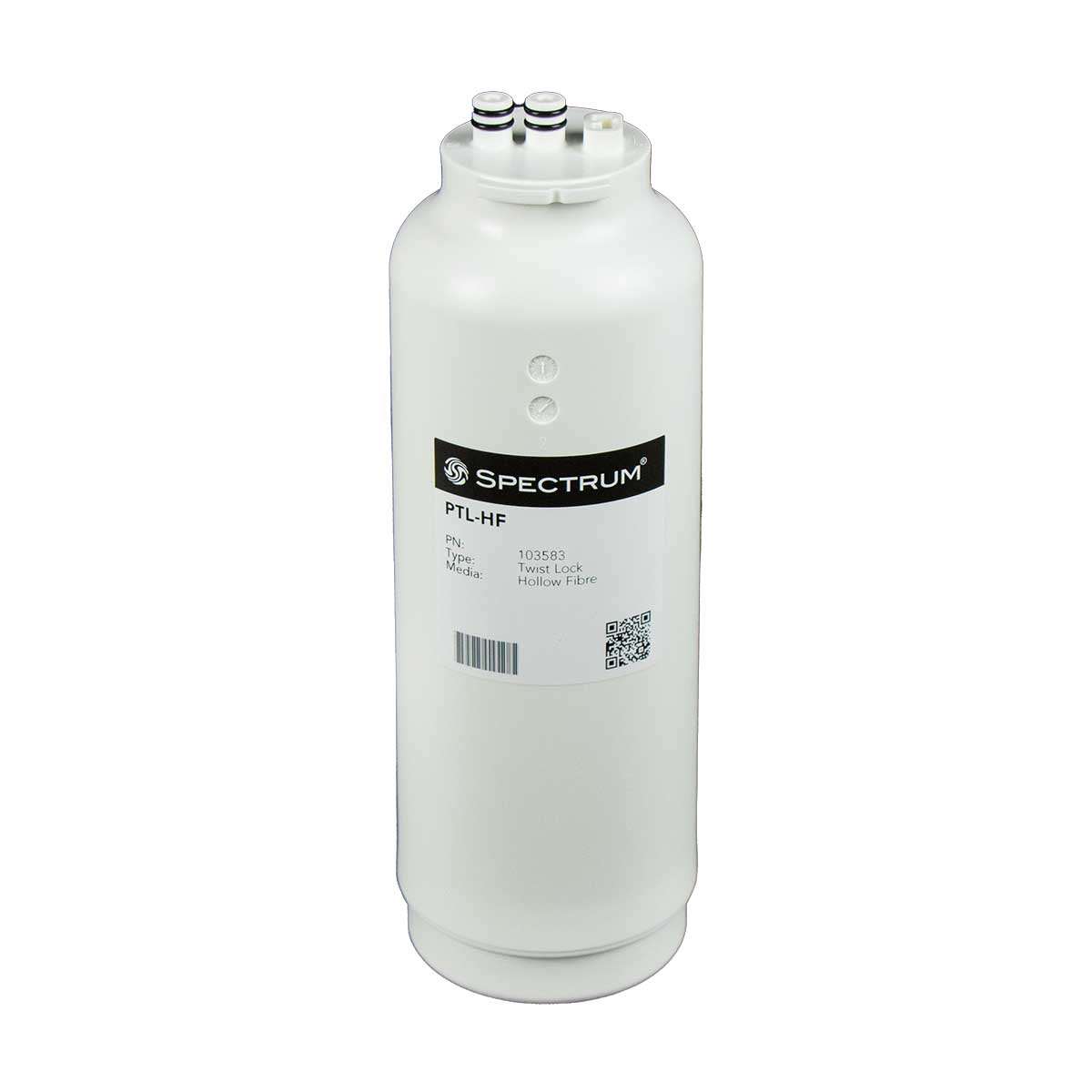

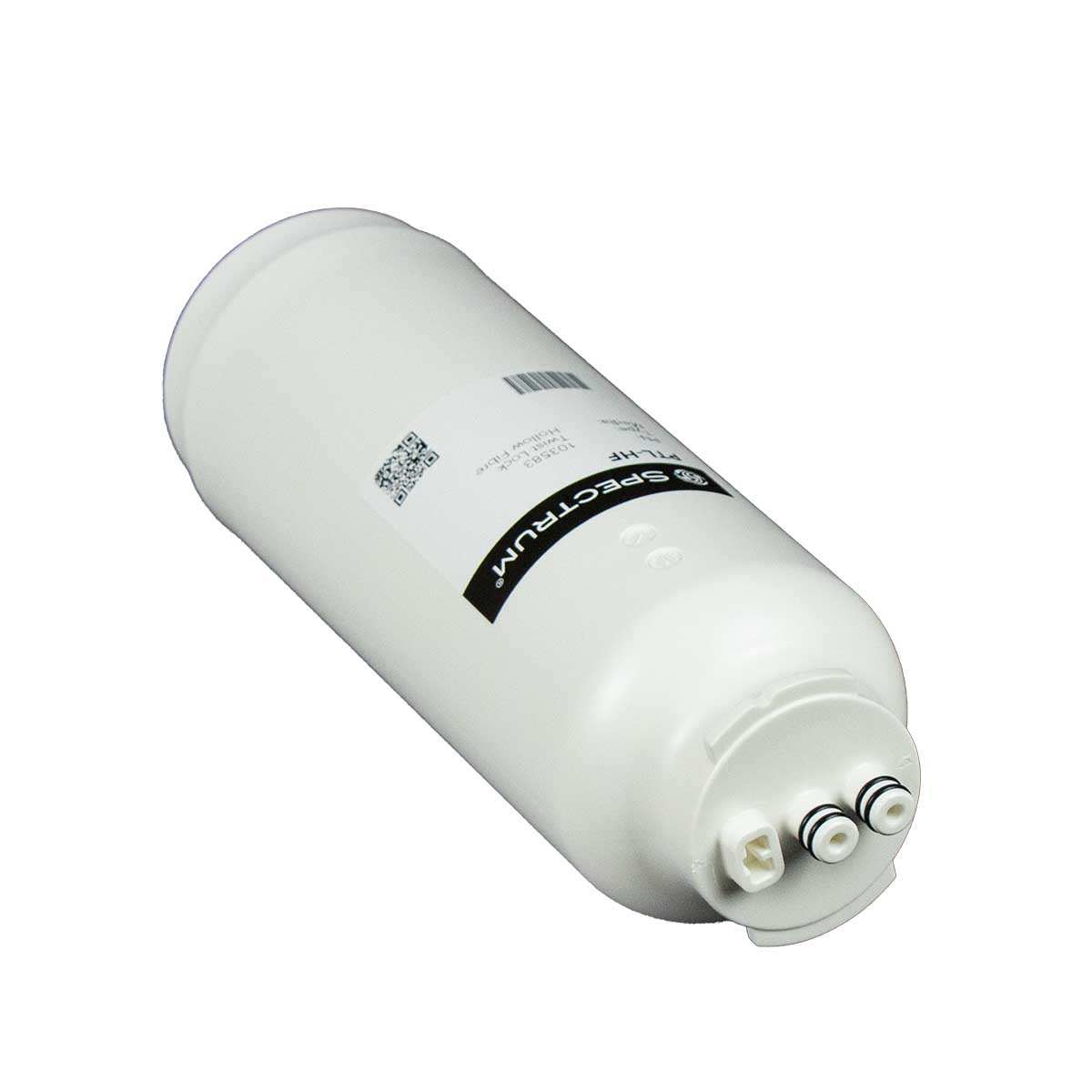

Hollow Fibre Membrane Filter

• Provides high-capacity filtration, removing bacteria, cysts, and viruses.
• Perfect for producing ultra-pure water in compact, inline systems.
• Micron Rating: 0.025 µm
• Capacity: 3,800 litres
• Flow Rate: 2.6 LPM
• Rejection Rates: 99.9999% for bacteria, 99.99% for cysts, and 99% for viruses
• Dimensions: 10" length x 3.5" width
• Maximum Operating Temperature: 38°C
• Maximum Pressure: 6.9 bar

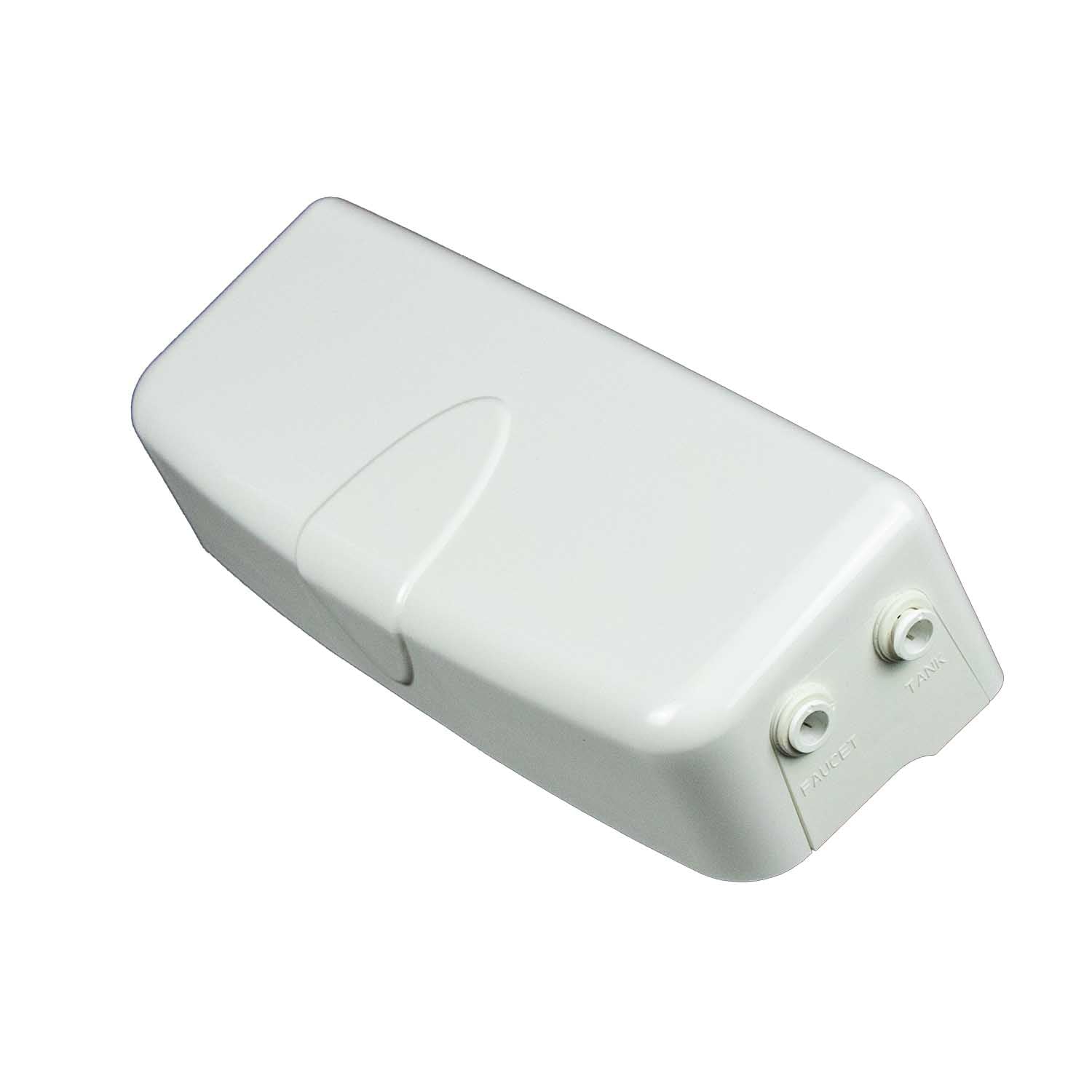

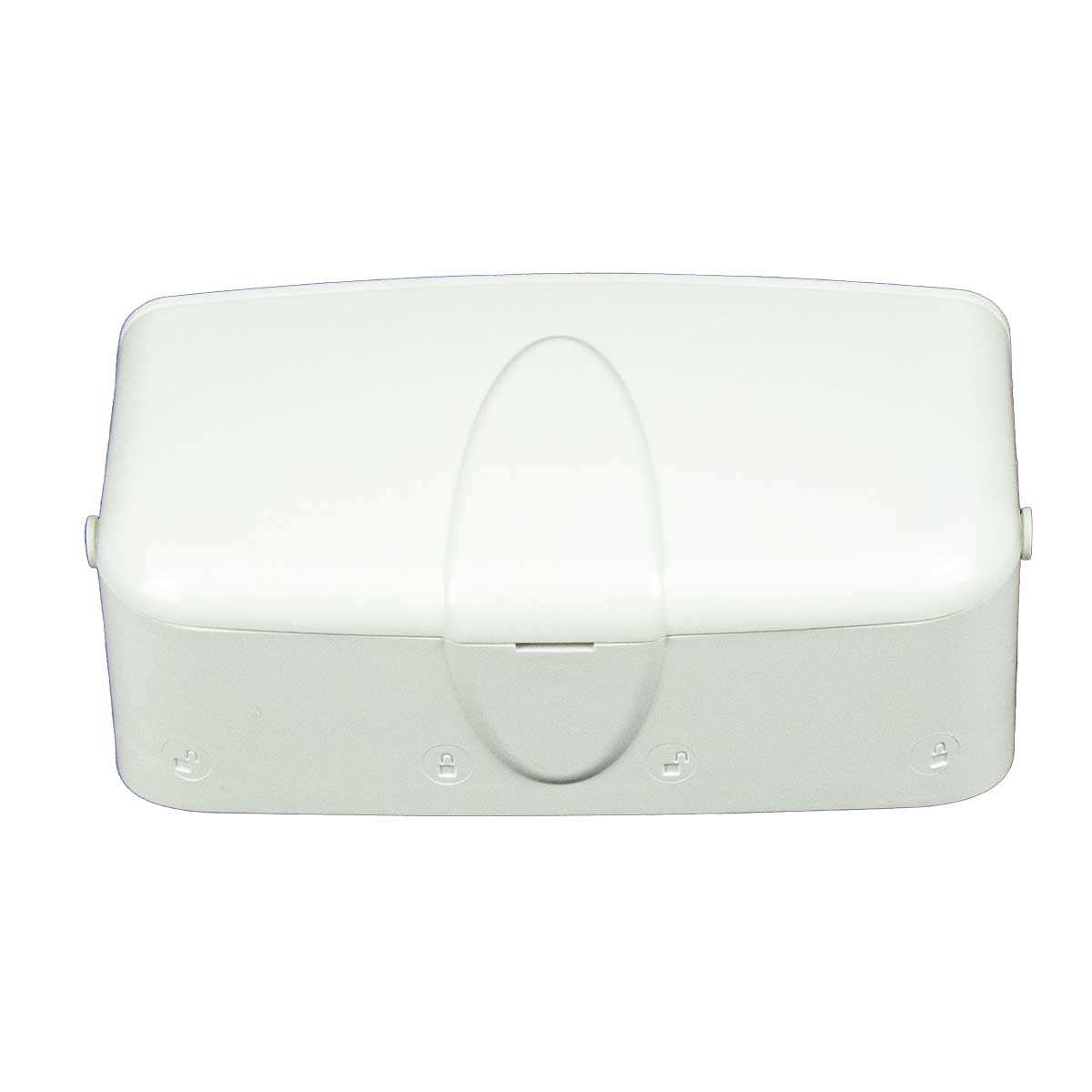

Filter Cartridge Heads

• Choose from single, double, or triple configurations for tailored system designs.
• Durable molded heads include built-in bracket points for quick and easy installation.
• Push Fit Ports: 1/4" connections for reliable, leak-free use.

Simplified Maintenance

The SPECTRUM PTL Twist-Lock range makes cartridge replacement quick and hassle-free. With no need for additional tools, the simple twist-lock feature saves time and effort while preventing cross-contamination.

Why Choose the Twist-Lock System?

With its innovative design and versatile options, the PTL Twist-Lock Cartridge System ensures pristine water quality while minimizing maintenance costs. Upgrade your filtration system today for efficient performance and extended equipment life!
