SPECTRUM SFH Large Diameter Plastic Filter Housing 20", 1" BSP
SPECTRUM SFH Large Diameter Plastic Filter Housing 20": High-Capacity Filtration
The SPECTRUM SFH Large Diameter Plastic Filter Housing 20" is engineered to deliver maximum filtration capacity with a flow rate of up to 90 liters per minute (lpm). Designed for high-flow applications, it combines advanced performance with the practical benefits of durable polypropylene construction and user-friendly features. Ideal for those seeking a cost-effective alternative to multi-round stainless steel housings, this unit offers excellent reliability, flexibility, and value.
Key Features and Benefits
-
Exceptional Flow Rate
Achieves up to 90 lpm, the highest capacity within the SPECTRUM Standard Plastic Housing range. -
Durable Build for Heavy-Duty Use
Constructed from tough polypropylene, designed to withstand high operating pressures of up to 6.9 bar. -
1" BSP Ports for Seamless Integration
Compatible with standard pipework to ensure easy installation across various systems. -
Flexible Cartridge Compatibility
Suitable for 20" x 4.5" cartridges with DOE or AA end-cap configurations, supporting diverse filtration needs. -
Pressure Release Button
Simplifies maintenance and ensures safe, hassle-free cartridge replacements. -

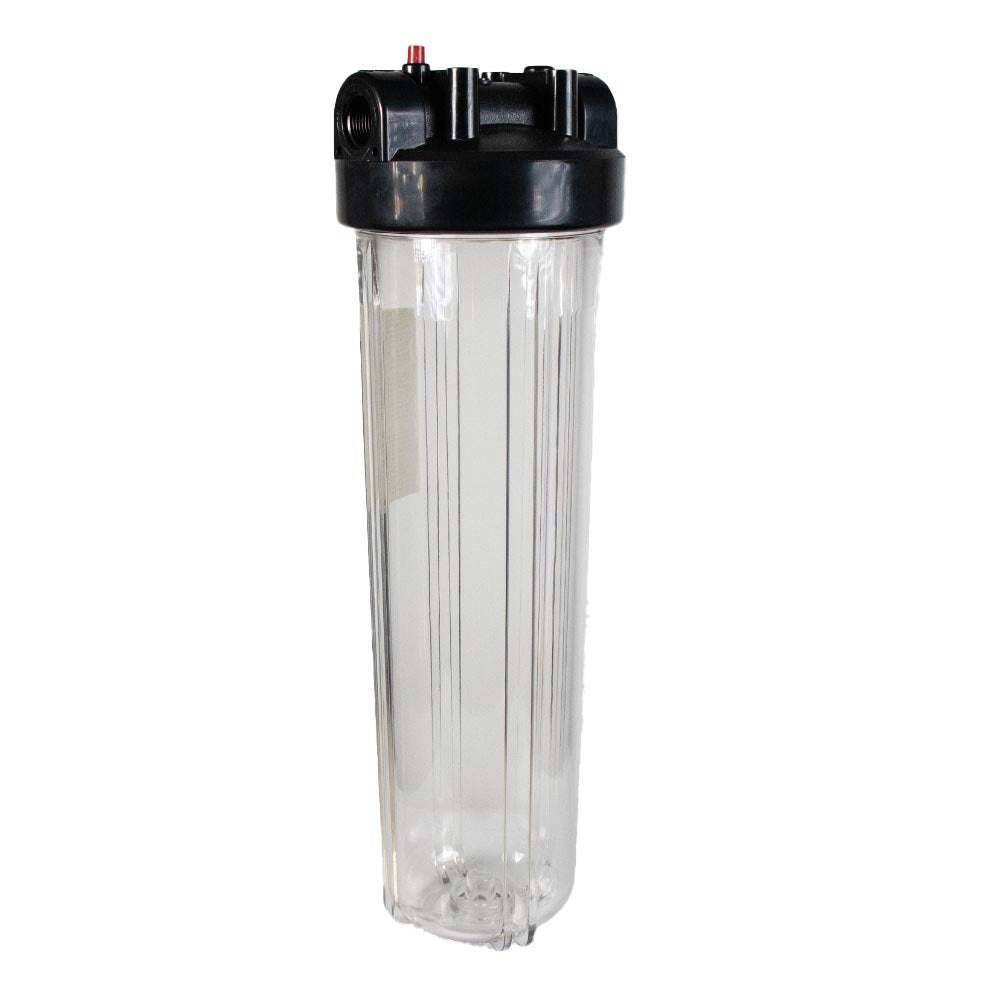

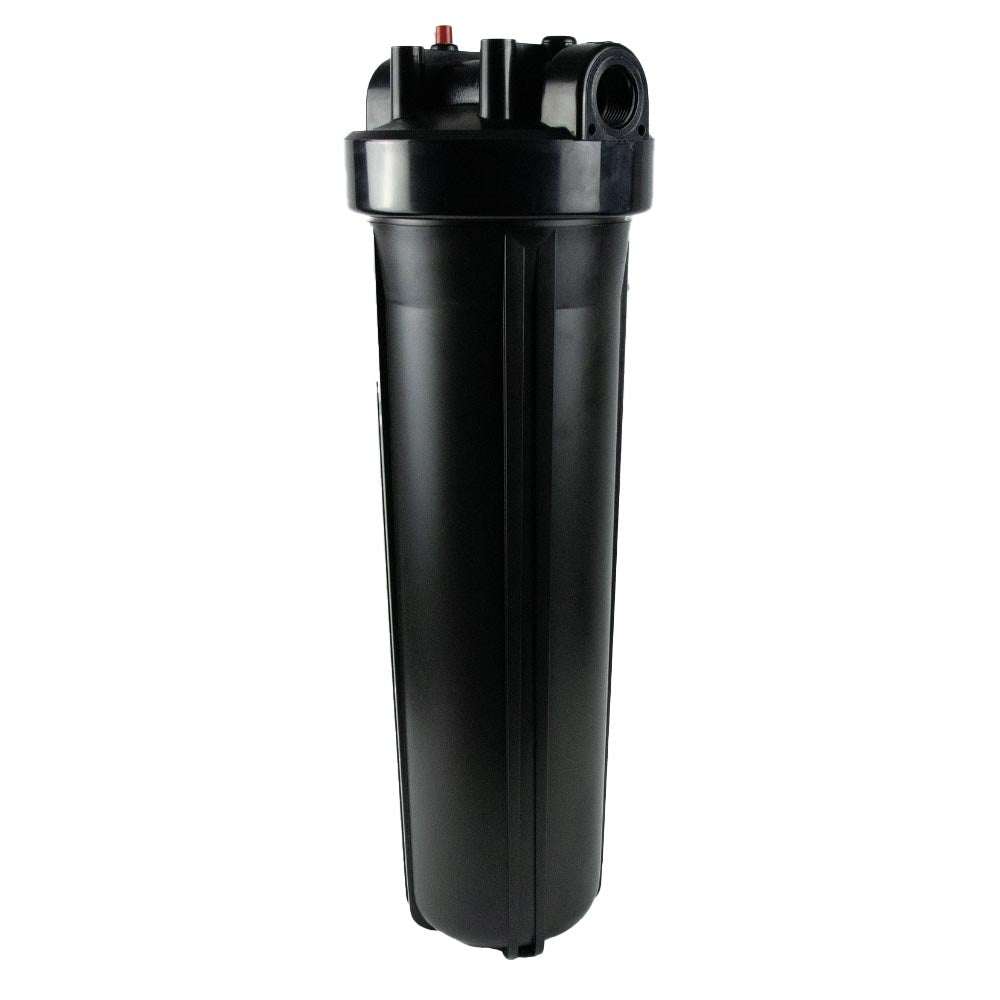

Clear or Black Sump Options
Choose a transparent sump for visibility or a black sump for maximum durability. -
Temperature Rating
Operates efficiently within a range of 4°C to 42°C, accommodating versatile application environments.
Technical Specifications
Specification | Details |
---|---|
Material (Housing) | Polypropylene |
Seal Material | EPDM |
Configuration | 1 Cartridge (20" L x 4.5" D) |
Port Size | 1" BSP |
End-Cap Compatibility | DOE, AA |
Flow Rate | Up to 90 lpm |
Max Pressure Rating | 6.9 bar |
Temperature Range | 4°C to 42°C |
Dimensions and Flow Rates
Model | Dimensions (mm) | Flow Rate (lpm) |
---|---|---|
SFH-PK-20LD | 188 (A) x 186 (B) x 593 (C) | 90 |
SFH-SC-20LD | 188 (A) x 186 (B) x 597 (C) | 90 |
Casing dimensions vary slightly depending on sump choice (black or clear).
Applications
Designed to meet the rigorous demands of high-flow filtration systems, the SPECTRUM SFH Large Diameter Plastic Filter Housing 20" excels in the following areas:
-
Industrial High-Flow Systems
Efficiently handles heavy flow requirements for large-scale operations. -
Commercial Filtration
Reliable water filtration for restaurants, hotels, and office buildings. -
Residential Whole-House Filtration
Provides consistent, clean water for larger households or connected applications. -
Cost-Effective Alternative to Steel Housings
Offers robust performance at a fraction of the cost of multi-round stainless steel systems.
Why Choose the SPECTRUM SFH Large Diameter Filter Housing 20"?
The SPECTRUM SFH Large Diameter Plastic Filter Housing 20" strikes the perfect balance between high-capacity performance and cost-effectiveness. With thoughtful design elements like a pressure release button, flexible cartridge compatibility, and a durable polypropylene build, this housing simplifies high-flow filtration while maintaining reliability and ease of use.
Upgrade Your High-Flow Filtration System Today!
Achieve exceptional water filtration with the SPECTRUM SFH Large Diameter Plastic Filter Housing 20". Engineered for demanding applications, this housing guarantees efficiency, durability, and ease of maintenance. Order now and take the next step toward superior water quality!
