Overview
The PRISM Filter Housing is a dependable solution for efficient water filtration, combining robust construction with user-friendly design. Engineered to meet PED compliance standards, it suits a variety of applications including under-sink installations, OEM systems, and high-flow capacity setups. Built from FDA-compliant materials, this filter housing ensures long-lasting performance for both residential and industrial use.
Key Features
- Port Size Options: Comes in ¼”, ⅜”, ½”, ¾”, and 1” port sizes, providing flexibility for different pipework and fittings.
- Lightweight Durability: Crafted using modern injection molding for easy handling and reliable performance.
- Wide Compatibility: Works with key cartridge sizes, including 9¾”, 10”, and 20”, compatible with various end-cap styles (DOE, AA, CG).
- High-Quality Materials: Built with FDA-compliant polypropylene (PP) and Styrene Acrylonitrile (SAN) for long-lasting use.
Materials of Construction
| Component | Material |
|---|---|
| O-Ring | EPDM |
| Head | Polypropylene / Glass-Filled Polypropylene |

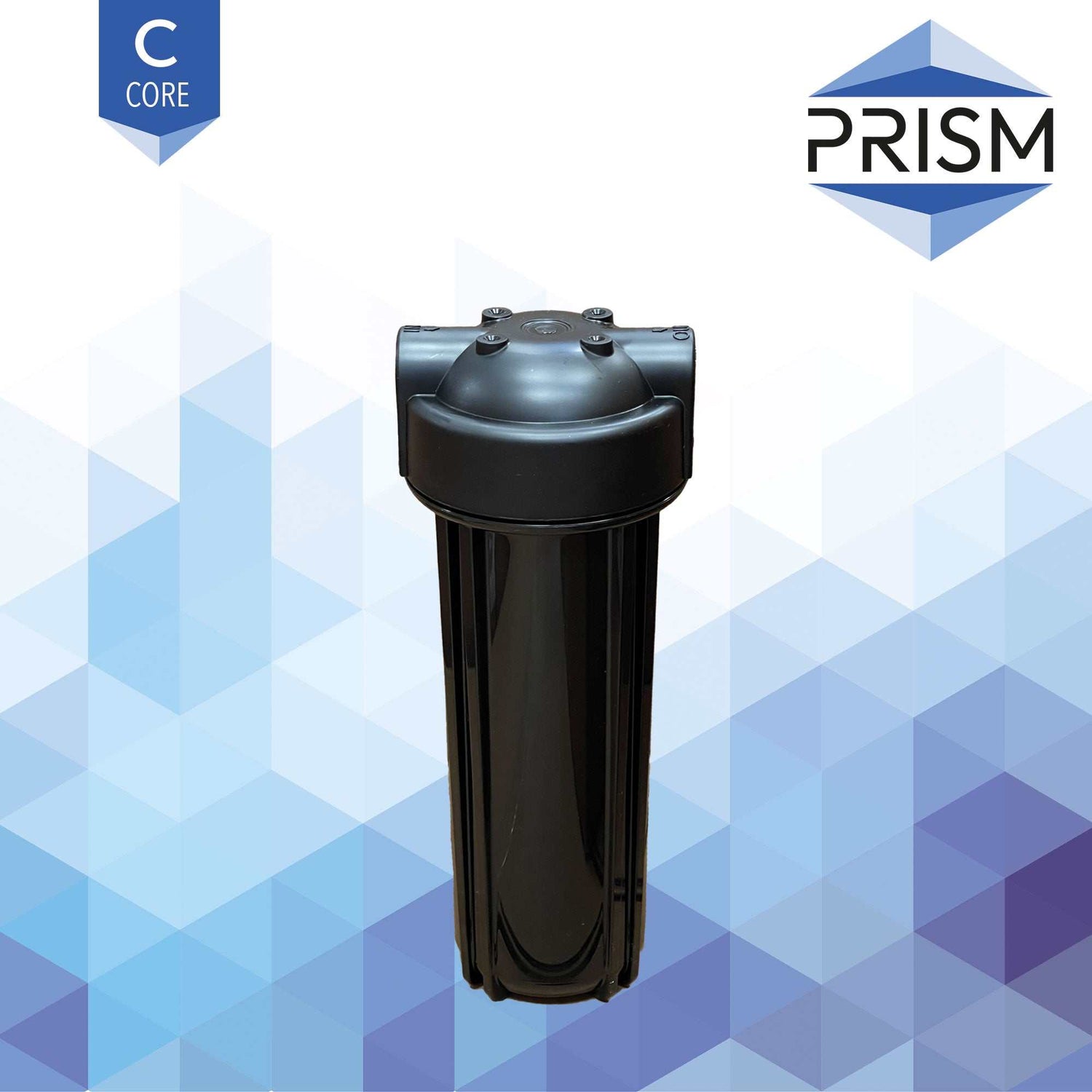

| Sump (Black) | Polypropylene (PP) |

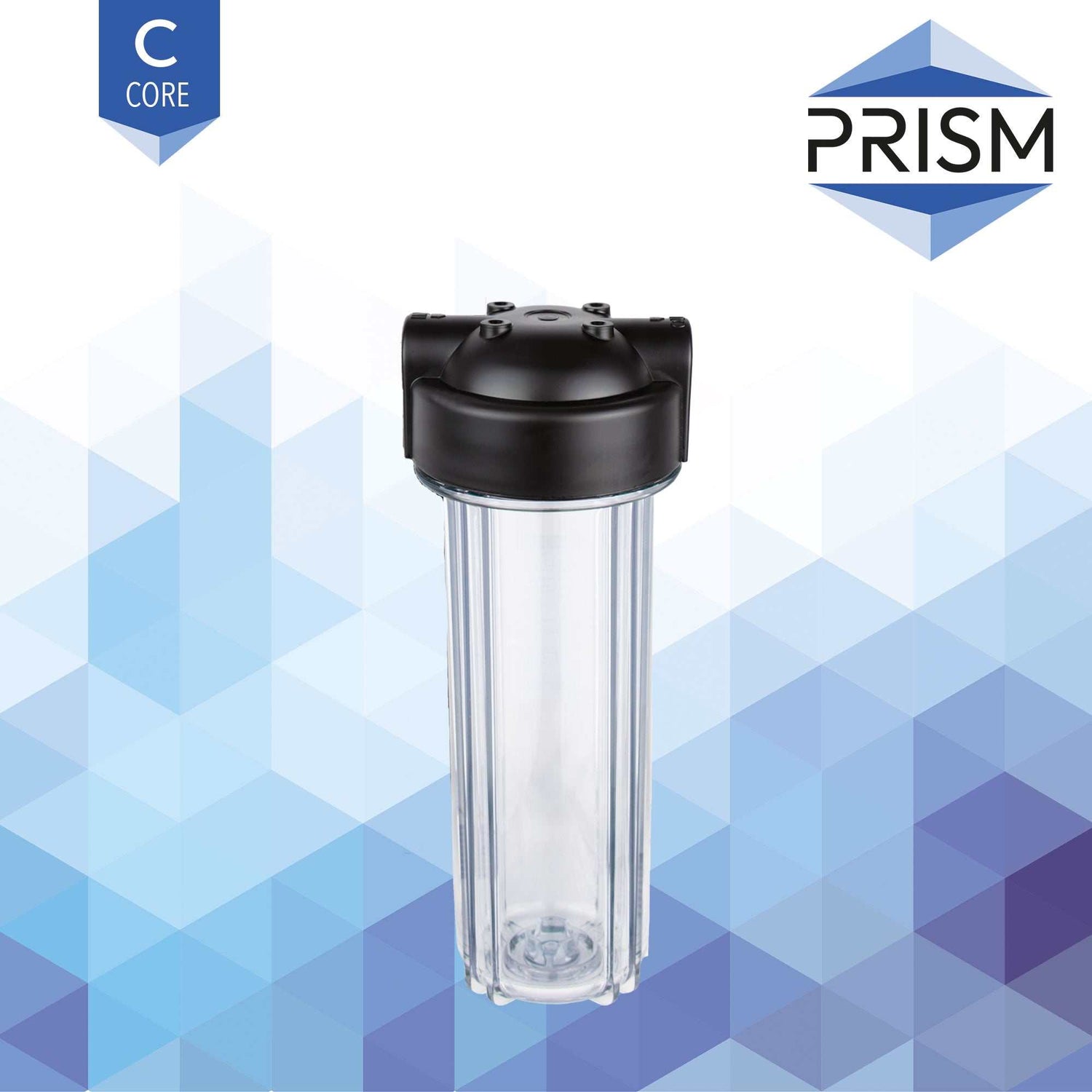

| Sump (Clear) | Styrene Acrylonitrile (SAN) |
| PRV (Pressure Valve) | Polypropylene |
| Spring | 304 Stainless Steel |
Technical Specifications
| Model | Port Sizes (BSP) | Cartridge Compatibility | Pressure Rating (bar) | Temperature Range (°C) |
|---|---|---|---|---|
| Regular 10” Housing | ¼", ⅜", ½", ¾" | 9¾”, 9⅞”, 10 | 8.6 PP / 6.9 SAN | 4 - 40°C |
| Regular 20” Housing | ½", ¾" | 20 | 8.6 PP / 6.9 SAN | 4 - 40°C |

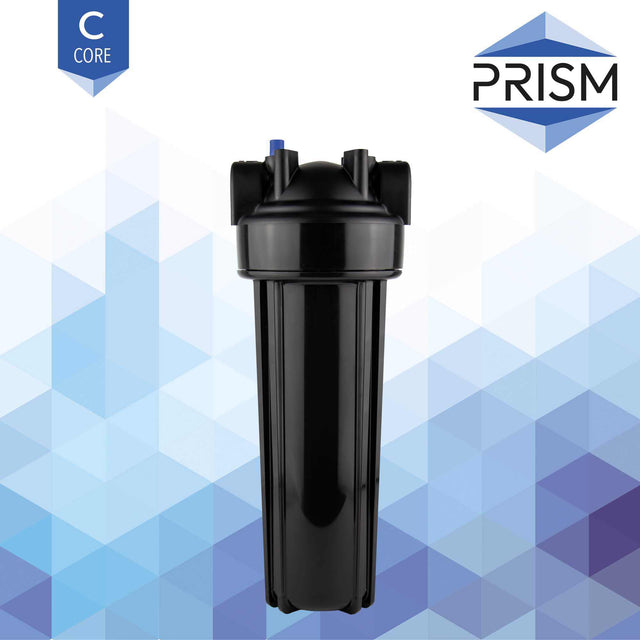

| Large Diameter Housing | 1” | 9¾”, 10, 20 | 6.9 | 4 - 40°C |
Dimensions
| Housing Type | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| Regular 10” Housing | 120 | 115 | 297 (¼", ⅜", ½", ¾") |
| Regular 20” Housing | 134 | 130 | 582 |
| Large Diameter 10” | 183 | 182 | 347 |
| Large Diameter 20” | 183 | 182 | 610 |
Why Choose the PRISM Filter Housing?
- Customizable Options: Select from a range of sizes and port types to suit varied water filtration needs.
- Durability Meets Simplicity: Easy-to-install design with materials that ensure long-term reliability.
- Cost-Effective Performance: Achieves optimal flow capacity at a fraction of the cost compared to stainless steel alternatives.
Elevate your water filtration system with the PRISM Filter Housing today. Order now to experience reliability and efficiency in filtration!
