John Guest Equal Straight 1/2" Push Fit PI0416S

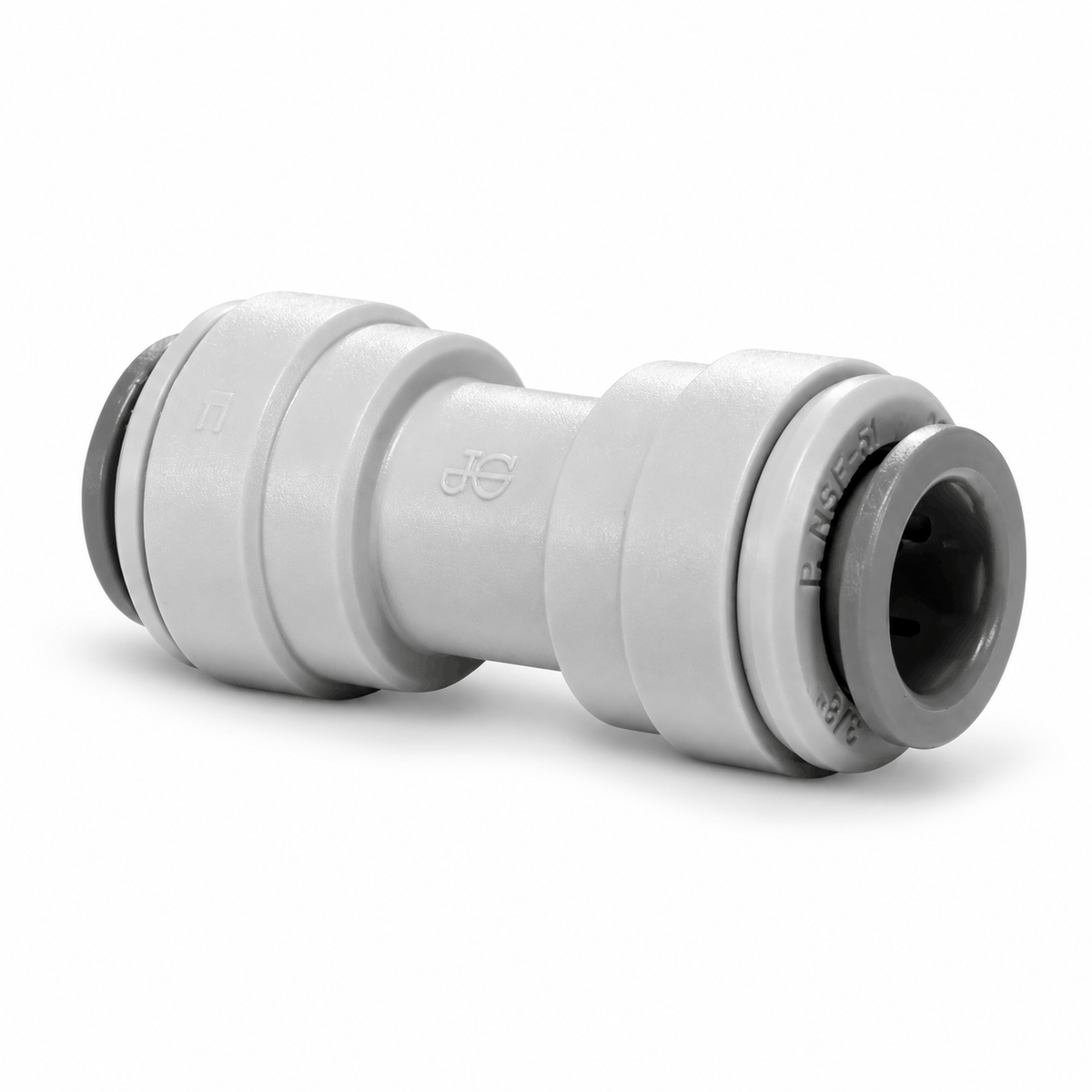

John Guest Equal Straight 1/2" Push Fit Connector – PI0416S
The John Guest PI0416S Equal Straight Connector provides a fast and reliable way to join two lengths of 1/2" OD pipe or tubing. Featuring John Guest's proven push-fit technology, the connector creates an instant secure connection without the need for tools, adhesives, sealing compounds or hot works.
Manufactured from tough acetal copolymer with a nitrile O-ring, the PI0416S offers excellent durability and flow characteristics. The John Guest collet securely grips the tube without deforming it or significantly restricting the internal flow path. The fitting is also fully demountable, allowing pipework to be disconnected and reconfigured quickly during servicing or system modifications. John Guest
Suitable for a wide range of air, pneumatic, inert gas, vacuum and fluid applications, the fitting can be used with compatible plastic and soft-metal tubing including nylon, LLDPE, copper and PEXa. The food-grade construction also makes it suitable for potable liquids where application conditions are appropriate. John Guest
Key Features
- John Guest part number: PI0416S
- Connection: 1/2" push fit × 1/2" push fit
- Connects two equal 1/2" OD tubes
- Instant push-fit installation
- No tools, glue or sealing agents required
- Fully demountable and reusable
- Strong acetal copolymer body
- Nitrile O-ring seal
- Secure collet design helps prevent tube deformation
- Excellent internal flow characteristics
- Suitable for air and pneumatic systems up to 10 bar
- Suitable for air, inert gases and vacuum applications
- Food-grade fitting suitable for potable liquids
- Compatible with suitable plastic and soft-metal tubing
- Manufactured and assembled in the UK
- 2-year manufacturer's guarantee John Guest
Typical Applications
Ideal for use in water treatment equipment, filtration systems, pneumatic installations, compressed-air systems, dispensing equipment and general fluid handling where two lengths of 1/2" OD tubing need to be joined quickly and securely.
Product Specification
| Specification | Details |
|---|---|
| Manufacturer | John Guest |
| Part Number | PI0416S |
| Type | Equal Straight Connector |
| Connection Size | 1/2" OD × 1/2" OD |
| Connection Type | Push Fit |
| Body Material | Acetal Copolymer |
| Seal | Nitrile O-Ring |
| Maximum Air/Pneumatic Pressure | 10 bar |
| Installation | Tool-free push fit |
| Demountable | Yes |
| Accreditation | BSI |
