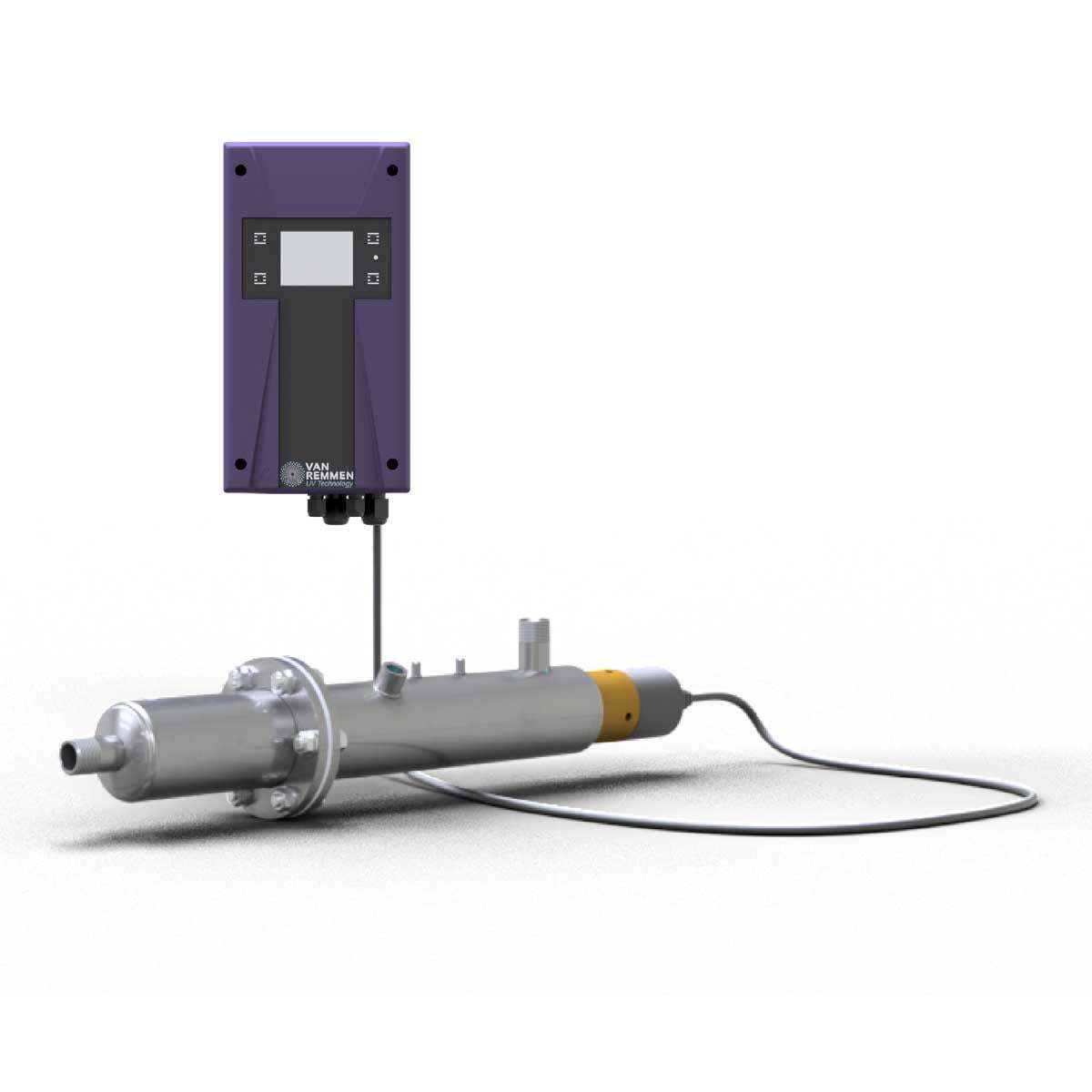

V090 Van Remmen V-Series 0.8 m³/h: High-Performance UV-C Water Disinfection
Engineered for superior reliability and efficiency, the V090 Van Remmen V-Series 0.8 m³/h offers advanced UV-C technology for water disinfection. It handles water with transmittance values between 80% and 99%, delivering safe and economic disinfection across diverse applications. Its compact design, validated performance, and low-pressure UV-C lamps ensure optimized treatment with minimal energy usage.
Key Features
- Validated UV-C Dosage: Provides a consistent dosage of 300 J/m², ensuring effective elimination of harmful microorganisms.
- Lamp Efficiency: Features an 18W low-pressure lamp with 5.7W UV-C output, offering high-intensity disinfection with reduced energy consumption.
- Long Lamp Lifespan: The UV-C lamp lasts up to 8,000 hours, reducing maintenance frequency and operational costs.
- Energy Optimization: Consumes only 24.5 Wh/m³ at 300 J/m², making it an energy-efficient solution for continuous operation.
- User-Friendly Control Unit: Offers real-time monitoring and operational insights, with optional sensors for enhanced safety.
Technical Specifications
| Specification | Details |
|---|---|
| UV-Chamber Material | Stainless steel (316L / 1.4404) |
| UV-C Dosage | 300 J/m² |
| UV-C Output | 5.7W |
| Connections | 0.5” BSP-T |
| Pressure Drop | < 0.1 bar |
| Maximum Pressure | 10 bar at 25°C |
| Mounting Orientation | Horizontal / Vertical |
| Dimensions | Height (B): 63 mm Diameter (A): 60 mm Length (D): 522 mm |
| Required Installation Space (E) | 900 mm |
| Weight | 3.0 kg |
| Lamp | 18W Regular |
| Lamp Lifespan | 8,000 hours |
| Power Consumption | 24.5 Wh/m³ at 300 J/m²; 37.5 Wh/m³ at 400 J/m² |
| Preferred Water Temperature | 5°C - 30°C |
Advanced Control Unit Features
- Real-Time Monitoring: Displays lamp status, running hours, and system runtime for operational transparency.
- Safety Sensors: Optional UV Sensor (UVS) and Temperature Safety Sensor (TSS) provide additional safety and control.
- Temperature Safety Dump Valve (TSD): Protects the system from overheating.
- Alarm Integration: Equipped with volt-free alarm contacts for enhanced monitoring and alerts.
- Durable Build: Made with aluminum and ABS, offering robust protection (IP55 rating) in demanding environments.
Certifications and Compliance
- Validation: Complies with NEN-EN 14897 for proven disinfection standards.
- Regulatory Approvals: Meets the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
- Industry Approvals: WRAS-approved and Kiwa ATA-certified for reliability in water treatment applications.
Application Areas
The V090 Van Remmen V-Series is tailored for professional use in settings requiring validated, safe, and adaptable water disinfection solutions:
- Drinking Water Systems: Provides reliable disinfection for potable water.
- Industrial Process Water: Enhances manufacturing efficiency by ensuring clean water supply.
- Maritime & Offshore Industries: Performs consistently in rugged offshore environments.
- Food & Pharmaceutical Industries: Supports compliance with stringent hygiene standards.
- Utility Buildings & Data Centers: Optimizes non-residential water systems.
Why the V090 Van Remmen V-Series Stands Out
The V090 combines cutting-edge engineering with validated performance, making it a dependable choice for water treatment. Its low-pressure UV-C lamp and energy-efficient design minimize operating costs without compromising effectiveness. Furthermore, its robust stainless steel construction and advanced control features ensure long-term reliability and easy integration into various systems.
Optimize your water disinfection process with the V090 Van Remmen V-Series 0.8 m³/h. Experience power-saving efficiency and substantiated performance in every application!
