V100 Van Remmen V-Series 1 m³/h
V100 Van Remmen V-Series 1 m³/h

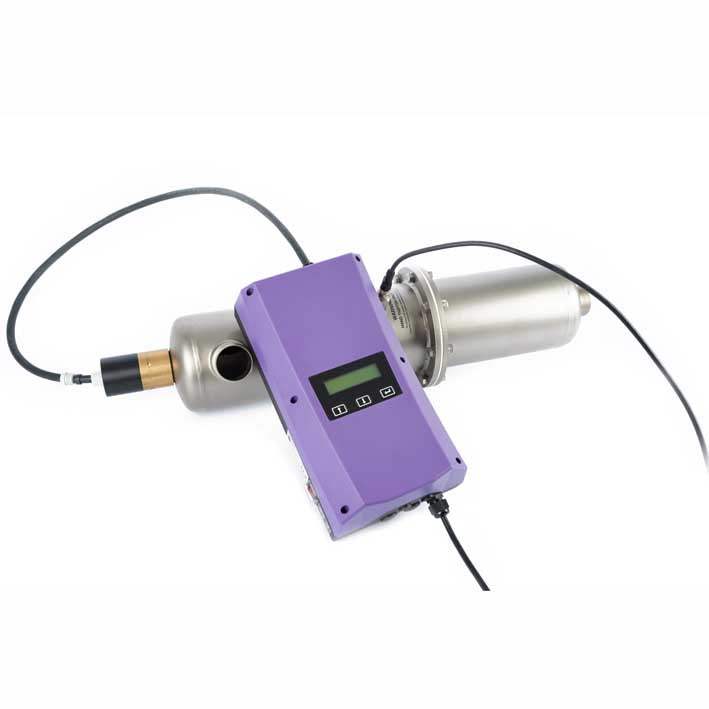

V100 Van Remmen V-Series 1 m³/h: Advanced UV-C Water Disinfection System
The V100 Van Remmen V-Series 1 m³/h combines innovation and reliability to deliver effective water disinfection. Ideal for a variety of settings, this system is designed to handle water with a transmittance range of 80% to 99%, ensuring robust and economical water treatment. It adheres to the highest standards of safety and performance, making it a trusted choice for disinfecting up to 1 m³/h of water.
Key Features and Benefits
-
Validated Performance
Tested and verified according to NEN-EN 14897 standards for proven disinfection results. -
Energy-Efficient Design
Low-pressure UV-C lamps and advanced flow management ensure minimal energy usage. -
User-Friendly Operation
Simple installation, low maintenance, and intuitive control settings make it accessible for any operator. -
Durability and Longevity
Crafted from high-quality 316L stainless steel and equipped with long-life UV-C lamps, the V100 guarantees years of reliable performance. -
Versatile Application
Suitable for drinking water, process water, the maritime sector, industrial utilities, and more.
Technical Specifications
| Parameter | V100 Specification |
|---|---|
| UV Chamber Material | 316L / 1.4404 Stainless Steel |
| Pressure Drop | < 0.1 bar |
| Max. Pressure | 10 bar at 25°C |
| Mounting Orientation | Horizontal/Vertical |
| UV-C Lamp Type | 25 W Regular, Low-Pressure |
| Lamp Lifespan | 16,000 hours |
| UV-C Output | 7 Watts |
| Preferred Water Temp | 5°C - 30°C |
| Power Consumption | 30 Wh/m³ (300 J/m² dose) |
| Control Unit Material | Aluminum and ABS |
| Control Features | Lamp status, hours, system time, alarm contacts |
| Protection Rating | IP55 |
| Certifications | NEN-EN 14897, WRAS Approved, Kiwa ATA |
Dimensions and Installation Details
| Dimension | Measurement |
|---|---|
| Chamber Diameter (A) | 60 mm |
| Height (B) | 63 mm |
| Installation Length (C) | 554 mm |
| Length (D) | 690 mm |
| Required Working Space (E) | 1244 mm |
| Weight | 3.7 kg |
Certifications and Approvals
The V100 Van Remmen V-Series complies with essential directives and certifications:
- Low Voltage Directive (LVD) 2014/35/EU
- Electromagnetic Compatibility Directive (EMC) 2014/30/EU
- Machinery Directive 2014/42/EC
- Validated to NEN-EN 14897 standards
- WRAS and Kiwa ATA certifications for drinking water safety.
Application Areas
This versatile disinfection system caters to a wide range of applications:
-
Drinking Water
Ensures safe and clean potable water. -
Process Water & Water Reuse
Supports water conservation initiatives. -
Maritime & Offshore
Built to meet rugged marine industry requirements. -
Food & Pharmaceutical Industry
Guarantees hygienic water essential for sensitive processes. -
Utility Buildings & Data Centers
Maintains high-quality water for technical and operational needs.
Why Choose the V100 Van Remmen V-Series?
The V100 is not just a water disinfection system. It’s an investment in safety, efficiency, and sustainability. Its technical excellence, energy-saving operation, and proven reliability make it a standout option for industries and settings needing dependable water treatment.
Ensure Safe and Efficient Water Disinfection
Join countless others who trust the V100 Van Remmen V-Series for their water disinfection needs. Take the next step toward optimized water treatment today!
