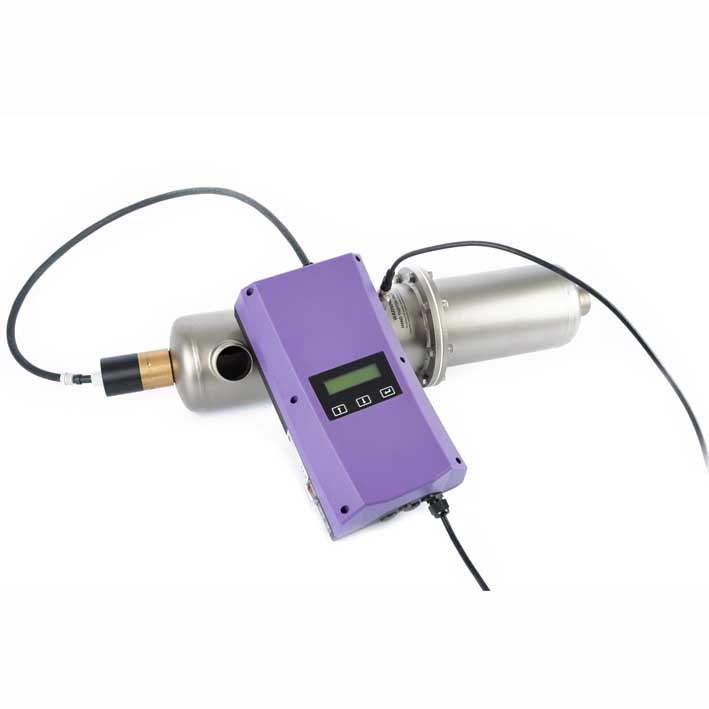

V130 Van Remmen V-Series 4.8 m³/h: Advanced UV-C Water Disinfection Technology

The V130 Van Remmen V-Series 4.8 m³/h is a high-capacity UV-C water disinfection system, engineered for exceptional performance across diverse water treatment applications. Designed for water with transmittance values of 80% to 99%, it ensures effective microorganism elimination with minimal energy consumption. Its robust stainless steel build, superior UV-C output, and advanced control features make it an ideal solution for industrial, commercial, and specialized water treatment needs.

Key Features

• Precise UV-C Dosage: Delivering a validated 300 J/m² dosage for consistent and effective disinfection.
• Powerful Lamp Performance: Equipped with a 50W low-pressure UV-C lamp producing a 15W output for high-efficiency treatment.
• Energy-Efficient Design: Operates at just 8.2 Wh/m³ at 300 J/m², significantly minimizing operating costs.
• Extended Component Lifespan: UV-C lamp performs for up to 8,000 hours, ensuring durability and reducing replacement frequency.
• Adaptable Installation: Offers horizontal and vertical mounting options to accommodate various installation setups.

Technical Specifications

Advanced Control Unit Features

• Enhanced Monitoring: Provides detailed operational data, including lamp status, runtime, and total operational hours.
• Integrated Alarm System: Features volt-free alarm contacts for quick response and fault management.
• Optional Safety Features: Supports UV Sensor (UVS) and Temperature Safety Sensor (TSS) for enhanced safety and control.
• Overheat Protection: Incorporates a Temperature Safety Dump Valve (TSD) to regulate system temperature during operation.
• Rugged Build: Control unit is made from aluminum and ABS with an IP55 rating, making it suitable for demanding environments.

Certifications and Compliance

• Validation Standards: Conforms to NEN-EN 14897 for proven performance in UV-C water disinfection.
• Regulatory Compliance: Approved under the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
• Industry Certifications: WRAS-approved and Kiwa ATA-certified, emphasizing reliability and versatility for various professional applications.

Application Areas

The V130 is purpose-built for a wide range of advanced water disinfection needs, including:

• Drinking Water: Guarantees safe and dependable disinfection for potable water.
• Industrial Process Water: Supports seamless manufacturing processes with clean water supply.
• Maritime and Offshore Environments: Robust enough to handle rugged oceanic conditions.
• Food and Pharmaceutical Industries: Meets stringent hygiene and safety standards for sensitive applications.
• Utility Buildings & Data Centers: Optimizes water quality in large-scale commercial and non-residential facilities.

Why Choose the V130 Van Remmen V-Series?

The V130 Van Remmen V-Series 4.8 m³/h combines innovative design, advanced technology, and energy efficiency to deliver reliable UV-C water disinfection. Its robust stainless steel construction, superior lamp efficiency, and comprehensive control features ensure optimal performance and unmatched longevity. With its validated UV-C dosage and low operational cost, this system provides exceptional value for diverse water treatment applications.

Choose the V130 Van Remmen V-Series 4.8 m³/h for a high-capacity, reliable, and energy-efficient water disinfection system. Upgrade your water treatment solutions today!
