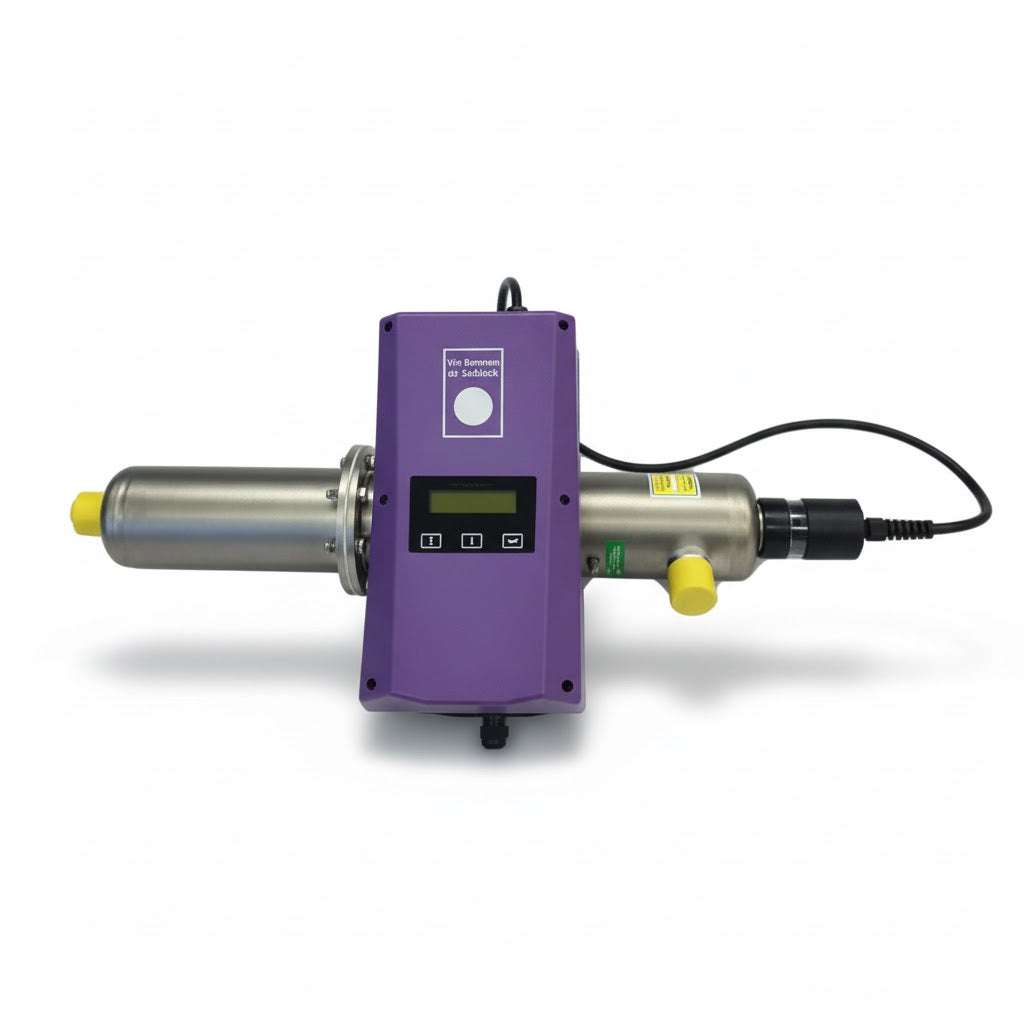

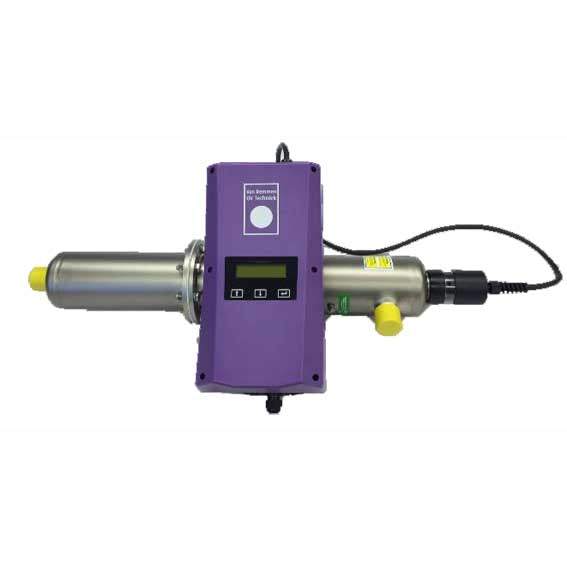

V160 Van Remmen V-Series 17.8 m³/hr
V160 Van Remmen V-Series 17.8 m³/hr
V160 Van Remmen V-Series 17.8 m³/h: Superior UV-C Water Disinfection Technology
The V160 Van Remmen V-Series 17.8 m³/h represents the pinnacle of UV-C water disinfection systems. Engineered for efficiency and reliability, it is validated under NEN-EN 14897 standards, ensuring precise and proven disinfection for water with transmittance values of 80% to 99%. This versatile system is ideal for potable water, industrial processes, shipping, and utility applications.
Key Features
- Proven Validation: Conforms to NEN-EN 14897, providing measurable and reliable disinfection results.
- Energy Efficiency: Operates at only 7.9 Wh/m³ for a 300 J/m² dosage, ensuring sustainability and reduced costs.
- Long-Lasting Lamps: Equipped with low-pressure UV-C lamps with up to 16,000 hours of operation, minimizing maintenance.
- User-Friendly Design: Built to be both easy to use and low-maintenance for seamless integration into various systems.
- Flexible Applications: Serves diverse industries, including potable water systems, food production, and offshore environments.
Key Specifications
| Specification | Details |
|---|---|
| UV Chamber Material | Stainless steel (316L / 1.4404) |
| UV-C Dosage | 300 J/m² |
| Connections | 2” BSP-T |
| Pressure Drop | < 0.1 bar |
| Max Pressure | 10 bar at 25°C |
| Mounting Orientation | Horizontal / Vertical |
| Dimensions | Diameter (A): 129 mm Height (B): 103 mm Length (D): 1,207 mm |
| Installation Space Required (E) | 2,270 mm |
| Weight | 10.8 kg |
| UV-C Lamp Type | 120W Long-Life UV-C Lamp |
| Lamp Lifespan | Up to 16,000 hours |
| Power Consumption | 7.9 Wh/m³ at 300 J/m²; 10.5 Wh/m³ at 400 J/m² |
| Preferred Water Temperature | 5°C - 30°C |
Advanced Control Features
- Comprehensive Monitoring: Tracks lamp performance, operational hours, and system runtime for precision management.
- Alarms for Efficiency: Volt-free alarm contacts ensure timely alerts for any operational issues.
- Safety-Enhancing Options: Features optional UV Sensor (UVS) and Temperature Safety Sensor (TSS) for enhanced monitoring.
- Temperature Safety Management: Includes a Temperature Safety Dump Valve (TSD) for reliable overheat protection.
- Durable Control Unit: Constructed with aluminium and ABS, the IP55-rated control unit is designed for harsh operational environments.
Certifications & Standards
- Validated Disinfection: Meets NEN-EN 14897 standards for guaranteed performance.
- Regulatory Compliance: Certified under the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
- Industry Certifications: WRAS-approved and Kiwa ATA-certified, confirming safe usage for drinking water and industrial applications.
Application Areas
- Drinking Water Systems: Delivers clean and safe water for commercial and residential use.
- Industrial Process Water: Ensures consistent water quality for manufacturing processes.
- Maritime & Offshore Industries: Robust enough to handle the demands of marine environments.
- Food & Pharmaceutical Sectors: Complies with stringent hygiene and safety standards for sensitive industries.
- Data Centers & Utility Buildings: Optimizes water quality in large-scale infrastructure.
Why Choose the V160 Van Remmen V-Series?
With its optimized design, the V160 Van Remmen V-Series 17.8 m³/h offers exceptional performance, validated reliability, and energy efficiency. Its low-maintenance operation and robust construction make it a dependable choice for professionals across various industries. Whether it’s delivering potable water or supporting complex industrial processes, this system ensures superior quality and peace of mind.
Modernize your water treatment infrastructure with the V160 Van Remmen V-Series today for unmatched performance, energy savings, and proven disinfection!
