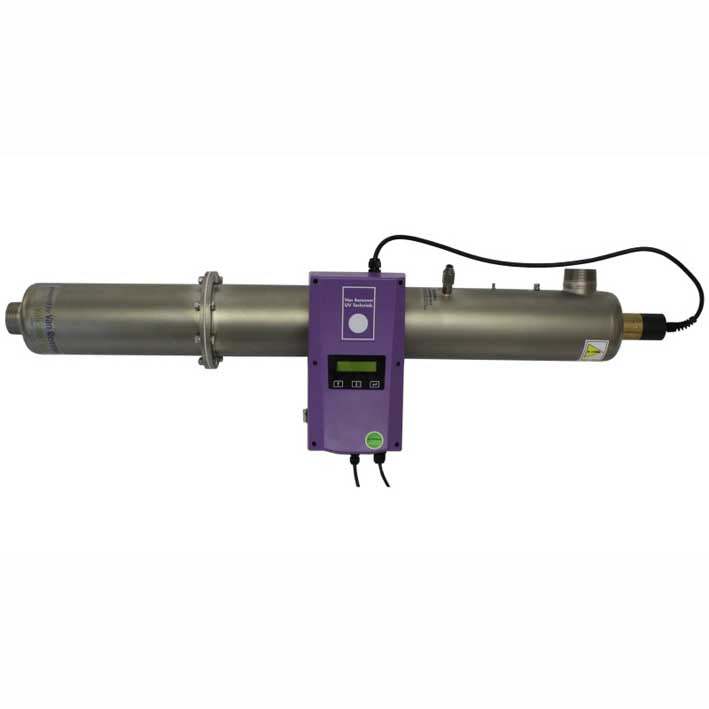

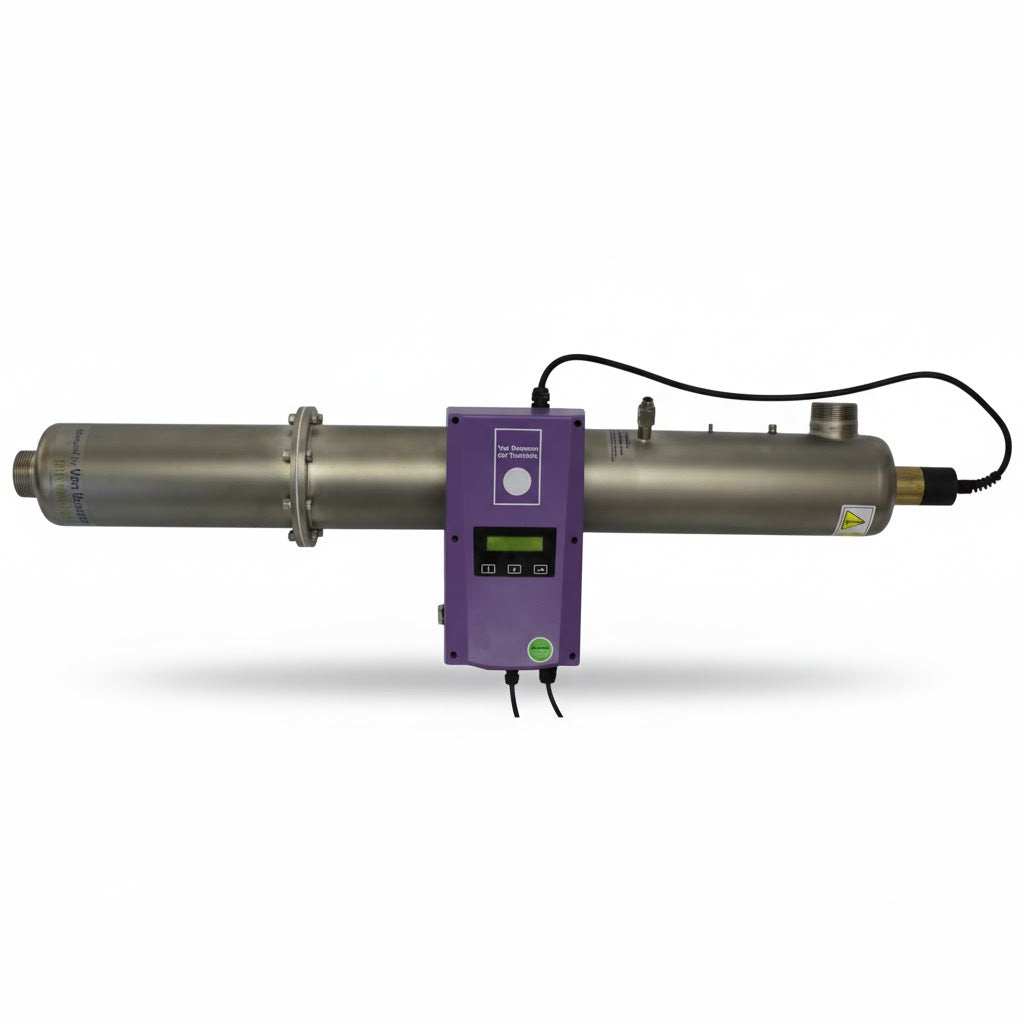

V180 Van Remmen V-Series 37.9 m³/h: Advanced UV-C Water Disinfection Technology
The V180 Van Remmen V-Series 37.9 m³/h delivers state-of-the-art water disinfection with unparalleled efficiency and reliability. This system is rigorously validated under NEN-EN 14897 standards, ensuring consistent and measurable results. Designed for water with transmittance values of 80% to 99%, it’s a perfect solution for applications ranging from potable water to industrial processes and maritime systems.
Key Features
- Proven Validation: Meets NEN-EN 14897 standards, providing precise, reliable, and safe water disinfection results.
- Efficient Operation: Consumes just 6.1 Wh/m³ for a 300 J/m² dosage, ensuring high performance with lower energy costs.
- Long-Lasting Lamps: Features low-pressure UV-C lamps with up to 16,000 hours of operation, reducing maintenance needs.
- User-Friendly Design: Engineered for simple operation and easy system integration in various environments.
- Versatile Applications: Ideal for potable water, food processing, industrial facilities, shipping operations, and building utilities.
Key Specifications
| Specification | Details |
|---|---|
| UV Chamber Material | Stainless steel (316L / 1.4404) |
| UV-C Dosage | 300 J/m² |
| Connections | 2.5” BSP-T |
| Pressure Drop | < 0.1 bar |
| Max Pressure | 10 bar at 25°C |
| Mounting Orientation | Horizontal |
| Dimensions | Diameter (A): 129 mm Height (B): 110 mm Length (D): 1,512 mm |
| Installation Space Required (E) | 2,880 mm |
| Weight | 13.2 kg |
| UV-C Lamp Type | 205W Long-Life UV-C Lamp |
| Lamp Lifespan | Up to 16,000 hours |
| Power Consumption | 6.1 Wh/m³ at 300 J/m²; 8.1 Wh/m³ at 400 J/m² |
| Preferred Water Temperature | 5°C - 30°C |
Advanced Control Features
- Comprehensive Monitoring: Tracks lamp status, operational hours, and system runtime for maximum performance visibility.
- Smart Alarms: Volt-free alarms ensure swift alerts in case of operational issues.
- Safety Options: Includes optional UV Sensor (UVS) and Temperature Safety Sensor (TSS) for real-time monitoring and enhanced safety.
- Temperature Safety Management: Equipped with a Temperature Safety Dump Valve (TSD) to prevent overheating.
- Rugged Control Unit: Constructed with aluminum and ABS, featuring an IP55 protection rating to ensure durability in demanding environments.
Certifications & Standards
- Validated Disinfection: Conforms to NEN-EN 14897 standards, ensuring proven, measurable results.
- Regulatory Compliance: Certified under Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
- Industry-Endorsed: WRAS and Kiwa ATA certifications underscore its reliability and safety for varied applications.
Application Areas
- Potable Water Systems: Ensures safe drinking water for residential, commercial, and municipal use.
- Industrial Processes: Delivers high-quality water for manufacturing and operational reliability.
- Maritime & Offshore Environments: Robust enough to withstand extreme conditions at sea.
- Food & Pharmaceutical Industries: Ensures water quality that meets hygiene and safety standards.
- Building Utilities & Data Centers: Optimizes water systems in large facilities with high operational demands.
Why Choose the V180 Van Remmen V-Series?
The V180 Van Remmen V-Series 37.9 m³/h offers cutting-edge performance, validated reliability, and cost-effective operation. Whether tackling large-scale potable water systems or managing intricate industrial processes, this system provides unmatched disinfection capability with reduced energy usage. It’s easy to maintain, eco-friendly, and designed for diverse, demanding environments.
Upgrade to the V180 Van Remmen V-Series today and unlock reliable, efficient, and superior water disinfection performance for your operation!
