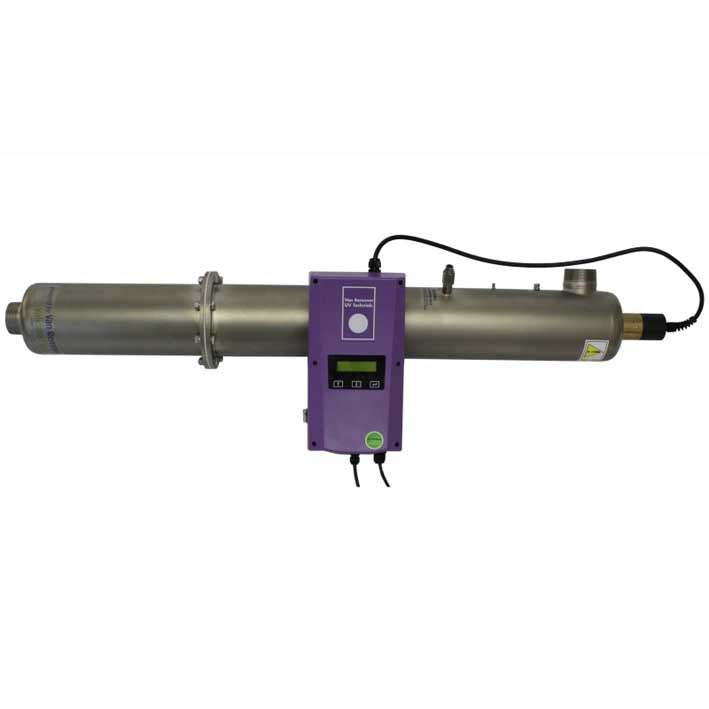

V190 Van Remmen V-Series 55.9 m³/h: High-Performance UV-C Water Disinfection
The V190 Van Remmen V-Series 55.9 m³/h is a robust and reliable water disinfection solution built for high-demand environments. Using advanced UV-C technology, this system is validated under NEN-EN 14897 standards, ensuring proven and measurable results. Designed for water transmittance values of 80% to 99%, it provides consistent, energy-efficient, and low-maintenance operation across diverse industries, including potable water, industrial processes, shipping, and utilities.
Key Features
- Validated for Reliability: Certified under NEN-EN 14897 standards, ensuring dependable and effective disinfection.
- Energy Efficiency: Operates at only 6.5 Wh/m³ for a 300 J/m² dosage, offering sustainability and cost savings.
- Low-Maintenance Design: Equipped with long-life UV-C lamps, capable of up to 16,000 hours of operation.
- User-Friendly Operation: Engineered for seamless integration and ease of use across various applications.
- Adaptability: Flexible for use in potable water systems, industrial sectors, and maritime environments.
Key Specifications
| Specification | Details |
|---|---|
| UV Chamber Material | Stainless steel (316L / 1.4404) |
| UV-C Dosage | 300 J/m² |
| Connections | 3” BSP-T |
| Pressure Drop | < 0.1 bar |
| Max Pressure | 10 bar at 25°C |
| Mounting Orientation | Horizontal |
| Dimensions | Diameter (A): 129 mm Height (B): 120 mm Length (D): 1,790 mm |
| Installation Space Required (E) | 3,440 mm |
| Weight | 15.7 kg |
| UV-C Lamp Type | 325W Long-Life UV-C Lamp |
| Lamp Lifespan | Up to 16,000 hours |
| Power Consumption | 6.5 Wh/m³ at 300 J/m²; 8.7 Wh/m³ at 400 J/m² |
| Preferred Water Temperature | 5°C - 30°C |
Advanced Control Features
- Precision Monitoring: Tracks lamp performance, operational hours, and system activity levels.
- Proactive Alerts: Volt-free alarm contacts signal any operational discrepancies immediately.
- Operational Safety: Integrates optional UV Sensor (UVS) and Temperature Safety Sensor (TSS) for enhanced monitoring.
- Temperature Management: Features a Temperature Safety Dump Valve (TSD), preventing overheating during operation.
- Durable Control Unit: Built with aluminum and ABS materials, rated IP55, ensuring lasting performance in tough conditions.
Certifications & Standards
- Proven Disinfection Testing: Validated under NEN-EN 14897 standards for measurable and guaranteed results.
- Regulatory Compliance: Fully certified under Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
- Certifications for Reliability: WRAS and Kiwa ATA certified, suitable for industrial and potable water use.
Application Areas
- Drinking Water Supply: Provides safe, clean water for residential, municipal, or commercial use.
- Industrial Water Processes: Ensures water quality consistency for manufacturing and operations.
- Maritime & Offshore Industries: Built to handle harsh marine conditions effectively.
- Food & Pharmaceutical Sectors: Complies with stringent hygiene and safety standards for critical applications.
- Utility Buildings & Data Centers: Delivers optimized water quality for large-scale operations.
Why Choose the V190 Van Remmen V-Series?
The V190 Van Remmen V-Series 55.9 m³/h combines cutting-edge technology, proven reliability, and energy efficiency into one versatile solution. It’s thoughtfully designed for high-capacity operations that require both consistent water quality and reduced maintenance demands. Whether it’s potable water treatment or industrial water processes, the V190 offers unmatched value with proven results.
Upgrade to the V190 Van Remmen V-Series today for high-output performance, long-term reliability, and energy-smart water disinfection!
