Van Remmen FULLY LOADED UVS UV Sensor and TSS Temperature Safety Sensor with WRAS Approved Dump Valve Optional Extra

The Van Remmen FULLY LOADED UVS UV Sensor and TSS Temperature Safety Sensor with WRAS Approved Dump Valve offer the ultimate combination of monitoring, protection, and control for UV-C disinfection systems. This comprehensive set of features ensures superior system performance, reliability, and ease of use, making it an invaluable upgrade for demanding water treatment environments.

Key Features

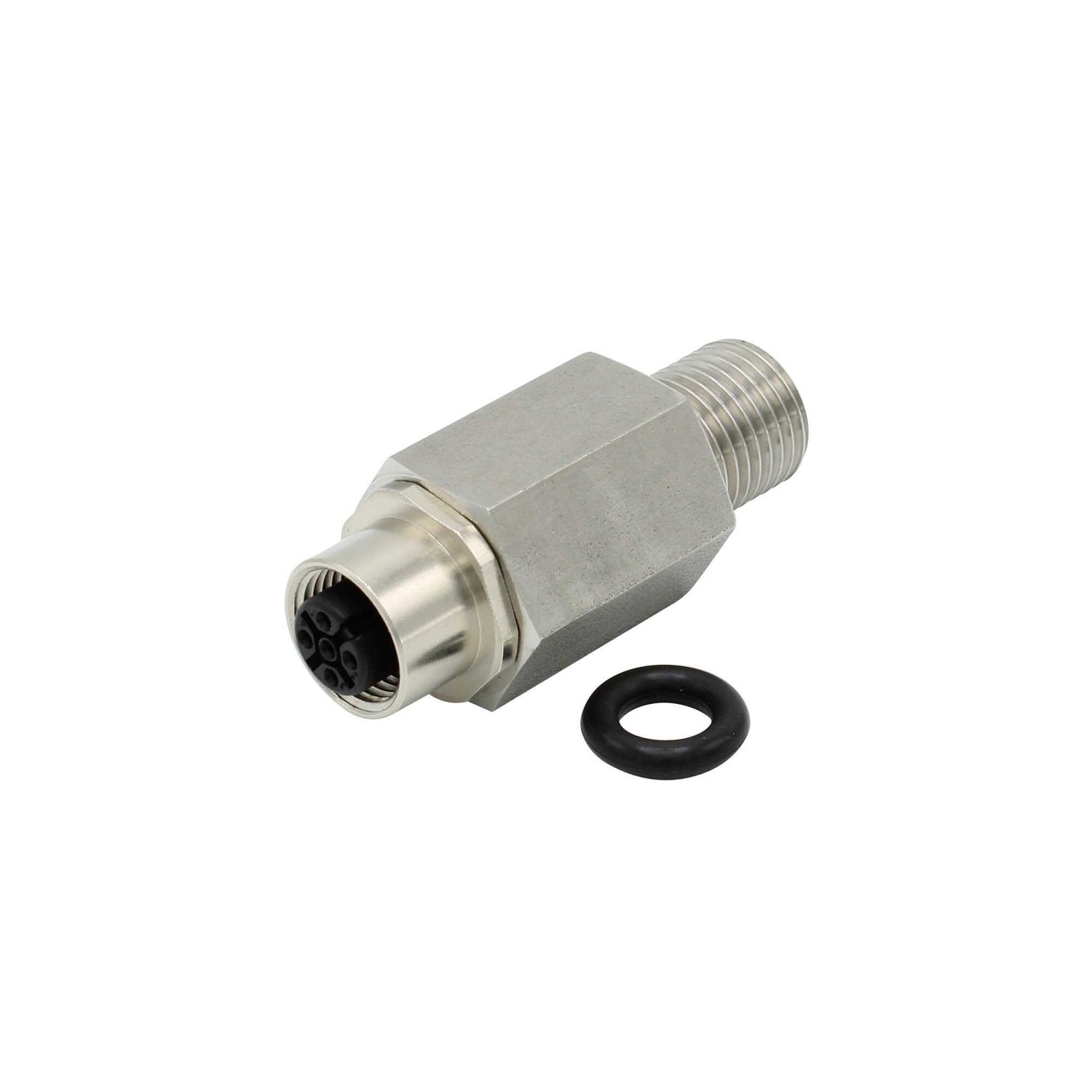

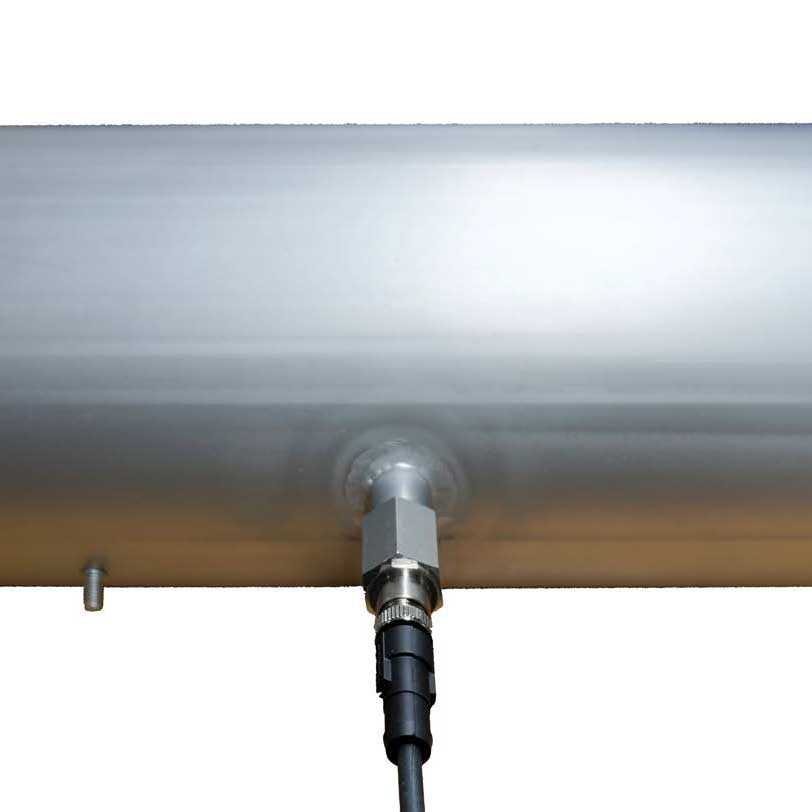

UV Sensor for Light Intensity Monitoring:

• Measures the UV-C light at 253.7 nm to ensure consistent disinfection performance.
• Tracks lamp aging, quartz tube buildup, or changes in liquid transmission.
• Provides real-time data via a connection to the system control box, with standard readout in percentage.
• Alerts you immediately if the UV intensity drops below safe levels, ensuring reliable operation.

TSS Temperature Safety Sensor:

• Monitors the UV chamber temperature to prevent overheating.
• Automatically turns off the UV lamp if the factory pre-set temperature of 40°C is exceeded, protecting your system from thermal damage.
• Restarts the system automatically once the chamber cools, minimizing downtime.
• Customizable temperature thresholds available during manufacturing to meet specific requirements.

WRAS Approved Dump Valve:

• Opens to release water when the chamber temperature exceeds the safe limit, cooling the reactor and protecting the lamp.
• Adjustable valve opening duration helps minimize water wastage while maintaining optimal cooling.

Applications

• UV-C System Safety and Optimization:
  • Maintains optimal disinfection efficiency by monitoring and controlling critical parameters.
• Industrial and Municipal Uses:
  • Ideal for potable water systems, industrial processes, and other high-demand applications.
• Special Low-Flow Scenarios:
  • Prevents heat buildup during periods of minimal water flow, ensuring safe operation.

Product Benefits

• Enhanced System Reliability: Combines real-time light intensity and temperature monitoring to maintain safe and efficient disinfection.
• Proactive Protection: Prevents damage to UV lamps, quartz sleeves, and other system components from excessive heat or suboptimal performance.
• Eco-Friendly Cooling: Adjustable dump valve minimizes water wastage while effectively managing system temperature.
• User-Centric Design: Customizable settings allow for tailoring the system to your specific operational needs.

Why Choose the Van Remmen FULLY LOADED UV Sensor and TSS with Dump Valve?

The Van Remmen FULLY LOADED UVS UV Sensor and TSS Temperature Safety Sensor with WRAS Approved Dump Valve provide an unparalleled level of operational control and protection for UV-C disinfection systems. By seamlessly integrating UV intensity monitoring, temperature control, and cooling functions, this optional extra ensures your system runs at peak performance under the most challenging conditions. Whether for industrial, municipal, or specialized applications, it delivers unmatched precision and reliability.

Upgrade with Van Remmen's FULLY LOADED package today and experience enhanced control, improved efficiency, and worry-free water treatment!
