HI-2004 Edge Dissolved Oxygen Meter
HI-2004 Edge Dissolved Oxygen Meter
HI-2004 Edge Dissolved Oxygen Meter

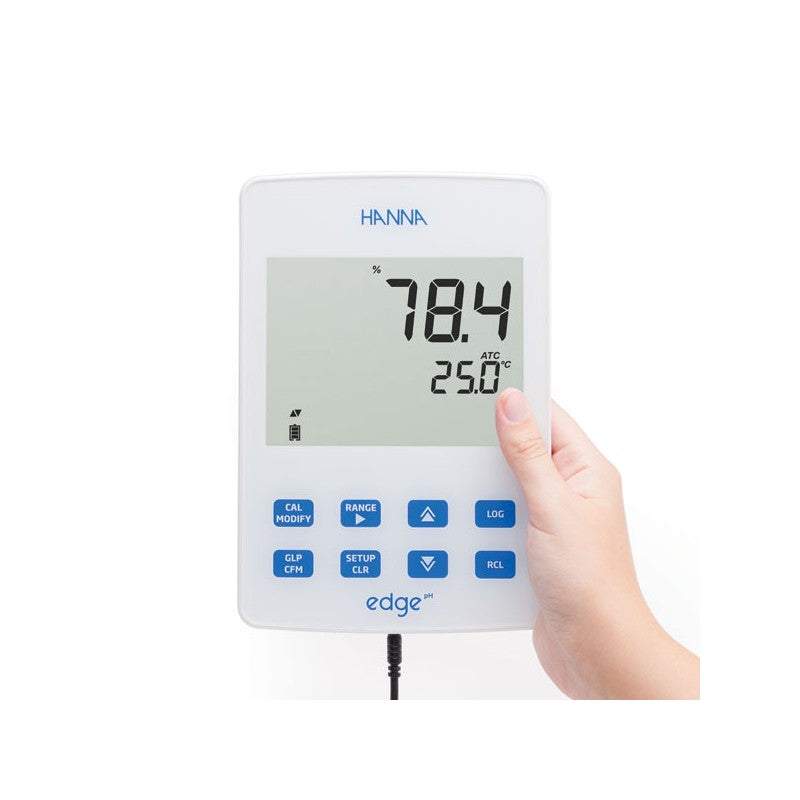

The HI-2004 Edge Dissolved Oxygen Meter, supplied by GAPS Water, offers groundbreaking innovation in dissolved oxygen measurement. Combining advanced technology, sleek design, and exceptional accuracy, this hybrid meter adapts seamlessly to your unique working style. Whether you prefer handheld operation, wall mounting, or a benchtop setup, the HI-2004 provides unmatched versatility and precision.
Ideal for laboratories, fieldwork, and industrial settings, this smart device delivers quick, reliable results with user-friendly functionality. Its intuitive interface, superior build, and high-tech features make it a must-have for professionals dedicated to maintaining water quality.
Why Choose the HI-2004 Edge Dissolved Oxygen Meter?
- Hybrid Versatility

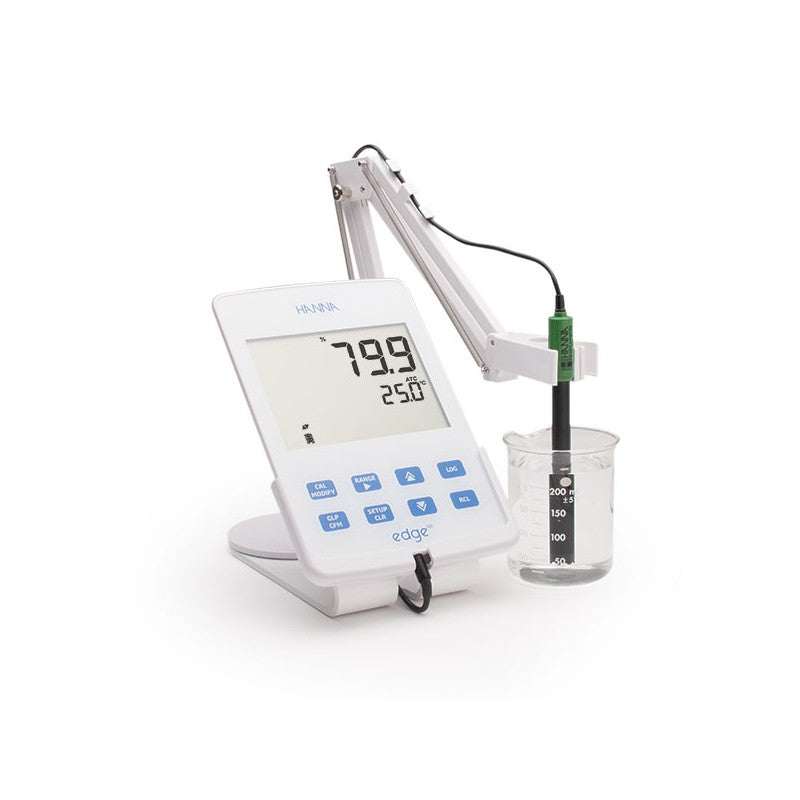

Use it as a handheld device, mount it on the wall, or place it on a bench for applications requiring laboratory-grade precision.
- Intelligent Electrode Design

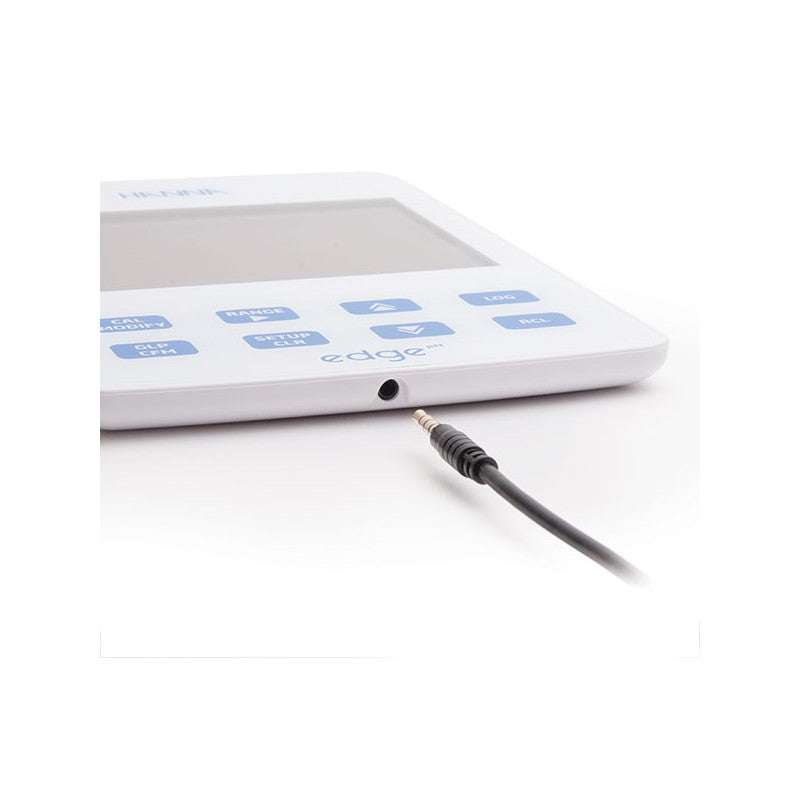

The HI-764080 digital dissolved oxygen electrode includes a 3.5mm connector, offering automatic recognition of sensor type, ID, and calibration information.
- Cutting-Edge Accuracy
Measure dissolved oxygen with precision, thanks to calibration at one or two points (0% with HI-7040L solution and 100% in air), along with automatic temperature compensation.
- Enhanced User Experience
Features like Hanna’s voltage-independent CAL-CHECK system, altitude and salinity compensation, and a capacitive touch keypad deliver convenience, confidence, and control for every measurement.
- Comprehensive Data Management
Log up to 1,000 records with multiple modes (manual or interval), and easily transfer data to your PC via micro USB or a USB stick.
Key Features
- Clark-type polarographic probe with a replaceable membrane cap for easy maintenance.
- Wide range to measure from 0.00 to 45.00 mg/L (ppm) for dissolved oxygen and 0.0 to 300.0% oxygen saturation.
- Automatic altitude compensation (-500 m to 4000 m) and salinity correction (0-40 g/L).
- Sleek, lightweight design; weighs only 250 g, making it portable and easy to handle.
- Large 140mm LCD screen with full-text readout and a capacitive touch keypad for smooth operation.
Key Specifications
|
Specification |
Details |
|---|---|
|
DO Range |
0.00 to 45.00 PPM (mg/L); 0.0 to 300.0% saturation |
|
DO Resolution |
0.01 ppm (mg/L); 0.1% saturation |
|
DO Accuracy |
±1.5% of reading (±1 digit) |
|
Calibration |
One or two points at 0% (HI-7040L solution) and 100% (in air) |
|
Temperature Compensation |
ATC (0 to 50°C) |
|
Salinity Compensation |
0 to 40 g/L (with 1 g/L resolution) |
|
Altitude Compensation |
-500 to 4000 m (-1640 to 13120') (with 100 m resolution) |
|
Temperature Range |
-20.0 to 120.0 °C |
|
Temperature Resolution |
0.1°C |
|
Temperature Accuracy |
±0.5°C |
|
Probe |
HI-764080 digital dissolved oxygen electrode with 3.5mm connector and 1m cable (included) |
|
Logging |
Up to 1000 records: manual on-demand (max. 200), manual on-stability (max. 200), interval (max. 600; 100 lots) |
|
Connectivity |
1 USB port for storage; 1 micro USB port for charging and PC connectivity |
|
Environment |
0 to 50°C; RH max 95% non-condensing |
|
Power Supply |
5 VDC adapter (included) |
|
Dimensions |
2020 x 140 x 12 mm |
|
Weight |
250 g |
Discover the Difference
The HI-2004 Edge Dissolved Oxygen Meter combines streamlined design with advanced functions like full GLP data recording, superior connectivity, and Hanna Instruments’ hallmark precision. Its hybrid functionality ensures you’ll have the right setup for any situation. Perfect for maintaining top-notch water quality in labs, industrial environments, or out in the field.
Don’t wait—order the HI-2004 Edge today and experience the future of dissolved oxygen measurement!
