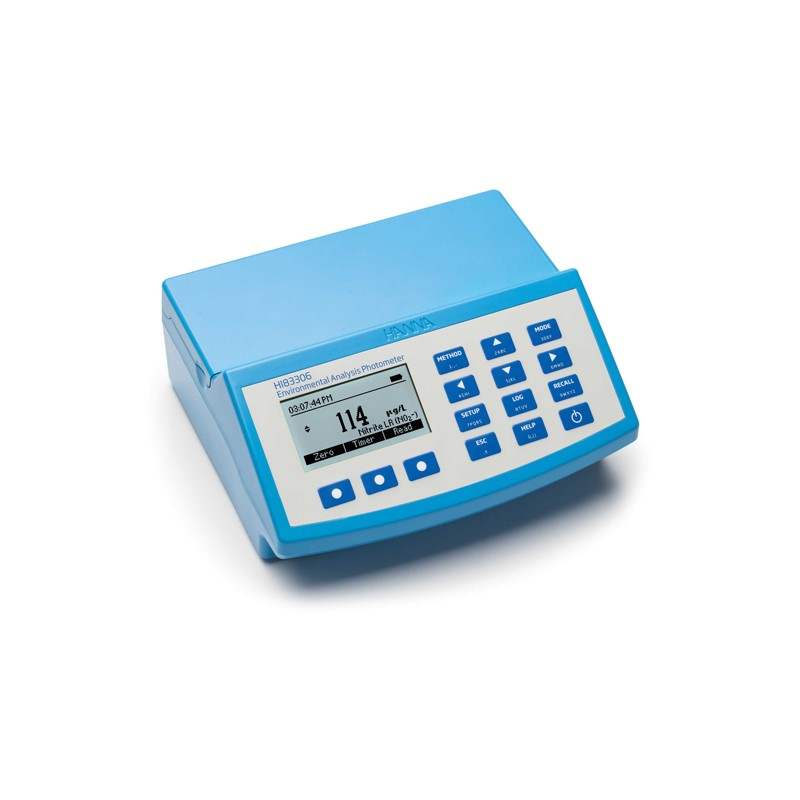

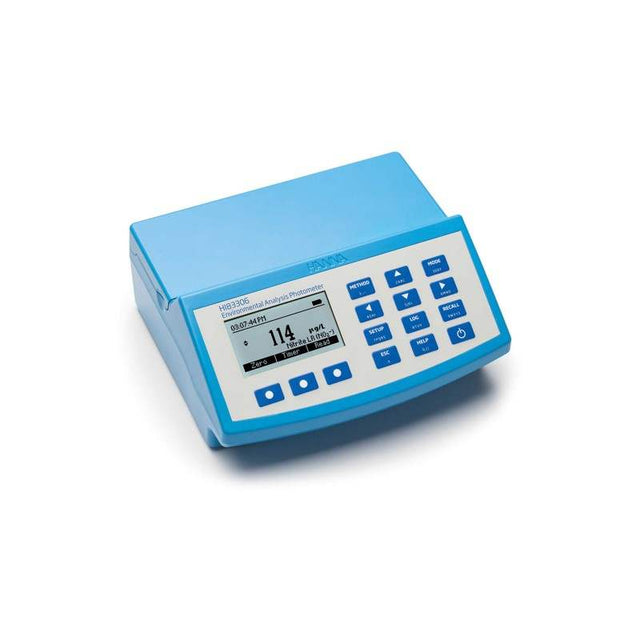

HI-83306-02 Multi-parameter Environmental Analysis Photometer with pH Digital Input

The HI-83306-02 Environmental Analysis Photometer with pH Meter, supplied by GAPS Water Treatment, sets a new standard for environmental water quality monitoring in both laboratory and field applications. This compact, multi-parameter instrument is engineered with an advanced optical system—featuring high-efficiency LEDs, narrow band interference filters, a focusing lens, a silicon photodetector, and a reference detector—to ensure accurate, stable, and repeatable photometric readings every time.

Advanced Optical System & Dual Measurement Modes

Built on state-of-the-art optical technology, the HI-83306-02 is designed to eliminate errors caused by light source fluctuations or cuvette imperfections. It’s equipped for both photometric and pH measurements: a single, digital pH electrode input allows you to swap between modes smoothly, saving valuable workspace and enhancing workflow efficiency.

Extensive Parameter Coverage for Environmental Analysis

With 23 different programmed methods measuring 16 critical water quality parameters, the HI-83306-02 is specifically developed to address the most pressing needs in environmental monitoring. Key environmental parameters include:

• Nitrate: Track and manage nutrient run-off, a primary concern in controlling algal blooms and ecosystem health.
• Phosphorus: Assess levels to monitor pollution from agricultural sources, which can affect aquatic life balance.
• Dissolved Oxygen: Ensure healthy oxygenation for fish, plants, and microorganisms—vital for maintaining aquatic ecosystems.
• Ammonia, Chromium VI, Copper, Molybdenum, Nickel, Silica, Silver, Zinc, and more: All essential for comprehensive environmental water assessments.

Essential Features for Reliable Performance

• Absorbance Measurement Mode: Perform system validation with CAL Check standards or create custom calibration curves using four selectable wavelengths (420 nm, 525 nm, 575 nm, 610 nm)—ideal for unique methods or educational use, guided by the Beer-Lambert Law.
• Built-in Reaction Timer: Guarantees correct timing and reproducibility in every test.
• Good Laboratory Practice (GLP) Tracking: Automatically logs calibration data with date, time, and buffer details for full traceability and regulatory compliance.
• Data Logging & USB Connectivity: Store up to 1,000 readings and transfer results with ease to a flash drive or computer. Two USB ports double as convenient power sources.
• Long-life Rechargeable Battery: Over 500 photometric measurements or 50 hours of continuous pH testing per charge—perfect for field monitoring.
• Backlit 128 x 64 Pixel Graphic LCD: Provides clear results in all lighting conditions, indoors or outdoors.

Designed for Field and Lab Professionals

Rugged yet lightweight, the HI-83306-02 travels easily between sites and offers reliability wherever precise water quality data is required. Routine monitoring of nutrients, metals, and key environmental markers is streamlined through intuitive operation and durable design.

Key Features at a Glance

Elevate Your Environmental Monitoring

The HI-83306-02 Multi-parameter Environmental Analysis Photometer with pH Meter is the all-in-one solution for water quality monitoring. Its advanced optical system, flexible measurement capabilities, extensive parameter coverage, and intelligent data management make it indispensable for professionals dedicated to preserving and improving water environments. Experience consistent accuracy and reliable performance—from GAPS Water Treatment.
