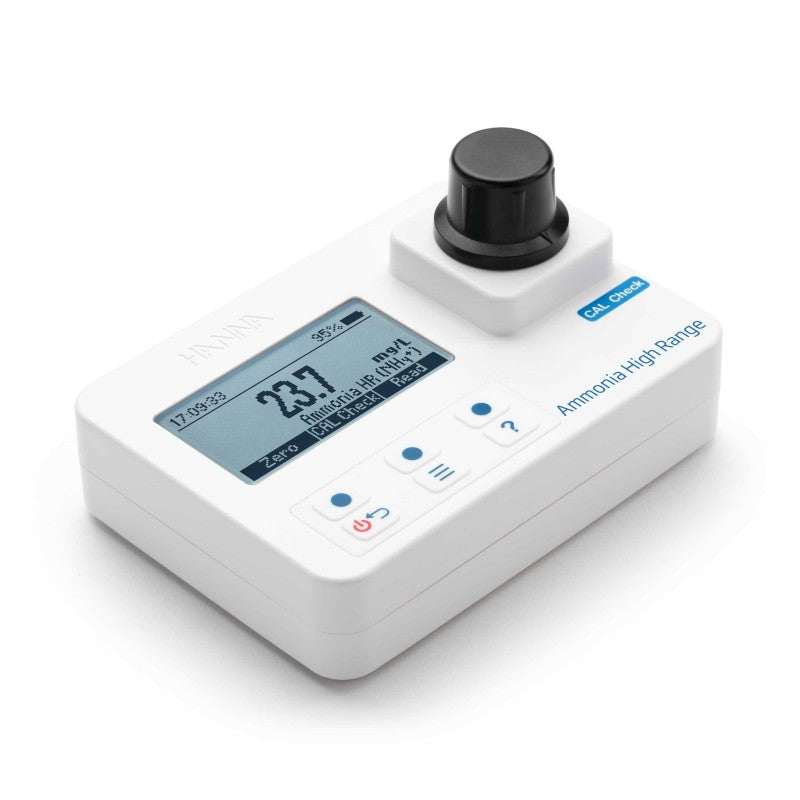

HI-97733 Ammonia High Range Portable Photometer
The HI-97733 photometer brings precision and ease to high range ammonia testing in water samples. With its advanced optical system, intuitive features, and portable waterproof design, this device ensures accurate and repeatable results every time.
Key Features
- High Range Testing: Measures ammonia levels from 0.00 to 100.00 mg/L (as NH4+) for diverse applications.
- Advanced Optical System: Reference detector and narrow band interference filters guarantee unparalleled accuracy and stability.
- Nessler Method: Reliable ammonia detection through a precise color change reaction.
- No Warm-Up Time: Start your testing immediately without delays.
- User-Friendly Interface: Backlit dot matrix LCD with virtual keys and a built-in tutorial mode.
- Waterproof Durability: Designed for field or lab use with a rugged, portable body.
Benefits of the HI-97733 Photometer
Precision and Stability
The HI-97733 ensures reliable testing through an enhanced light source, minimizing interference from environmental or power conditions. Its optical system produces consistent readings, even with challenging samples.
Simple, Intuitive Operation
From built-in step-by-step tutorials to interactive virtual keys, the HI-97733 makes ammonia testing fast and straightforward. Designed for varying expertise levels, it is suitable for professionals and beginners alike.
Flexible and Efficient Testing
Display results in multiple chemical formats and utilize a reaction timer for consistent, accurate measurements. Its compatibility with different reagent types offers flexibility in testing preferences.
Four Steps for Accurate Testing
-
Zero the Meter
Calibrate your photometer by placing a blank water sample in the cuvette holder.
![Image Placeholder for Step 1] -
Add Reagent to Sample
Prepare your testing sample by adding the specified reagent. Mix thoroughly.
![Image Placeholder for Step 2] -
Insert Sample Cuvette
Place the prepared cuvette securely in the photometer for measurement.
![Image Placeholder for Step 3] -
Press the Button to Read
View the ammonia concentration on the high-contrast LCD screen.
![Image Placeholder for Step 4]
Product Specifications
| Feature | Description |
|---|---|
| Range | 0.00 to 100.00 mg/L (as NH4+) |
| Resolution | 0.01 mg/L |
| Accuracy @ 25°C | ±0.5 mg/L ±5% of reading |
| Method | ASTM Manual of Water and Environmental Technology, D1426 - Nessler Method |
| Light Source | LED @ 420 nm |
| Light Detector | Silicon photocell with narrow band interference filter |
| Display | 128 x 64 pixel backlit dot matrix LCD |
| Power Source | 3x 1.5V AA batteries (included, >800 measurements per set) |
| Auto-Shutoff | Shuts off after 15 minutes of inactivity |
| Environment | 0–50°C; RH max 95% (IP67 waterproof case) |
| Dimensions | 142.5 x 102.5 x 50.5 mm |
| Weight | 380 g (with batteries) |
What’s in the Box?
- HI-97733 photometer
- 2 round glass cuvettes and caps
- Plastic cuvette inserts (2)
- 3x 1.5V AA batteries
- Instruction manual
- Instrument quality certificate
Reagents and calibration tools sold separately include the *HI-93733-01/03 Ammonia HR reagents and the HI-97733-11 calibration set for maintaining performance accuracy.
Applications
- Water Quality Analysis
- Environmental Monitoring
- Research and Education
- Industrial Processes
Order the HI-97733 Photometer Today
Achieve superior accuracy with the HI-97733 photometer for high range ammonia testing. Perfect for use in labs or outdoor setups, its advanced optical system and intuitive operation make ammonia testing easier than ever.
Don’t compromise on precision; order your HI-97733 photometer today and elevate your water testing experience!
