HI-98190 Professional Waterproof pH/ORP Meter
HI-98190 Professional Waterproof pH/ORP Meter

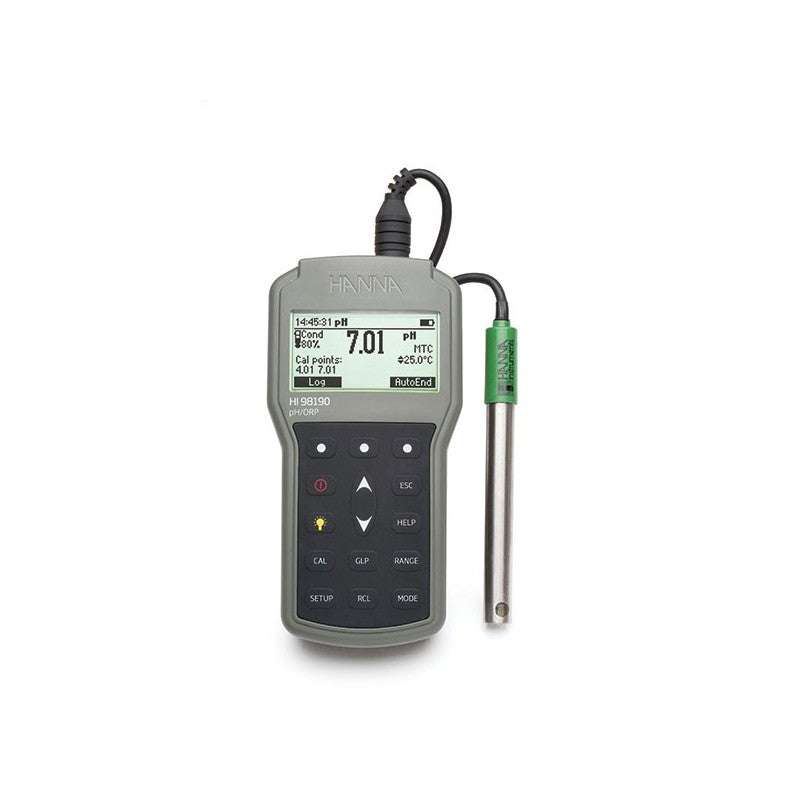

The HI-98190 Professional Waterproof pH/ORP Meter, supplied by GAPS Water Treatment, delivers the accuracy of a benchtop instrument in a rugged, portable body. With its IP67-rated enclosure, this meter is built for universal applications—whether you are testing in the lab, out in the field, or in challenging environments.
Advanced Measurement, Everywhere
Designed for ultimate versatility, the HI-98190 measures pH, ORP (when fitted with an ORP probe), and temperature. Thanks to the quick connect HI-12963 titanium pH/temperature probe, swapping sensors for mV or temperature readings is fast and simple. This meter features a backlit graphic LCD for clear, easy-to-read measurements, even in low-light conditions, and offers intuitive use with dedicated and soft keys in multiple languages.
Key Features
- IP67 Waterproof, Rugged Enclosure: Withstands tough, wet conditions for reliable use anywhere.
- Measures pH/ORP & Temperature: Switch from pH to ORP measurement by simply exchanging the probe.
- Quick Connect Probe: The HI-12963 titanium-bodied pH electrode with built-in temperature sensor attaches securely via a DIN connector.
- CAL Check™: Alerts you to calibration problems, electrode status, and buffer contamination.
- Automatic/Manual Temperature Compensation: Ensures precision—sensors include a temperature probe for accurate, compensated readings.
- Backlit Graphic LCD: High-resolution display remains visible in all conditions.
- Intuitive Keypad: Dedicated buttons for GLP info, range, calibration, and backlight for smooth operation.
- Extensive Calibration: Calibrate up to 5 points using 7 standard and 5 custom buffers.
- Data Logging: Log up to 200 data points on demand; transfer easily via USB.
- Long Battery Life: Approximately 200 hours of operation on four AA batteries (50 hours with backlight).
Supplied With
- HI-12963 titanium body pH electrode
- Calibration buffer solutions (HI-7004M, HI-7007M)
- 2 x electrode cleaning solution sachets
- Rugged carrying case
- 2 x 100 mL plastic beakers
- HI-92000 PC software
- HI-920015 micro USB cable
- Batteries
- Instruction manual
- Quality certificate
Specifications
Parameter |
Details |
---|---|
pH Range |
-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
pH Resolution |
0.1 pH; 0.01 pH; 0.001 pH |
pH Accuracy |
±0.1 pH; ±0.002 pH |
Calibration |
Up to 5 points (7 standard buffers: 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45; 5 custom) |
Temperature Compensation |
Automatic or manual, from -20.0 to 120.0°C |
mV Range |
±2000 mV |
mV Resolution |
0.1 mV |
mV Accuracy |
±0.2 mV |
Relative mV Offset Range |
±2000 mV |
Temperature Range |
-20.0 to 120.0°C |
Temperature Resolution |
0.1°C |
Temperature Accuracy |
±0.4°C |
pH Probe |
HI-12963, titanium body, internal temperature sensor, quick DIN connector, 1m cable |
Slope Calibration |
80% to 110% |
Log-on-Demand |
Up to 200 samples (100 each for pH/mV) |
PC Connection |
Opto-isolated USB with HI-92000 software and micro USB cable |
Input Impedance |
10¹²Ω |
Battery Type/Life |
4 x 1.5V AA; ~200 hours (no backlight), ~50 hours (backlight) |
Auto-off |
User-selectable: 5, 10, 30, 60 min, or disabled |
Environment |
0 to 50°C; RH 100%; IP67 |
Dimensions |
185 x 93 x 35.2 mm |
Weight |
400 g |
Elevate Your Water Testing
The HI-98190 Professional Waterproof Meter combines benchtop power with true portability, making it the right choice for experts demanding precision and control. Supplied by GAPS Water Treatment, this meter is ready to meet your toughest water quality challenges—wherever you need accurate results.
