SPECTRUM Aqualyze Triple System (SFHS-3-10LD): Large Diameter 10"

SFHS-3-10LD: SPECTRUM Aqualyze Triple System Large Diameter 10"

Revolutionize Your Filtration Process

The SPECTRUM Aqualyze Triple System (SFHS-3-10LD) is an advanced filtration solution designed for superior water quality. Its robust triple-housing design, coupled with high-performance features, ensures optimal contaminant removal in various applications. Now, with included 22mm and 28mm adaptors, connectivity has never been easier.

Key Benefits at a Glance

High-Performance Filtration: Triple-cartridge system for enhanced contaminant removal.
Durable Construction: Polypropylene material for reliable, long-term use.
Easy Installation: Includes 22mm and 28mm adaptors for flexible connectivity.
Versatile Applications: Works with AA, DOE, and CG end caps.
Optimized Flow: Consistently delivers up to 25 liters per minute for high-demand filtration needs.

Product Features

Engineered for Outstanding Filtration

Featuring three 10-inch large-diameter cartridges (4.5-inch width), the SFHS-3-10LD provides a larger surface area for highly effective contaminant removal. Its triple-stage design ensures reduced sediment and prolonged cartridge life, making it suitable for even the most challenging filtration tasks.

Robust and Reliable

Constructed from FDA-compliant polypropylene, this filtration system combines lightness with durability. With a capability to withstand a maximum pressure of 7.0 bar and a temperature rating of up to 42°C, it guarantees exceptional performance over extended use.

Enhanced Adaptability

The SFHS-3-10LD includes a complete adaptor kit with 22mm and 28mm adaptors for easy setup in various systems. It is equipped with a 1-inch port size and Buna seals for reliable, leak-free operation across diverse environments.

End-Cap Versatility

This system complies with AA, DOE, and CG end-cap standards, ensuring you can pair it with a wide range of filter cartridges for tailored performance.

Perfect for Various Applications

From commercial and industrial environments to residential systems, the SFHS-3-10LD is the ideal solution for any setting demanding efficient and high-capacity filtration.

Specifications at a Glance

Feature	Specification
Material	Polypropylene
Configuration	3 Cartridges (10" x 4.5")
Port Size	1"
Seal	Buna
Temperature Rating	Up to 42°C
Max Pressure	7.0 bar
Flow Rate	25 liters per minute
End-Cap Compatibility	AA / DOE / CG
Adaptor Kit	Includes 22mm and 28mm adaptors

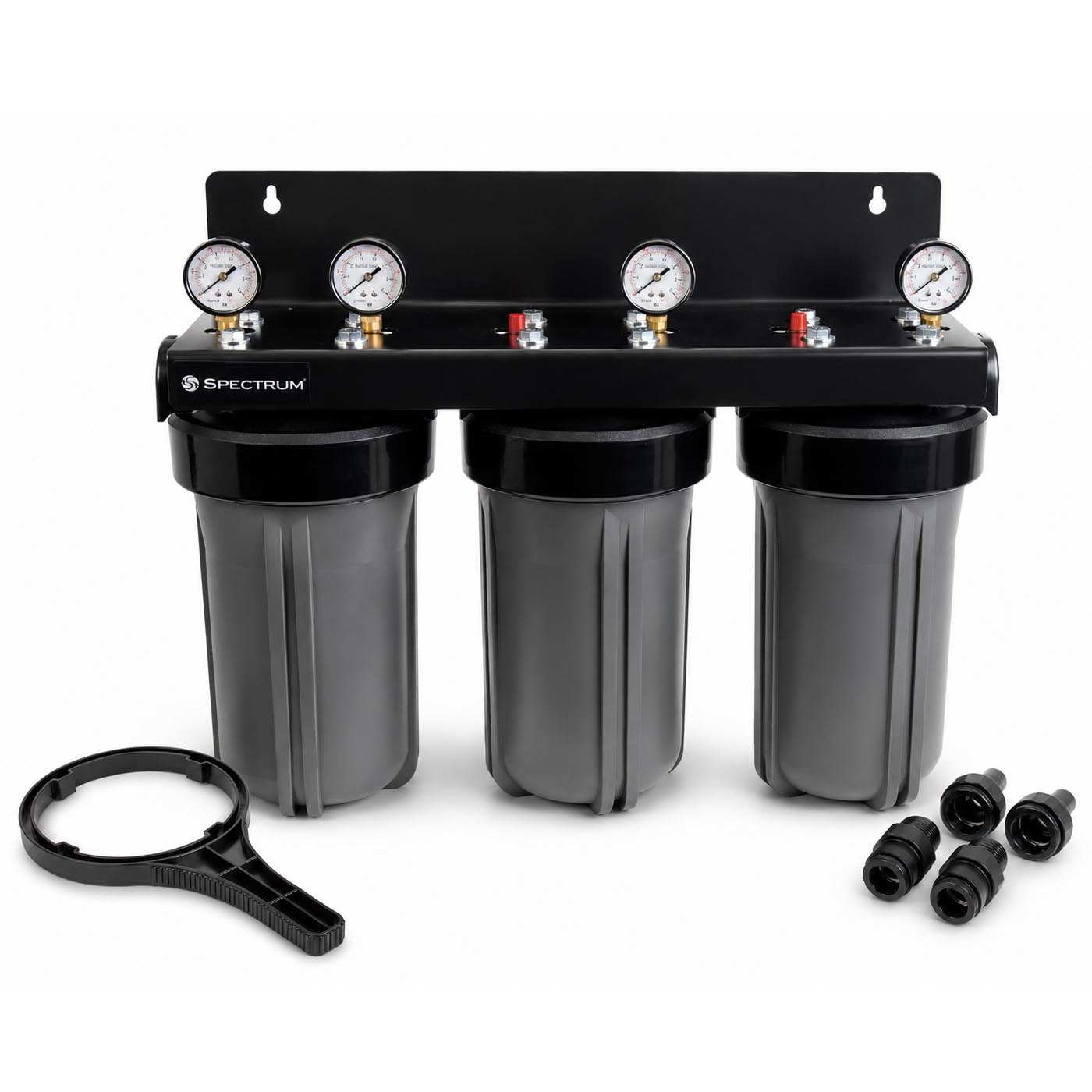

What's Included

Three durable housings (10" large diameter each).
A complete adaptor kit with 22mm and 28mm adaptors for flexible connectivity.
Compatible with various filter cartridges for broader filtration capability.

Upgrade to Superior Filtration

Choose the SPECTRUM Aqualyze Triple System (SFHS-3-10LD) for reliable, efficient, and high-capacity water filtration. Designed for ease of use, durability, and top-notch performance, this system is the ideal choice for both professionals and homeowners. Get ready to experience better filtration today!

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the SPECTRUM Economic Three Stage Housing System 10inch used for?

The SPECTRum Economic Three-Stage Housing System is a pre-assembled, space-saving water filtration system designed for residential, commercial, and light industrial use. By combining three filters into one unit, it provides multi-stage water treatment without needing to plumb multiple housings together. Here’s how it's typically used and configured: Progressive Multi-Stage Filtration The system cleans water in stages, tackling different contaminants at each step. A common setup includes: Stage 1 (Pre-Filtration): A sediment filter (e.g., 50 to 5 microns) traps sand, rust, scale, and other large particles. Stage 2 (Chemical Treatment): A carbon cartridge reduces chlorine, volatile organic compounds (VOCs), bad tastes, and odours. Stage 3 (Final Filtration): A fine sediment filter (e.g., 1 micron), a specialized resin cartridge (for deionisation or scale), or a microbiological barrier provides the final polish. Protecting Downstream Systems This three-stage setup is effective at extending the life of more delicate or expensive filters (like UV sterilizers or reverse osmosis systems) by removing clogging sediments and damaging chlorine first. Treating Private Water Supplies It is often used for private water sources like boreholes, wells, or springs. These sources often require robust, multi-stage treatment (e.g., sediment removal followed by iron reduction) before the water is used. Key System Specifications Cartridge Compatibility: Fits standard 10-inch double open-ended (DOE) cartridges. Port Configurations: Available in multiple port sizes (¼” to ¾” BSP) to match different flow rates and pipes. Pressure & Temperature: Rated for pressures up to 8.6 bar (polypropylene) or 6.9 bar (clear styrene) and operates safely between 4°C and 40°C. Installation Readiness: Includes a mounting bracket, sump spanner, and integrated pressure gauges to monitor when cartridges need replacement.

What are the key features of the SPECTRUM Aqualyze Triple System in terms of durability and materials?

Constructed from FDA-compliant polypropylene, the SPECTRUM Aqualyze Triple System is lightweight yet highly durable. It withstands temperatures up to 42°C and pressure of up to 7.0 bars, ensuring long-lasting performance in challenging environments.

Can the SPECTRUM Triple System handle different types of water contaminants?

Yes, with its triple-cartridge setup and compatibility with various filter cartridges, the system is effective at removing bulk solids, sediment, and fine contaminants, making it suitable for a wide range of water purification needs.

What are the specifications and compatibility features of the SPECTRUM Aqualyze Triple System?

The system features three 10-inch by 4.5-inch polypropylene housings, a 1-inch port size, Buna seals, and end-cap compatibility with AA, DOE, and CG types. It supports a flow rate of up to 25 liters per minute and operates efficiently under pressure up to 7.0 bars.

How does the triple-cartridge design enhance water filtration in this system?

The triple-cartridge design provides a larger surface area for contaminant removal, combined with a triple-stage process that reduces sediments and extends cartridge lifespan, ensuring cleaner water and increased filtration efficiency.

Is the SPECTRUM 10-inch housing suitable for different piping sizes?

Yes, the system includes complete adaptor kits with 22mm and 28mm connectors, making it flexible for use with various piping systems and easy to connect in different setups.

What are the specifications of this filtration system in terms of pressure and temperature?

The SPECTRUM 10-inch housing system is built to withstand a maximum pressure of 7.0 bar and is rated to operate at temperatures up to 42°C, ensuring consistent performance in demanding environments.
