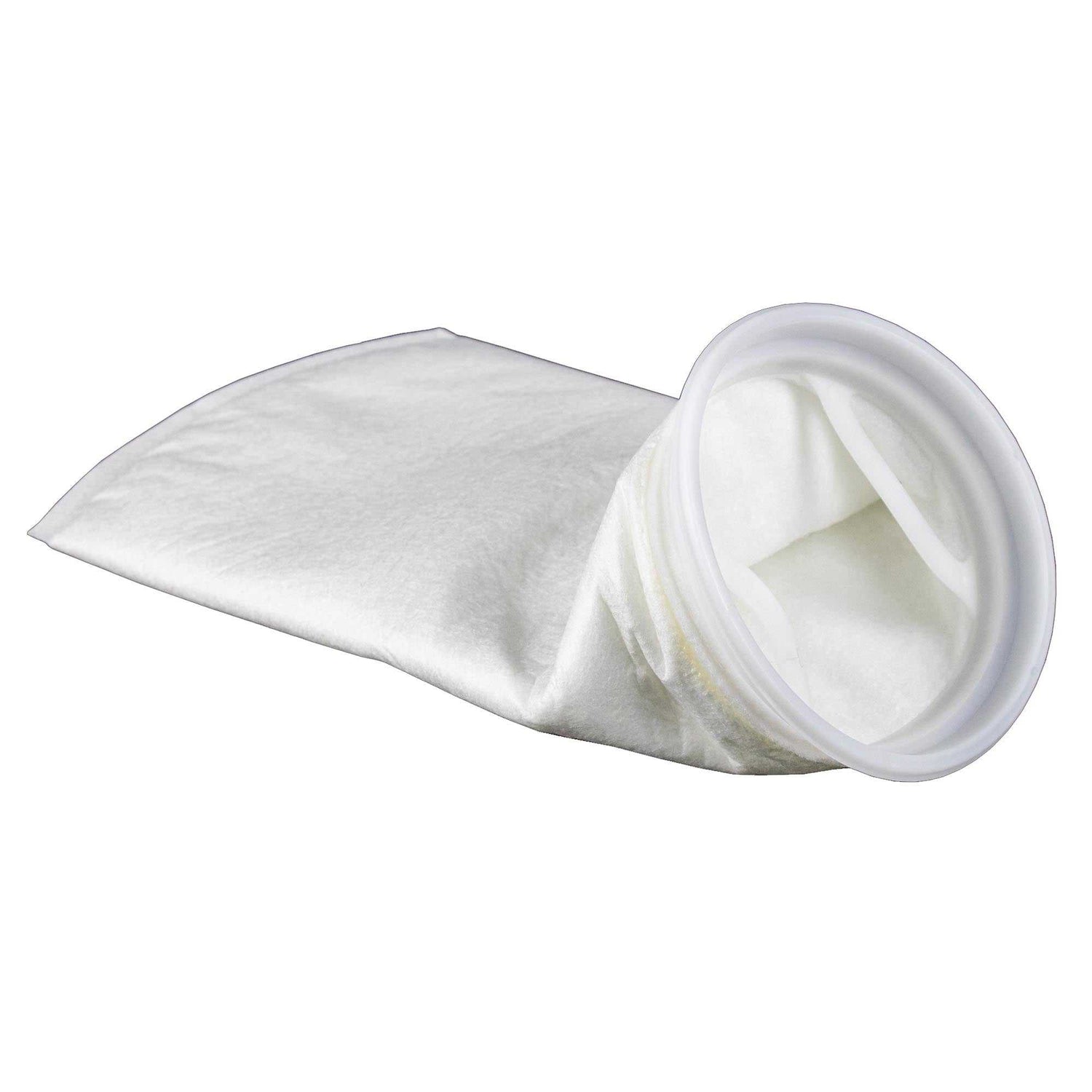

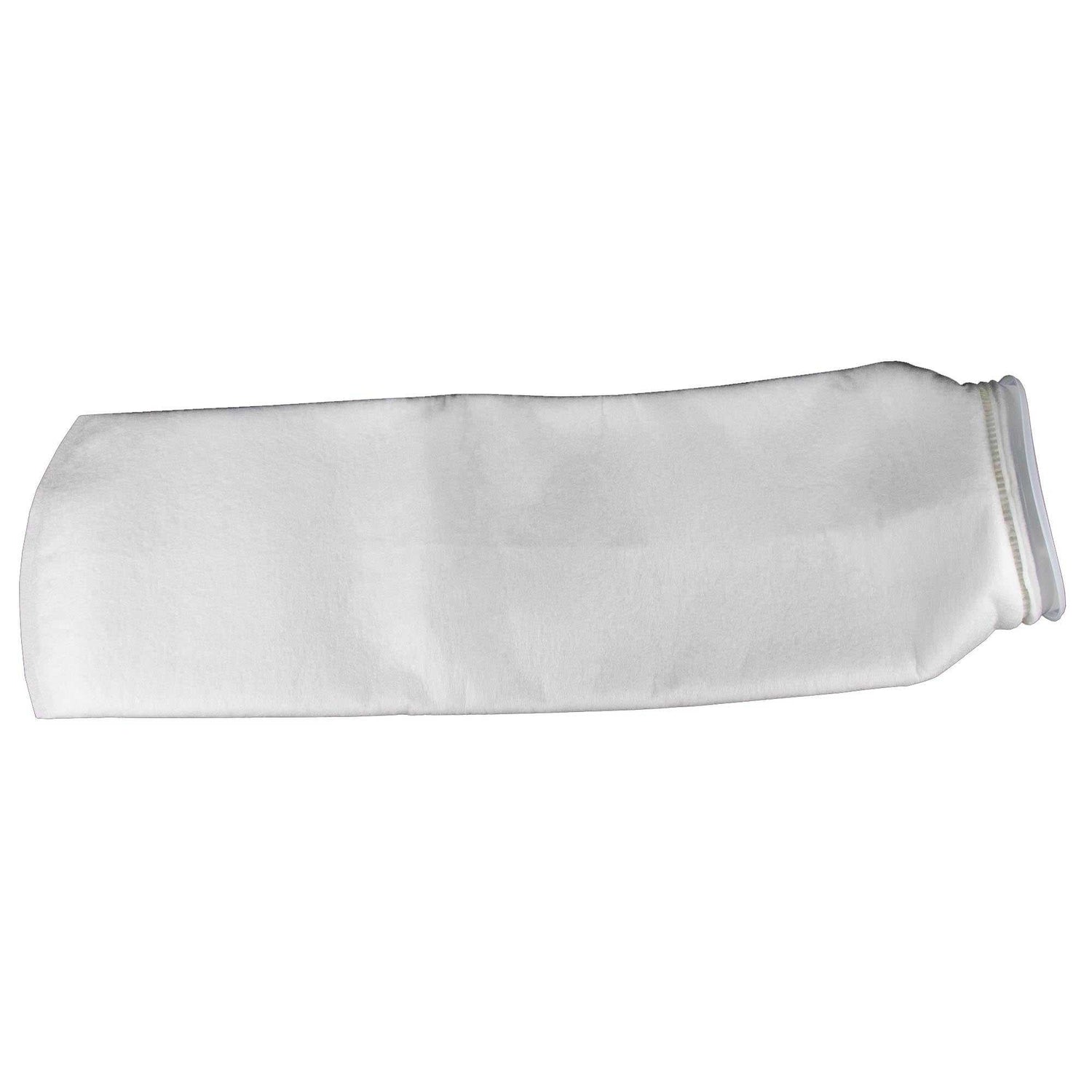

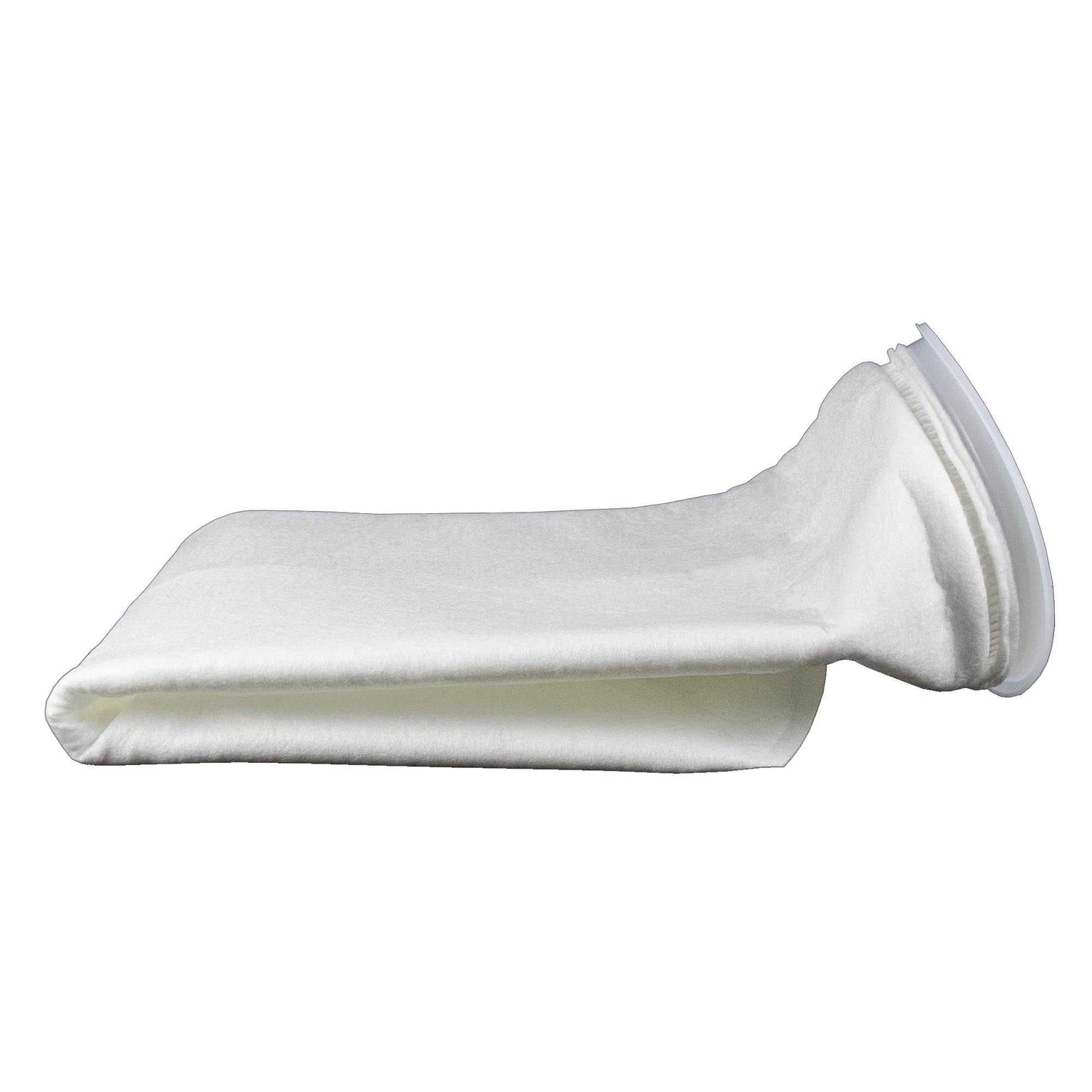

SPECTRUM Standard Bag Filter (Double Layer)
SPECTRUM Standard Bag Filter (Double Layer)
SPECTRUM Standard Bag Filter
The SPECTRUM Standard Bag Filter is expertly designed to deliver reliable and efficient filtration performance across various applications. Its all-welded construction ensures no contamination bypass, offering peace of mind for industries where cleanliness and precision are critical. This bag filter stands out for its extended service life, reducing maintenance and downtime.
Innovative Double-Layer Filtration
The bag filter features a double-layer graded density construction for improved filtration efficiency.
- The first layer acts as a pre-filter to trap larger particles and gelatinous contaminants, which often cause premature clogging.
- The second, finer layer ensures unwanted particulates are effectively captured, increasing the bag’s overall service life.
Features & Benefits
- Reduced change out intervals, minimizing downtime and waste.
- High dirt-loading capacity for extended usage between replacements.
- Dual-layer media provides superior filtration performance.
- Glazed surface finish prevents fibre migration downstream.
- Broad chemical compatibility to suit diverse applications.
- All-welded construction eliminates pinholes or weak points, enhancing reliability.
Materials of Construction
- Bag Material: Polypropylene Felt (FDA Compliant)
- Neck Material: Polypropylene
Technical Data
| Efficiency (%) | Maximum Operating Pressure Differential | Maximum Operating Temperature (°C) |
|---|---|---|
| 80 | 1 bar @ 20°C | 95 |
Dimensions
| Bag Size | A (mm) | B (mm) | Area (m²) |
|---|---|---|---|
| 1 | 178 | 406 | 0.23 |
| 2 | 178 | 813 | 0.41 |
Ordering Guide
- Code: SB
- Media: Polypropylene (P)
- Micron Rating (µm): Available in 1, 5, 10, 25, 50, 100
- Bag Size Available: Sizes 1 and 2
Example SBP-5-2
Product Range
The SPECTRUM Standard Bag Filter is available in diverse micron ratings to suit various filtration needs, offering unmatched performance across applications.
Applications & Industries
This bag filter is the ideal pre-filtration solution for a variety of settings, including but not limited to:
- Water treatment
- Paints
- Syrup production
- Recycled water filtration
- Trap filters
- Bulk chemical transfer
The SPECTRUM Standard Bag Filter is your go-to solution for top-notch filtration performance, offering durability, efficiency, and versatility for multiple applications.
