When selecting or replacing filter cartridges, understanding the details of end caps and their configurations is essential. From O-ring materials to the physical sizes of end caps, each component plays a crucial role in proper sealing, filtration performance, and compatibility with filter housings. This guide walks you through the key aspects of filter cartridge end caps, including O-ring selection, physical sizes, and alternative codes.
What Are Filter Cartridge End Caps?
End caps serve as critical components in filter cartridges, ensuring proper sealing, alignment, and stability within the filter housing. They come in various configurations depending on the application, housing design, and operational requirements.
The most common types of end caps include:
- Double Open End (DOE): A cylinder with holes at both ends, using flat gaskets to create a seal.
- Single Open End (SOE): Includes O-ring(s) and sometimes a fin (spear) for more secure sealing.
Why O-Ring Selection Matters
The right O-ring material can determine the performance and longevity of your filter cartridge. O-rings must resist wear, temperature fluctuations, and chemical exposure. Here's a breakdown of commonly used O-ring materials:
-
Silicone (MVQ):
- Color: Translucent, red, or white.
- Best for: High-temperature water, food, and beverage applications.
- Pros: Excellent temperature resistance (up to 204°C / 400°F) and very flexible. It is generally the "cleanest" material for high-purity water.
- Cons: Poor tear resistance and low compatibility with oils or steam.
-
EPDM (Ethylene Propylene):
- Color: Black.
- Best for: Hot water, steam, and many dilute acids/alkalis.
- Pros: The "workhorse" of the water filtration industry. Great resistance to weathering, ozone, and general aging.
- Cons: Fatal flaw when exposed to petroleum-based oils, greases, or fuels as it swells and fails quickly.
-
Viton™ (FKM / Fluoroelastomer):
- Color: Black or brown.
- Best for: Harsh chemicals, oils, fuels, and high-temperature industrial processes.
- Pros: Incredible chemical resistance and the go-to option for challenging applications.
- Cons: Not ideal for low-temperature environments due to stiffness and can be damaged by organic acids.
-
Buna-N (Nitrile / NBR):
- Color: Black.
- Best for: General-purpose industrial use, oils, and cold water applications.
- Pros: Durable, affordable, and maintains flexibility over extended use.
- Cons: Degrades quickly with UV exposure and high temperatures above 100°C.
-
PTFE Encapsulated (Teflon™):
- Color: Glossy white.
- Best for: Maximum chemical resistance where standard O-rings fail.
- Pros: Features a Silicone or Viton™ core wrapped in PTFE for extreme chemical resistance.
-
Cons: Stiffer and less forgiving, requires precise housing alignment for a good seal.
Quick Selection Guide for O-Ring Materials:
| Liquid Type | Recommended Material |
|---|---|
| Drinking Water / Beverages | Silicone |
| Hot Water / Steam | EPDM |
| Oils / Hydraulic Fluids | Viton™ or Buna-N |
| Aggressive Solvents | PTFE Encapsulated |
Physical Sizes of Common End Caps
The physical dimensions of end caps directly influence their compatibility with housings and sealing performance. Below are the details for some of the most common end cap configurations:
O-Ring Dimensions for Popular End Caps
| End Cap Type | Inside Diameter (ID) | Outside Diameter (OD) | Cross Section |
|---|---|---|---|
| 213 | 23.39 mm (0.921") | 30.45 mm (1.199") | 3.53 mm (0.139") |
| 222 | 37.69 mm (1.484") | 44.75 mm (1.762") | 3.53 mm (0.139") |
| 224 | 44.04 mm (1.734") | 51.10 mm (2.012") | 3.53 mm (0.139") |
| 226 | 50.39 mm (1.984") | 57.45 mm (2.262") | 3.53 mm (0.139") |
Key Features of End Caps
- DOE (Double Open End): Relies on flat gaskets; typical in standard water filtration housings.
- SOE with 222 or 226 O-rings: Provides secure sealing for critical or high-purity processes.
- Fin/Spear Tips: Helps align cartridges in housings with tie rods or multi-round systems.
- Recessed Closed Caps: Used for housings with centering posts to ensure stability.
Expanded Overview of End Cap Types and Codes
Filter manufacturers use a variety of codes to indicate the end cap types and configurations of their cartridges. Below is a detailed summary of the most common codes found across the industry:
| Code | Description | Configuration Details | Typical Applications |
|---|---|---|---|
| 0 | DOE | Double Open End, seals with flat gaskets. | General filtration, pre-filtration. |
| 3 | 222 O-Rings + Flat Cap | SOE with 222 O-rings on one end and a flat cap on the other. | Industrial or pure water. |
| 8 | 222 O-Rings + Fin | 222 O-rings with a spear or fin. | Filtration requiring precise alignment. |
| AA | DOE | Standard flat gasket ends. | General-purpose applications. |
| CG | 213 Internal O-Ring + Recessed Closed Cap | Provides sealing on one end and recessed for centering. | Light commercial or residential systems. |
| EG | 222 O-Rings + Recessed Closed Cap | 222 O-rings with a recessed closed base. | Common for industrial filtration. |
| MG | 224 O-Rings + Recessed Closed Cap | 224 dual O-rings with enhanced sealing. | High-pressure and high-flow environments. |
| EH | 222 O-Rings + Fin | Precision alignment with a spear tip. | Critical process systems using 222 O-rings. |
| MH | 224 O-Rings + Fin | Secure sealing with fin end alignment. | Multi-cartridge housings, high-flow systems. |
| FG | 226 O-Rings + Recessed | Locking bayonet tabs with stable recessed base. | Ideal for heavy-duty industrial use. |
| FH | 226 O-Rings + Fin | Locking tabs combined with spear end. | Pharmaceutical and sanitary filtration. |
| ZH | 226S O-Rings + Fin | 226 stainless steel O-rings with fin incorporation. | For high-stress, demanding applications. |

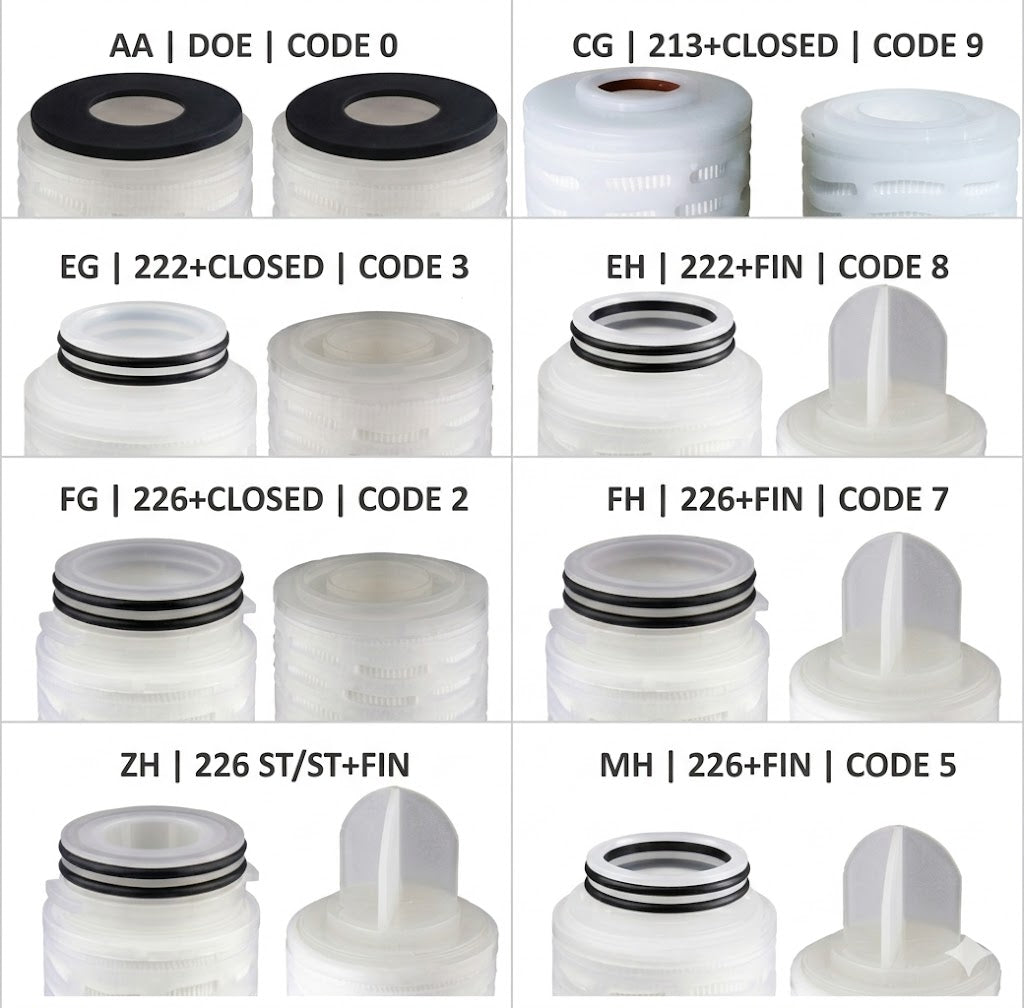

Alternative Codes for End Caps
Understanding how codes translate across manufacturers simplifies the process of finding replacements. Here’s a comparison of common codes and their approximate equivalents:
| Industry Code | Equivalent Codes (Amazon, Parker, etc.) | Description | Use Cases |
|---|---|---|---|
| AA | Code 0 | DOE with flat gasket both ends. | Standard water and general filtration systems. |
| CG | Code 9 | Internal 213 O-ring/recessed cap. | Residential, lower-volume systems. |
| EG | Code 3 | 222 O-Rings + Recessed Closed Cap | Industrial and water filtration. |
| MG | Code 4 | 224 Dual O-Rings + Recessed Cap | High-pressure filtration systems. |
| EH | Code 8 | 222 O-Rings + Fin/Spear End | Critical systems requiring precise alignment. |
| MH | Code 5 | 224 O-Rings + Fin/Spear End | Multi-round housings with high-flow needs. |
| FG | Code 2 | 226 O-Rings with Recessed Cap | Heavy-duty and industrial filtration systems. |
| FH | Code 7 | 226 O-Rings with Fin/Spear End | Pharmaceutical and high-stability setups. |
| ZH | N/A | 226 Stainless Steel O-Rings + Fin | Demanding, high-stress applications. |
Common Industry Terms to Know
When working with filter cartridges, a few key terms help in making informed decisions:
- Knife Edge: The sharp housing rim that seals against DOE flat gaskets.
- 222 vs. 226 O-Ring Seals: 222 seals are smaller and friction-fit, while 226 seals are larger and include locking tabs.
- Recessed Closed Caps: End caps with an indentation ("well") to stabilize the cartridge on housing centering posts.
- Flat Gasket: Commonly seen in DOE configurations, made from EPDM, Silicone, or Buna-N.
How to Choose the Right End Cap
To ensure proper fit and functionality, consider these factors:
- Housing Compatibility: Verify the end cap type (DOE, 222, 226, etc.) matches the housing design.
- Application Requirements: Determine the sealing security needed based on pressure, temperature, and fluid type.
- Material Compatibility: Choose an O-ring material that resists degradation from the fluid and operating environment.
- Alternative Codes: Cross-reference the manufacturer’s code with alternatives to find a match.
Conclusion
Filter cartridge end caps are critical for maintaining efficient, leak-proof filtration systems. By understanding O-ring materials, physical sizes, and code equivalencies, you can ensure optimal performance and compatibility. Whether navigating DOE gaskets or high-security configurations, this guide provides the insights to make confident filtering decisions.
Got questions about end caps or filter cartridge compatibility? Share them below, and we’ll help you make the perfect selection for your filtration system!
