Cintropur NW800 3" FI-0502-05
Regular price
£391.50
Unit price

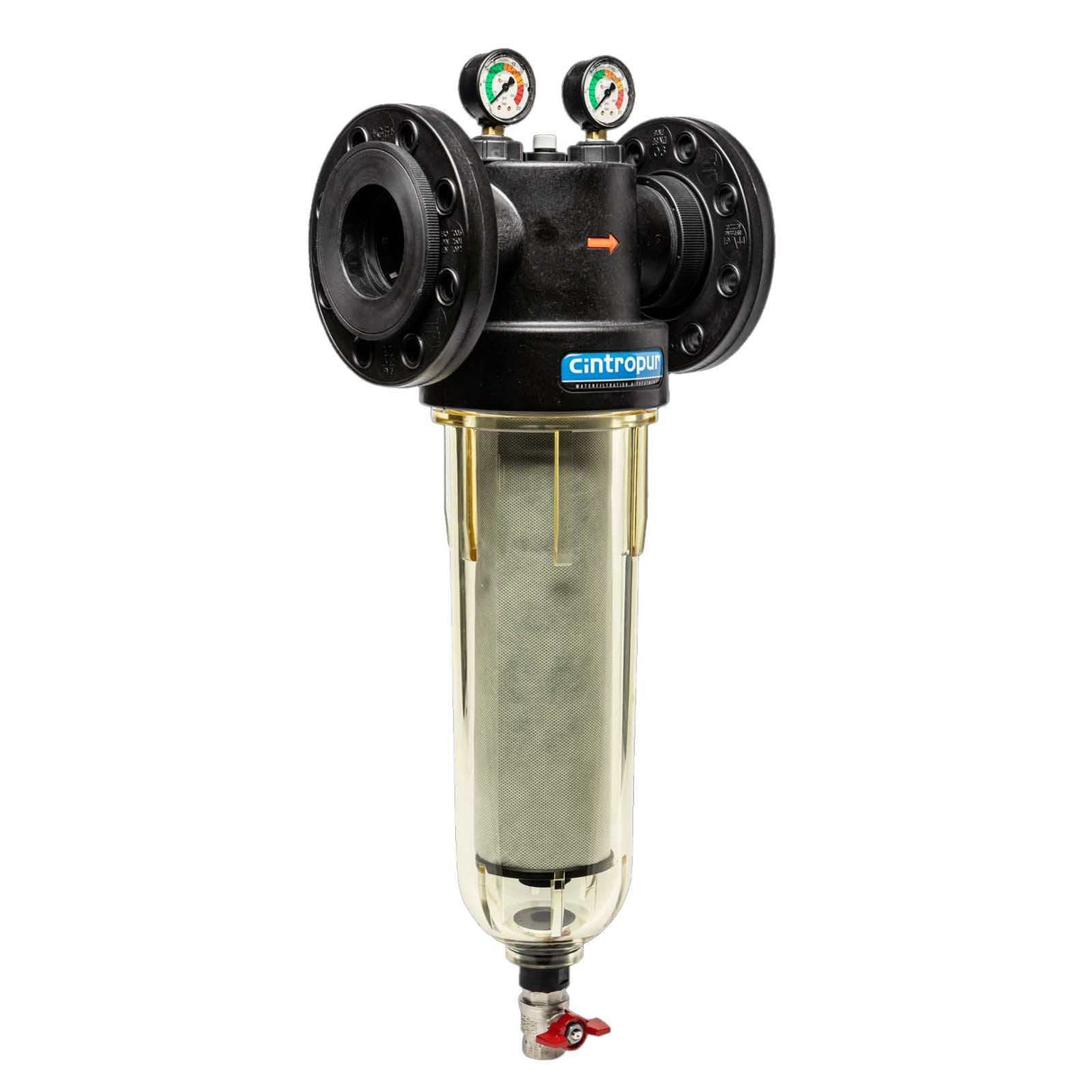

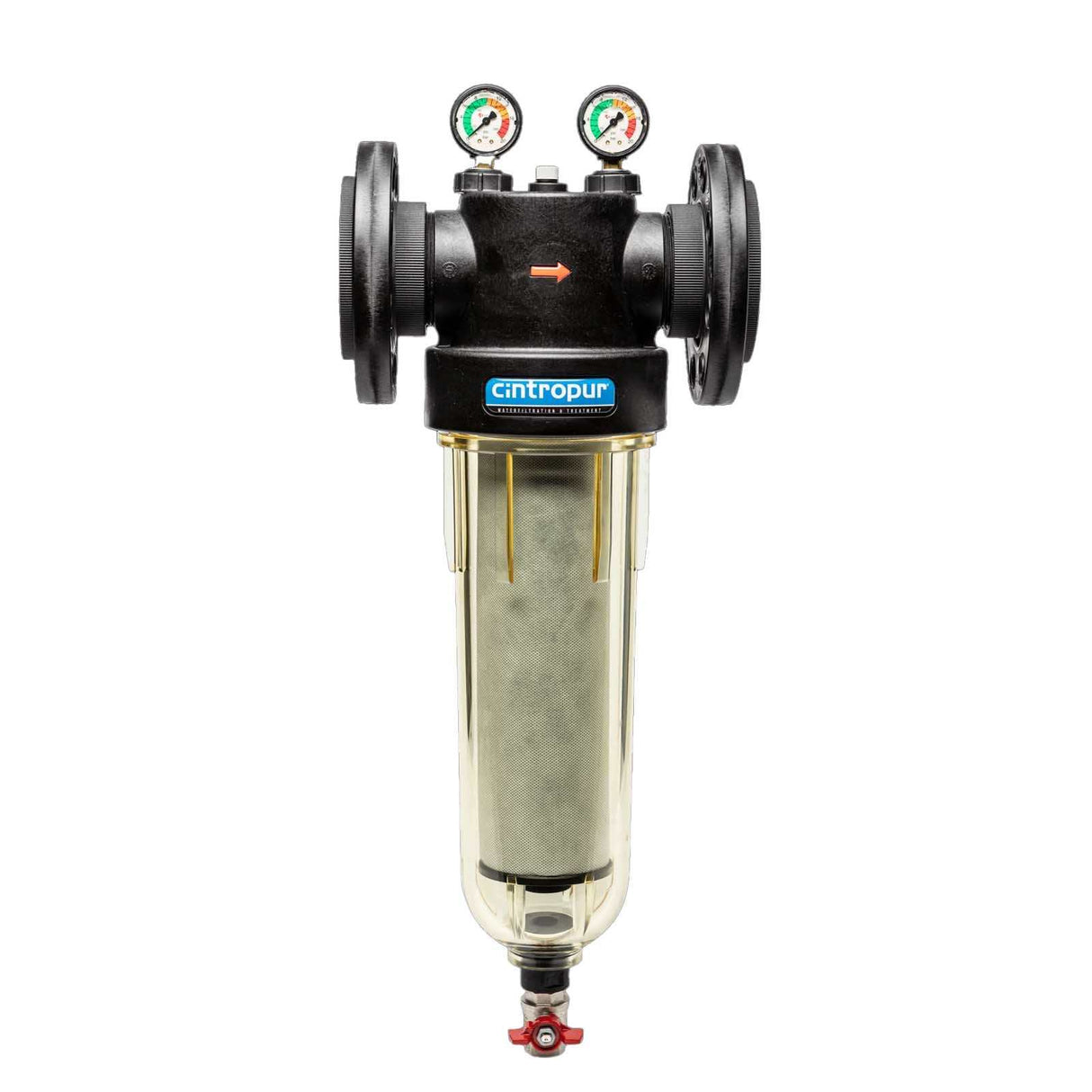

Cintropur NW 800 3" FI-0502-05
Optimize your water filtration with the Cintropur NW 800, a leading mechanical filter crafted to efficiently handle clear and slightly contaminated water.
Key Advantages
- Double-Stage Filtration: Uses centrifugal flow and a filtering sleeve to remove particles such as earth, sand, and rust.
- Outstanding Flow Rate: Capable of processing 32 m³/h at 0.2 bar differential pressure, providing superior water purification.

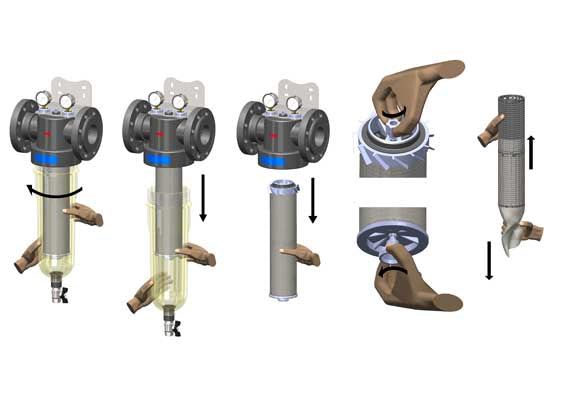

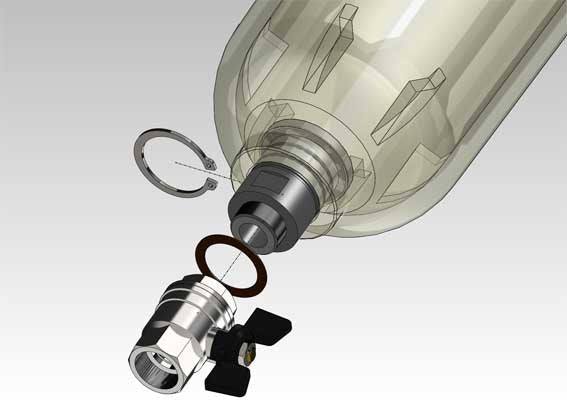

- Low Maintenance: Equipped with a convenient drain cock and O-ring system for easy rinsing and secure sealing.
- Versatile Filtration Options: Offers a wide range of filtering fineness from 5 to 300 microns, accommodating diverse filtration requirements.
Specifications
- Working Pressure: Operates effectively at 10 bar (142 psi) with a maximum pressure tolerance of 16 bar (228 psi).
- Temperature Range: Maintains efficiency in temperatures up to 50°C.
Applications
- Industrial: Ideal for protecting sanitary fittings and machine tools, suited for high-pressure systems.
- Agricultural: Suitable for watering systems, animal water filtration, and rainwater and well water treatment.
- Group Settings: Ensures reliable protection for sanitary systems in hotels, restaurants, schools, and buildings, safeguarding appliances.
Compatibility
- System Integration: Can be combined with UV and activated carbon systems using DUO and TIO® solutions to enhance water treatment capabilities.
Enhance your filtration system's performance with the Cintropur NW 800, offering exceptional efficiency and minimal maintenance across a range of applications.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main benefits of using the Cintropur NW 800 for water filtration?
The Cintropur NW 800 offers double-stage filtration with centrifugal flow and a filtering sleeve, ensuring efficient removal of particles like earth, sand, and rust. It also provides a high flow rate of 32 m³/h and is designed for easy maintenance, making it an excellent choice for various water purification needs.
Can the Cintropur NW 800 handle different types of contaminated water?
Yes, the Cintropur NW 800 is versatile and suitable for filtering clear to slightly contaminated water, making it ideal for residential, agricultural, and industrial applications. Its customizable filtering fineness from 5 to 300 microns allows you to adapt it to different contamination levels.
What are the specifications I need to know before installing the Cintropur NW 800?
The Cintropur NW 800 operates effectively at a working pressure of up to 10 bar (142 psi) and can withstand maximum pressures of 16 bar (228 psi). It functions well in temperatures up to 50°C, ensuring reliable performance in various environments.
Is the Cintropur NW 800 suitable for use in commercial or industrial water systems?
Absolutely, the Cintropur NW 800 is designed for high-pressure systems and is ideal for protecting sanitary fittings and machinery in industrial and commercial settings, including hotels, restaurants, and schools, where reliable water filtration is crucial.
Can the Cintropur NW 800 be integrated with other water treatment systems?
Yes, it can be combined with UV sterilization and activated carbon systems using DUO and TIO® solutions, enhancing the overall water treatment process for better purification and safety.
