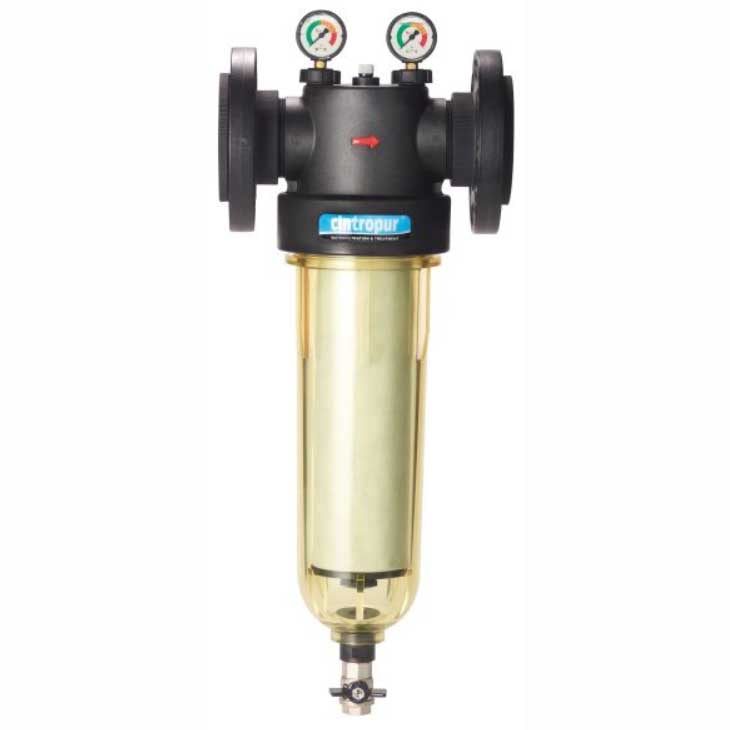

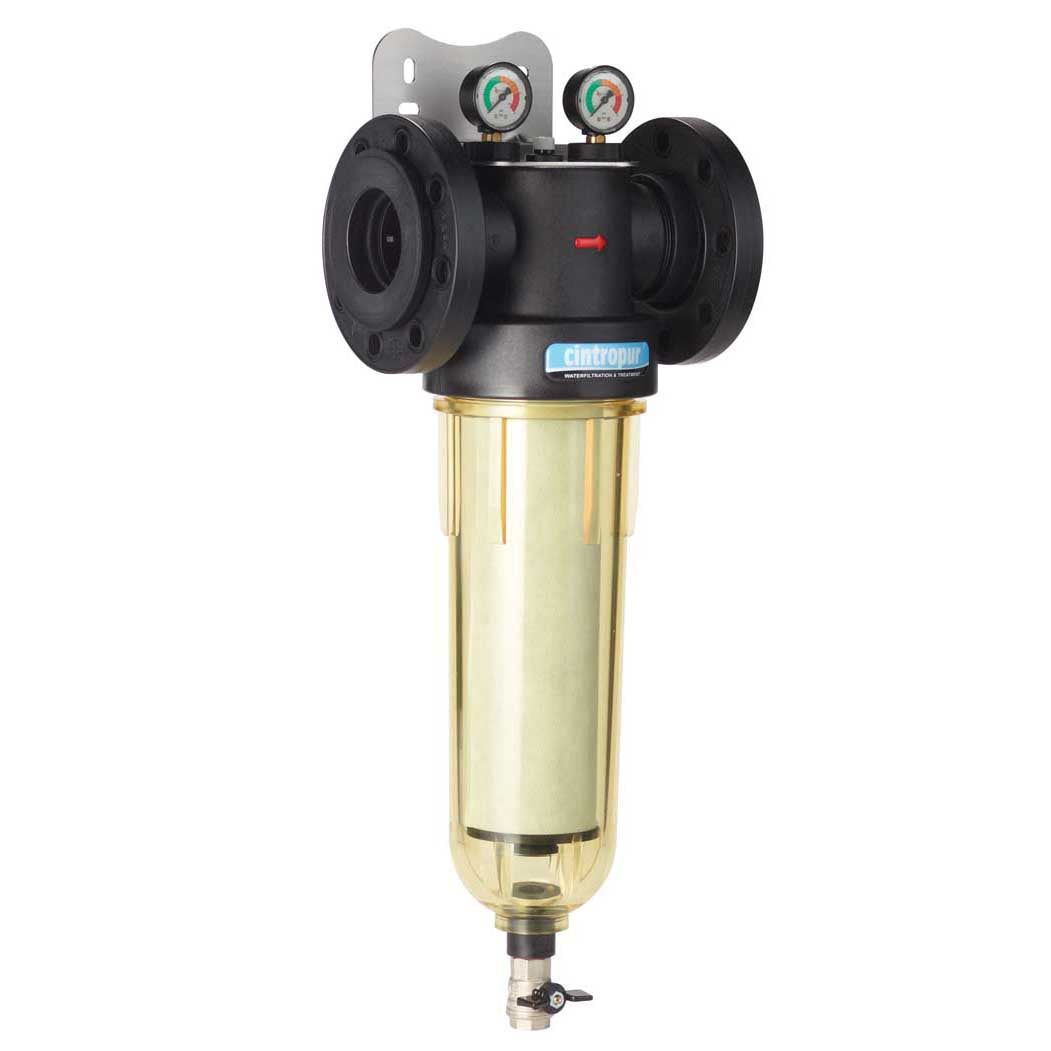

Cintropur NW 800 3" FI-0502-05

Product Description

The brand CINTROPUR® offers a wide range of mechanical filters designed for filtering clear and slightly contaminated water.

Average flow rate (differential pressure 0.2 bar): 32 m3/h
Working pressure: 10 bar (142 psi)
Max. operating pressure: 16 bar (228 psi)
Max. operating temp.: 50°C

Basic principle: filtering out solid particles (earth, sand, rust, etc,) suspended in the water.

Possibility of combining mechanical filter + UV and activated carbon with DUO, TIO® (Two in one) TIO®+UV.

Main advantages

• double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
• filtration practically without accumulation
• low pressure drop
• high and constant flow rate
• wide choice of filtering fineness ranging from 5 to 300 microns
• sealing guaranteed thanks to the O-ring system
• fast and easy rinsing thanks to the drain cock
• long lifetime and uninterrupted spare parts supply
• reduced need for maintenance

APPLICATIONS

Industrial :
Protection of sanitary fittings and machine tools..

Agricultural :
Filtration of watering (spraying) installations.
Filtration of water for animals.
Filtration of rainwater and well water.

Groups :
(hotels, restaurants, schools, buildings,...) protection of the sanitary installations and all electrical/domestic appliances.
