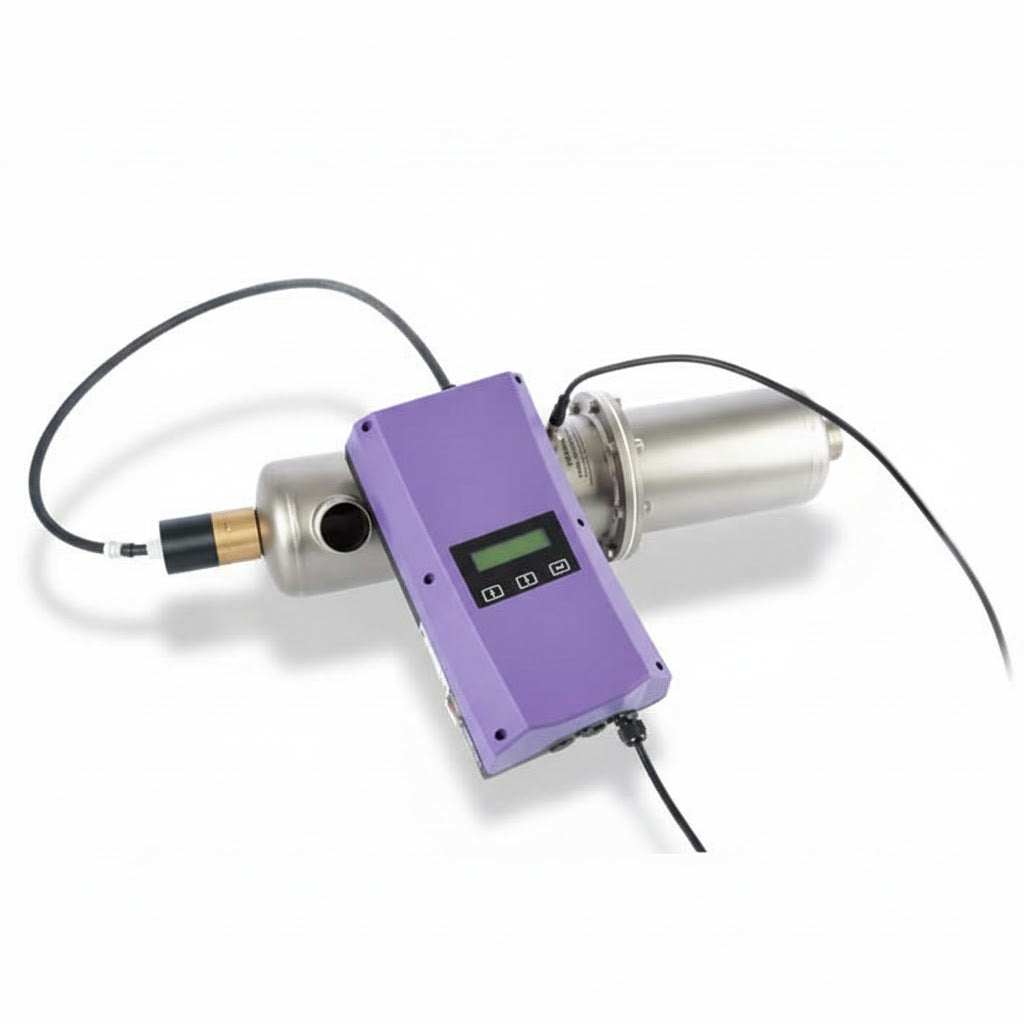

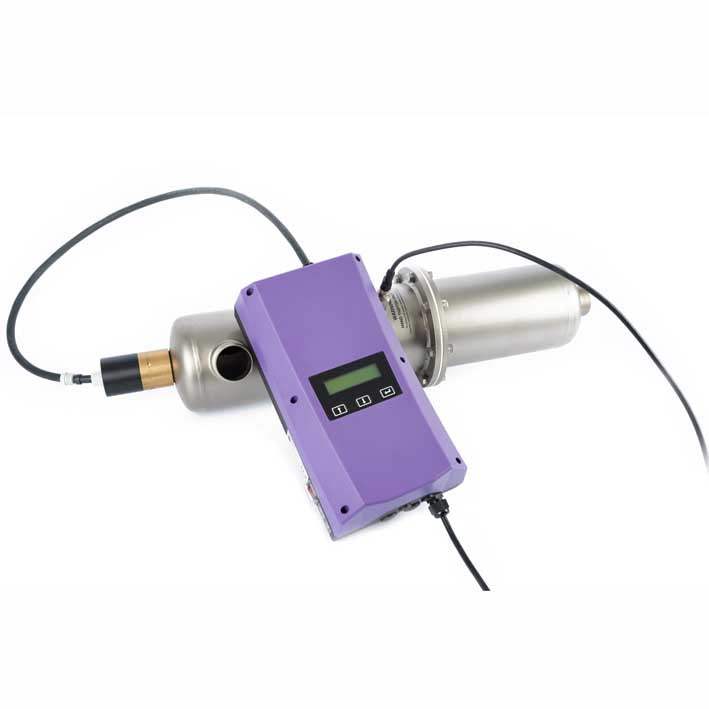

V120 Van Remmen V-Series 3.1 m³/h: Advanced UV-C Water Disinfection System

The V120 Van Remmen V-Series 3.1 m³/h is a top-tier UV-C water disinfection system, designed to deliver reliable and energy-efficient water treatment. Engineered with precision, it handles water with transmittance values between 80% and 99%, ensuring an optimal UV-C dosage for microorganism elimination. Its robust construction, extended lamp lifespan, and advanced control system make it an industry-leading choice for various applications requiring efficient and validated water treatment.

Key Features

• Validated UV-C Dosage: Consistently delivers 300 J/m² for effective disinfection.
• High Lamp Output: Equipped with a 50W low-pressure lamp generating 15W UV-C output for maximum efficiency.
• Energy-Efficient Operation: Consumes only 19.4 Wh/m³ at 300 J/m², significantly reducing power requirements.
• Extended Lifespan: The UV-C lamp operates up to 8,000 hours, ensuring long-lasting performance and less frequent maintenance.
• Flexible Installation: Designed for horizontal or vertical mounting to suit various system configurations.

Technical Specifications

Advanced Control Unit Features

• Real-Time Monitoring: Tracks lamp status, lifespan, and system runtime to ensure peak performance.
• Alarm Integration: Includes volt-free alarm contacts to notify users of operation or fault conditions.
• Optional Safety Sensors: UV Sensor (UVS) and Temperature Safety Sensor (TSS) for extra monitoring and operational security.
• Temperature Management: Features a Temperature Safety Dump Valve (TSD) to prevent overheating and ensure safe operation.
• Durable Components: Constructed from aluminum and ABS with an IP55 rating to withstand challenging environments.

Certifications and Compliance

• Certified Disinfection Efficiency: Validated under NEN-EN 14897 standards for dependable UV-C performance.
• Regulatory Approvals: Complies with the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
• Industry Certifications: WRAS-certified and Kiwa ATA-approved for universal water treatment applications.

Application Areas

The V120 Van Remmen V-Series 3.1 m³/h is highly versatile, offering dependable disinfection across multiple industries and applications:

• Drinking Water Systems: Ensures clean, safe drinking water for residential or commercial use.
• Industrial Process Water: Guarantees consistent water quality for optimized manufacturing operations.
• Maritime & Offshore Industries: Performs reliably under harsh offshore conditions.
• Food & Pharmaceutical Companies: Meets rigorous safety and hygiene standards for specialized operations.
• Utility Buildings & Data Centers: Improves water quality in large-scale, non-residential facilities.

Why Choose the V120 Van Remmen V-Series?

Combining extensive research and cutting-edge engineering, the V120 Van Remmen V-Series delivers reliable, validated disinfection that’s both energy-efficient and cost-effective. Its advanced control features, long lamp lifespan, and robust stainless steel construction make it a top-tier solution for diverse water treatment needs.

Upgrade your water treatment systems with the V120 Van Remmen V-Series 3.1 m³/h today and enjoy superior performance, proven reliability, and optimized energy consumption!
