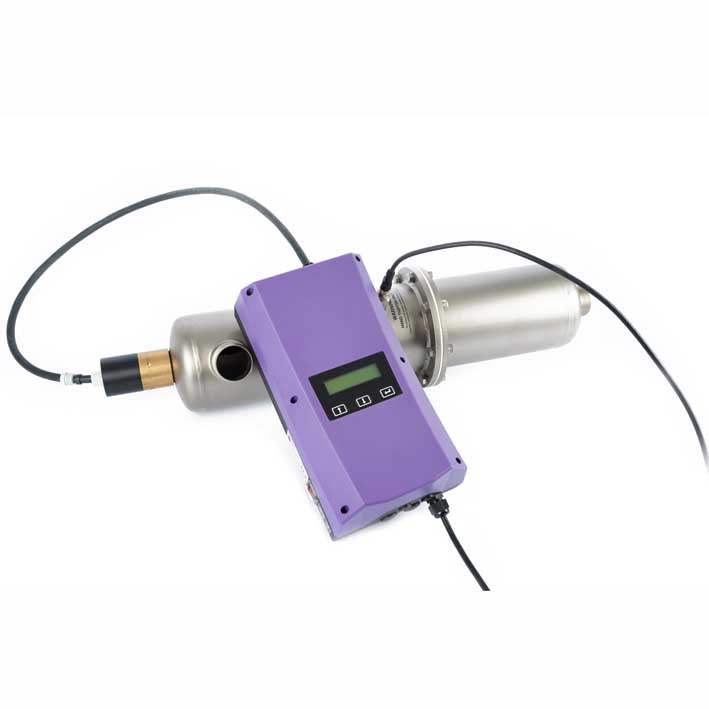

V120 Van Remmen V-Series 3.1 m³/h: Advanced UV-C Water Disinfection System
The V120 Van Remmen V-Series 3.1 m³/h is a top-tier UV-C water disinfection system, designed to deliver reliable and energy-efficient water treatment. Engineered with precision, it handles water with transmittance values between 80% and 99%, ensuring an optimal UV-C dosage for microorganism elimination. Its robust construction, extended lamp lifespan, and advanced control system make it an industry-leading choice for various applications requiring efficient and validated water treatment.
Key Features
- Validated UV-C Dosage: Consistently delivers 300 J/m² for effective disinfection.
- High Lamp Output: Equipped with a 50W low-pressure lamp generating 15W UV-C output for maximum efficiency.
- Energy-Efficient Operation: Consumes only 19.4 Wh/m³ at 300 J/m², significantly reducing power requirements.
- Extended Lifespan: The UV-C lamp operates up to 8,000 hours, ensuring long-lasting performance and less frequent maintenance.
- Flexible Installation: Designed for horizontal or vertical mounting to suit various system configurations.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Stainless steel (316L / 1.4404) |
| UV-C Dosage | 300 J/m² |
| UV-C Output | 15W |
| Connections | 1” BSP-T |
| Pressure Drop | < 0.1 bar |
| Max Pressure | 10 bar at 25°C |
| Mounting Orientation | Horizontal / Vertical |
| Dimensions | Height (B): 77 mm Diameter (A): 60 mm Length (D): 698 mm |
| Required Installation Space (E) | 1,255 mm |
| Weight | 4.9 kg |
| Lamp Type | 50W Regular UV-C Lamp |
| Lamp Lifespan | 8,000 hours |
| Power Consumption | 19.4 Wh/m³ at 300 J/m²; 24 Wh/m³ at 400 J/m² |
| Preferred Water Temperature | 5°C - 30°C |
Advanced Control Unit Features
- Real-Time Monitoring: Tracks lamp status, lifespan, and system runtime to ensure peak performance.
- Alarm Integration: Includes volt-free alarm contacts to notify users of operation or fault conditions.
- Optional Safety Sensors: UV Sensor (UVS) and Temperature Safety Sensor (TSS) for extra monitoring and operational security.
- Temperature Management: Features a Temperature Safety Dump Valve (TSD) to prevent overheating and ensure safe operation.
- Durable Components: Constructed from aluminum and ABS with an IP55 rating to withstand challenging environments.
Certifications and Compliance
- Certified Disinfection Efficiency: Validated under NEN-EN 14897 standards for dependable UV-C performance.
- Regulatory Approvals: Complies with the Low Voltage Directive (2014/35/EU) and Electromagnetic Compatibility Directive (2014/30/EU).
- Industry Certifications: WRAS-certified and Kiwa ATA-approved for universal water treatment applications.
Application Areas
The V120 Van Remmen V-Series 3.1 m³/h is highly versatile, offering dependable disinfection across multiple industries and applications:
- Drinking Water Systems: Ensures clean, safe drinking water for residential or commercial use.
- Industrial Process Water: Guarantees consistent water quality for optimized manufacturing operations.
- Maritime & Offshore Industries: Performs reliably under harsh offshore conditions.
- Food & Pharmaceutical Companies: Meets rigorous safety and hygiene standards for specialized operations.
- Utility Buildings & Data Centers: Improves water quality in large-scale, non-residential facilities.
Why Choose the V120 Van Remmen V-Series?
Combining extensive research and cutting-edge engineering, the V120 Van Remmen V-Series delivers reliable, validated disinfection that’s both energy-efficient and cost-effective. Its advanced control features, long lamp lifespan, and robust stainless steel construction make it a top-tier solution for diverse water treatment needs.
Upgrade your water treatment systems with the V120 Van Remmen V-Series 3.1 m³/h today and enjoy superior performance, proven reliability, and optimized energy consumption!
