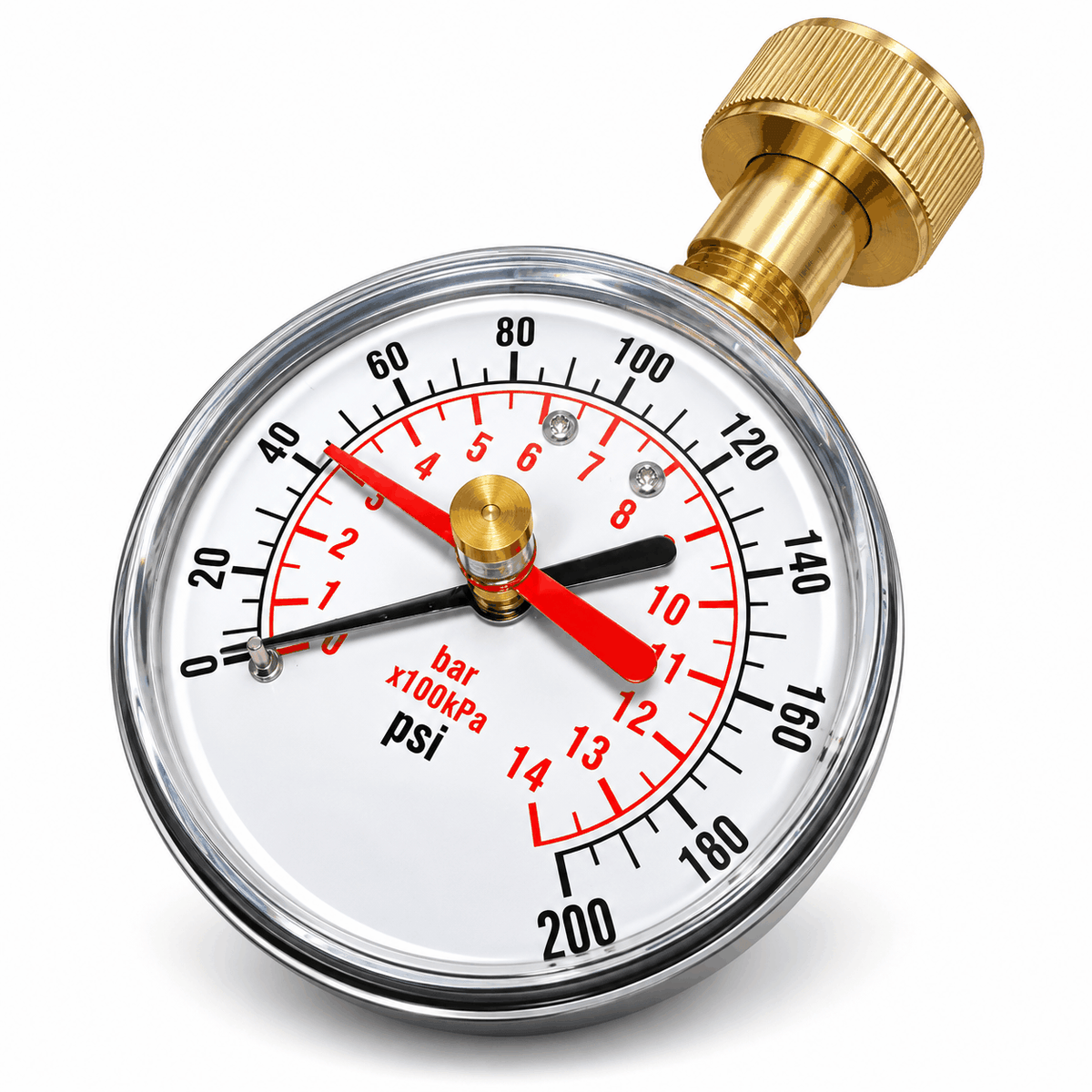

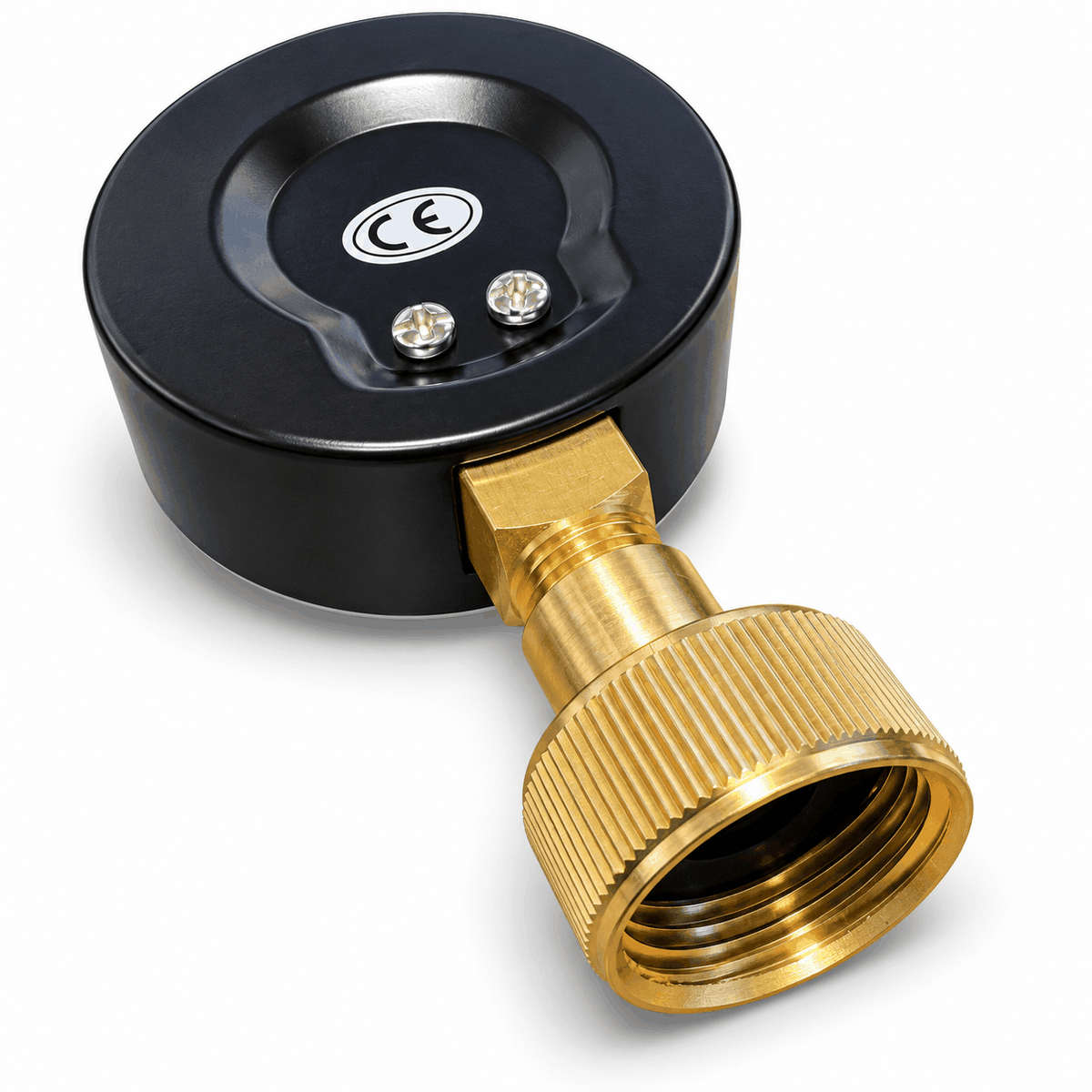

0–200 PSI Water Pressure Tester Gauge – 3/4" Female Hose Thread

The 0–200 PSI Water Pressure Tester Gauge provides a quick and convenient way to check water pressure from an outside tap, hose connection or other compatible 3/4" male hose outlet. The large 2-1/2" dial gives clear pressure readings, while the red marker pointer can be used to help identify the maximum pressure reached during testing.

Designed with a brass/copper alloy connection and durable gauge body, this compact tester is suitable for plumbing checks, domestic water pressure testing, garden hose systems and investigating possible pressure-related issues.

Key Features

• Pressure range: 0–200 PSI

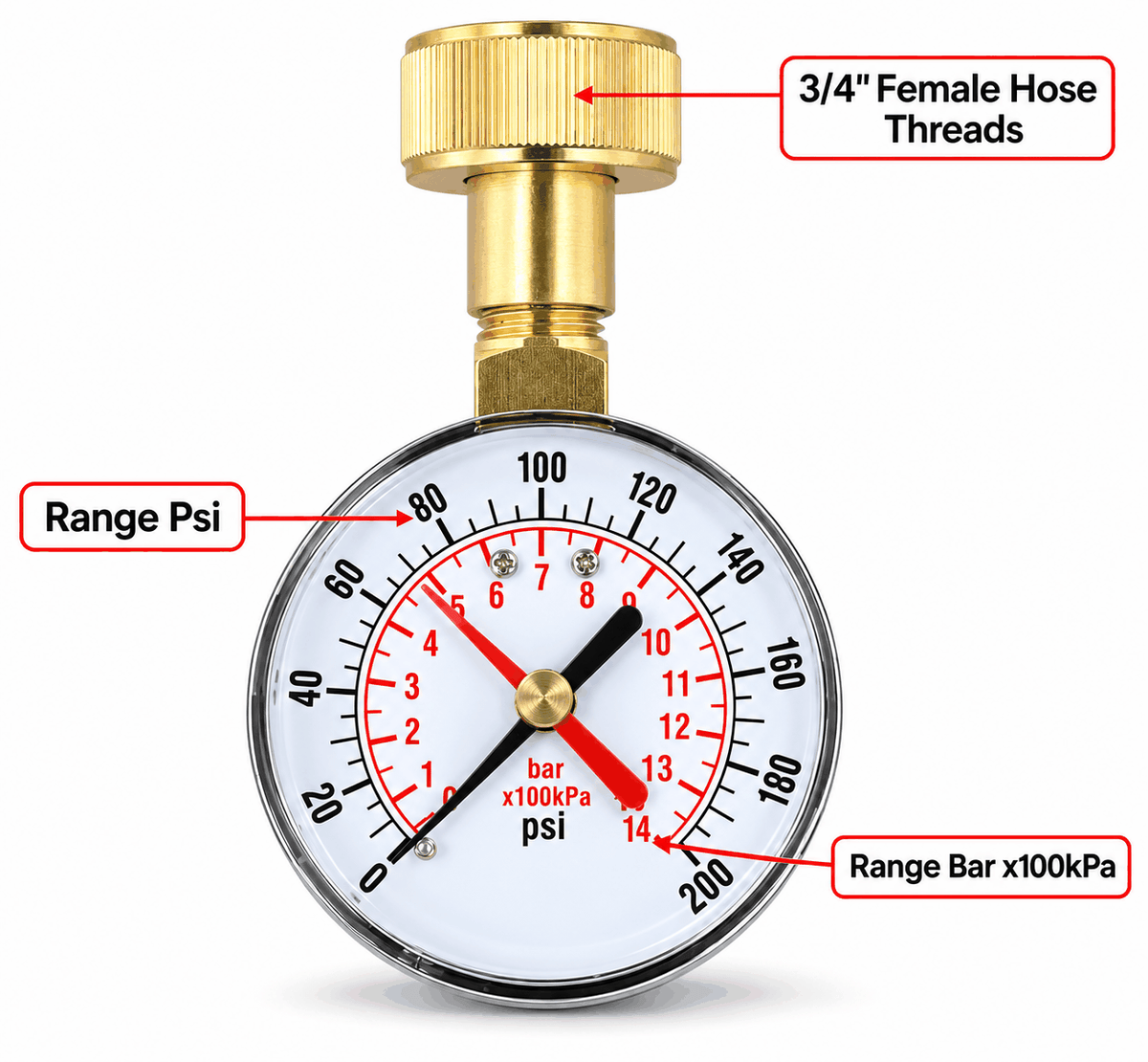

• Dual scale: PSI / bar with kPa indication

• Dial size: approximately 2-1/2"

• Connection: 3/4" female hose thread

• Accuracy class: 1.6

• Brass / copper alloy threaded connection

• Red marker pointer for monitoring peak pressure

• Simple screw-on connection for quick testing

• Compact and reusable design

Static Pressure Measurement

This gauge measures static water pressure – the pressure available when no water is flowing from the outlet.

Please note that the actual flowing or dynamic pressure will normally be lower once water starts moving through the pipework or equipment. The difference will depend on the flow rate, pipe size, length of pipework, fittings and any equipment installed in the system.

For example, if you are checking the available pressure before supplying a water filter, softener, reverse osmosis system or other water-treatment equipment, a static reading of 4 bar does not necessarily mean that 4 bar will be available while the equipment is operating. The pressure may fall once water is flowing through the system.

Typical Applications

• Checking domestic mains water pressure

• Testing outside taps and hose outlets

• Plumbing and maintenance work

• Garden irrigation and hose systems

• Diagnosing high or low water pressure

• Checking pressure fluctuations

• Checking available static pressure before water-treatment equipment

Specifications

• Pressure range: 0–200 PSI

• Thread size: 3/4" female hose thread

• Materials: Brass, plastic and copper alloy

• Accuracy grade: 1.6

• Approximate size: 105 × 62.5 mm

• Quantity: 1 pressure gauge
