AquaMatic K524-RAV Viton Diaphragm and Seals Kit1077593
AquaMatic K524-RAV Diaphragm & Seals Kit (All-Viton) – Part No: 1077593
The AquaMatic K524-RAV Diaphragm & Seals Kit (Part No: 1077593 / Model: 524-RAVFVN) is a premium, factory-certified OEM service kit designed for routine maintenance and seal replacement on AquaMatic K52 Series 1 ½" and 2" composite control valves.
Unlike standard elastomer kits, the 1077593 kit features 100% Viton (FKM) components, including both the primary main valve diaphragm and all critical static/dynamic seals. This makes it the ideal upgrade or direct replacement for high-spec water treatment systems dealing with aggressive chemicals, ozone dosing, high temperatures, deionised water, or chlorine concentrations that would rapidly break down standard EPDM or Nitrile alternatives.
Key Features & Benefits
-
100% Premium Viton (FKM) Composition: Offers maximum chemical resistance and thermal stability, preventing premature seal swelling or degradation.
-
Exact OEM Compatibility: Engineered by AquaMatic to meet the precise sealing tolerances of K524 composite valves.
-
Prevents Fluid Cross-Contamination: Replaces the core fluid-separating boundaries, restoring tight external and internal isolation.
-
Eliminates Leaks & Pressure Loss: Restores optimal valve responsiveness and cycling control.

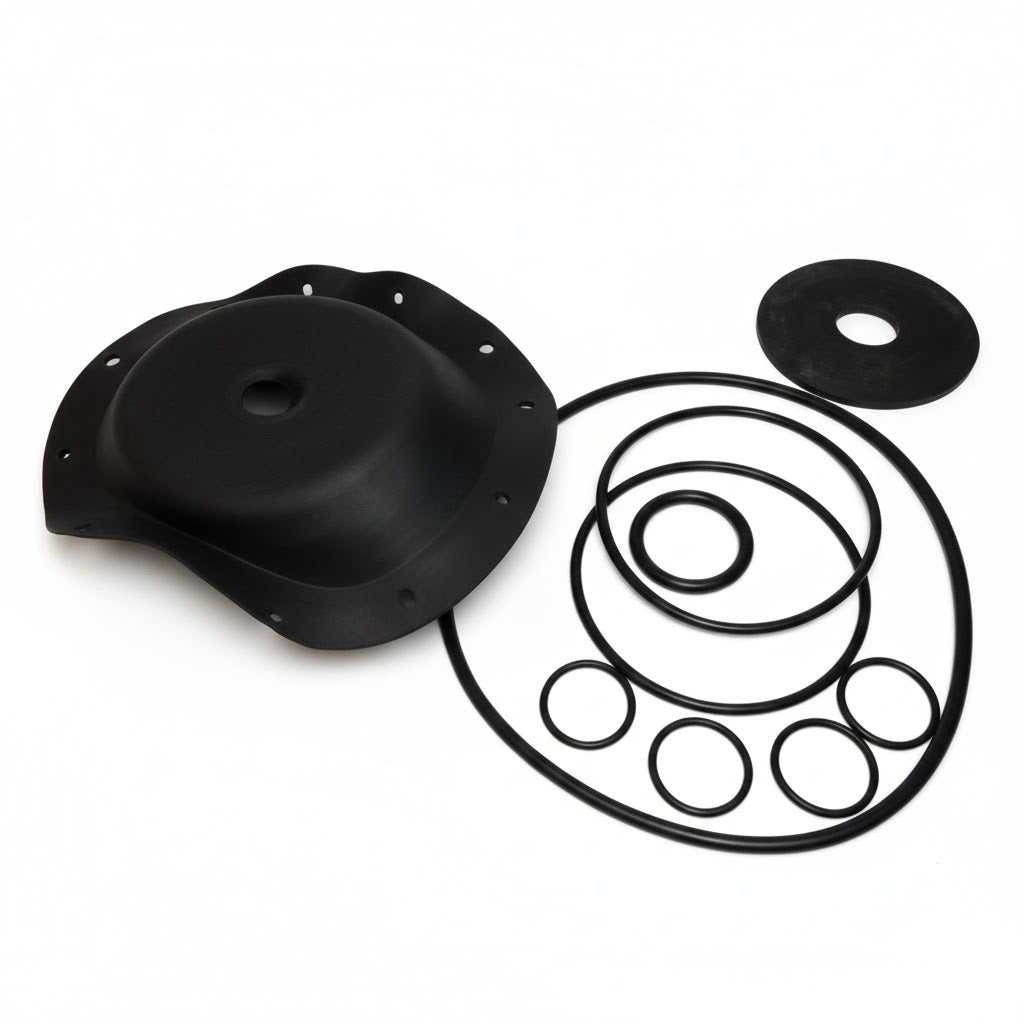

📋 Parts Included in This Kit
This comprehensive overhaul kit contains the following items (cross-referenced with the official AquaMatic K524 schematic item numbers):
| Item No. | Component Description | Material | AquaMatic Part No. | Qty |
| 3 | Main Valve Disc | Viton (FKM) | 1075109 | 1 |
| 6 | Shaft O-Ring (Size: 2-210) | Viton (FKM) | 1071815 | 1 |
| 7 | Internal O-Rings (Size: 2-113) | Viton (FKM) | 1071728 | 2 |
| 8 | Preformed, Stress-Relieved Diaphragm | Viton (FKM) | 1075105 | 1 |
| 9 | Small Shaft O-Ring (Size: 2-043) | Buna / FKM | 1071686 | 1 |
| 15 | Body Cap O-Ring (Size: 2-137) | Viton (FKM) | 1071807 | 1 |
Technical Specifications
-
Manufacturer: AquaMatic (AQ Matic)
-
Part Number: 1077593
-
Model Designation: K524-RAV (524-RAVFVN)
-
Material Profile: Viton / FKM (Fluorocarbon Elastomer)
-
Compatible Valves: AquaMatic K52 Series 1 ½" & 2" Composite Valves
-
Chemical Resistance: Excellent for acids, caustic solutions, ozone, hydrocarbons, and chlorinated water.
Typical Applications
-
Servicing valves used in chemical injection and metal recovery loops
-
Deionisation (DI) and desalination plant maintenance
-
High-purity process water lines in pharmaceutical or semiconductor manufacturing
-
Water treatment applications utilizing harsh chemical regenerants
