Atlas L12 11.4 L/min (0.7 m³/hr) UV Unit 1/2" NPT

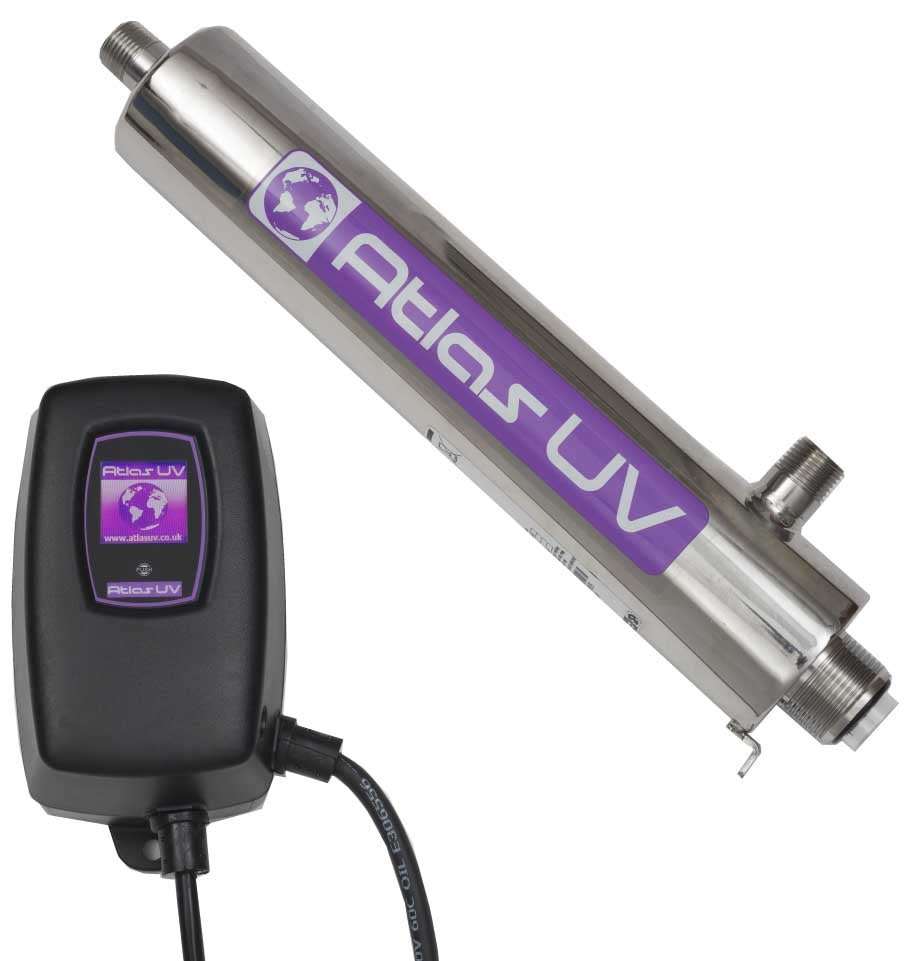

Atlas L12 UV Unit – Robust UV Disinfection for Small-Sized Properties

The Atlas L12 UV Unit is expertly designed to provide reliable disinfection for your drinking water. Perfect for smaller properties, this unit handles flows of up to 11.4 L/min (0.7 m³/hr), ensuring safe and clean water throughout your home. With advanced features and intuitive design, it offers a dependable solution for domestic water treatment.

Key Features

• Tailored for Smaller Properties
  Ideal for properties with moderate water demand, the Atlas L12 UV Unit delivers a powerful UV dosage of 30 mJ/cm², ensuring thorough water disinfection at the end of its lamp’s 1-year lifespan.

• WRAS-Approved System
  This unit is WRAS-certified, ensuring it meets the highest standards for drinking water safety and performance.

• Durable Stainless Steel Chamber
  Built from 304 stainless steel, the polished, pressure-rated chamber enhances UV efficiency and stands up to challenging conditions with long-lasting durability.

• Intuitive Color LCD Display
  Monitor your system effortlessly with the color LCD screen, designed to provide real-time feedback, including remaining lamp life, total days of operation, and maintenance reminders.

• Effortless Installation
  The plug-and-play setup makes installation straightforward, ensuring seamless integration into your existing water treatment system.

• Smooth Lamp Replacement
  Designed with convenience in mind, the twist-and-turn lamp change process eliminates the need for tools or water flow interruption, making maintenance a breeze.

• Versatile Power Compatibility
  Operates efficiently on 90-265V input (50-60Hz), adaptable to both mains power and true sine wave generators.

• Upgradeable Design for Future Needs
  Upgradeable to support optional modules, including solenoid outputs, UV sensors, remote alarms, and 4-20mA output for expanded functionality.

Specifications

• Flow Rate: 11.4 L/min (0.7 m³/hr) at 30 mJ/cm²
• Port Size: 1/2” MNPT
• Lamp Power: 15W
• Power Supply: 20W, European CEE 7/7 Plug Type
• Reactor Dimensions: 6.4 x 36.4 cm (2.5 x 14.3”)
• Chamber Material: 304 Stainless Steel, A249 Pressure-Rated Tubing
• Operating Pressure: 0.7-10.3 bar (10-150 psi)
• Operating Water Temperature: 2-40°C (36-104°F)

Why Choose the Atlas L12 UV Unit?

• Canadian Precision Manufacturing
  Proudly manufactured in Canada, this CE-certified UV system is backed by an exceptional warranty, as well as UK-based sales support and spare parts availability.

• Peace of Mind with Easy Maintenance
  QR codes provide instant access to service support and spare parts, ensuring the system stays up and running without hassle.

The Atlas L12 UV Unit is a premium choice for UV disinfection, offering unparalleled performance, easy operation, and reliable water safety for your small property. Experience the benefits of clean, great-tasting water today – order your Atlas L12 UV Unit!
