Atlas UV LED 7LPM
SKU:
UVLED-7L
Regular price
£144.00
Unit price
Shipping calculated at checkout.
Technical Resources
Technical Resources
Questions & Answers loading...
Atlas UV LED 7LPM
Regular price
£144.00
Unit price
The Atlas UV LED 7LPM delivers chemical-free, energy-efficient disinfection designed for reverse osmosis systems, post-filtration setups, food service (Horeca), laboratories, and domestic drinking water applications. Powered by solid-state UV-C LED technology, it eliminates over 99.9% of bacteria and viruses (including E. coli) instantly on demand without warming the water or using toxic mercury.
Key Features & Performance
-
Instant-On Sterilization: Destroys bacterial and viral DNA instantly without requiring warm-up time.
-
Intelligent Auto-Flow Activation: Integrated flow sensor automatically triggers full-power disinfection when water starts flowing.
-
Zero Heat Transfer: Unlike conventional UV quartz lamps, the LED design does not transfer heat to standing or flowing water.
-
Eco-Friendly & Safe: 100% mercury-free construction leaves no chemical byproducts, taste, or odor.
-
Extended Service Life: Delivers up to 3,000 active operating hours.
-

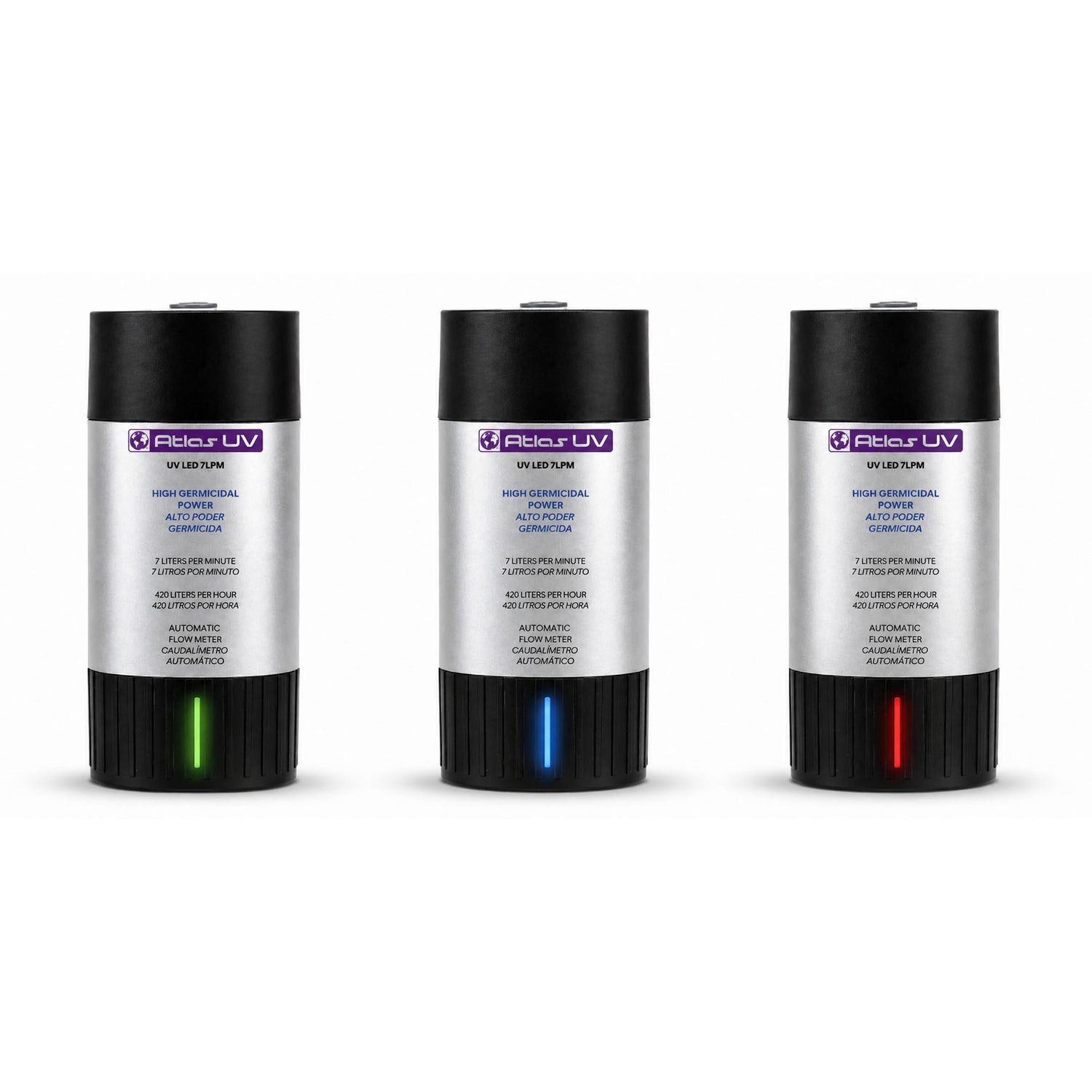

Visual & Acoustic Monitoring: Multi-colour LED indicator tracks operating conditions in real time:
-
Blue: Standby mode (operates at low power to conserve energy).
-
Green: Active operation at maximum power during water flow.
-
Red + Acoustic Alarm: End of service life warning.
-
Technical Specifications
| Specification | Details |
| Model | Atlas UV LED 7LPM |
| Max Flow Rate (Osmotized Water) |
7 L/min (420 L/h)
|
| Flow Rate (10-Micron Filtered Water) |
3–5 L/min
|
| Minimum Activation Flow |
0.5–1.0 L/min
|
| Disinfection Rate |
≥99.9% (E. coli)
|
| Lifespan |
3,000 active hours
|
| Power Supply |
Input: 100–240V 50/60Hz | Output: 24 VDC 1A
|
| Power Consumption |
10.5 W (Max)
|
| Inlet / Outlet Ports |
3/8" Quick Connection
|
| Operating Pressure |
Up to 0.8 MPa (8 bar)
|
| Operating Temperature |
2°C to 65°C
|
| Materials & Enclosure |
Polypropylene (PP) & Aluminium Alloy Heat Sink; IPX7 waterproof grade
|
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the sterilization rate of the KINGLIGHT UV LED 7L water purification system?
The KINGLIGHT UV LED 7L system effectively eliminates harmful microorganisms with a sterilization rate of ≥99.9% for E. Coli, ensuring safe and clean water.
How energy-efficient is the KINGLIGHT UV LED 7L compared to other water purification options?
Operating at just 10.5 W, the KINGLIGHT UV LED 7L is a highly energy-efficient choice that provides high performance while minimizing power consumption.
Can the KINGLIGHT UV LED 7L be used with different types of water systems?
Yes, the KINGLIGHT UV LED 7L supports both filtered and reverse osmosis (RO) water systems, making it versatile for various water treatment needs.
Is the installation process of the KINGLIGHT UV LED 7L complicated?
No, the system features 3/8” connections for straightforward installation, and a reducer can be used for 1/4” pipe setups, making it easy to set up in different environments.
What are the key features that make the KINGLIGHT UV LED 7L a durable and reliable water purifier?
With up to 3,000 hours of service life, IPX7 waterproofing, and a compact design, the KINGLIGHT UV LED 7L is built to last and perform reliably in tough conditions.
