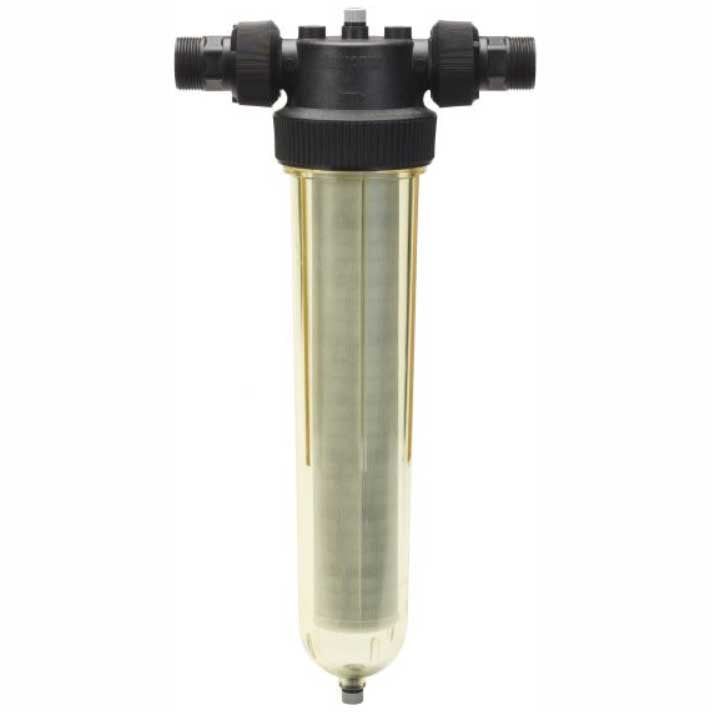

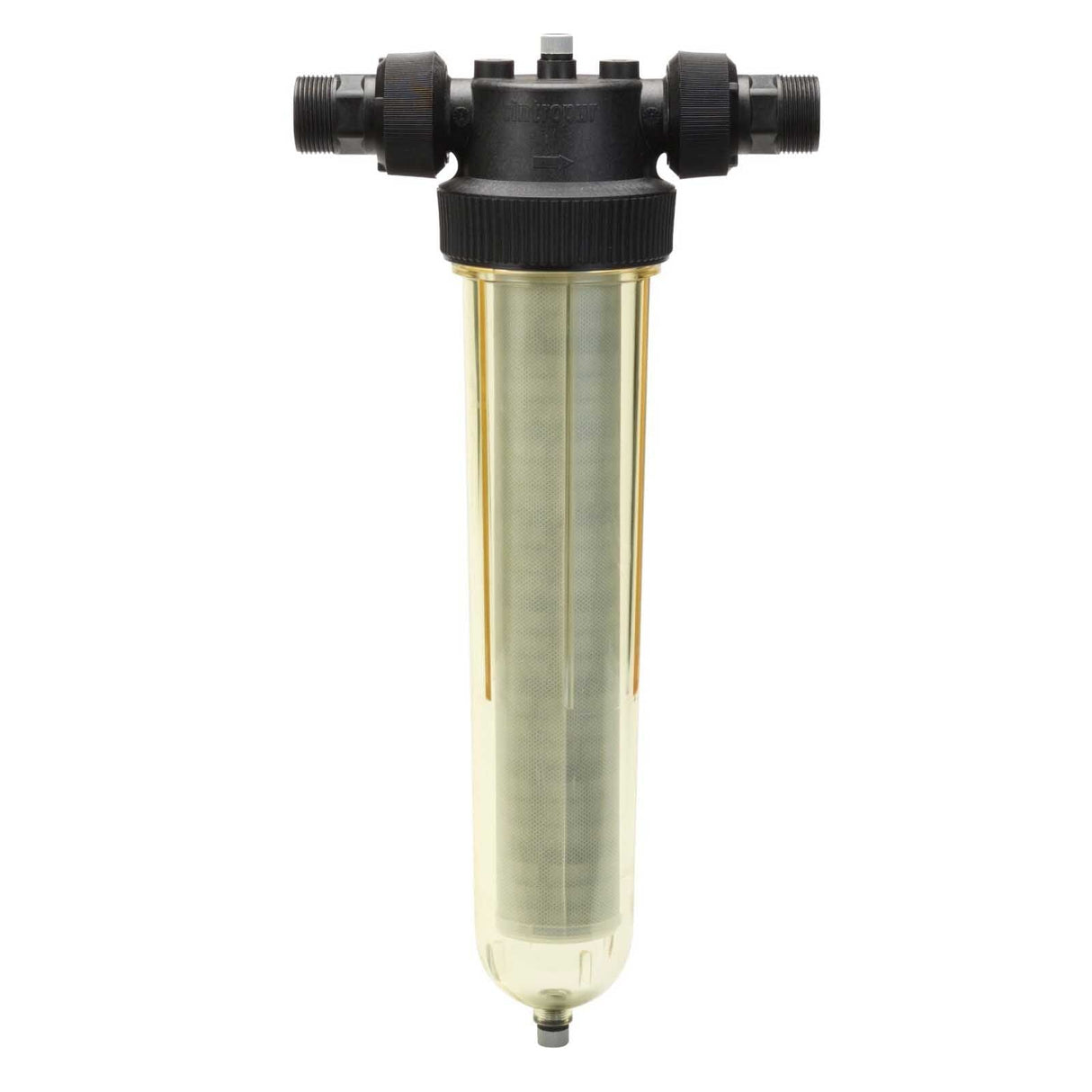

Cintropur NW 32 1 1/4" FI-0502-02

SKU: 1602015733
£94.68
Tax included Shipping calculated at checkout.


Product Description

The brand CINTROPUR® offers a wide range of mechanical filters designed for filtering clear and slightly contaminated water.

Average flow rate (differential pressure 0.2 bar): 6.5 m3/h
Working pressure: 10 bar (142 psi)
Max. operating pressure: 16 bar (228 psi)
Max. operating temp.: 50°C

Basic principle: filtering out solid particles (earth, sand, rust, etc,) suspended in the water.

Possibility of combining mechanical filter + UV and activated carbon with DUO, TIO® (Two in one) TIO®+UV.

Main advantages

• double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
• filtration practically without accumulation
• low pressure drop
• high and constant flow rate
• wide choice of filtering fineness ranging from 5 to 300 microns
• sealing guaranteed thanks to the O-ring system
• fast and easy rinsing thanks to the drain cock
• long lifetime and uninterrupted spare parts supply
• reduced need for maintenance

APPLICATIONS

Residential :
Protection of sanitary networks supplied with domestic water, rainwater or well water.
Filtration of water before softener, reverse osmosis or treatment by ultraviolet.

Industrial :
Protection of sanitary networks, machine tools and all industrial machinery for water treatment. Filtration of water before high pressure cleaning machines (100 to 200 bar / 1500 to 3000 psi) and very high pressure cleaning machines (1500 to 2500 bar / 21000 to 35000 psi).

Agricultural :
Filtration of watering (spraying) installations.
Filtration of water for animals.
Filtration of rainwater and well water.
